Product Overview

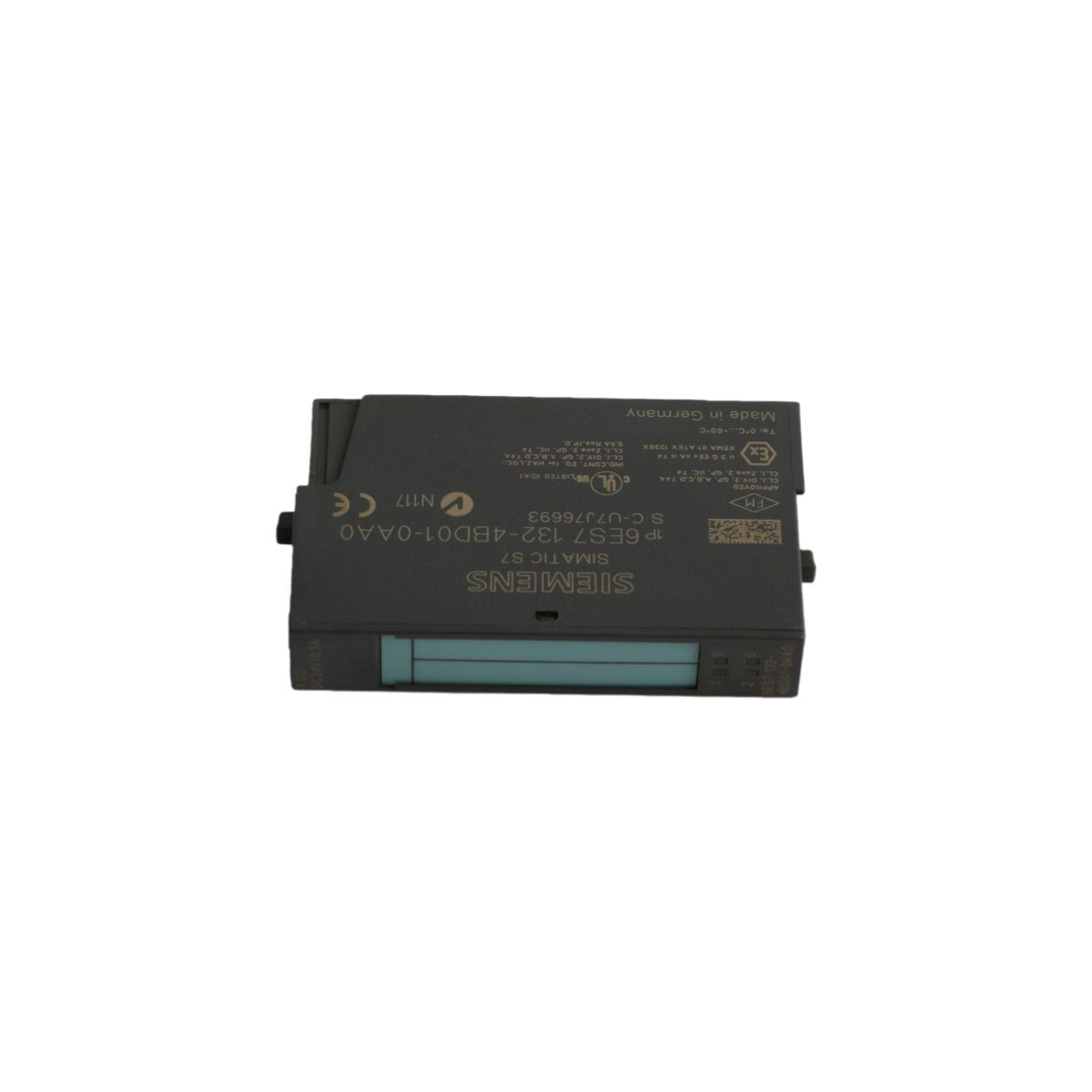

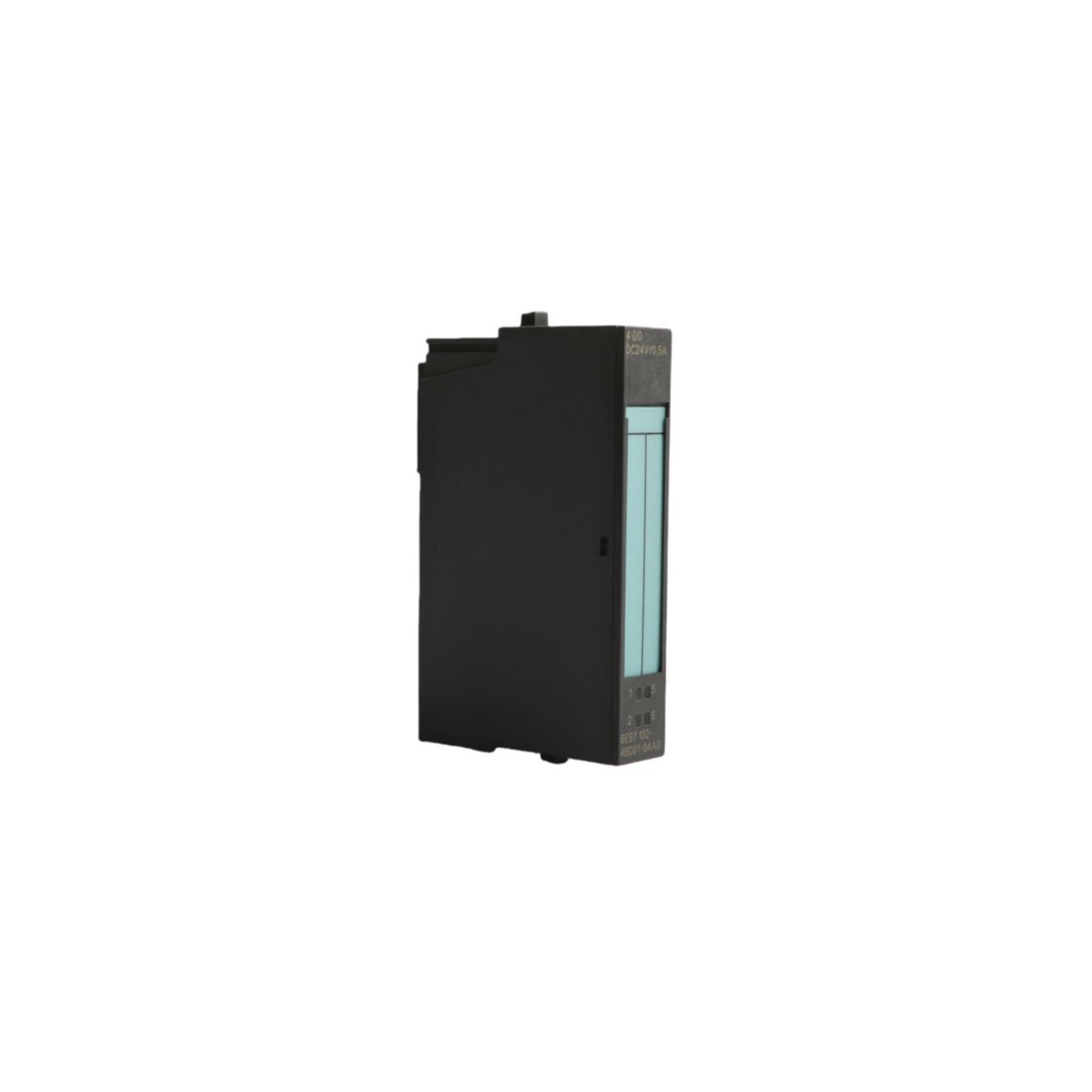

The 6ES7132-4BD01-0AA0 is a precision-engineered digital electronic module specifically created for the Siemens SIMATIC ET 200S distributed I/O family. This specific unit provides four discrete output channels designed to interface between the PLC logic and field-level actuators. By utilizing a compact 15mm form factor, this module allows system designers to maximize rail space within control cabinets without sacrificing switching performance. Each output is built to handle standard 24V DC signals, making it a staple component for decentralized automation architectures where reliability and high-density channel counts are paramount.

Performance Specifications and Hardware Logic

• Output Channels: 4 Digital Outputs (Source/PNP)

• Voltage Rating: 24V DC nominal

• Current Capacity: 0.5A per channel (max aggregate 2A per module)

• Switching Protection: Integrated short-circuit protection with a response range of 0.7A to 1.5A

• Inductive Protection: Automatic limiting of inductive shutdown voltage to approximately -55V to -60V

• Lamp Load Support: Capable of driving indicator lamps up to 5W per channel

• Energy Efficiency: Low thermal dissipation with a typical power loss of 0.8W

• Load Impedance: Operates reliably with load resistances ranging from 48Ω to 3.4kΩ

• Isolation: Galvanic isolation between the backplane bus and the load voltage

Deployment Scenarios and Field Utility

Discrete Actuator Control

The 6ES7132-4BD01-0AA0 is primarily utilized for managing low-power field devices. It is the preferred choice for triggering small interposing relays, contactors, and pneumatic solenoid valves in automated assembly lines. Its stable current delivery ensures that actuators engage and disengage with high repeatability.

Visual Signaling and HMIs

With its dedicated support for lamp loads, this module is frequently deployed to drive pilot lights, stack lights, and acoustic alarm sounders on the factory floor. The integrated protection prevents a single bulb failure or short from compromising the entire I/O station.

Material Handling and Logistics

In conveyor and sorting systems, the ET 200S architecture allows these modules to be placed close to the sensors and motors. This decentralized approach reduces long cable runs and minimizes electromagnetic interference, ensuring that the high-speed sorting logic is executed without signal degradation.

Maintenance and Scalability

Sold in convenient packaging units of five, this module allows for rapid system expansion and easy maintenance. The hot-swapping capability of the ET 200S system means that these modules can be replaced without shutting down the entire PLC station, significantly reducing potential downtime during routine servicing or upgrades.
