Product Overview

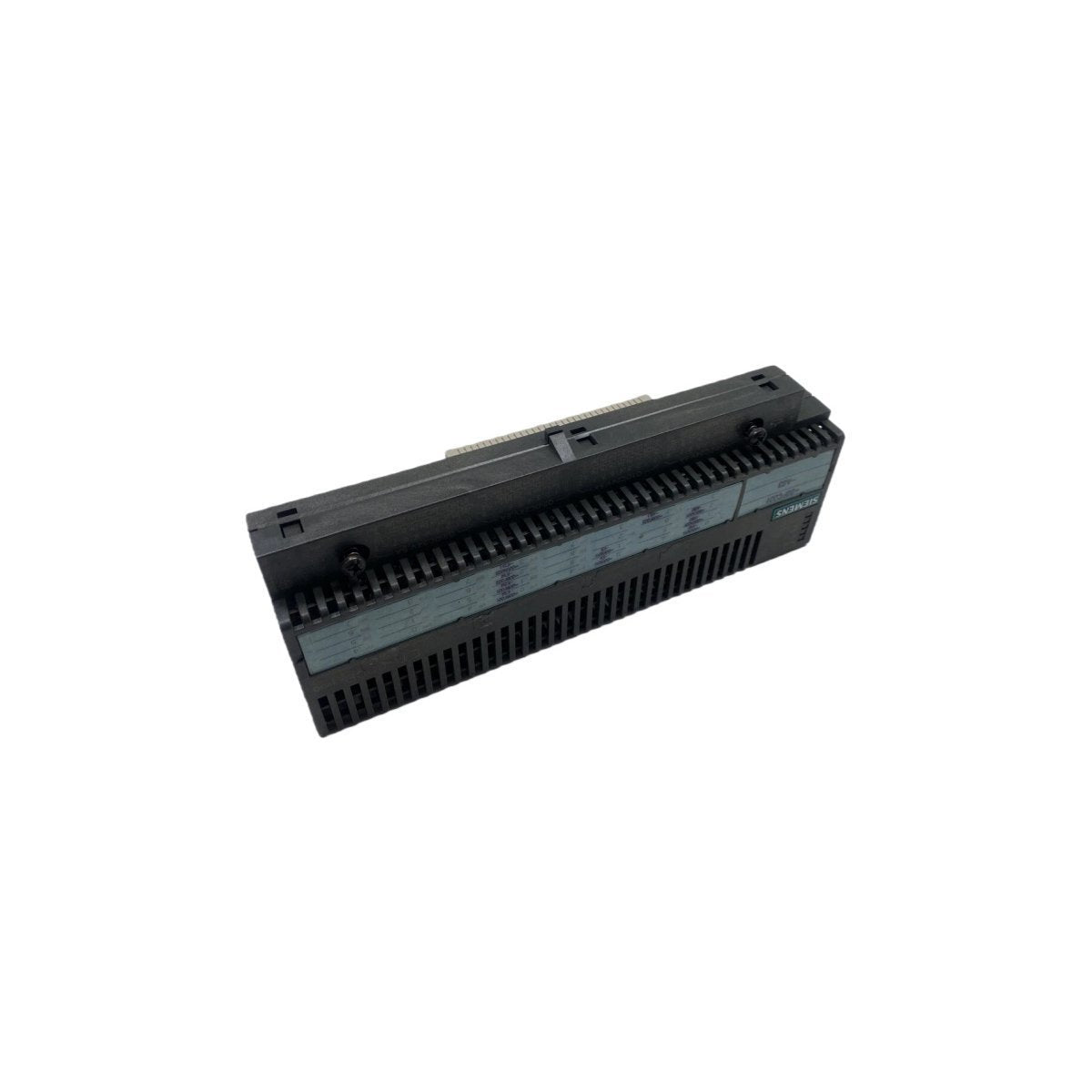

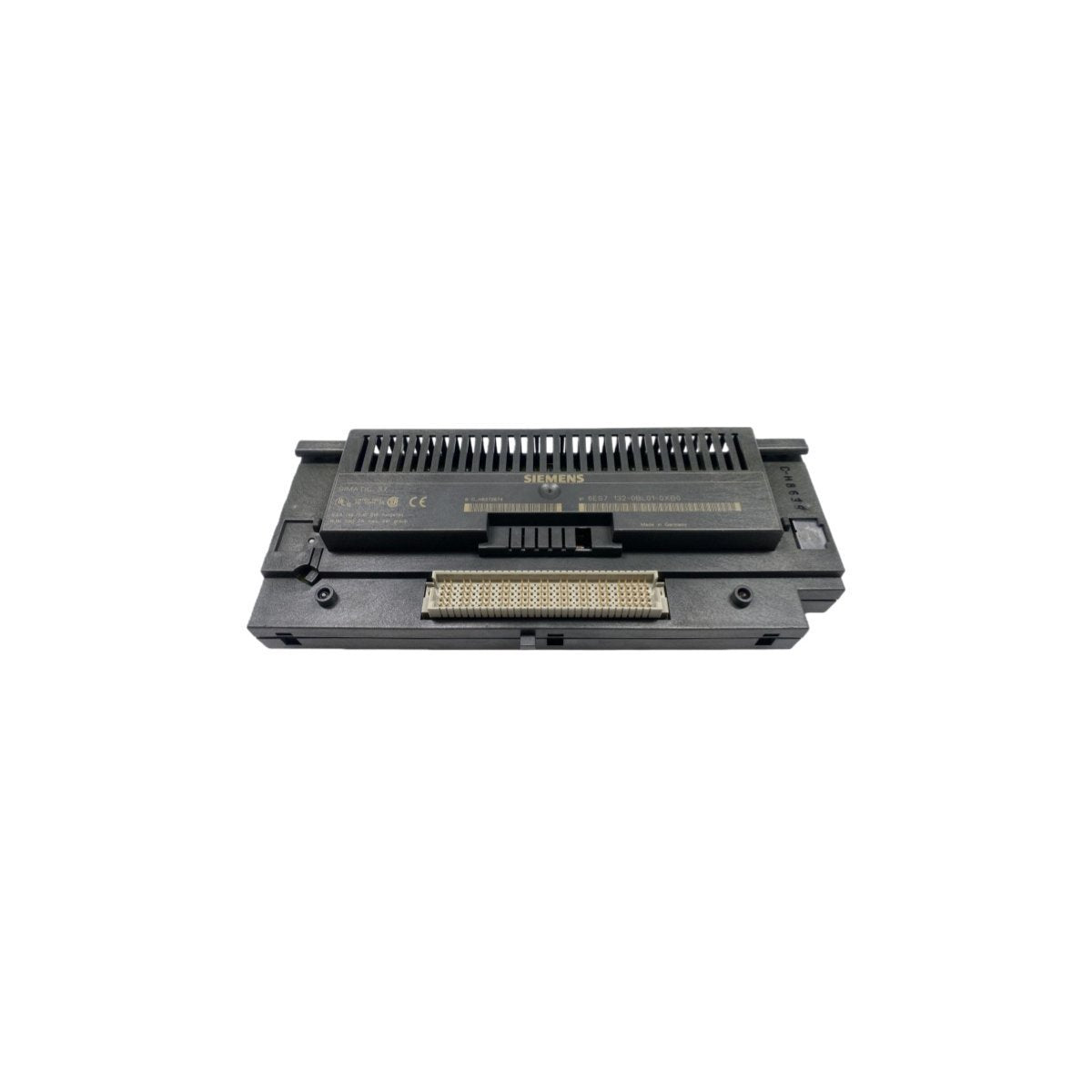

The 6ES7132-0BL01-0XB0 is a high-density electronic expansion module designed for the Siemens SIMATIC ET 200B distributed I/O system. This unit provides 32 discrete digital outputs, allowing for centralized control of numerous field devices from a single decentralized node. By converting internal PLC logic commands into 24V DC signals, it drives actuators, solenoid valves, and signaling equipment with high precision. The module is built to withstand the rigors of industrial environments, offering a reliable interface between the control level and the field level while optimizing cabinet space through its compact, multi-channel architecture.

Engineering Specifications and Hardware Metrics

• Output Capacity: 32 Digital Outputs

• Nominal Load Voltage: 24V DC (Permissible range 18.5V to 30.2V)

• Output Current per Channel: 0.5 Amperes

• Total Current Load: Up to 16A per module (depending on temperature and grouping)

• Short-Circuit Protection: Electronic, integrated for all channels

• Switching Frequency: 100Hz (Resistive), 8Hz (Lamp), 0.5Hz (Inductive)

• Inductive Clamp: Built-in voltage limitation to approx. -55V

• Isolation: Tested at 500V DC between logic and power sections

• Unit Mass: 0.95 kg

• Chassis Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Compatible Base Units: Terminal blocks TB2/DC or TB4/DC

Industrial Deployment and Logic Applications

The high channel density of the 6ES7132-0BL01-0XB0 makes it an indispensable component for large-scale automation projects:

• Conveyor and Sortation Systems: Managing a high volume of pneumatic pushers and diverters where rapid response times are critical for throughput.

• Complex Valve Manifolds: Driving large arrays of solenoid valves in chemical processing or water treatment plants, utilizing the module's 8-channel grouping for organized power distribution.

• Status Indication Panels: Operating extensive LED indicator banks and acoustic signalers on large machinery control stations.

• Packaging Machinery: Implementing precise timing for heating elements and cutting actuators using the module’s low-latency signal transition capabilities.

• Automotive Assembly: Interfacing with secondary control circuits for jig clamping and part presence confirmation within robotic cells.
