Product Overview

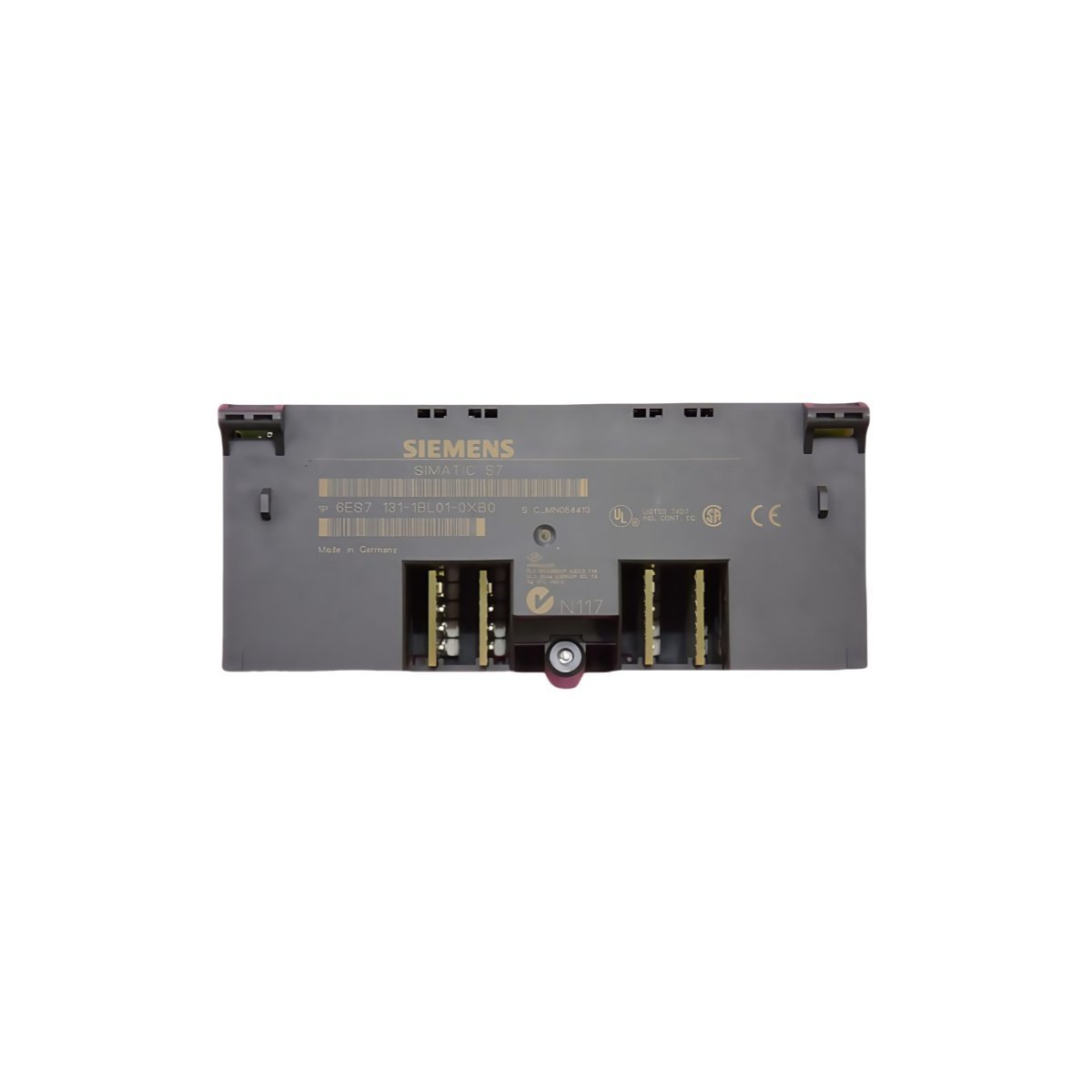

The Siemens 6ES7131-1BL01-0XB0 is a high-density digital input expansion module designed for the decentralized SIMATIC ET 200S I/O system. This electronic module provides 16 discrete input channels in a remarkably slim form factor, allowing for significant I/O concentration within a single station. Engineered for 24V DC logic, it captures field signals from sensors and switches with high precision and rapid response times. As a plug-in component for the ET 200S terminal modules, it facilitates a modular approach to automation, enabling system integrators to scale distributed control architectures while maintaining a minimal cabinet footprint.

Technical Profile and Architectural Parameters

• Input Channels 16 Digital Inputs

• Operational Voltage 24V DC

• Input Characteristics Type 1 (IEC 61131)

• Response Speed Typical input delay of 0.5 ms

• Diagnostic Indicators Individual Green LED per channel for status monitoring

• System Integration Connects via ET 200S Backplane bus

• Protection Rating IP20

• Unit Weight 0.04 kg

• Casing Dimensions 1.5 cm x 5.7 cm x 8.5 cm

• Manufacturing Origin Germany

• HS Classification 8537101190

This module is designed for "hot-swapping" (under specific station configurations), allowing for replacement without total system shutdown, which is vital for high-availability manufacturing environments.

Operational Deployment and Industrial Utility

This 16-channel electronic module is a primary choice for high-speed discrete automation where space is a premium. In packaging and material handling, the 6ES7131-1BL01-0XB0 is frequently used to aggregate signals from an array of photoelectric sensors, limit switches, and proximity detectors across long conveyor lines. Its rapid 0.5ms signal processing makes it ideal for sorting systems and bottling plants where high-speed synchronization is required to prevent process bottlenecks. Additionally, its robust design and individual channel LEDs simplify on-site maintenance in automotive assembly plants, allowing technicians to verify I/O status at a glance. By offloading signal acquisition to the decentralized ET 200S station via PROFIBUS or PROFINET, this module reduces wiring complexity and enhances the overall modularity of the industrial control network.
