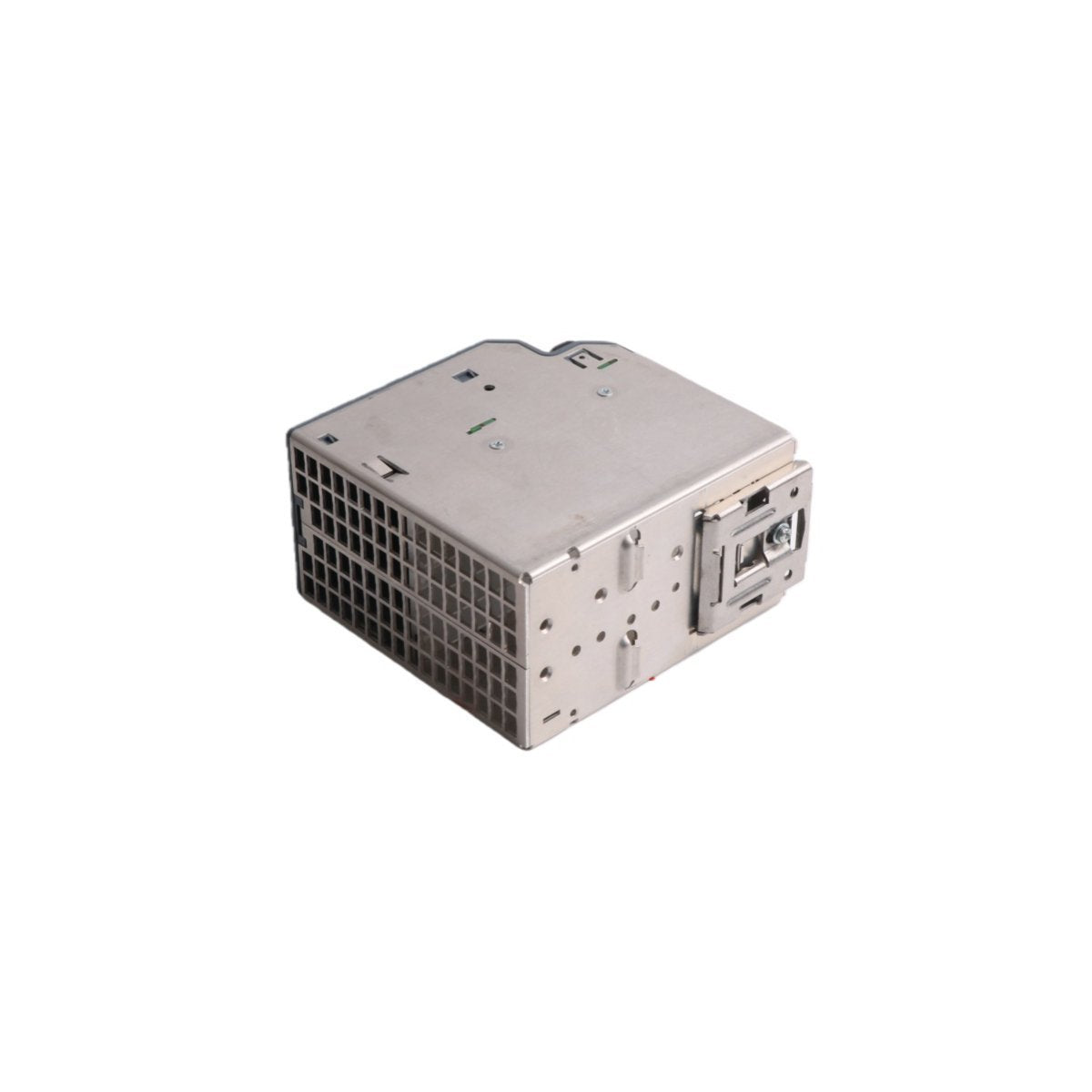

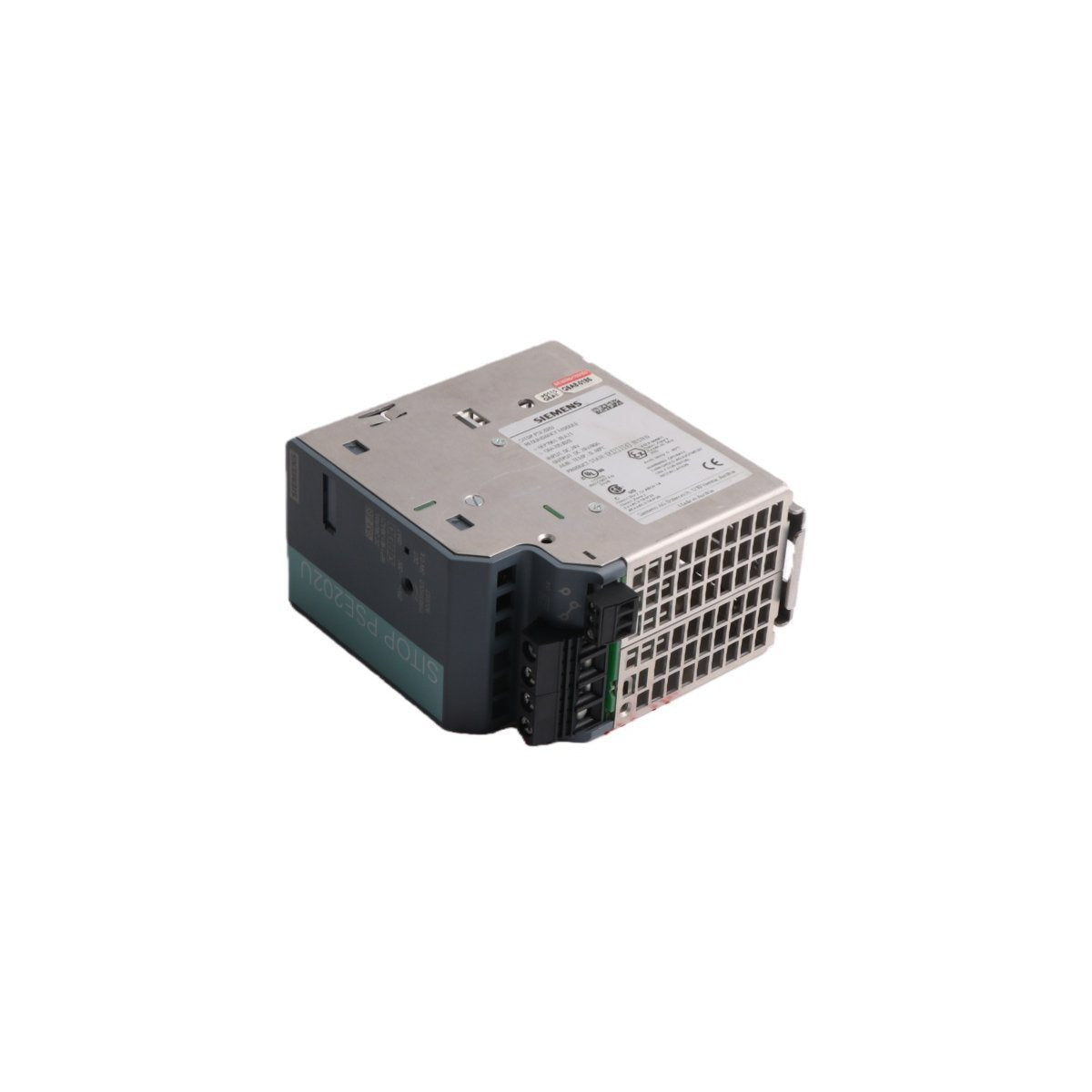

Product Overview

The Siemens 6EP1961-3BA21 is a high-reliability SITOP PSE202U redundancy module engineered to ensure maximum uptime in 24V DC power architectures. This critical safety component acts as a decoupling interface between two parallel power supplies, preventing a single internal short circuit or power failure from compromising the entire control loop. By isolating two SITOP units (up to 20A each), the module guarantees that if one power source drops out, the secondary unit takes over the full electrical load instantly and without interruption. This failsafe mechanism is essential for maintaining the integrity of PLC logic, industrial computing, and mission-critical sensor networks where power loss would lead to hazardous conditions or expensive production restarts.

Performance Architecture and Mechanical Attributes

• Input Configuration: Dual-channel input for decoupling two 24V DC power supplies

• Rated Output Current: 40 Amperes (Total combined capacity)

• Decoupling Method: Integrated power diodes for efficient load separation

• Status Monitoring: Built-in signaling contact for remote fault detection and PLC integration

• Visual Diagnostics: Integrated LED indicators for local status monitoring

• Efficiency: High-efficiency design with minimal voltage drop across the module

• Mounting Standard: Standard 35mm DIN rail installation

• Net Unit Weight: 0.50 kg (Standard Unit) / 0.95 kg (Shipping Package Mass)

• Module Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

• Protection Rating: IP20 industrial protection

Mission-Critical Industrial Deployments

The SITOP PSE202U is the industry standard for systems that cannot tolerate even millisecond-level voltage dips. Key industrial applications include:

• Continuous Process Automation: Ensuring uninterrupted 24V DC supply for pharmaceutical reactors and chemical processing plants where a power glitch would ruin entire batches.

• Redundant PLC Powering: Providing a failsafe energy backbone for Siemens S7-1200 or S7-1500 controllers in critical safety-instrumented systems (SIS).

• Automated Material Handling: Safeguarding high-volume sorting and logistics hubs against power module failures to prevent conveyor jams and system-wide logic resets.

• Infrastructure and Utility Control: Supporting remote telemetry units (RTUs) and water treatment control systems that require 24/7 operational readiness in unstaffed locations.

• Parallel Power Scaling: Utilizing the module to combine the output of two identical SITOP units to support high-draw actuators while maintaining a redundant safety margin.
