Product Overview

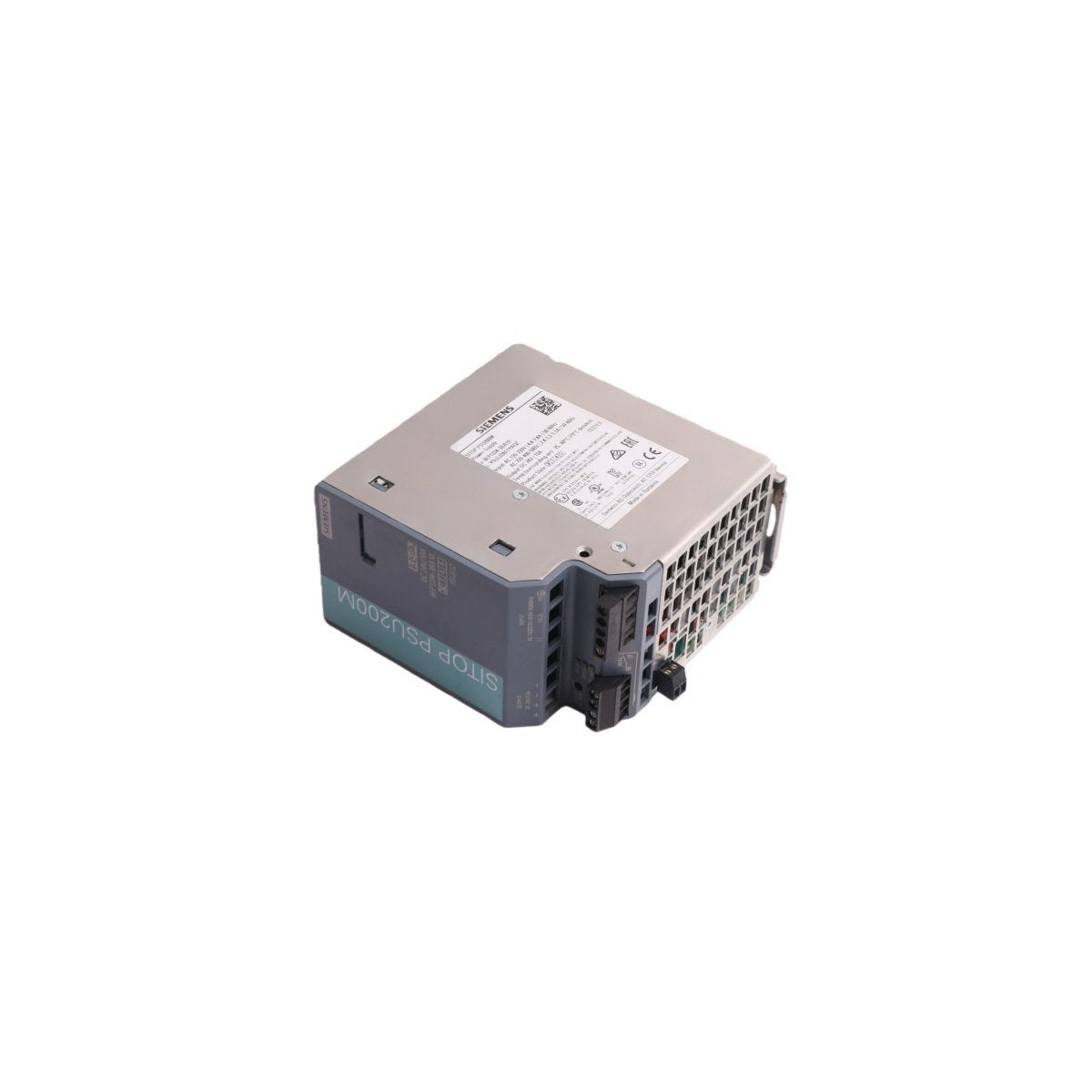

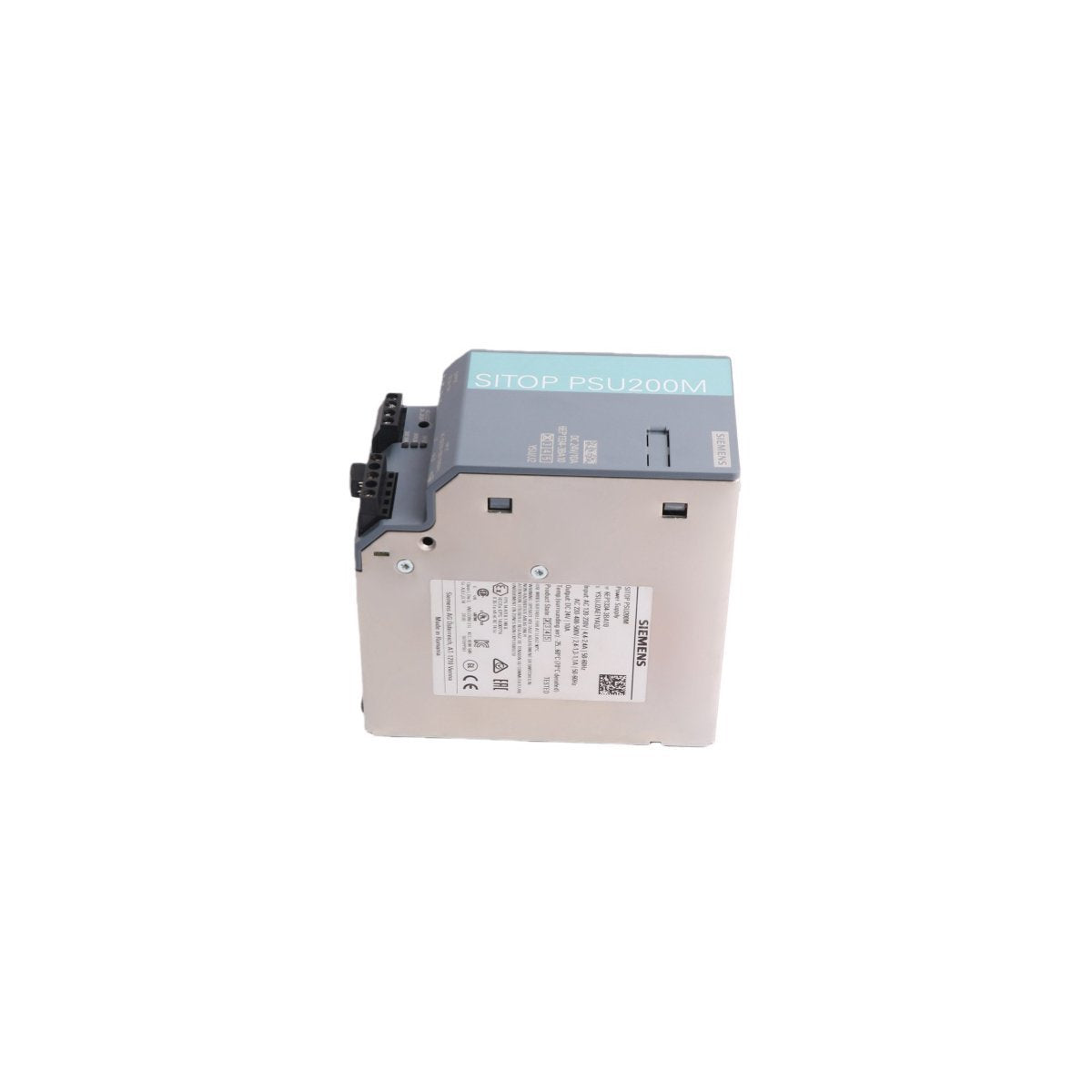

The Siemens 6EP1334-3BA10 is a high-efficiency, primary-clocked power supply unit belonging to the SITOP modular PSU200M range. Engineered for advanced industrial applications, this module provides a stabilized 24V DC output at a 10A current rating. A standout feature of this unit is its ultra-flexible input stage, which supports both single-phase and two-phase AC networks (120/230V AC) and features a wide-range input capability (85-264V AC). This ensures the power supply can withstand significant line fluctuations without interrupting the DC rail. Its robust metal housing is optimized for DIN rail mounting, providing superior heat management and space efficiency in dense control cabinets.

Technical Performance Data and Physical Specifications

• Output Voltage: 24V DC (Stabilized and isolated)

• Output Current: 10 Amperes (Nominal)

• Input Voltage Range: 1-phase or 2-phase AC 85...264 V

• Dynamic Performance: Integrated Power Boost provides 3x nominal current for short-term inrush loads

• Protection Logic: Selectable short-circuit behavior (constant current or latching shutdown)

• Efficiency: High energy conversion rate with minimal thermal loss

• Expansion Options: Fully compatible with SITOP redundancy, buffer, and DC UPS modules

• Module Weight: 0.84 kg (Net weight) / 0.95 kg (Shipping weight)

• Chassis Dimensions: 7.0 x 12.5 x 12.1 cm (Standard industrial compact profile)

• Mounting Type: Standard 35mm DIN rail (EN 60715)

• Manufacturing Origin: Germany

• HS Export Code: 8537101190

Industrial Deployment and System Utility

The 6EP1334-3BA10 is designed for critical automation systems where power quality directly impacts productivity. Primary industrial applications include:

• Automated Production Lines: Supplying clean 24V power to PLC CPUs, I/O modules, and HMI panels in automotive or electronics assembly.

• Process Control Infrastructure: Managing high inrush currents from solenoid valves and actuators via the integrated Power Boost functionality.

• Energy-Critical Facilities: Reducing operational costs through high efficiency and low heat generation, extending the life of adjacent components.

• Redundant Power Architectures: Integration with SITOP redundancy modules to create zero-fail power grids for 24/7 manufacturing plants.

• Marine and Offshore: Utilizing the unit's high immunity to line fluctuations and robust metal casing for maritime control panels.

• Complex Machinery: Acting as a reliable energy source for distributed I/O systems in large-scale packaging and textile machinery.
