Product Overview

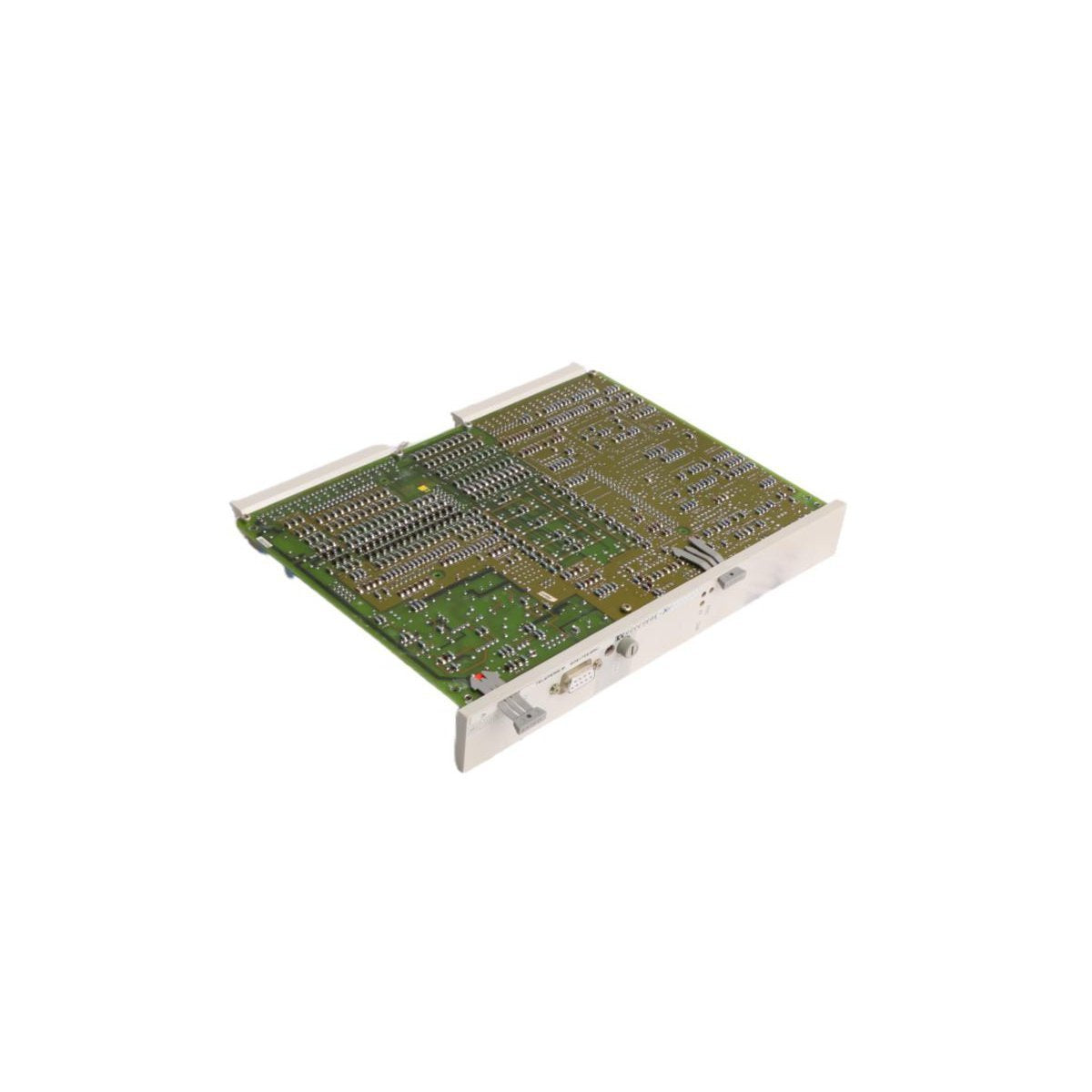

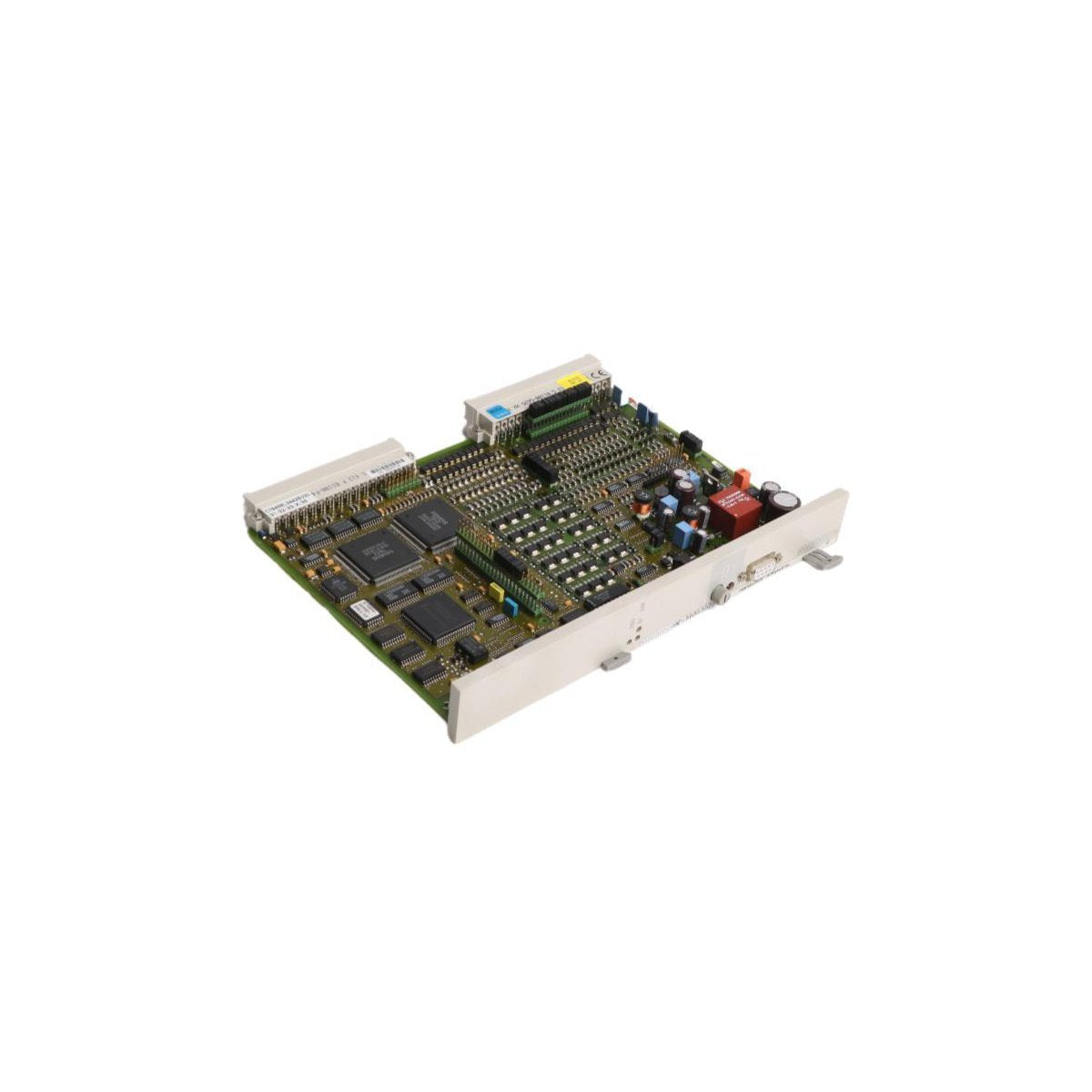

The 6DS1723-8BL is a high-precision analog expansion PCB designed for the Siemens Teleperm series control systems. This rack-mounted circuit board serves as a specialized interface that bridges the digital processing environment with analog field instrumentation. Its primary function is to convert internal controller commands into standard industrial current signals, allowing for the fine-tuned modulation of process variables. Built to high engineering standards, this module ensures that the integration of analog loops—such as those required for pressure regulation or flow management—is handled with maximum signal integrity and minimal interference.

Hardware Specifications and Measurement Capabilities

• Signal Output Range: Standard 0 to 20 mA industrial current loop

• Conversion Resolution: 14-bit architecture for ultra-fine signal stepping

• System Accuracy: Exceptional 0.1% of the total span for high-fidelity control

• Input Power Requirements: 24 V DC nominal (with an allowable variance of ±10%)

• Current Load: Efficient 150 mA draw during standard operation

• Thermal Tolerance: Rated for ambient operating temperatures between 0 °C and +60 °C

• Form Factor: Rack-compatible PCB designed for direct sub-rack installation

• Signal Handling: Integrated A/D and D/A conversion for bidirectional process data management

• Manufacturing Quality: German-engineered for long-term industrial durability

Industrial Deployment and System Integration

• Process Variable Modulation: Essential for managing final control elements like variable frequency drives (VFDs) and proportional pneumatic actuators in continuous process plants.

• Teleperm System Scaling: Acts as a seamless expansion unit, allowing facilities to increase their analog output density without replacing existing central processing hardware.

• Environmental Control: Utilized in HVAC and cooling tower management where precise temperature and humidity analog feedback is required for energy efficiency.

• Power Generation Monitoring: Integrated into turbine and boiler control systems to provide reliable signal output in electromagnetically noisy environments.

• Flow and Level Synchronization: Coordinating multiple pump speeds or valve positions to maintain stable tank levels and pipe pressures in water treatment or chemical processing.
