Product Overview

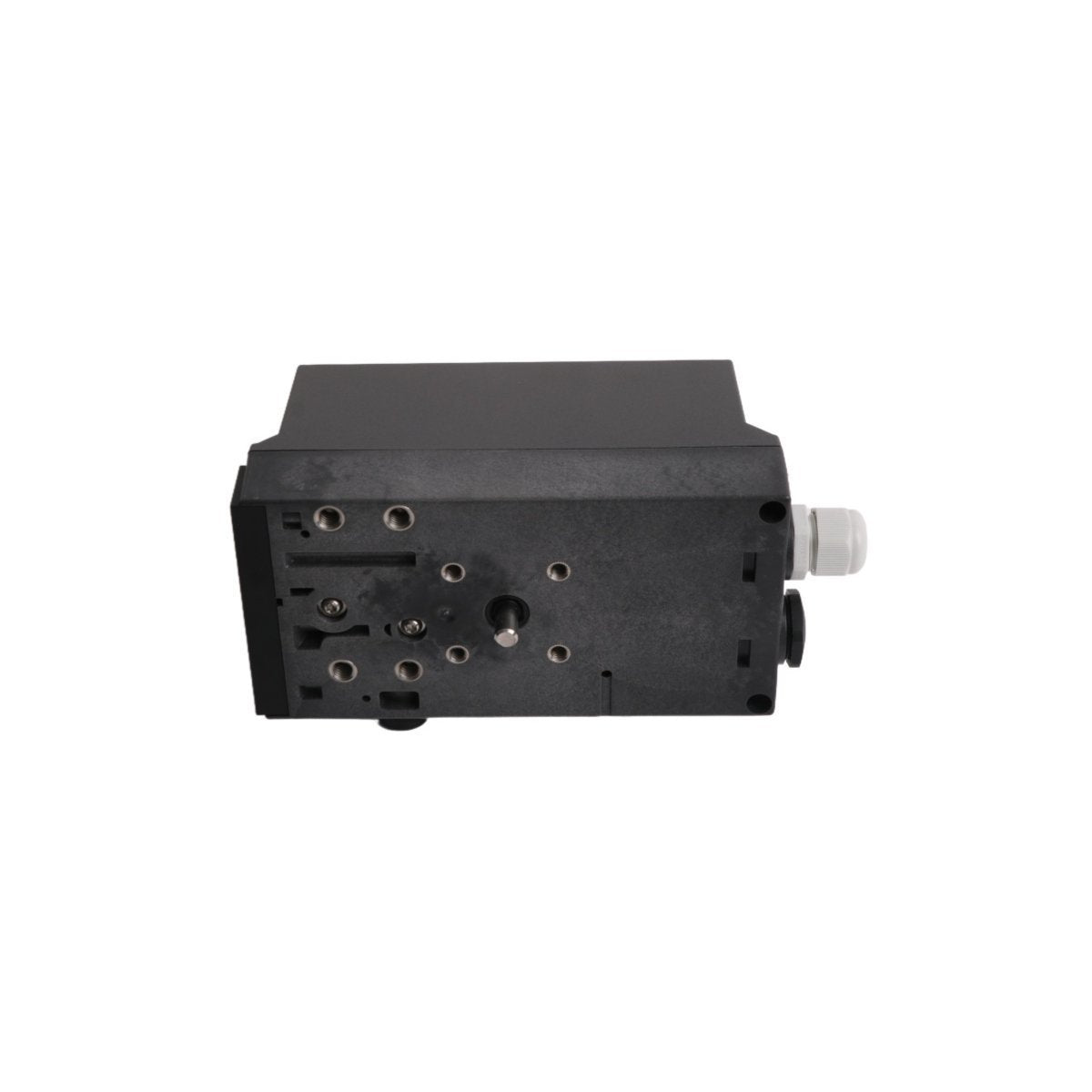

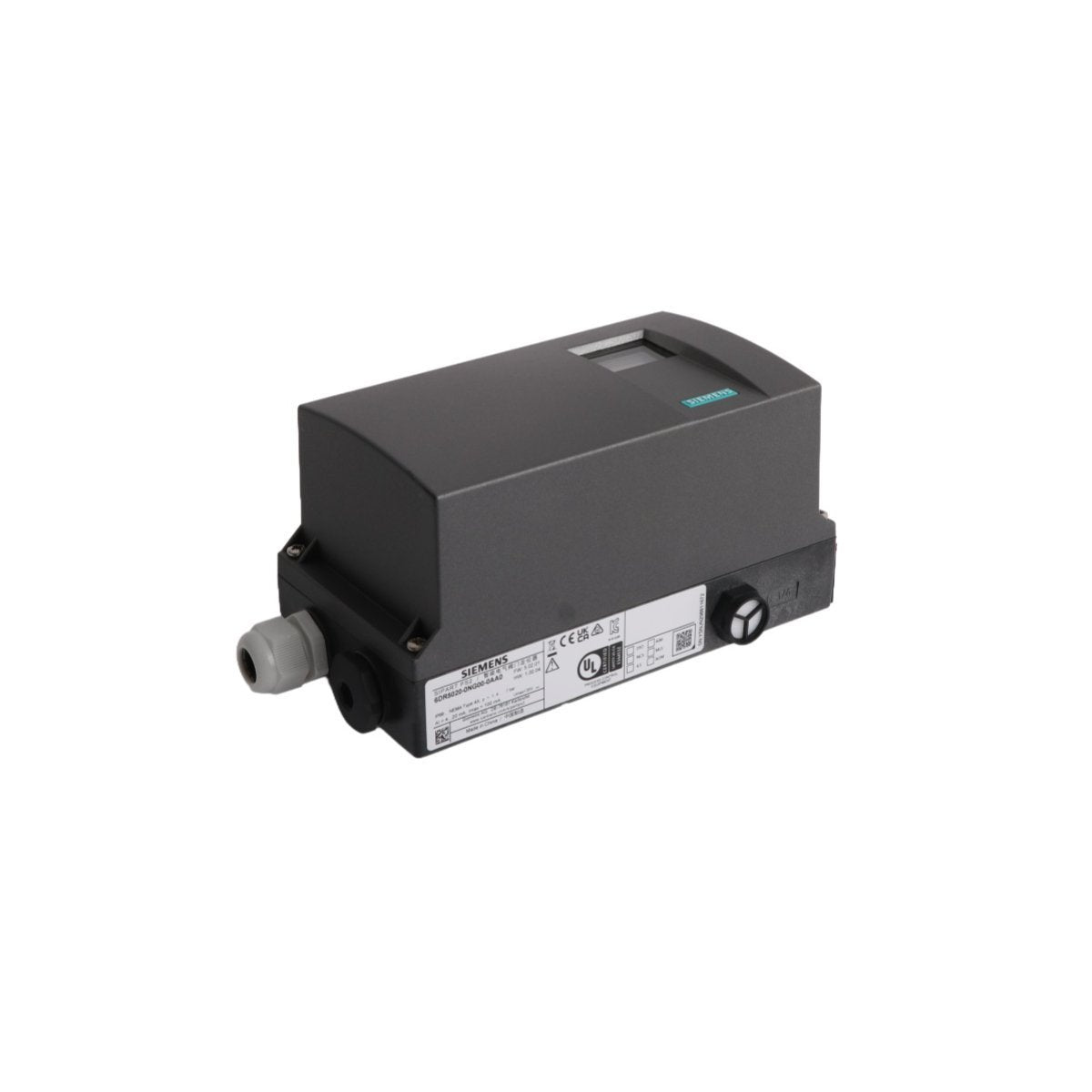

The Siemens 6DR5020-0NG00-0AA0 is a highly advanced SIPART PS2 smart electropneumatic positioner engineered for the precise regulation of pneumatic actuators. This intelligent device serves as the definitive interface between control systems and valve hardware, converting a standard 4 to 20mA setpoint into exact physical valve positioning. Designed for both linear and part-turn applications, this specific variant utilizes a double-acting operational mode within a high-durability polycarbonate enclosure. By integrating non-contacting sensor (NCS) technology, the 6DR5020-0NG00-0AA0 eliminates mechanical wear during position detection, ensuring that control loops remain accurate and maintenance-free over millions of cycles in rigorous process environments.

Technical Performance Specifications and Hardware Data

• Control Signal: 4...20 mA two-wire input

• Communication Interface: Advanced HART protocol for remote parameterization

• Actuator Compatibility: Supports both linear and part-turn pneumatic actuators

• Position Detection: Wear-free non-contacting technology (NCS)

• Pneumatic Configuration: Double-acting operation (Fail-Safe)

• Enclosure Material: Macrolon (Polycarbonate) with IP66 protection rating

• Connection Threads: M20 x 1.5 (Electrical) and G 1/4 (Pneumatic)

• Thermal Range: Rated for operation between -30°C and +80°C

• Physical Mass: 0.24 kg (Net)

• Chassis Dimensions: 10.5 x 12.5 x 4 cm

• Diagnostics: Integrated smart monitoring for valve stroke and leak detection

• Safety Class: Non-Ex version (Standard industrial safety)

Industrial Automation and Fluid Control Deployments

The 6DR5020-0NG00-0AA0 is a versatile solution for modern process facilities requiring high repeatability and low air consumption. Primary industrial applications include:

• Chemical and Petrochemical Processing: Coordinating the precise movement of control valves in non-hazardous zones to maintain optimal pressure and temperature gradients.

• Water and Wastewater Management: Regulating flow rates in filtration systems and pumping stations where reliable, long-distance communication via HART is essential.

• Food and Beverage Production: Managing steam and liquid valves in automated clean-in-place (CIP) systems that require ruggedized, wash-down-capable enclosures.

• Pulp and Paper Industry: Controlling heavy-duty actuators on material feed lines where high vibration and temperature extremes are prevalent.

• HVAC and Building Utilities: Driving large-scale pneumatic dampers and chilled water valves to ensure energy-efficient climate control in industrial facilities.

• Valve Modernization: Upgrading legacy analog positioners to "smart" digital control for better predictive maintenance and reduced compressed air waste.
