Product Overview

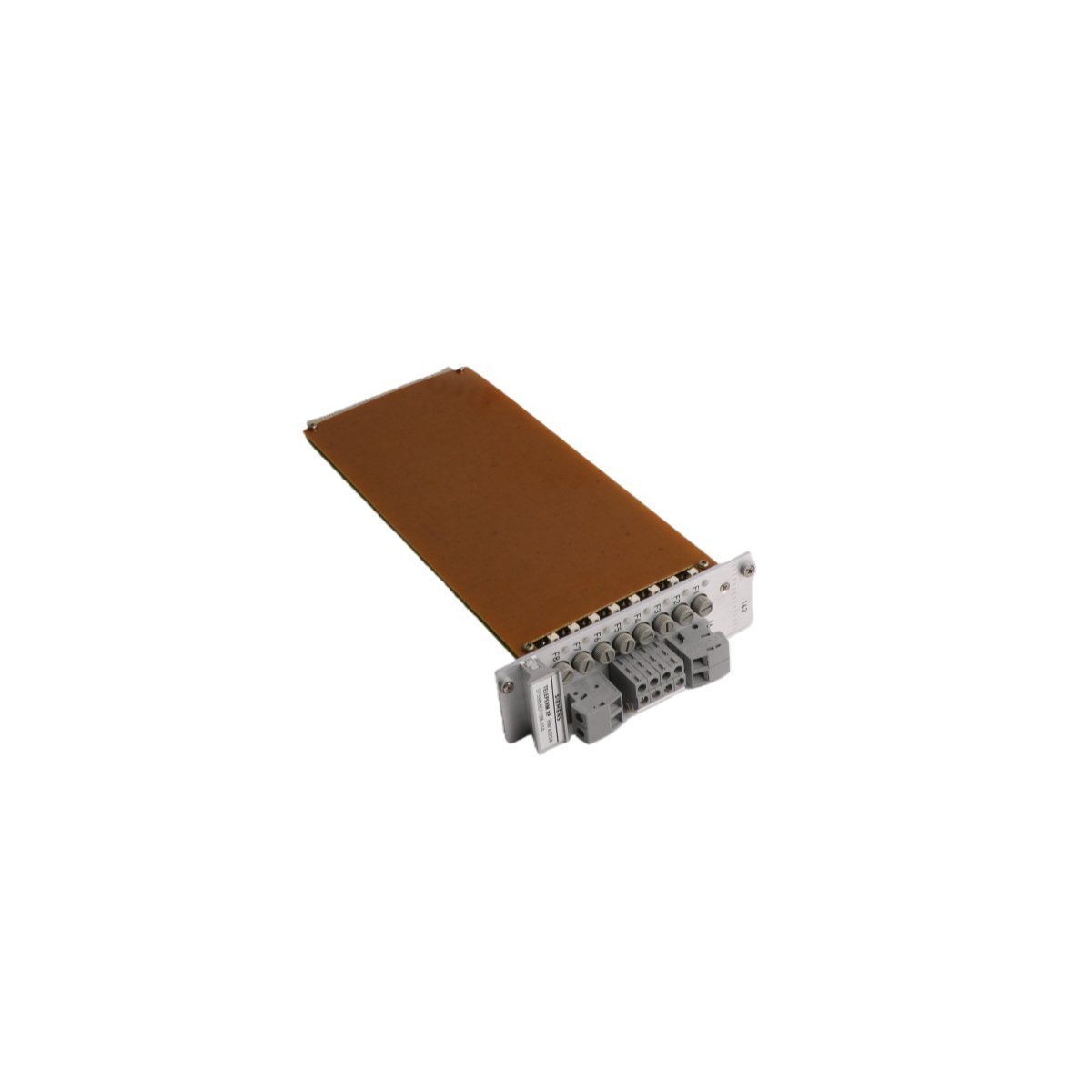

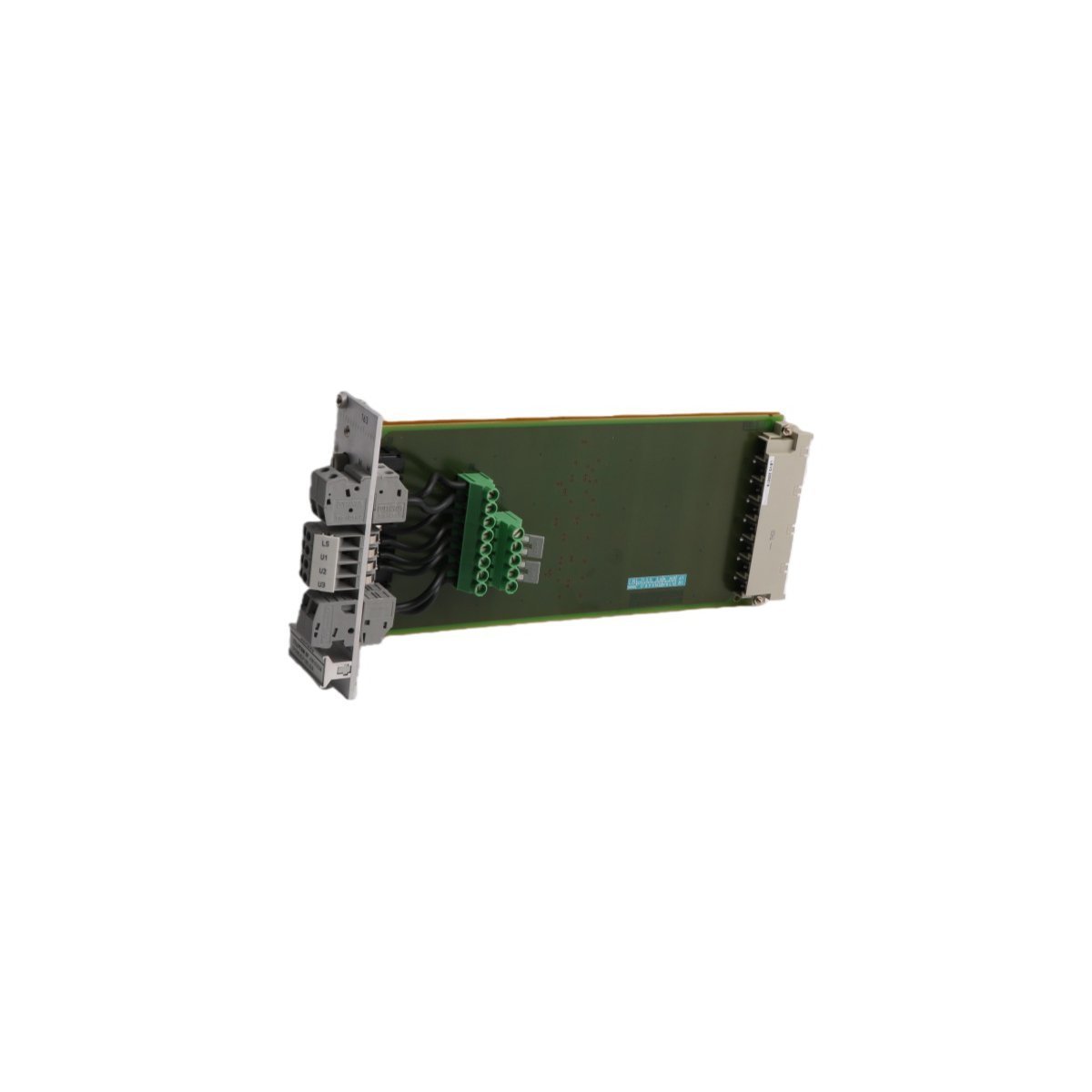

The Siemens 6DP9905-8AA01 is a specialized power management instrument engineered for the high-end SIMADYN D control platform. This module serves as the primary electrical foundation for multi-processor racks, transforming raw industrial power into the ultra-stable, low-noise voltage required by sophisticated arithmetic and logic processors. In systems where micro-second response times and high-dynamic control are mandatory, the 6DP9905-8AA01 ensures that fluctuations in the external grid do not compromise the computational integrity of the automation system. Its design emphasizes high-availability and risk mitigation, acting as a buffer against the electrical interference typical of heavy industrial sub-stations.

Engineering Specifications and Component Parameters

This power unit is constructed with high-tier filtering and regulation circuitry to support the most demanding SIMADYN D subrack configurations.

• System Compatibility: Exclusively designed for SIMADYN D and associated high-speed control racks.

• Output Profile: Provides regulated DC power with advanced ripple suppression for sensitive digital logic.

• Protection Logic: Integrated overvoltage, undervoltage, and thermal overload shielding to prevent processor damage.

• Bus Integration: Occupies a specialized slot within the rack for direct backplane power injection.

• Diagnostic Interface: Onboard status monitoring to alert operators of power rail inconsistencies.

• Operational Stability: Tested for continuous 24/7 duty cycles in high-electromagnetic interference (EMI) zones.

• Physical Mass: 0.95 kg.

• Module Dimensions: 2.5 cm x 5.1 cm x 83.8 cm.

• Manufacturing Origin: Germany.

• Standardization: HS Code 8537101190.

Strategic Process Implementations

The 6DP9905-8AA01 is a critical asset in industries where power failure or signal noise would lead to catastrophic production loss or equipment damage.

• Precision Rolling Mills: Supplying steady power to the control units governing high-speed metal thickness and tension regulation.

• Complex Multi-Motor Drives: Coordinating the synchronized movement of large-scale industrial motors in paper mills and textile production.

• Power Conversion Control: Providing the logic power for high-dynamic inverters used in renewable energy grid-tie systems and HVDC stations.

• Arithmetic Computation Blocks: Ensuring the mathematical accuracy of SIMADYN D modules performing complex real-time calculations for flight simulators or turbine testing rigs.

• System High-Availability: Serving as a mission-critical spare to maintain uptime in automated facilities that cannot tolerate even momentary control system reboot cycles.
