Product Overview

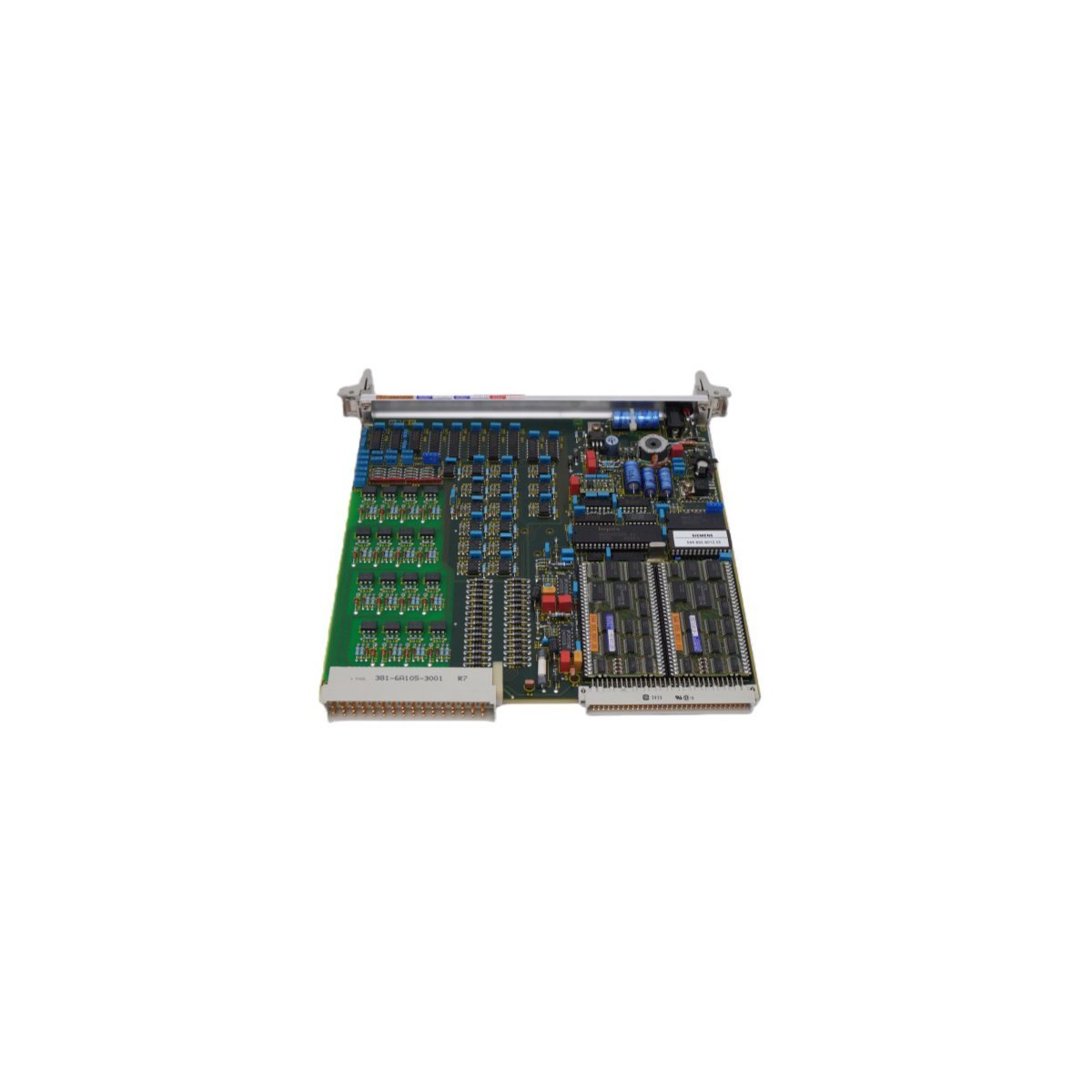

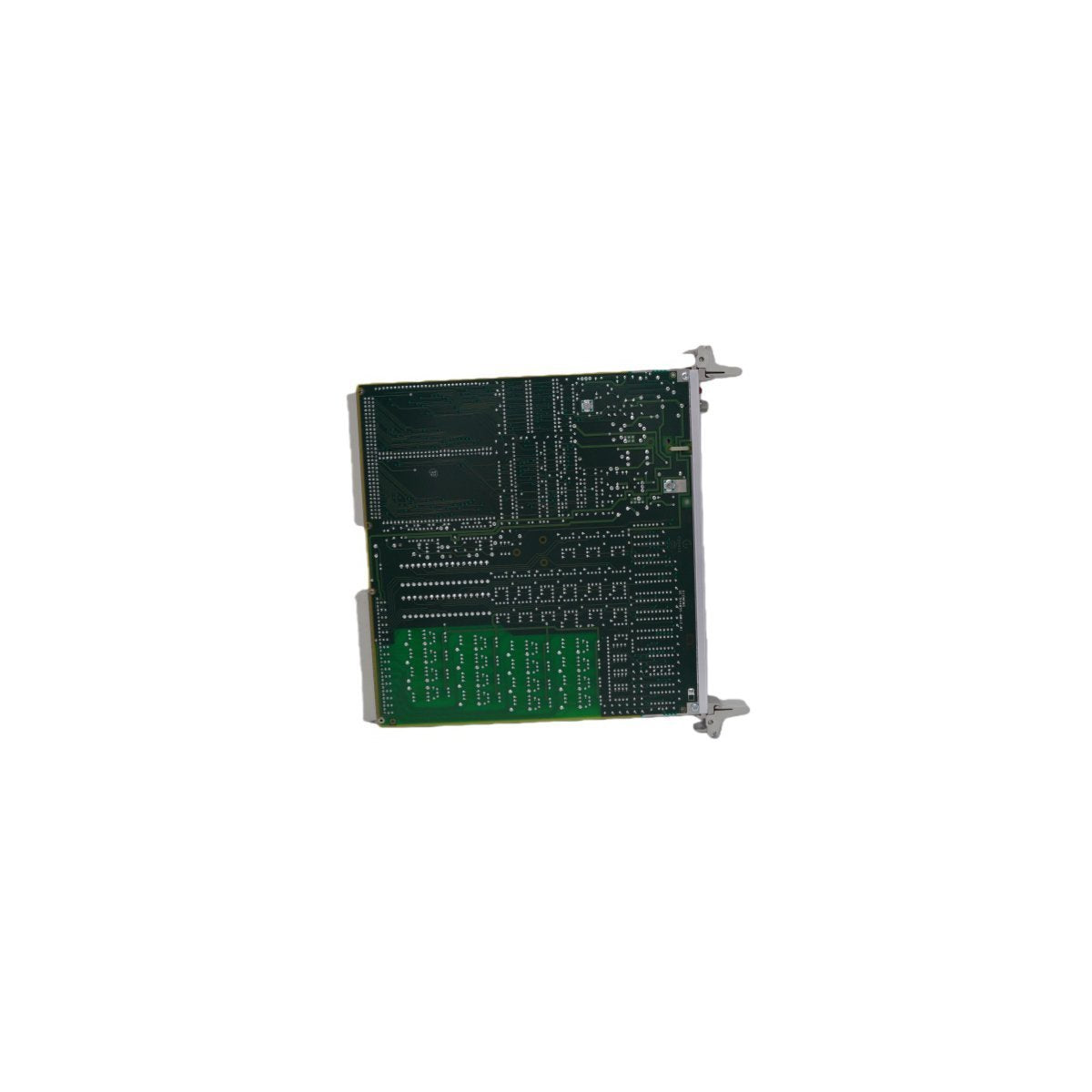

The Siemens 6DP1511-8AA, primarily identified within the TELEPERM XP control system as the FUM 511 module, is a specialized interface designed for high-density binary signal coupling. This module serves as a bridge between the central automation processor and the industrial field level, managing 16 isolated digital inputs and 16 digital outputs simultaneously. Engineered for high-availability environments, the FUM 511 ensures that discrete signals—such as switch statuses and actuator commands—are processed with high signal integrity. Its architecture is specifically built to handle large-scale I/O requirements while maintaining electrical separation, preventing field-side transients from affecting sensitive control logic.

Hardware Architecture and Technical Profile

• Channel Configuration: 16 Binary Inputs / 16 Binary Outputs

• Input Isolation: Integrated optocouplers for galvanic separation

• Output Drive Capacity: 120 mA per channel

• Switching Modes: Supports steady-state output and configurable flashing frequencies

• Signal Conditioning: Built-in noise suppression for industrial binary signals

• Physical Weight: 0.95 kg

• Casing Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

• HS Classification: 8537101190

• System Environment: TELEPERM XP / PLC integrated architectures

The module is designed for vertical rack mounting, featuring a robust mechanical build that ensures reliable contact in high-vibration industrial cabinets. The output stage is particularly flexible, allowing for the direct driving of indicator lamps or small relays without additional interposing hardware.

Industrial Deployment and Signal Interfacing

The 6DP1511-8AA FUM 511 is a cornerstone of large-scale power plant automation and complex process control systems where the TELEPERM XP platform is utilized. Its primary application lies in the coupling of console control tiles and mimic panels, where it manages the dual task of reading operator switch inputs and driving visual status indicators. Due to its configurable flashing modes, it is frequently used for alarm annunciation and system status signaling in control rooms. While designated for non-safety-critical automation tasks, its high level of electrical isolation makes it ideal for interfacing with field equipment located at significant distances from the control cabinet. In manufacturing and utility sectors, the module provides a reliable solution for aggregating high volumes of binary data, such as valve positions, motor run statuses, and limit switch feedback, ensuring centralized monitoring remains accurate and responsive.
