Product Overview

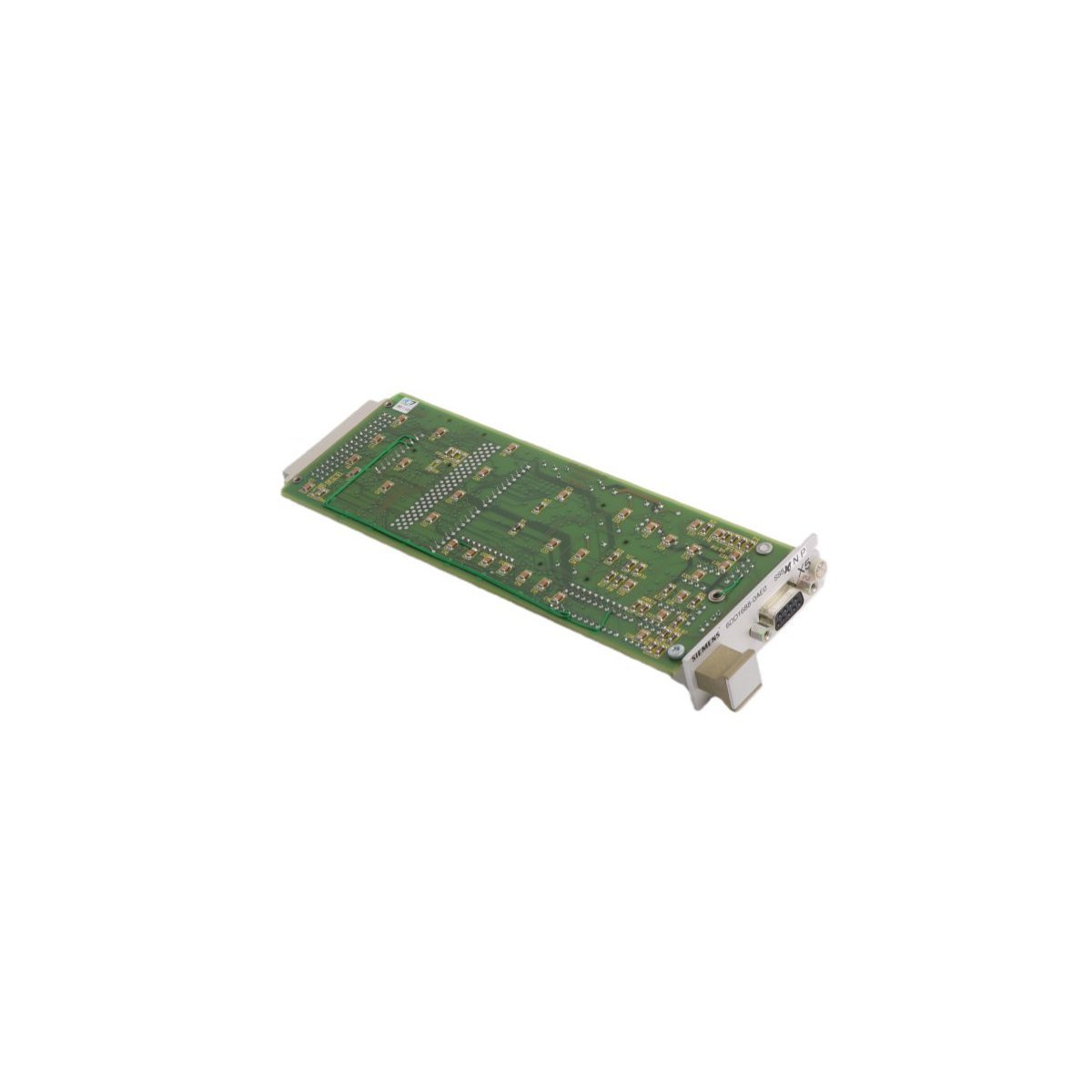

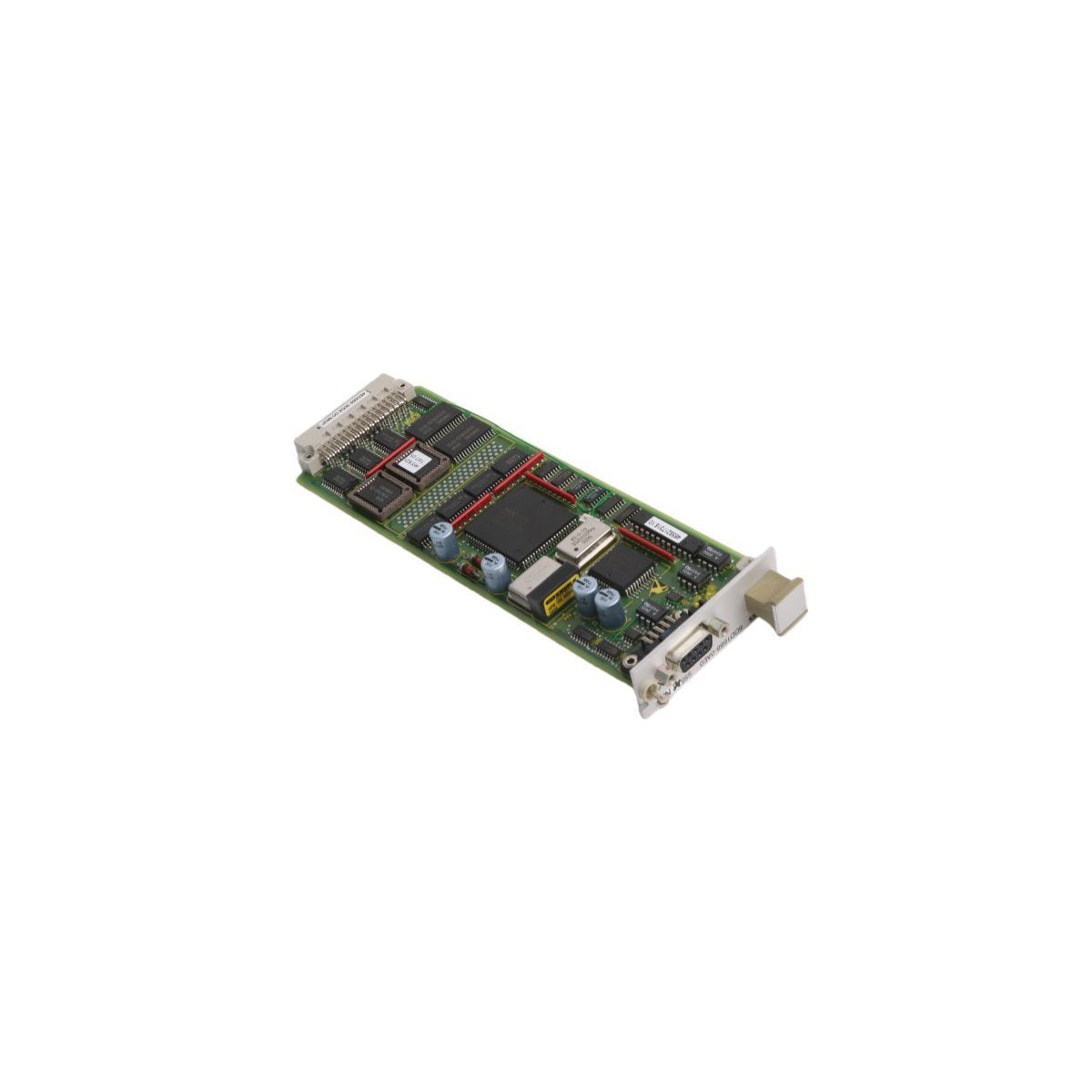

The 6DD1688-0AE0 is a high-performance SS5 communication submodule engineered specifically for the Siemens SIMADYN D control system. This specialized hardware interface provides the critical PROFIBUS-DP link required for deterministic, high-speed data exchange between the central processor and decentralized field components. By facilitating real-time synchronization across the network, the 6DD1688-0AE0 ensures that complex motion control algorithms and automated process sequences are executed with absolute precision. Its architecture is optimized for the most demanding "Closed-Loop" control tasks where communication latency must be minimized to maintain system stability and product quality.

Vital Hardware Attributes

• Interface Standard: PROFIBUS-DP (Decentralized Peripherals)

• System Family: SIMADYN D High-Performance Control System

• Data Transfer: Deterministic, high-speed serial communication

• Signal Integrity: Advanced error detection and EMI-shielded circuitry

• Integration Profile: Compact submodule designed for rack-based mounting

• Diagnostics: Integrated status indicators for real-time link monitoring

• Mass: 0.95 kg

• Manufacturing Origin: Germany

• Customs Commodity Code: 8537101190

• Reliability: Engineered for continuous 24/7 industrial operation

Field-Proven Engineering Applications

• Dynamic Drive Coordination: Essential for large-scale rolling mills and paper processing lines where multiple motors must be synchronized via PROFIBUS-DP with microsecond accuracy.

• Metals Processing: Utilized in complex metallurgical plants for the real-time control of hydraulic actuators and sensing arrays.

• Automotive Production Lines: Acts as the primary communication bridge for high-speed conveyor systems and robotic cell coordination within assembly environments.

• Legacy System Upgrades: A critical component for maintaining and modernizing existing SIMADYN D installations, allowing for the integration of modern PROFIBUS-compatible field devices.

• Energy Infrastructure: Employed in specialized power conversion and distribution controls that require the robust, fail-safe communication protocols inherent to the SS5 module.
