Product Overview

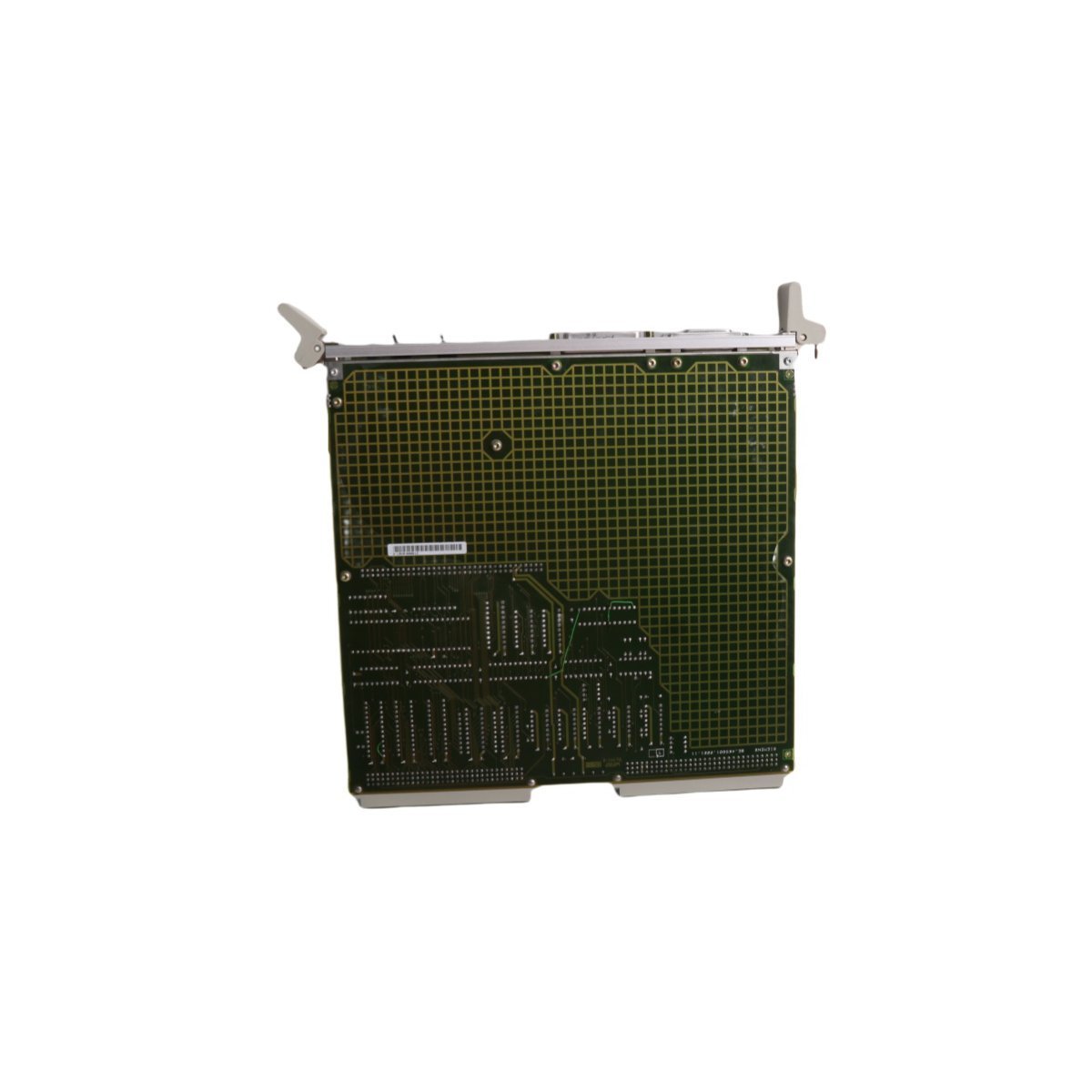

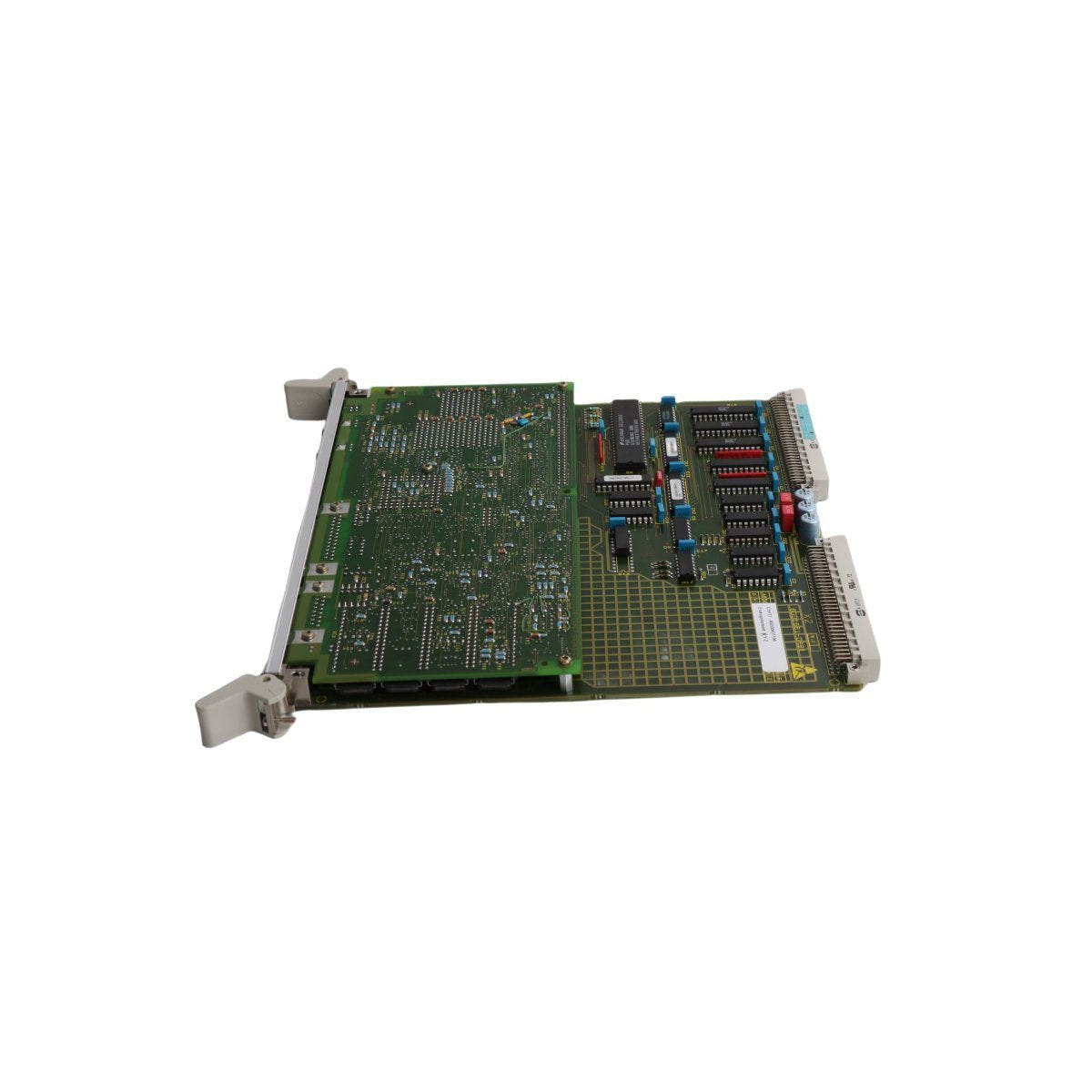

The 6DD1661-0AB1 is a high-performance CSH11 communication submodule engineered for the Siemens SIMADYN D control system. This module serves as a specialized slave interface designed to integrate complex control architectures with the SINEC H1 industrial network, commonly referred to as Industrial Ethernet. By leveraging an onboard CP1470 communications processor and integrated dual-port RAM, the 6DD1661-0AB1 facilitates high-speed, deterministic data buffering between local CPUs and the broader plant network. It is a critical component for systems requiring synchronized process communication across expansive automation environments, ensuring that time-critical control data is exchanged with minimal latency.

Networking Architecture and Interface Specifications

• Integrated Processor: Features the CP1470 communications engine for dedicated network management.

• Network Interface (X6): 15-pin connector for linking to SINEC H1 bus couplers via drop cable (up to 50m length).

• Configuration Port (X5): 25-pin serial interface utilized for module parameterization and Ethernet address assignment via SINEC NML software.

• Serial Connectivity: Supports passive 20 mA TTY and RS 232 (V.24) standards for direct connection to PG7xx programmers or AT-compatible PCs.

• Transmission Rate: Standardized at 9.6 kbaud for programming interfaces.

• Front Panel Controls: Includes a manual function selector for ADM (Administration), RUN, and STP (Stop) modes, alongside a hardware reset button.

• Visual Diagnostics: Integrated LED array provides real-time status updates for immediate fault identification and network monitoring.

• Physical Footprint: Compact dimensions of 2cm x 20.3cm x 25.5cm with a lightweight 0.44 kg mass.

System Integration and Plant Deployment

Industrial Ethernet Synchronization

The 6DD1661-0AB1 is primarily deployed in large-scale industrial plants where SIMADYN D CPUs must communicate over a SINEC H1 backbone. It allows for the coordination of complex drive systems and process controllers, ensuring that setpoints and feedback signals are synchronized across the entire Ethernet-based network.

Legacy Infrastructure Support

As a vital component for the maintenance of established automation tiers, this module allows operators to sustain legacy SINEC H1 infrastructures. It provides a reliable pathway for data acquisition and supervisory control without requiring a complete and costly migration to modern PROFINET standards, making it essential for lifecycle extension projects.

High-Performance Drive Control

In sectors such as metal rolling mills and paper production, where SIMADYN D excels at high-speed closed-loop control, the CSH11 module handles the overhead of external communications. This offloads the main CPU, allowing it to focus exclusively on fast-cycle control tasks while the 6DD1661-0AB1 manages the Ethernet data traffic.

Diagnostic and Programming Access

The dual serial interfaces enable field engineers to connect programming devices directly to the control rack. This facilitates local troubleshooting, firmware management, and parameter adjustment, reducing the time required for system commissioning and maintenance in high-stakes manufacturing environments.
