Product Overview

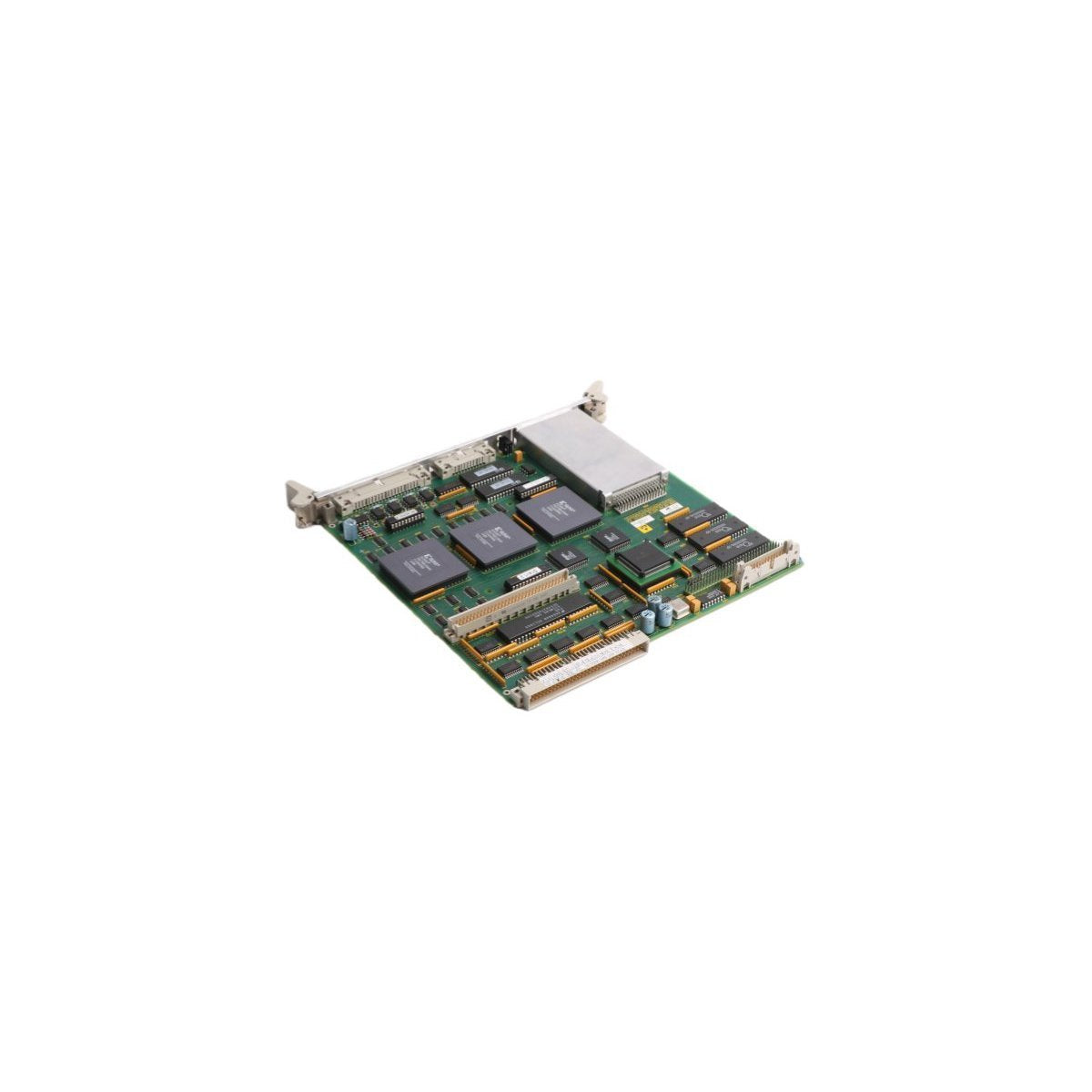

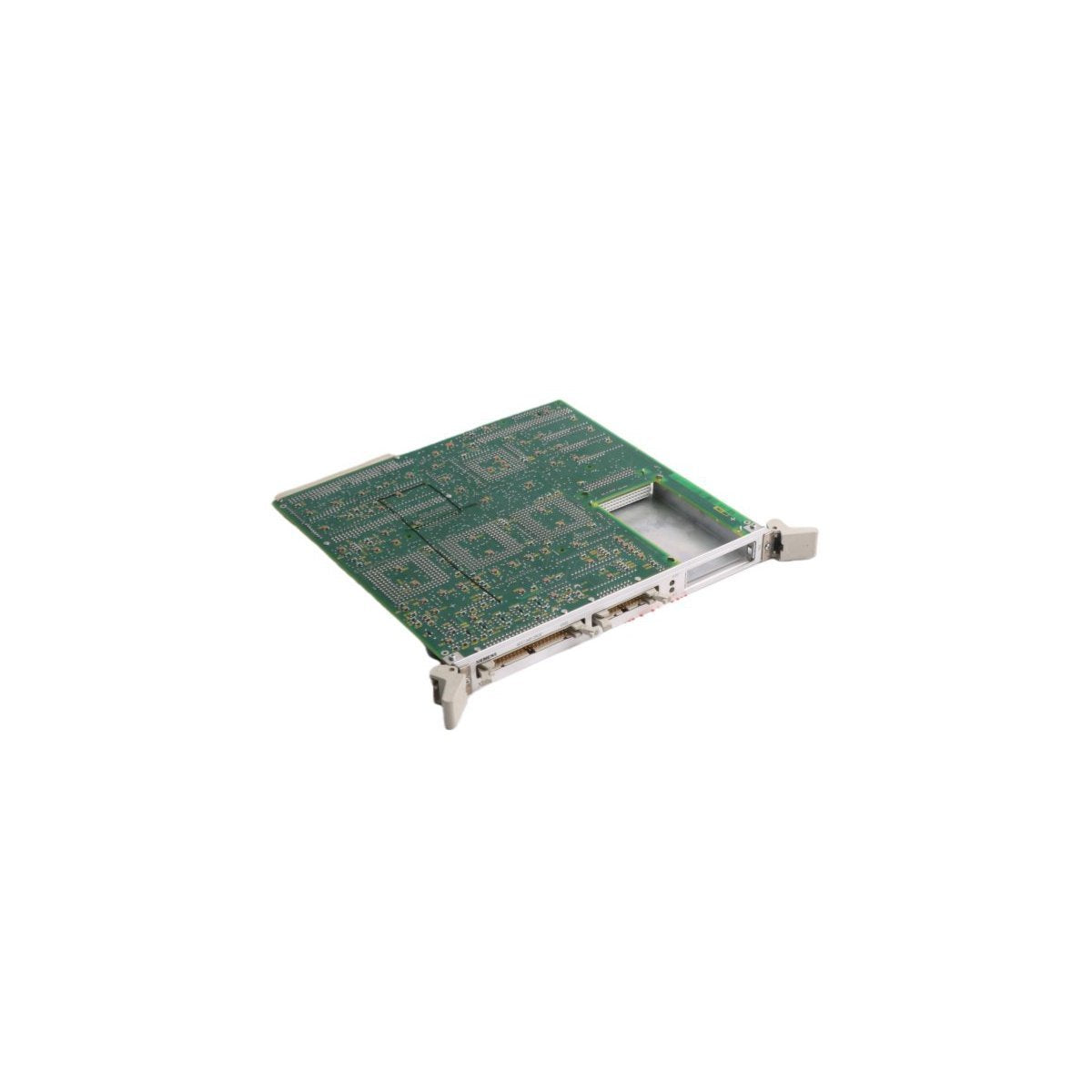

The Siemens 6DD1645-0AE0 is a high-tier EP3 signal processor module engineered for the SIMADYN D specialized control system. Unlike standard PLC processors, this module is designed for ultra-high-speed closed-loop control tasks that require massive computational throughput and deterministic timing. It functions as a central processing hub that can be expanded via three dedicated plug-in technology card slots (IS_1, IS_2, and IS_3). This modularity allows the EP3 to be customized for diverse high-end applications, ranging from complex mathematical modeling to rapid feedback signal processing in heavy industrial environments.

Technical System Architecture and Physical Data

This signal processor is built to handle intensive arithmetic operations while maintaining physical resilience in demanding rack-mounted configurations.

• Processor Type: EP3 Signal Processor

• Expansion Capability: 3 Slots for sub-modules/technology cards

• Control Logic: Optimized for SIMADYN D multi-processor systems

• Processing Speed: Real-time deterministic execution for high-frequency sampling

• Diagnostic Support: Integrated system status monitoring and error reporting

• Thermal Management: Specialized airflow design for continuous high-load operation

• Device Dimensions: 2.5 cm W x 5.1 cm H x 83.8 cm D (Packaged format)

• Net Weight: 0.68 kg

• Gross Shipping Weight: 0.95 kg

• Manufacturing Origin: Germany

• Compliance: Industrial EMC and thermal stability standards

Specialized Field Implementation and Usage

Rolling Mill and Steel ProcessingIn the metal industry, the 6DD1645-0AE0 is utilized to manage the precise tension and thickness control of strip steel. Its ability to process multiple sensor feedback loops simultaneously allows for the sub-millisecond adjustments needed to maintain product quality at high line speeds, where any latency in signal processing would result in material defects.

High-Performance Drive SynchronizationThis module is frequently deployed in large-scale paper machines or textile equipment where dozens of motors must be perfectly synchronized. The EP3 processor calculates the precise angular positioning and torque requirements for each drive unit, ensuring uniform tension across the entire production line.

Power Generation and Turbine ControlIn energy sectors, the 6DD1645-0AE0 serves as the primary regulator for turbine speeds and excitation systems. Its deterministic response time is critical for protecting the equipment during sudden load changes, as it can execute complex safety algorithms faster than conventional automation hardware.

Modular Machine BuildingThanks to the IS technology card slots, machine builders can use the 6DD1645-0AE0 as a flexible platform. By swapping out the sub-modules, the same base processor can be adapted from a high-speed counting interface to a specialized communication gateway, providing a scalable solution for custom-engineered industrial machinery.
