Product Overview

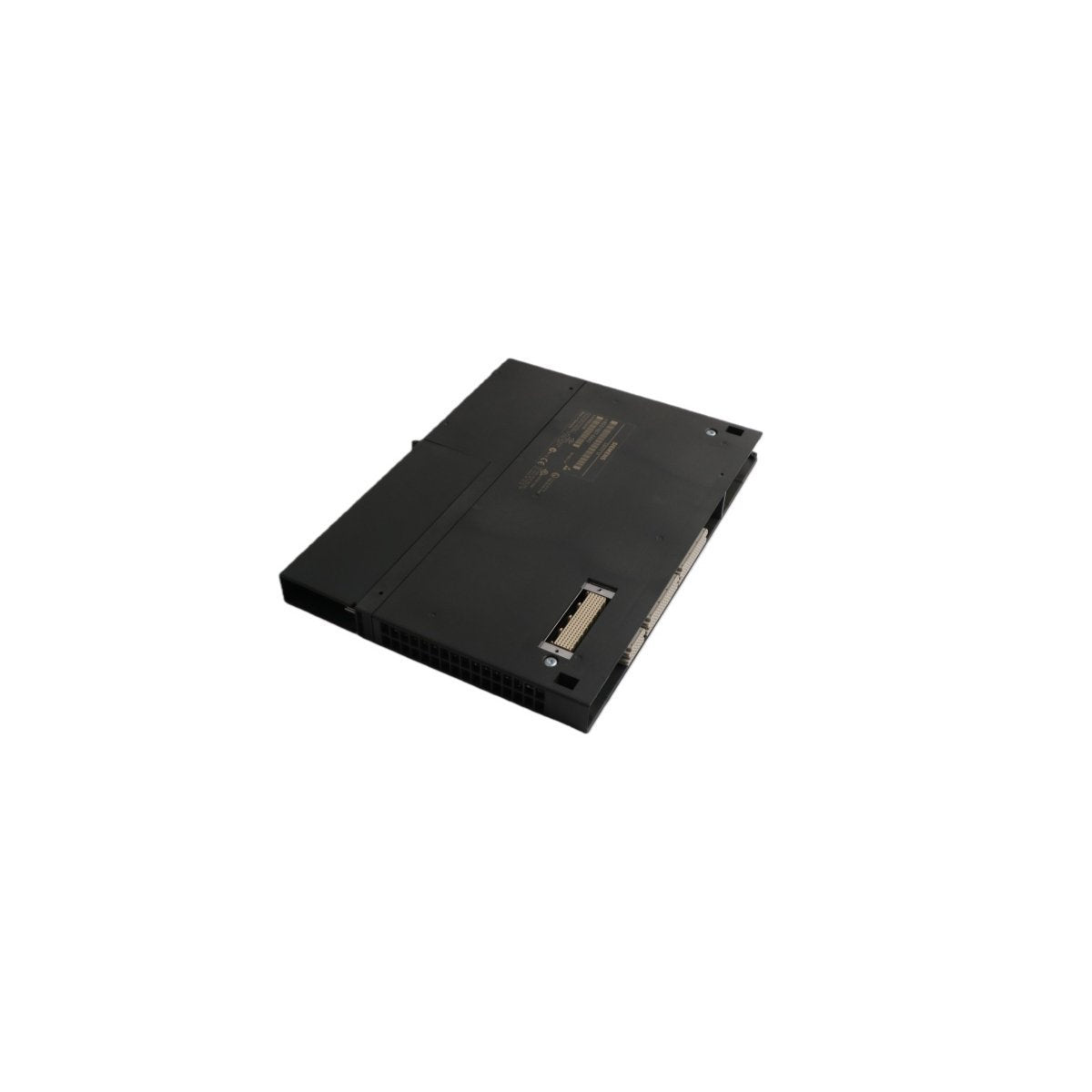

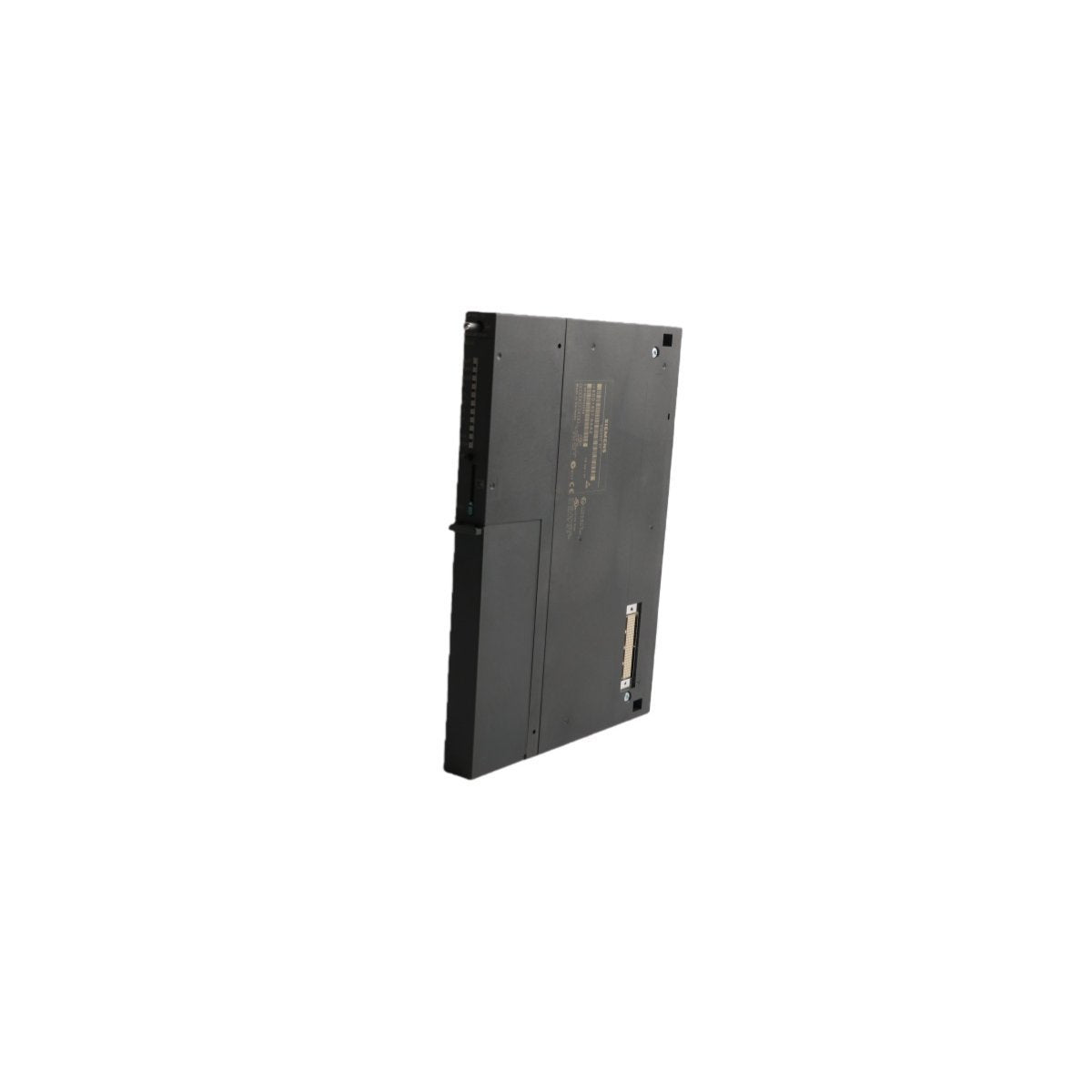

The Siemens 6DD1607-0AA2 is a high-performance computation module designed specifically for the SIMATIC S7-400 system. Positioned as the core of the FM458-1 DP technological system, this application module is engineered to bridge the gap between standard PLC logic and high-speed motion control. It facilitates the execution of complex mathematical algorithms and rapid closed-loop control cycles that exceed the capabilities of standard CPUs. By offloading these intensive computational tasks, the 6DD1607-0AA2 ensures deterministic performance for highly dynamic industrial processes.

Specialized Hardware Configuration and Mechanical Data

The architecture of the 6DD1607-0AA2 focuses on low-latency data acquisition and robust interfacing. Below are the primary physical and technical specifications:

• Integrated Digital I/O: Equipped with 8 high-speed digital inputs via the X2 frontal connector, optimized for 24V DC signal levels.

• System Compatibility: Designed for seamless integration into S7-400 racks, communicating via the backplane bus with SIMATIC S7 controllers.

• Net Weight: 0.95 kg.

• Product Dimensions: 2.5 cm x 83.8 cm x 5.1 cm (Width x Height x Depth).

• Manufacturing Origin: Germany.

• Safety and Standards: CE approved for use in heavy industrial environments; HS Code 8537101190.

• Communication: Supports high-speed PROFIBUS DP integration through the FM458-1 DP system base.

Strategic Industrial Deployment

The 6DD1607-0AA2 is the preferred solution for sectors requiring microsecond-level responsiveness and synchronized motion. Key deployment areas include:

• Metal Processing and Rolling Mills: Precise tension control and thickness regulation in high-speed strip processing lines where timing jitter must be eliminated.

• Advanced Printing Systems: Coordination of multiple axes for synchronized paper feed and color registration in high-volume offset or flexographic presses.

• Automotive Test Benches: Dynamic simulation of powertrain loads and engine torque testing where real-time feedback loops are critical for data accuracy.

• Wind Energy Systems: Sophisticated pitch control and grid synchronization algorithms that require high-order mathematical processing.
