Product Overview

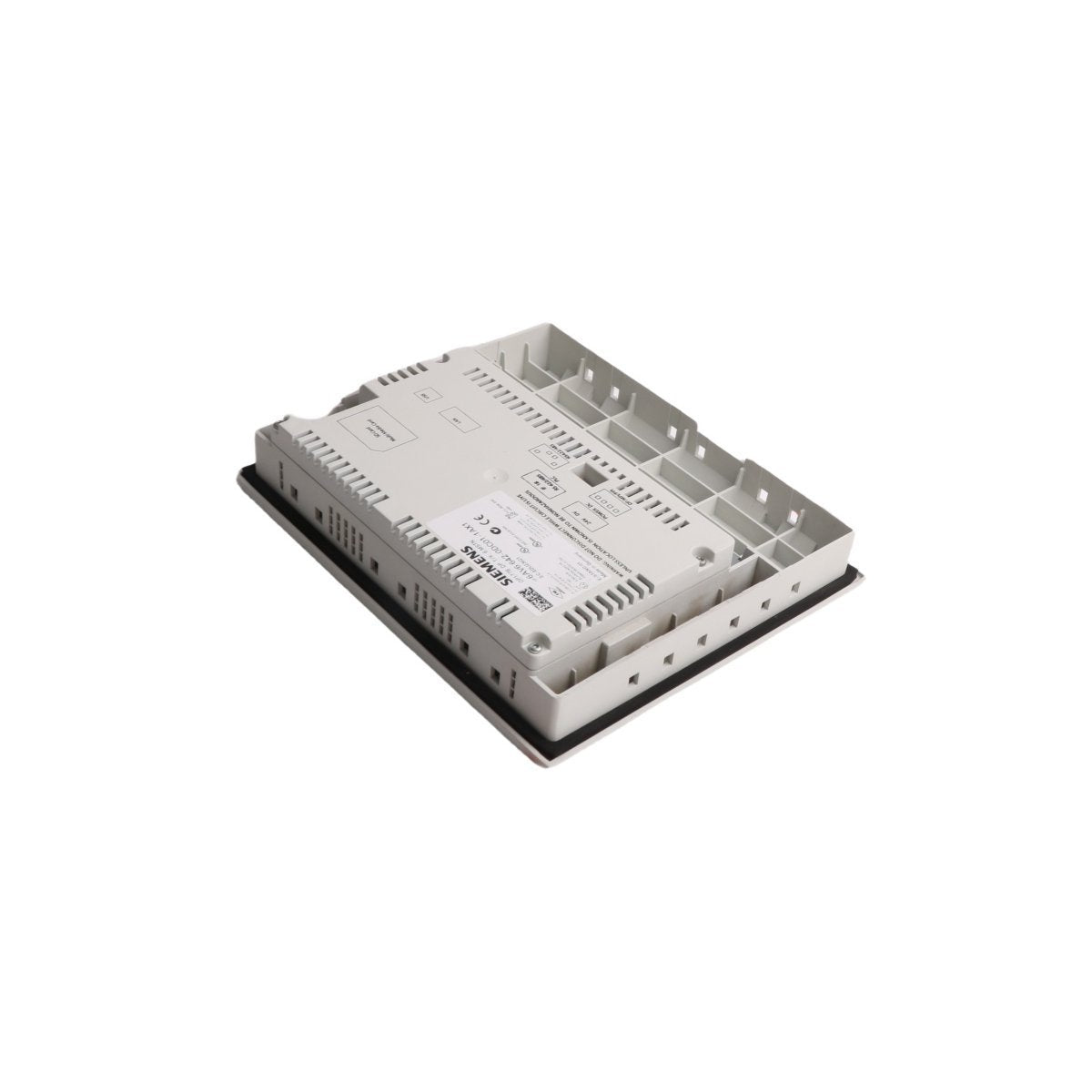

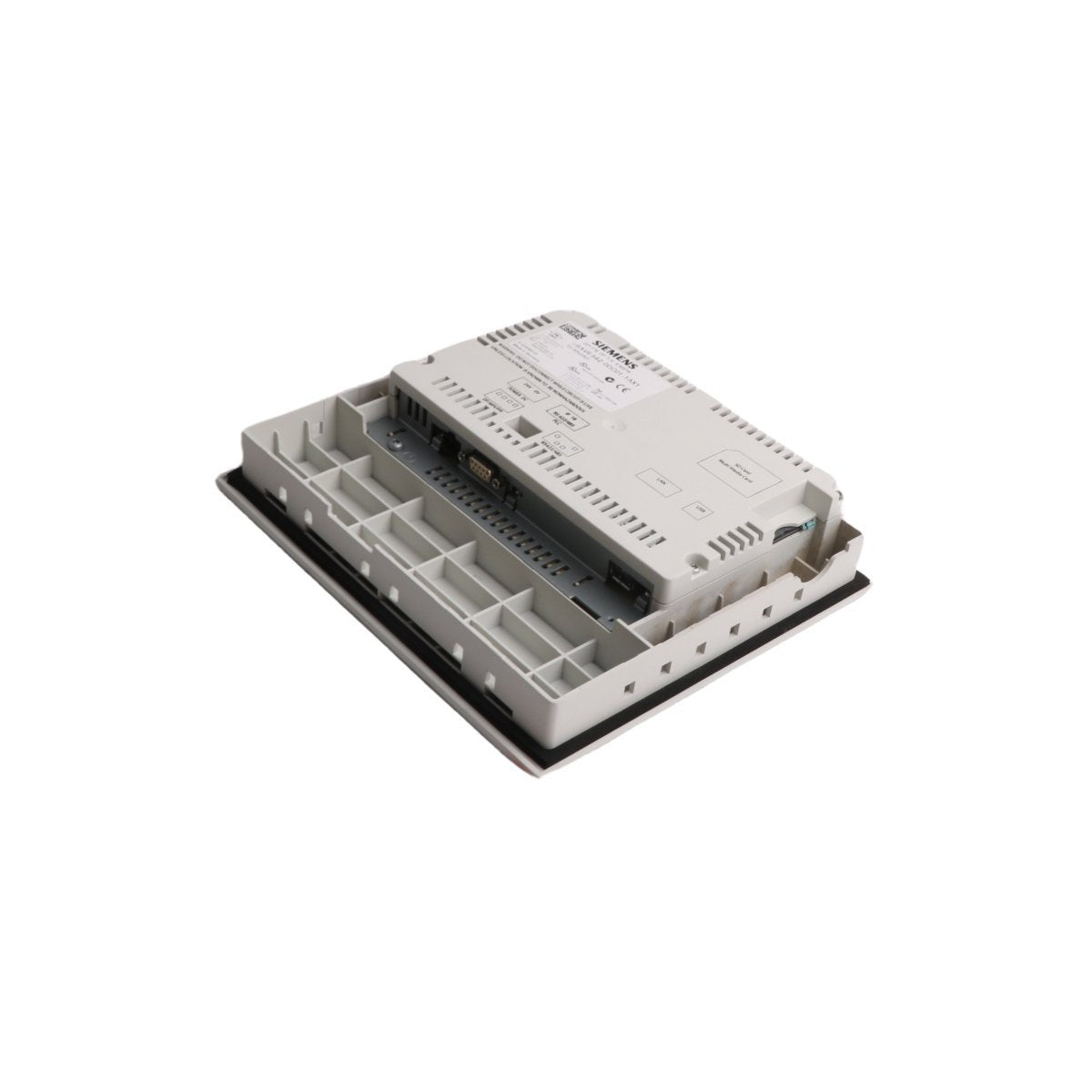

The Siemens 6AV6642-0DC01-1AX1 is a high-performance SIMATIC OP 177B operator interface designed to provide advanced visualization and machine-level control. This 6-inch HMI (Human Machine Interface) is engineered for dual-mode operation, combining a responsive touch screen with a tactile membrane keyboard. This hybrid input approach ensures operational reliability in various factory conditions, including environments where gloves are required or where high-frequency manual inputs are necessary. Featuring "Blue Mode" STN technology, the display offers high contrast for readable data visualization. As a core component of the Totally Integrated Automation (TIA) ecosystem, it seamlessly bridges the gap between complex PLC logic and human operators.

Hardware Infrastructure and Technical Profile

This unit is built to withstand rigorous industrial cycles while providing versatile communication options for modern automation racks.

• Display Type: 5.7-inch STN LCD with Blue Mode technology (4 levels of blue)

• Resolution: 320 x 240 pixels (QVGA)

• Control Interface: Combined Analog Touch and 32 Function Keys (Membrane)

• Onboard Memory: 2048 KB Flash and 256 KB RAM for project data

• Communication Ports: 1 x RS485/RS422 (MPI/PROFIBUS DP up to 12 Mbit/s), 1 x USB port

• Expansion Slot: 1 x MultiMedia Card (MMC) slot for backups and recipe data

• Supply Voltage: 24V DC (nominal)

• Configuration Software: WinCC flexible 2005 or higher

• Dimensions: 242 mm (W) x 212 mm (H) x 52 mm (D)

• Mounting Cutout: 226 mm x 196 mm

• Device Weight: 0.94 kg

Practical Deployment and Industry Scenarios

Manufacturing Floor MonitoringThe OP 177B 6AV6642-0DC01-1AX1 is frequently deployed as the primary control point for discrete manufacturing cells. Its PROFIBUS DP compatibility allows for high-speed synchronization with S7-300 and S7-400 controllers, providing real-time status updates on motor speeds, part counts, and cycle times.

Chemical and Process AutomationIn sectors involving fluids or powder handling, the IP65-rated front protection makes this panel ideal. The physical membrane keys provide a robust failsafe for starting or stopping pumps and agitators, ensuring the operator has tactile feedback even in low-visibility or harsh chemical environments.

Material Handling and WarehousingWith its integrated USB port and MMC slot, the panel is a powerful tool for data logging and recipe management in logistics systems. It can store complex palletizing patterns or conveyor routing tables, which can be updated locally via the USB interface or remotely via the network.

Documentation and LoggingUnlike basic touch panels, the 6AV6642-0DC01-1AX1 supports printer connectivity. This is vital in regulated industries like food and beverage or pharmaceuticals, where a physical printout of batch reports or fault logs is required for compliance and quality assurance.
