Product Overview

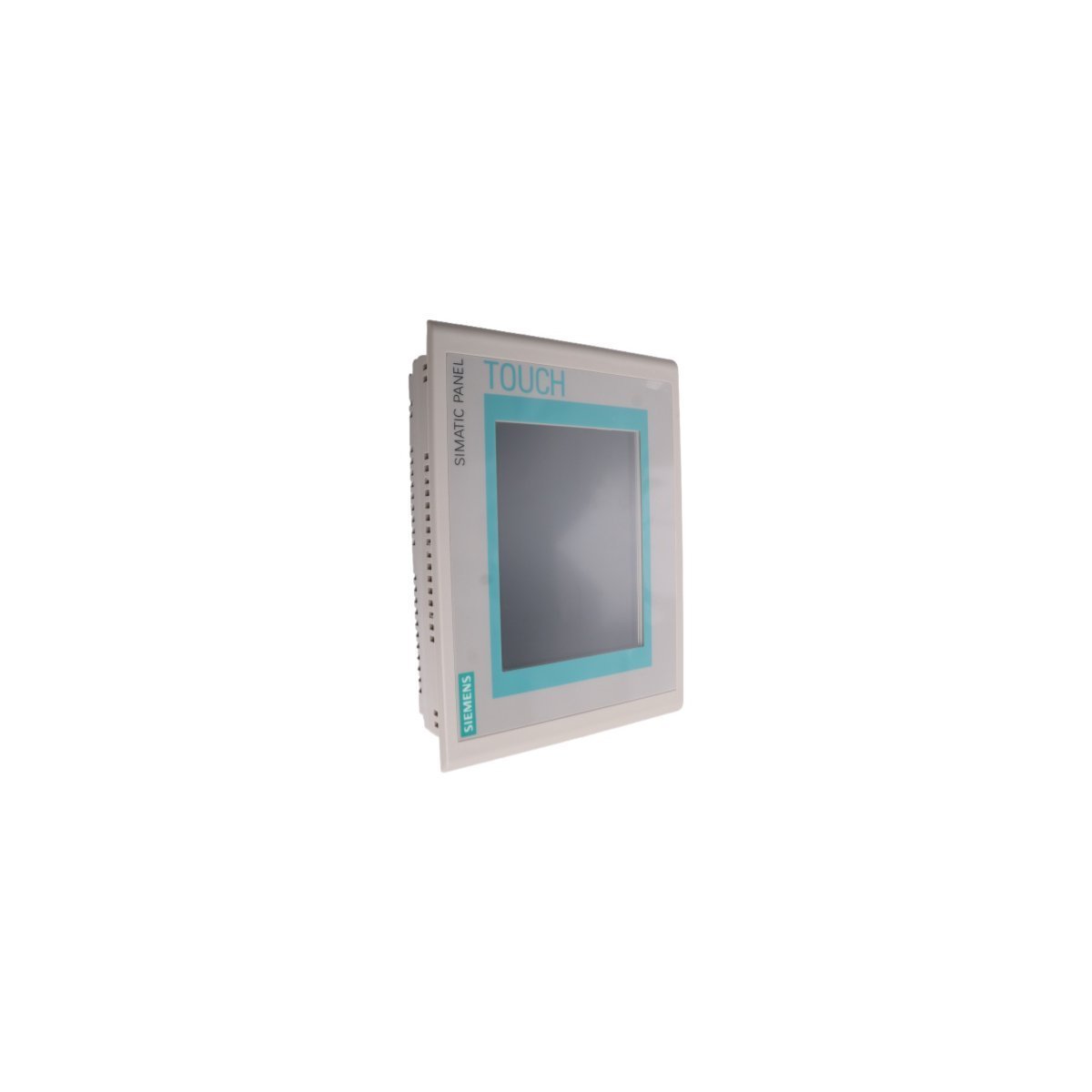

The 6AV6642-0BA01-1AX1 is a high-performance Human-Machine Interface (HMI) from the Siemens SIMATIC TP 177B series, specifically engineered to bridge the gap between complex PLC logic and operator control. Featuring a 5.7-inch STN display with 256-color support, this touch panel offers a clear and intuitive visualization platform for monitoring industrial processes. It is designed for versatility, supporting both PROFINET (Ethernet) and PROFIBUS (DP) communication protocols, allowing it to integrate seamlessly into diverse network architectures. Although the series has transitioned into a legacy lifecycle phase, it remains a gold standard for reliability in existing automation frameworks worldwide.

Hardware Parameters and Interface Capabilities

• Display Quality: 5.7" STN screen with 320 x 240 pixel resolution and 256-color depth.

• Operational Longevity: Backlight MTBF (Mean Time Between Failures) rated at 50,000 hours at 25°C.

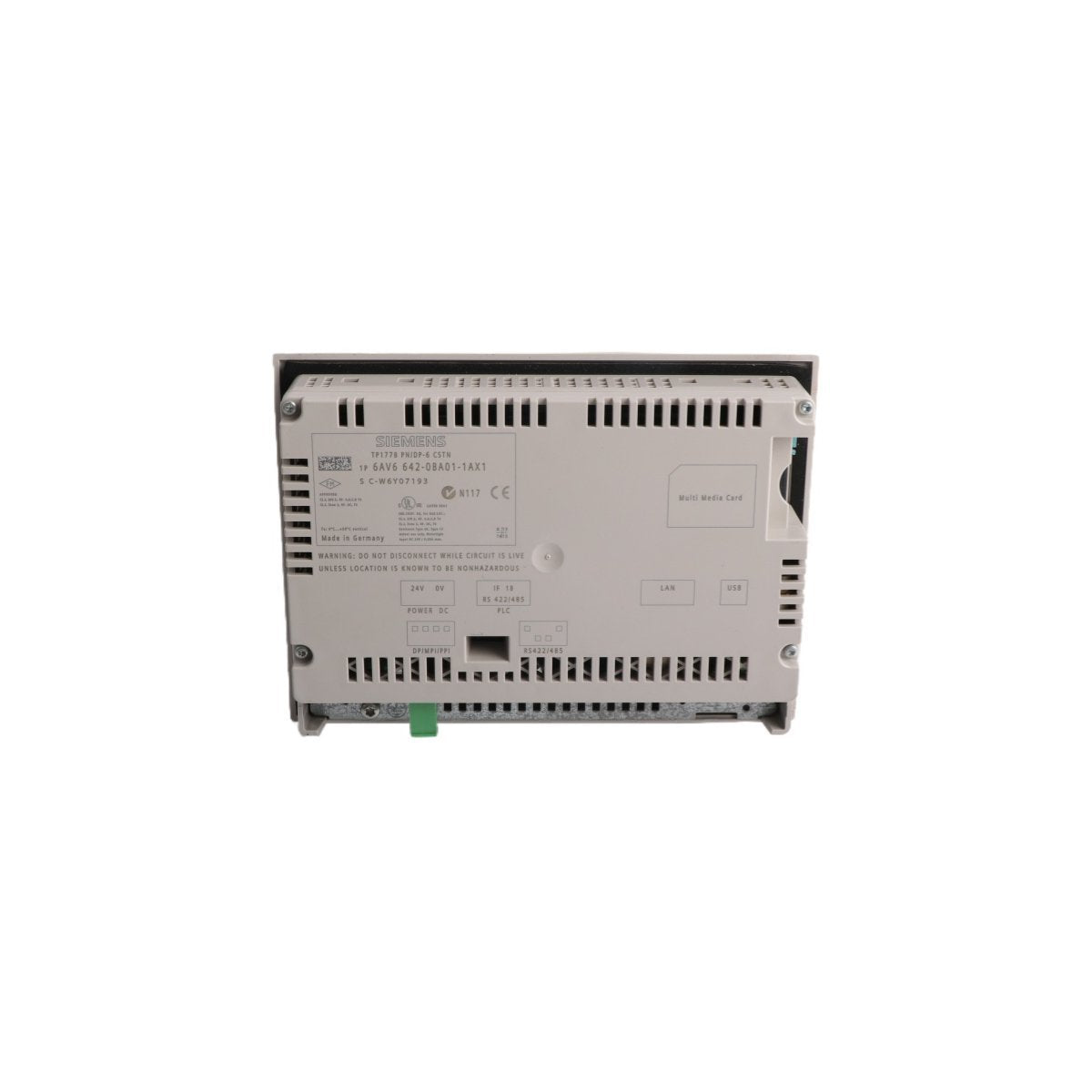

• Integrated Ports: 1 x RJ45 Ethernet (PN), 1 x RS485/RS422 (MPI/PROFIBUS DP up to 12 Mbit/s), and 1 x USB port.

• Storage Expansion: Dedicated MMC (Multimedia Card) slot for data logging, recipe management, and project backups.

• Engineering Software: Configurable via WinCC Flexible 2005 SP1 or higher, and TIA Portal.

• Input Method: Analog resistive touch screen for glove-compatible operation.

• Memory Architecture: 2048 KB on-board user memory for complex HMI projects.

• Physical Protection: IP65 rated front panel for dust and splash resistance in harsh environments.

Industrial Applications and Deployment

• Manufacturing Automation: Providing real-time machine status and alarm management on automotive assembly lines and textile machinery.

• Food and Beverage Processing: Utilized as a centralized control station for mixing, batching, and packaging systems requiring hygienic front-panel durability.

• Chemical and Water Treatment: Interfacing with distributed I/O to visualize flow rates, tank levels, and pressure gradients in remote monitoring stations.

• Legacy System Maintenance: Serving as a critical replacement part for aging SIMATIC installations, ensuring operational continuity without the need for immediate hardware overhauls.

• Material Handling: Managing conveyor synchronization and sorting logic through a user-friendly graphical interface.
