Product Overview

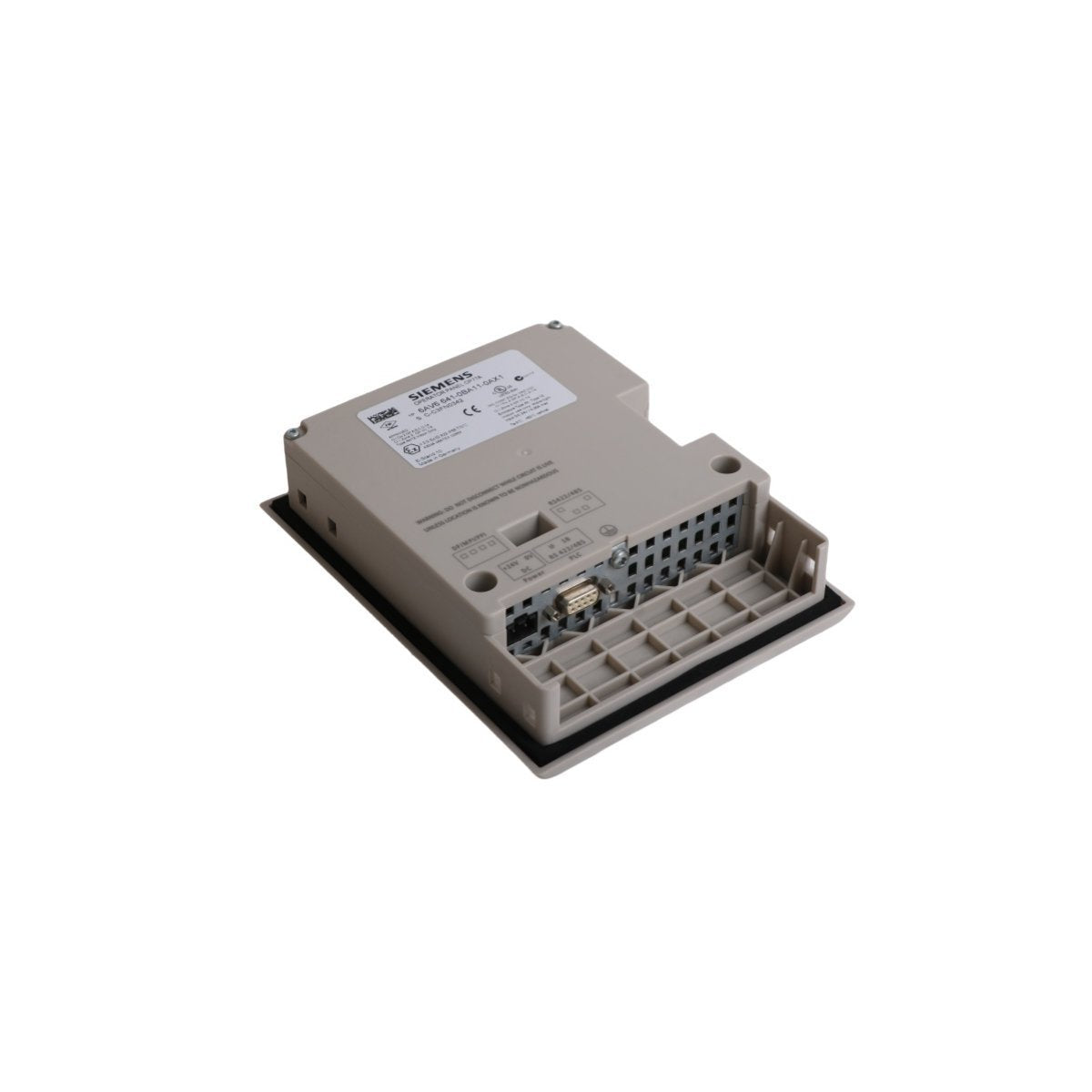

The Siemens 6AV6641-0CA01-0AX1 is a high-performance SIMATIC OP77B operator panel designed to provide a centralized human-machine interface (HMI) for machine-level control. Featuring a 4.5-inch backlit LCD with graphics capability, this monochrome display unit is engineered for clarity and longevity in industrial settings. It bridges the gap between basic text displays and complex touch panels, offering a tactile membrane keyboard for precise input even when operators are wearing gloves. The OP77B is a cornerstone for decentralized visualization, allowing for efficient alarm management, recipe handling, and real-time process adjustments within the SIMATIC automation ecosystem.

Hardware Infrastructure and Display Capabilities

The OP77B is built with a focus on high-speed communication and rugged mechanical reliability, ensuring consistent uptime in 24/7 production cycles.

• Visual Interface: 4.5" high-contrast LCD with a resolution of 160 x 64 pixels and adjustable backlighting.

• Input Method: Integrated membrane keyboard with system keys and programmable function keys for rapid navigation.

• Network Protocols: Dual compatibility with MPI and PROFIBUS DP interfaces, supporting transmission rates up to 12 Mbit/s.

• Expansion & Storage: Equipped with a Multimedia Card (MMC) slot for convenient data backup, recipe storage, and project transfers.

• Peripheral Connectivity: Built-in USB and serial interfaces for connecting printers or facilitating PC-based data exchange.

• Configuration Logic: Fully compatible with WinCC flexible Compact (2004 or higher) or TIA Portal software environments.

Industrial Deployment and Field Utility

This operator panel is specifically optimized for small-to-medium machines where space is a premium but process transparency is mandatory.

Automated Packaging SystemsIn the packaging industry, the 6AV6641-0CA01-0AX1 is utilized to manage changeovers and monitor cycle times. The tactile keyboard is ideal for high-speed environments where operators need to acknowledge alarms or input production counts quickly and accurately.

Material Handling and ConveyingThe unit's robust PROFIBUS connectivity makes it an excellent local control station for long-distance conveyor systems. It provides maintenance personnel with localized diagnostic data, reducing the need to return to a central control room to troubleshoot motor faults or sensor blockages.

Standardized OEM MachineryFor manufacturers of industrial mixers, small ovens, or pumping skids, the OP77B offers a "world-ready" HMI solution. Its compact 5.1 cm depth allows it to be integrated into shallow control cabinets, while its global certification ensures it meets international electrical standards for exported equipment.

Process Monitoring and Recipe ManagementIn chemical or textile processing, the integrated MMC slot allows for the storage of multiple process recipes. Operators can easily toggle between different production parameters on the high-contrast display, ensuring consistent product quality with minimal manual reconfiguration.
