Product Overview

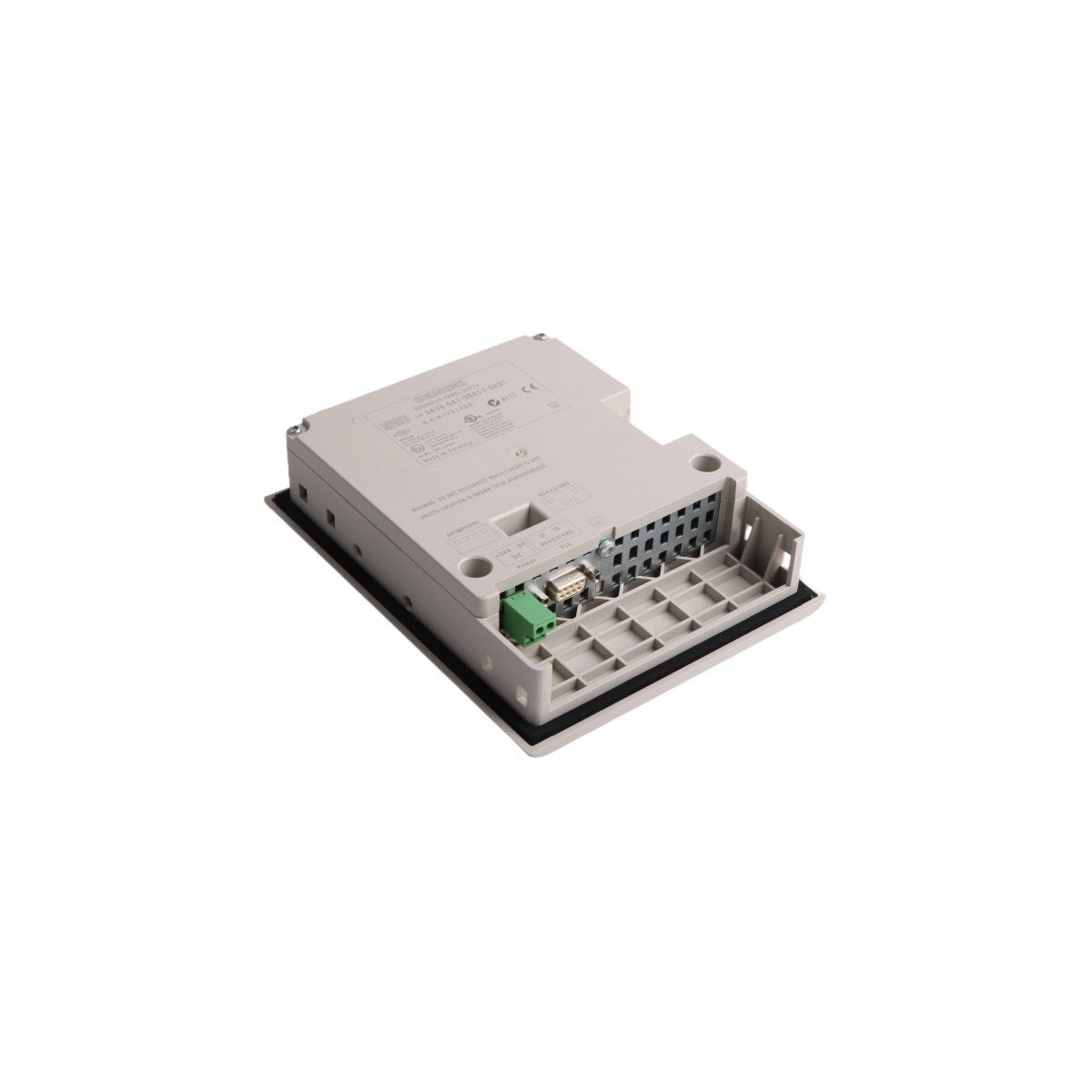

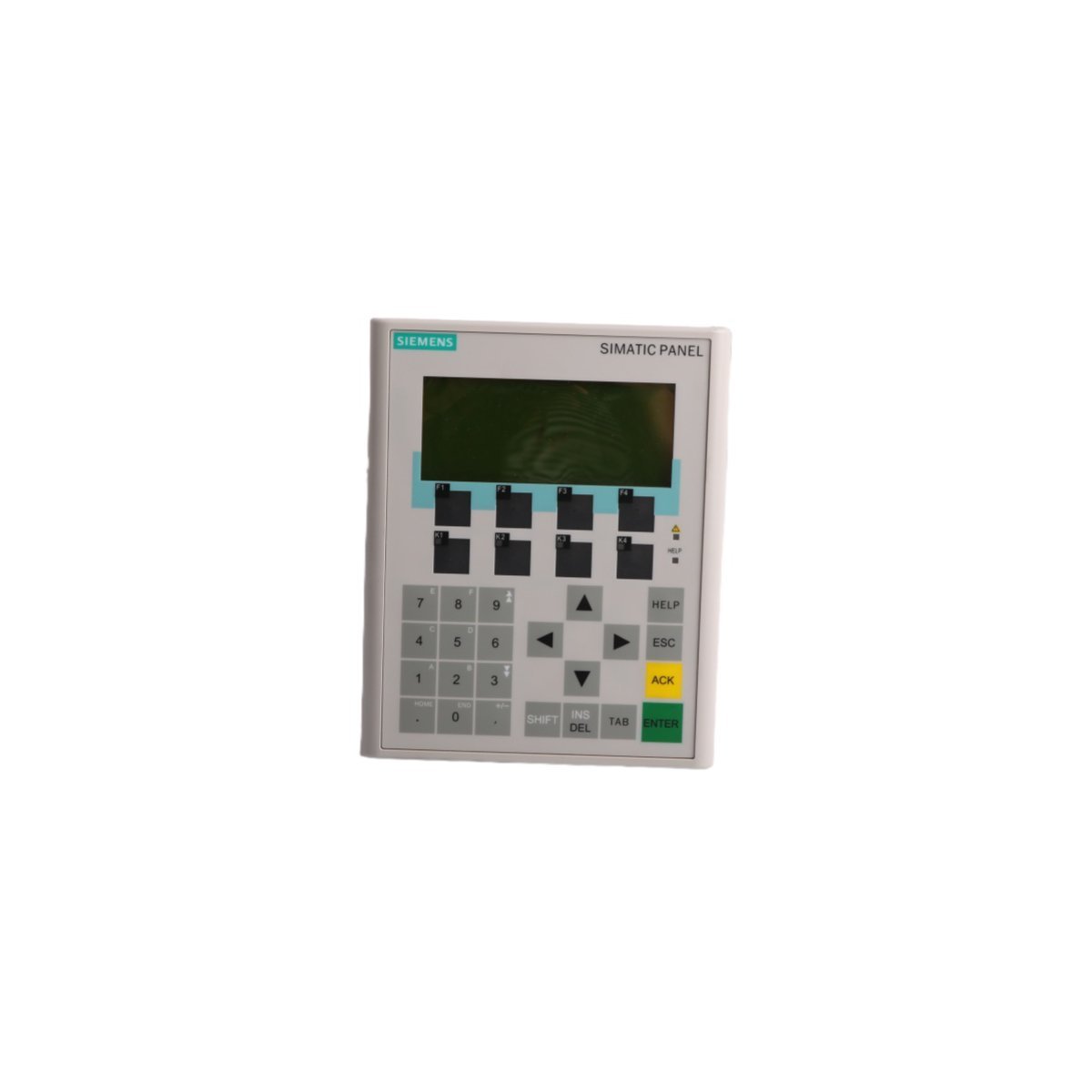

The 6AV6641-0BA11-0AX1 is a specialized Human Machine Interface (HMI) designed for straightforward machine-level control and visualization. Part of the proven SIMATIC OP 77A series, this operator panel features a high-contrast 4.5-inch STN monochrome display that provides essential data feedback in a graphics-capable format. Equipped with a robust membrane keyboard, it is engineered for precision input in environments where touchscreens may be impractical due to heavy industrial gloves or high-debris conditions. This unit facilitates direct communication with SIMATIC S7 controllers via integrated networking ports, serving as a durable and cost-effective gateway for process monitoring and parameter adjustment.

Hardware Architecture and Mechanical Specifications

• Display Type: 4.5" STN Monochrome LC with 160 x 64 pixel resolution

• Input Interface: System keys and numeric membrane keyboard

• Backlighting: Long-life LED (approx. 100,000 operating hours)

• Networking Port: Combined RS485/422 interface (MPI/PROFIBUS DP up to 1.5 Mbit/s)

• Memory Integration: Internal flash memory for project data and recipe management

• Operating Voltage: 24V DC

• Enclosure Rating: IP65 on the front panel (dust-tight and water-jet resistant)

• Physical Mass: 0.95 kg

• Casing Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Configuration Software: WinCC flexible Compact or higher

Strategic Industrial Applications

The SIMATIC OP 77A is optimized for localized automation tasks across several industrial sectors:

• Manufacturing Cells: Ideal for small assembly stations where operators need to acknowledge alarms, input setpoints, or monitor cycle counts.

• Pumping Stations: Used in water treatment or irrigation for basic valve control and pressure monitoring where a monochrome screen offers superior sunlight readability.

• Material Handling: Integration into conveyor systems for simple motor diagnostics and status reporting.

• HVAC Systems: Controlling industrial climate units or refrigeration cycles in warehouses.

• OEM Machinery: A preferred choice for original equipment manufacturers building compact specialized tools that require a ruggedized, button-operated interface over complex touch displays.
