Product Overview

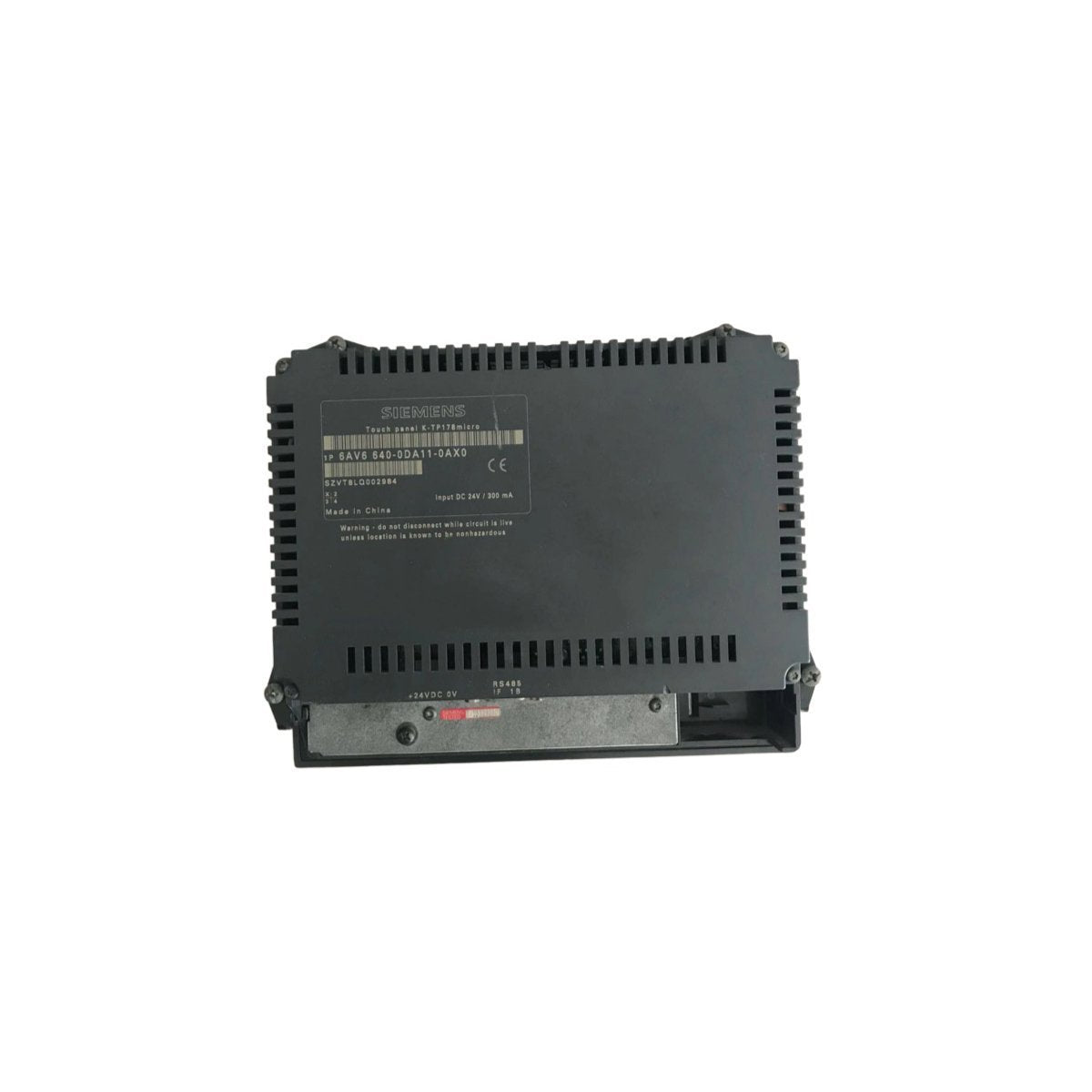

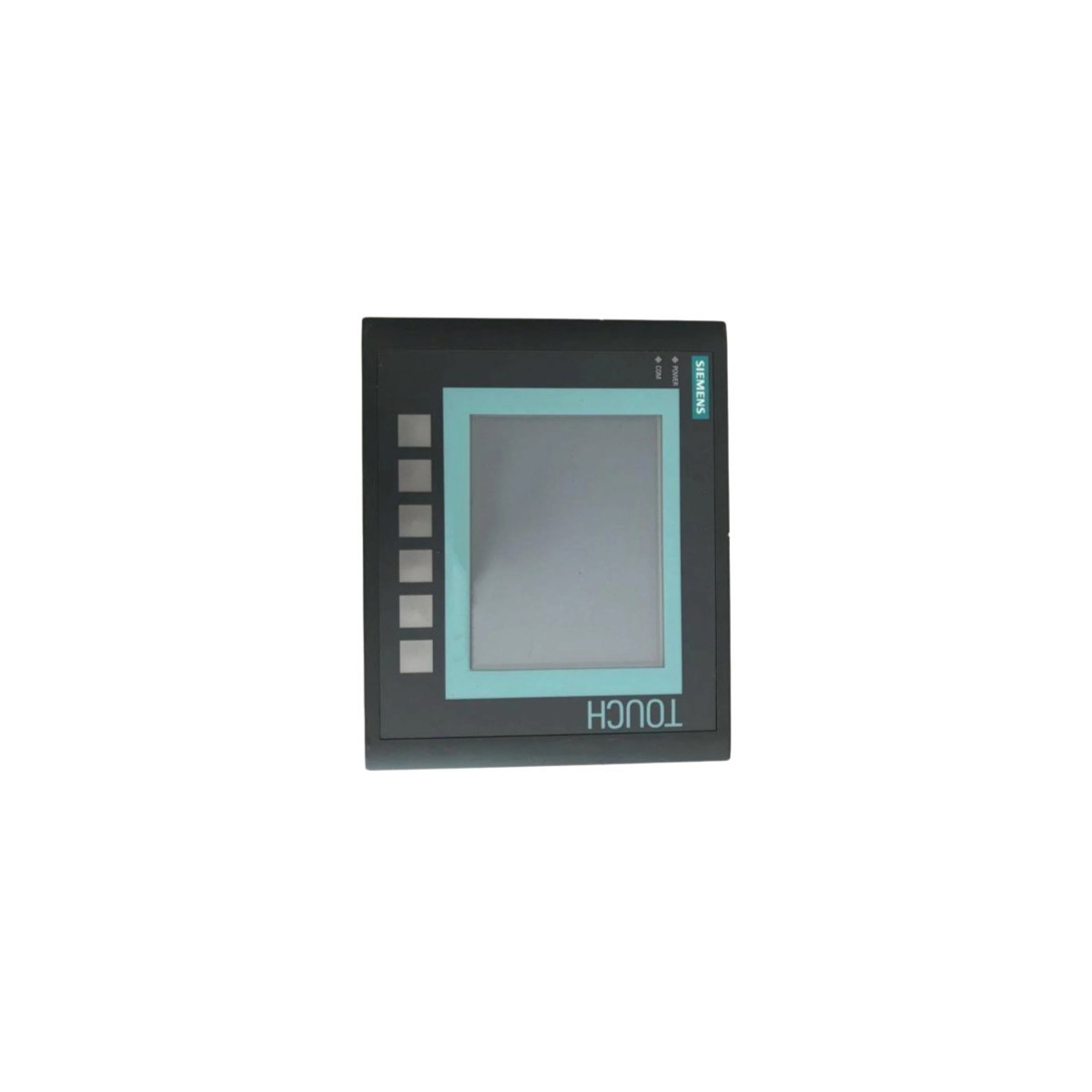

The Siemens 6AV6640-0DA11-0AX0 is a specialized SIMATIC TP 178 Micro Touch Panel specifically engineered for seamless integration with S7-200 PLC systems. This Human-Machine Interface (HMI) provides a compact yet powerful visualization solution for small-scale automation tasks. Featuring a high-contrast STN Blue Mode display, the panel allows operators to monitor process values, adjust machine parameters, and manage system alarms through a responsive touch-sensitive interface. Designed for industrial longevity, this hardware unit bridges the gap between complex data and intuitive user control, ensuring efficient machine operation in decentralized automation environments.

Technical Hardware Profile and Physical Attributes

This HMI unit is built to withstand rigorous factory floor conditions, combining a space-saving form factor with robust communication capabilities.

• Display Type: STN LCD Blue Mode (4-level Grayscale)

• Screen Size: 5.7 inch diagonal

• Resolution: 320 x 240 pixels

• Control Method: Analog resistive touch screen

• Interface Port: RS 485 (PPI protocol) dedicated for SIMATIC S7-200 communication

• Power Input: 24V DC (Permissible range 20.4V to 28.8V)

• Memory: Integrated Flash memory for HMI project data

• Configuration Software: WinCC flexible Micro or higher

• Protection Rating: IP65 at the front (when mounted correctly)

• Device Net Weight: 0.76 kg

• Gross Shipping Weight: 0.95 kg

• Physical Dimensions: 212 mm W x 156 mm H x 45 mm D

• Package Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Origin: Germany

Industrial Deployment Scenarios

Machine-Level Visualization for S7-200The TP 178 Micro is the primary choice for OEMs building compact machinery powered by S7-200 controllers. It is frequently deployed in automated assembly stations where operators need to visualize cycle times, part counts, and station status. Its blue-mode display is specifically tuned for legibility in indoor industrial lighting, reducing eye strain during extended shifts.

Food and Beverage PackagingIn liquid filling or dry-goods packaging lines, this HMI manages recipe selection and speed control. The IP65-rated front face protects the electronics against dust and incidental moisture, making it suitable for environments where hygiene and frequent wipe-downs are required.

HVAC and Building ManagementFor large-scale climate control systems, the 6AV6640-0DA11-0AX0 serves as a localized control hub. Maintenance personnel can use the touch interface to override setpoints, view historical alarm logs, and troubleshoot sensor discrepancies without needing to connect a laptop to the PLC.

Textile and Printing MachineryThe panel's ability to handle multi-language project text and complex graphics allows it to be used in globally exported machinery. In textile weaving or printing applications, the TP 178 Micro provides a deterministic response to operator inputs, which is critical when making real-time adjustments to high-speed mechanical processes.
