Product Overview

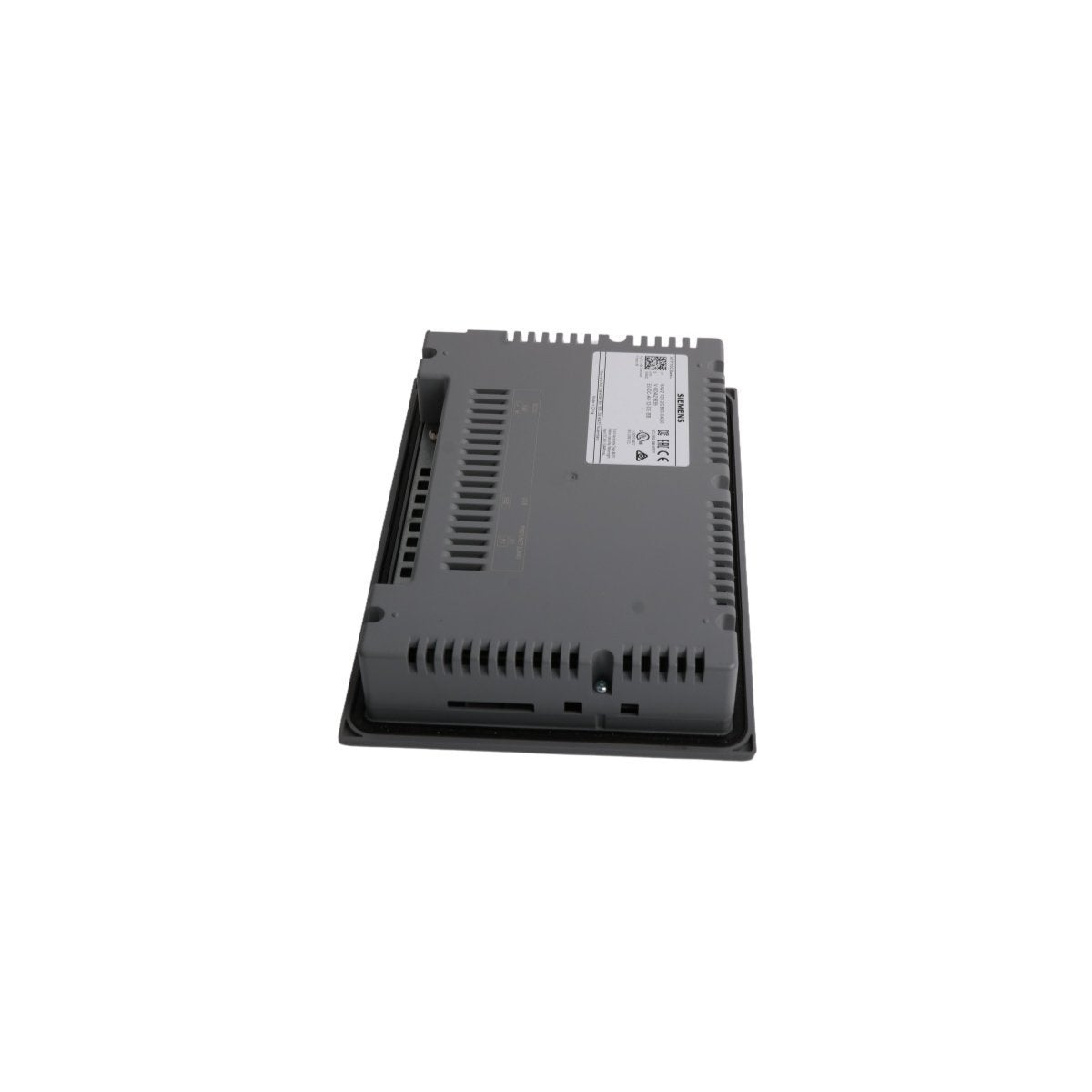

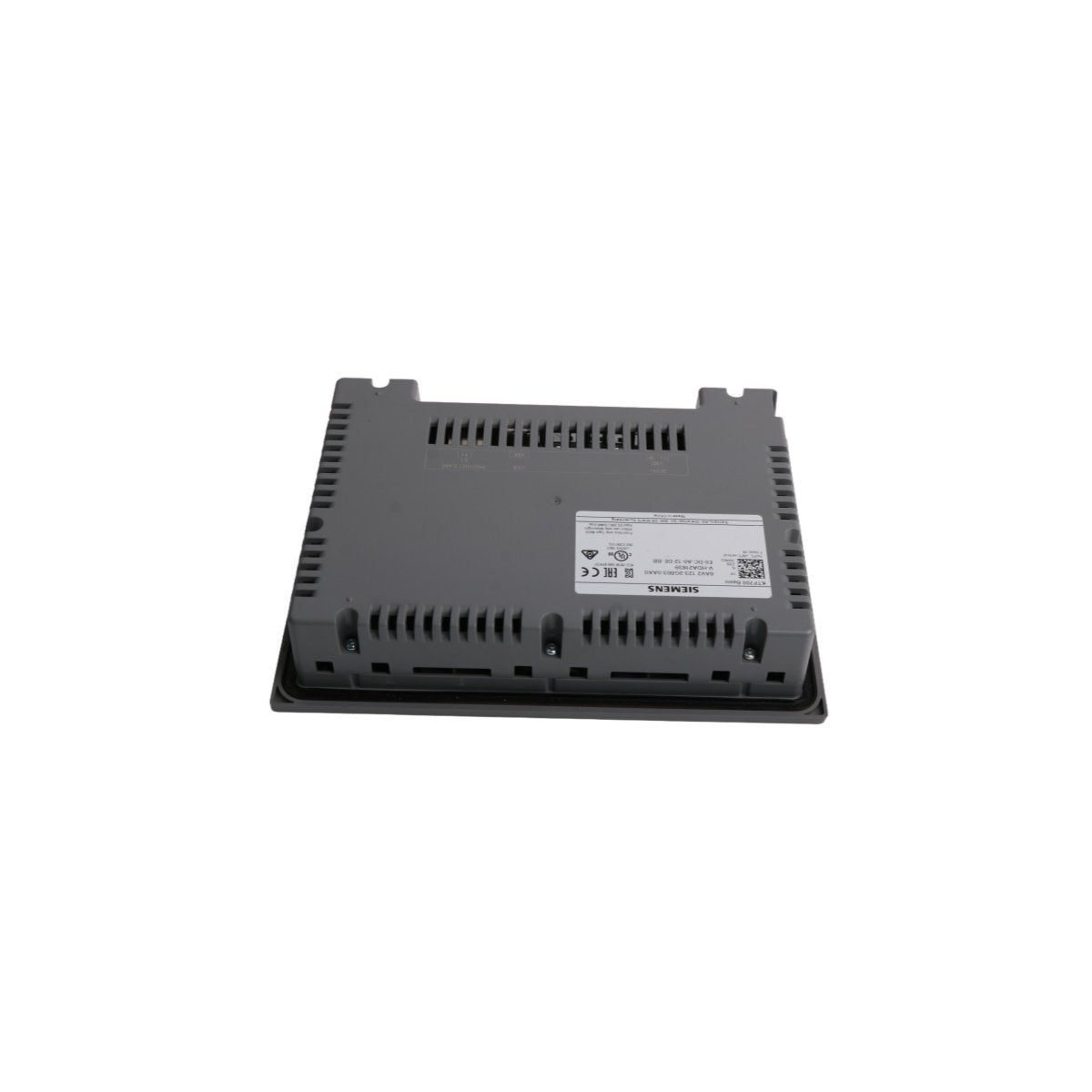

The Siemens 6AV2123-2GB03-0AX0 is a high-efficiency KTP700 Basic Panel designed to provide a centralized human-machine interface for machine-level automation. Featuring a 7-inch TFT widescreen display, this unit bridges the gap between cost-effectiveness and high-performance visualization. It is specifically engineered to operate within the SIMATIC S7 controller environment, offering a high-resolution graphical interface that simplifies complex process monitoring. By integrating both a responsive touch screen and tactile function keys, the KTP700 provides operators with versatile input methods, ensuring reliable command execution even in challenging industrial settings where gloves or environmental factors might limit touch accuracy.

Hardware Architecture and Display Specifications

The technical foundation of the 6AV2123-2GB03-0AX0 emphasizes clarity, connectivity, and durability:

• Visual Output: 7-inch TFT widescreen display with 65,536 colors and a sharp 800 x 480 pixel resolution.

• Dual Operation Mode: Equipped with a resistive touch screen and 8 programmable tactile function keys.

• Network Integration: Built-in RJ45 Ethernet interface supporting PROFINET communication protocols for seamless PLC linking.

• Engineering Environment: Fully compatible with TIA Portal (WinCC Basic V13 or higher) for streamlined project design and tag management.

• Backlight Technology: Long-life LED backlighting with dimmable functionality to suit varying ambient light conditions.

• Memory and Processing: Optimized internal memory for handling alarm logs, recipe management, and trend graphics.

• Rugged Construction: IP65-rated front protection against dust and moisture, suitable for harsh factory floor installation.




Industrial Implementation Scenarios

The KTP700 Basic Panel is the preferred visualization solution for a variety of localized control tasks:
