Product Overview

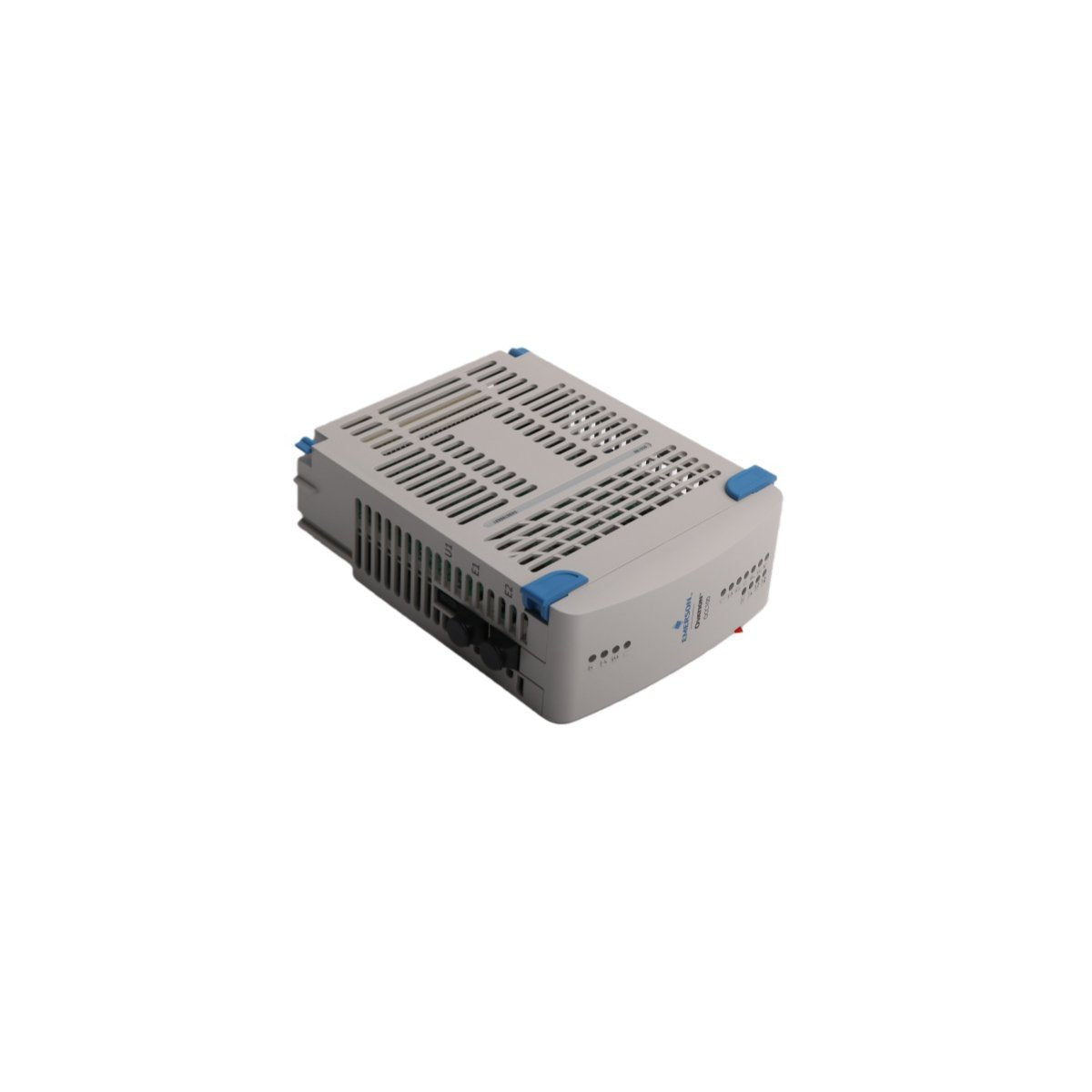

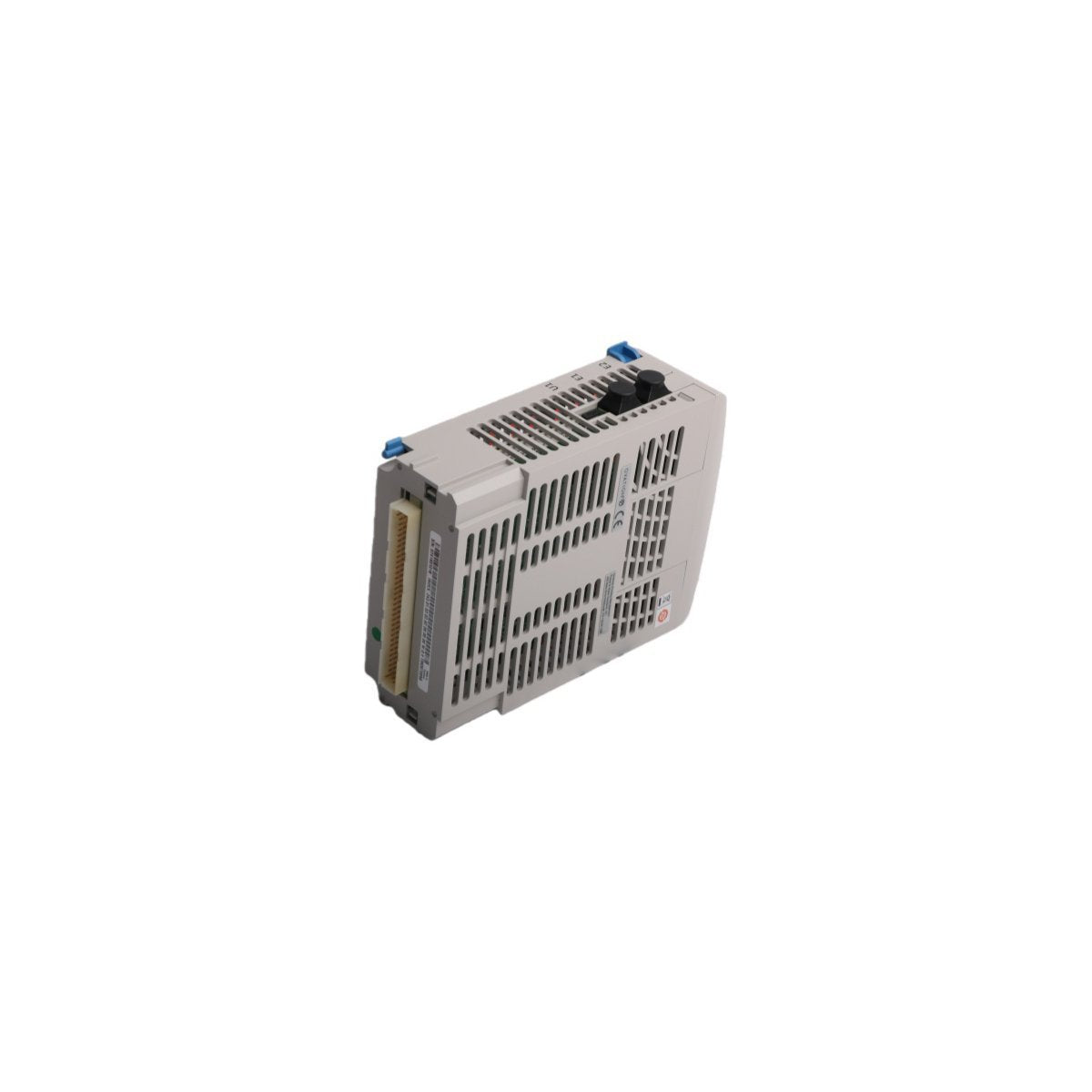

The Emerson 5X00790G01 is a high-performance OCC100 Controller and Analog Input Module specifically developed for the Ovation™ Distributed Control System (DCS). This module serves as a critical bridge between field instrumentation and the control network, digitizing continuous analog signals from devices such as pressure transmitters, flow meters, and thermocouples. By converting these physical variables into high-resolution engineering units, the 5X00790G01 enables the Ovation system to perform complex regulatory control and monitoring with extreme precision.

Engineered for the demanding requirements of power generation and water treatment utilities, the OCC100 controller architecture provides a compact yet powerful footprint for localized data acquisition. The module is not merely a signal pass-through device; it handles sophisticated local processing tasks, including signal validation, limit checking, and alarm generation. This decentralized processing capability offloads the primary controller, enhancing overall system responsiveness and fault tolerance in mission-critical automation environments.

Technical Performance and Signal Processing

The 5X00790G01 excels in high-speed data acquisition, featuring advanced filtering techniques to eliminate industrial electrical noise and ensure signal integrity. It supports various input ranges and can be configured for specific sensor types through Ovation software. One of its standout technical capabilities is the support for "Sequence of Events" (SOE) processing, which allows for microsecond-level timestamping of process changes—a vital feature for root-cause analysis in turbine trip scenarios or electrical substation monitoring.

Mechanically, the module is designed for long-term durability in high-density I/O cabinets. Its modular "plug-in" design facilitates rapid hardware replacement and system expansion without disrupting the backplane power or communication of adjacent modules. This hardware is built to endure the thermal and electromagnetic stresses typical of industrial power plants, ensuring a stable lifecycle even in environments with high vibration and temperature fluctuations.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)

• Model Designation: 5X00790G01

• Module Type: OCC100 Controller / Analog Input Module

• Product Series: Ovation™ DCS

• Input Capability: Multi-channel Analog Input (Voltage/Current)

• Signal Conversion: High-resolution A/D conversion with engineering unit scaling

• Diagnostic Features: Sensor health checking, point alarming, and self-diagnostics

• Special Functions: Sequence of Events (SOE) processing and local logic execution

• Dimensions: 12.1 cm x 5.2 cm x 16.6 cm

• Net Weight: 0.34 kg

• Country of Origin: USA

• System Environment: Optimized for Ovation I/O bus and Ethernet router services

Primary Industrial Applications

• Power Generation: Real-time monitoring of turbine parameters, boiler pressures, and generator temperatures.

• Water & Wastewater: Precision control of chemical dosing pumps and real-time water quality telemetry.

• Oil & Gas: Reliable monitoring of process variables in refinery and pipeline midstream operations.

• Utility Automation: Integrated control for localized plant subsystems requiring compact, high-performance processing.
