Product Overview

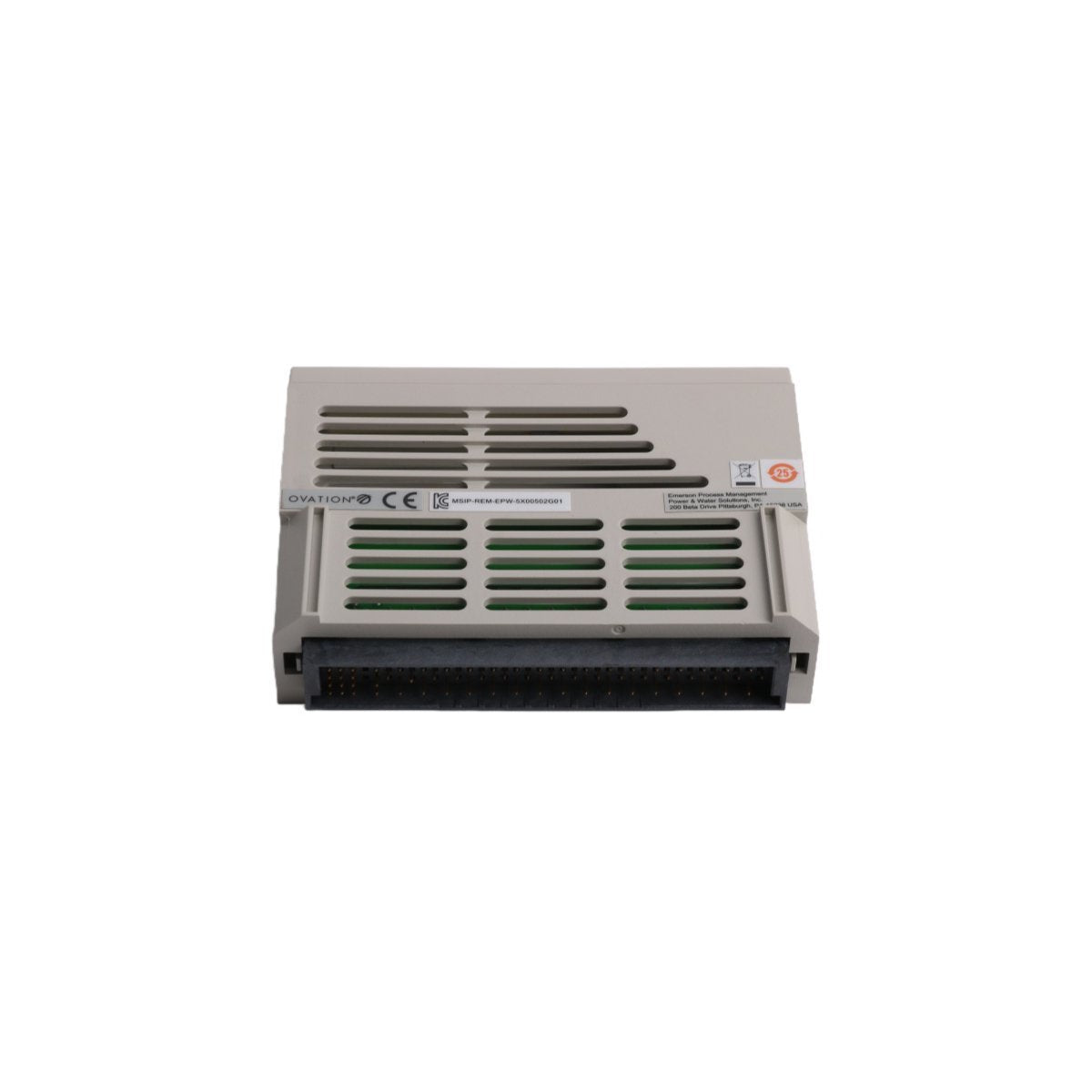

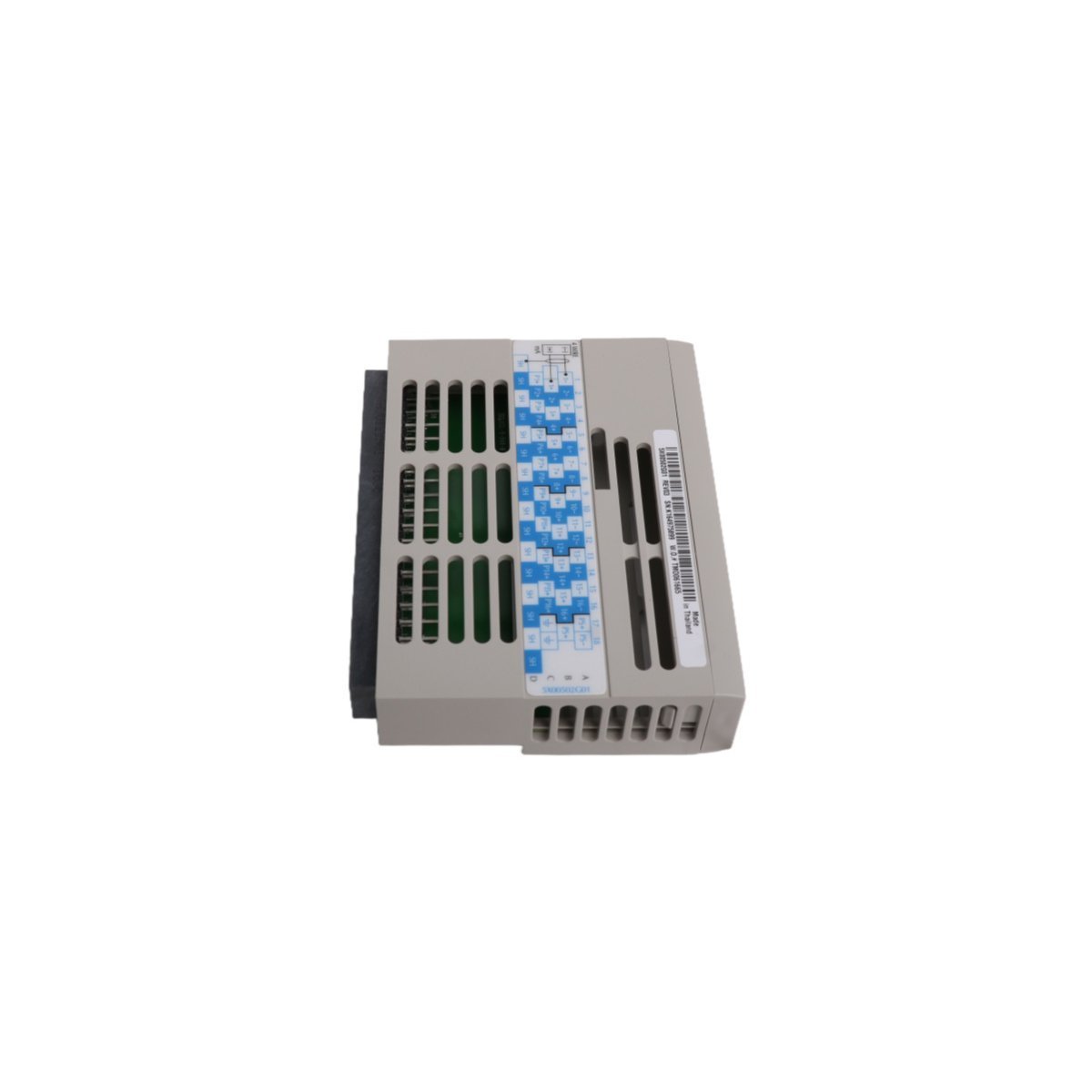

The Emerson 5X00502G01 is a high-performance analog interface module specifically engineered for the Ovation™ Distributed Control System (DCS). While legacy documentation occasionally refers to this series in broad terms, the 5X00502G01 is primarily utilized for precision signal acquisition from field-mounted transmitters. It serves as a vital bridge between industrial process variables and the Ovation control network, converting continuous physical data into accurate digital information for system-wide logic execution.

Built to sustain the rigorous demands of utility-scale power generation and water treatment facilities, this module features advanced signal conditioning circuitry. It is designed to maintain high measurement fidelity even when subjected to the electromagnetic interference (EMI) typical of heavy industrial environments. Although this specific hardware revision was part of the 2018 discontinuation cycle, it remains a critical legacy component for operators maintaining the reliability of established Ovation control architectures.

Technical Characteristics and Architecture

• High-Accuracy Conversion: Employs precision analog-to-digital converters to ensure that process variables like pressure, temperature, and flow are represented with high resolution.

• Signal Conditioning: Built-in filtering and surge protection mechanisms safeguard the internal logic from field-side transients and electrical noise.

• Ovation Integration: Fully compatible with standard Ovation I/O racks and carriers, allowing for seamless communication with the controller via the system's high-speed I/O bus.

• Diagnostic Monitoring: Features onboard self-diagnostics that continuously verify the health of the module and the integrity of the input loops, alerting operators to signal discrepancies or hardware faults.

• Ruggedized Construction: The electronics are housed in a compact, durable enclosure designed for vertical or horizontal rack mounting, ensuring optimal heat dissipation.

• Galvanic Isolation: Provides necessary isolation between field circuits and the system backplane to prevent ground loop issues and enhance overall system stability.

Technical Specifications

• Manufacturer: Emerson Process Management

• Model Number: 5X00502G01

• Product Family: Ovation DCS

• Module Type: Analog Input (AI)

• Input Range: Standard industrial ranges (e.g., 4-20 mA, 0-10 VDC)

• Dimensions: 12.1 x 5.2 x 16.6 cm

• Net Weight: 0.34 kg

• HS Code: 8537101190

• System Component: I/O Interface Module

• Origin: United States

Industrial Applications

• Power Generation: Monitoring of steam turbine parameters, feedwater flow, and boiler pressure.

• Water & Wastewater: Real-time data acquisition for pump station monitoring and chemical dosing control.

• Oil & Gas Refining: Integration of remote smart transmitters for refinery-wide process oversight.

• Environmental Systems: Precision monitoring for emissions sensing and flue gas desulfurization (FGD) units.
