Product Overview

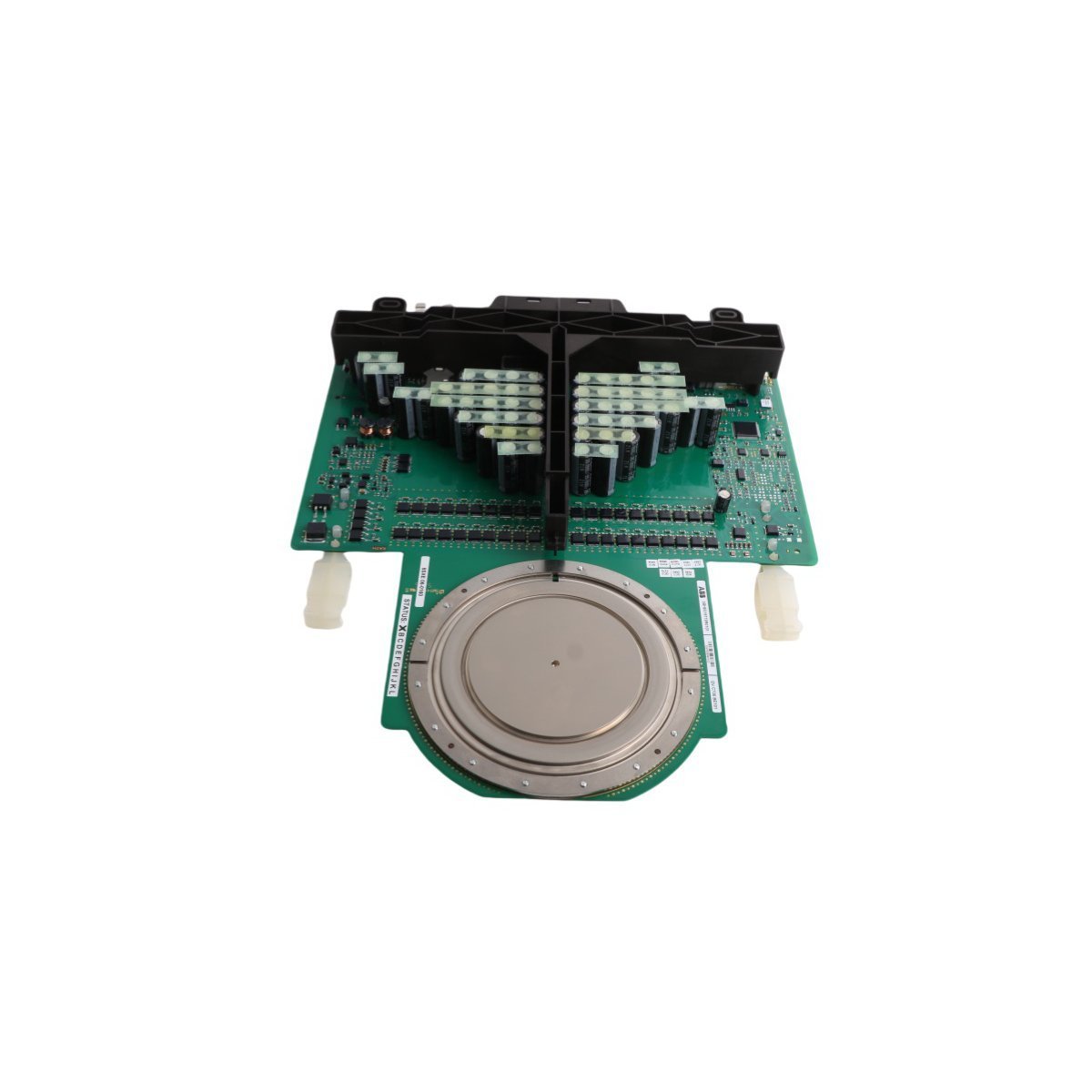

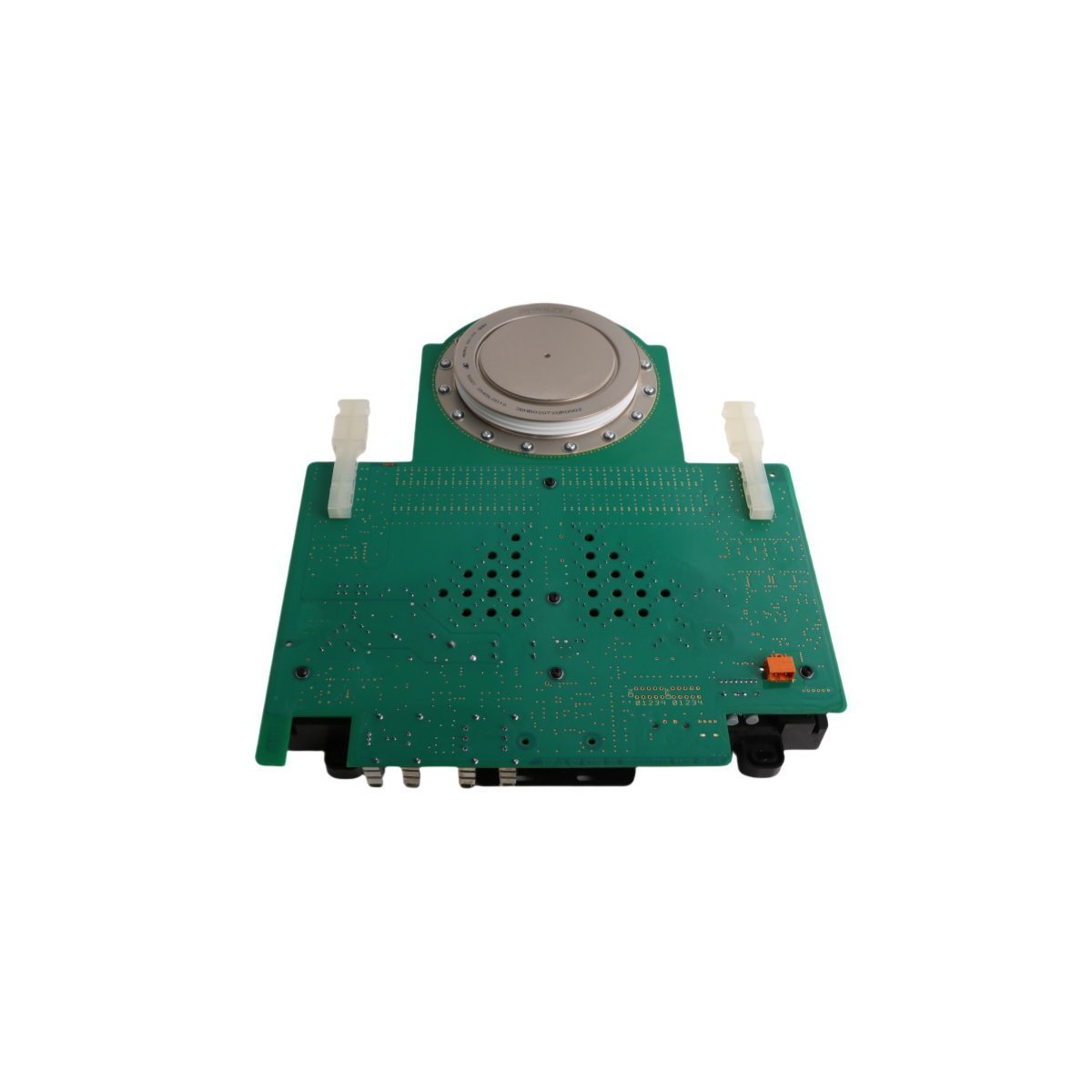

The ABB 5SHY3545L0016, also identified by part number 3BHB020720R0002, is a premier Integrated Gate Commutated Thyristor (IGCT) module engineered for high-capacity power conversion. This semiconductor device bridges the gap between traditional thyristor power handling and transistor-level switching speeds. By integrating a specialized gate driver directly into the housing, the module minimizes internal inductance and optimizes the commutation process. Designed for the Advant OCS and 800xA control environments, it is a core component in medium-voltage (MV) drives and converters, providing the deterministic control and high thermal stability required for 24/7 industrial and utility-scale operations.

Hardware Parameters and Technical Specifications

This IGCT module is characterized by its massive current density and superior voltage blocking capabilities, making it a robust alternative to standard GTOs or SCRs in modern power stacks.

• Model Number 5SHY3545L0016

• Engineering Code 3BHB020720R0002

• Peak Blocking Voltage 4500V

• Controllable On-State Current 1200A

• Switching Performance Exceptional $dv/dt$ immunity (minimum 1000V/μs)

• Isolation Rating 10kV RMS gate-to-cathode isolation for enhanced safety

• Mechanical Configuration Press-pack design requiring 35–45kN mounting force for thermal conductivity

• Integrated Driver Onboard gate unit reduces parasitic inductance and simplifies system wiring

• Physical Mass 2.64 kg

• External Dimensions 35 x 29 x 6 cm

• Manufacturing Origin Sweden

• System Series Compatibility ACS 6000, Advant OCS, 800xA, and HVDC platforms

Industrial Applications and Operational Use Cases

The 5SHY3545L0016 is a critical asset for heavy industries requiring high-efficiency energy modulation and rapid power switching.

• Renewable Energy Conversion Acting as a primary switching element in large-scale wind turbine inverters and solar farm power collection systems to synchronize energy with the grid.

• Medium Voltage Drives (MVD) Utilized in the ACS 6000 drive platform to manage high-power motor control for gas compressors, water pumps, and mill drives.

• Traction and Marine Propulsion Providing the power density required for locomotive traction converters and electric shipboard propulsion systems where space and weight are at a premium.

• Flexible AC Transmission Systems (FACTS) Implementing high-speed reactive power compensation (STATCOM) to stabilize utility grids and prevent voltage flickers.

• HVDC Transmission Serving as a fundamental component in high-voltage direct current valves for long-distance energy transport and inter-grid connections.
