Product Overview

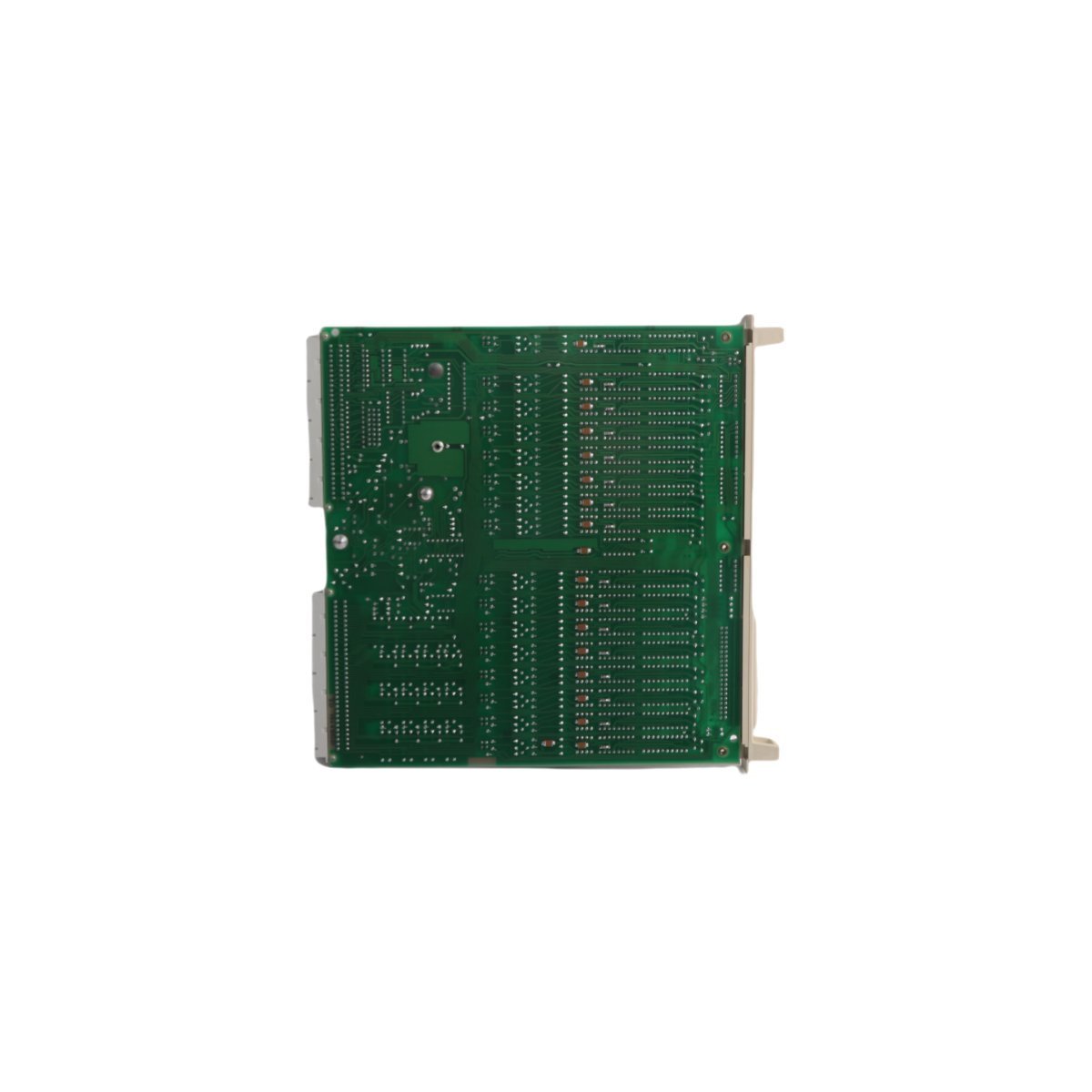

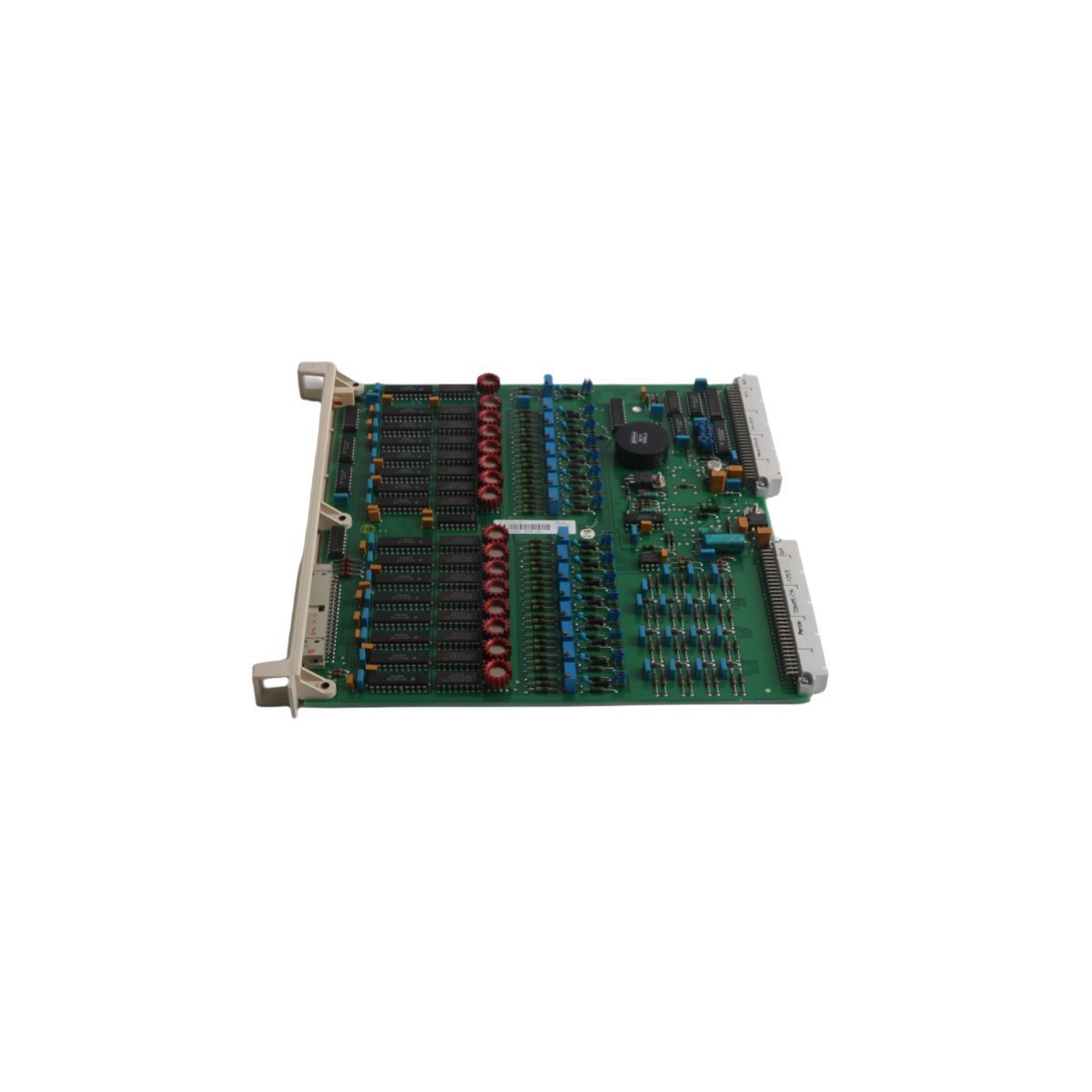

The ABB DSAO 130, part number 57210001-FG, is a high-density analog output module engineered for the Advant Controller 400 series (AC450) and MasterPiece Distributed Control Systems (DCS). This module serves as a critical interface for translating digital control commands from the CPU into precise analog signals required to drive field actuators. With 16 independent output channels, the DSAO 130 provides the high-fidelity control necessary for managing valves, motor speed controllers, and other modulating final control elements in a process loop.

Designed for mission-critical industrial environments, the DSAO 130 ensures signal integrity through a robust hardware architecture. It supports both standard voltage and current ranges, allowing for flexible integration with a wide array of industrial instrumentation. Its modular board design facilitates rapid deployment and simplified maintenance within standard ABB sub-racks, making it a cornerstone for reliable process automation.

Performance and Precision Engineering

The 57210001-FG board is characterized by its superior accuracy, maintaining a 0.4% precision rating across its operating range. This level of exactness is vital for safety-critical systems and process monitoring where minute variations in signal output can impact overall system stability or product quality. The board is also designed to withstand the electrical noise and thermal stresses typical of heavy industrial facilities, such as power plants and chemical processing units.

By providing stable 0–10V and 0–20mA outputs, the DSAO 130 offers the versatility needed for diverse automation architectures. Its seamless compatibility with the Advant OCS ecosystem allows for centralized management of all 16 channels, supporting complex control strategies and real-time feedback loops. This module is an essential component for facilities looking to maintain the longevity and efficiency of their legacy ABB control infrastructure.

Technical Specifications

• Model Number: DSAO 130

• Ordering Code: 57210001-FG

• Module Type: Analog Output Board

• Channel Density: 16 Channels

• Signal Ranges: 0–10V DC and 0–20mA (Current/Voltage selectable)

• Output Accuracy: 0.4% of full scale

• System Compatibility: Advant Controller 450 (AC450) / MasterPiece

• Isolation: Galvanic isolation per channel groups

• Manufacturing Origin: Sweden

• Weight: 0.44 kg

• Physical Dimensions: 2 x 24.8 x 24.3 cm

• HS Code: 8537101190

Industrial Applications

• Modulating Valve Control: Precise positioning of control valves in fluid management and steam cycles.

• Variable Frequency Drives (VFD): Providing speed reference signals to high-power motor controllers.

• Process Regulation: Managing pressure, temperature, and flow setpoints in refinery and pharmaceutical manufacturing.

• System Modernization: Functioning as a high-reliability spare for maintaining existing Advant OCS installations.
