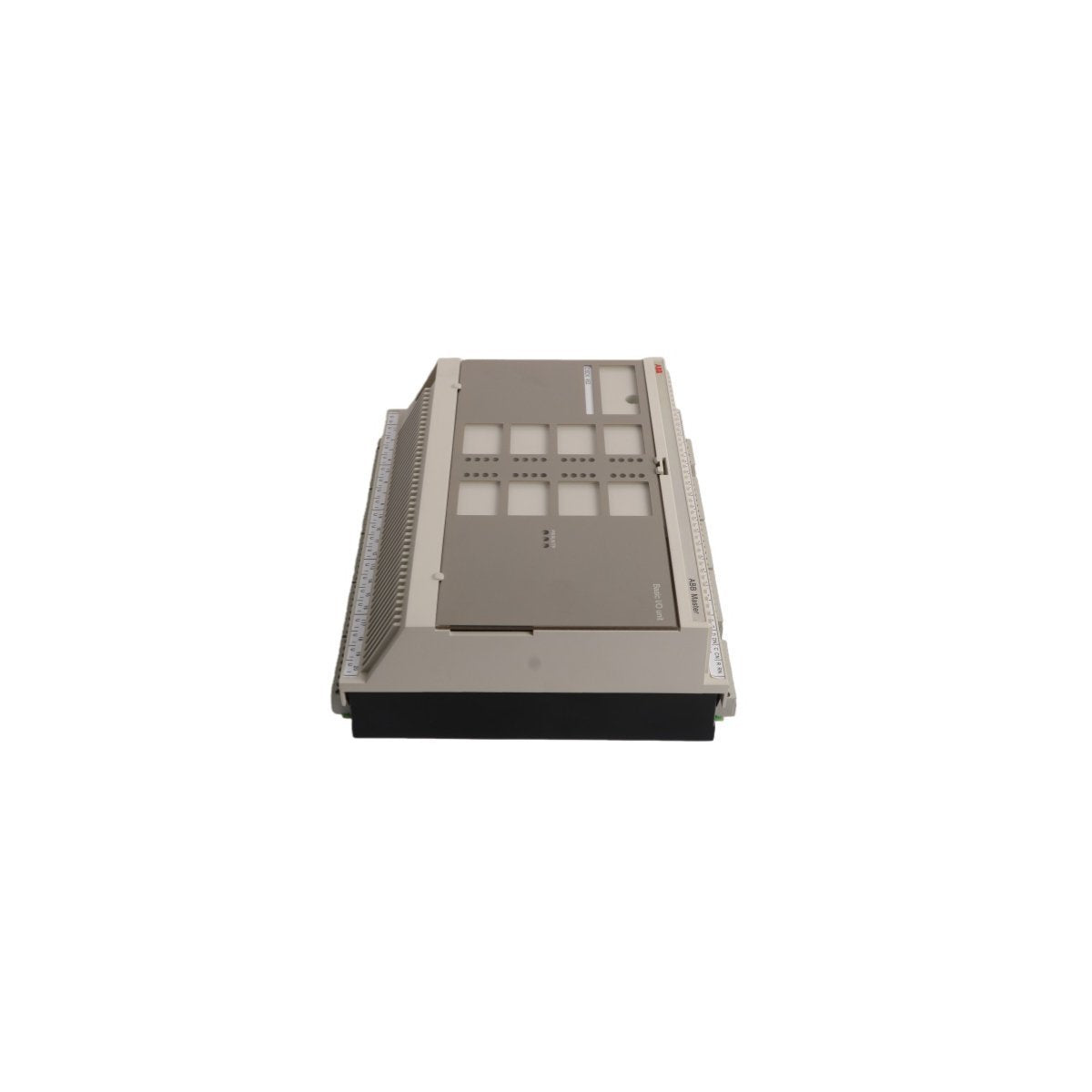

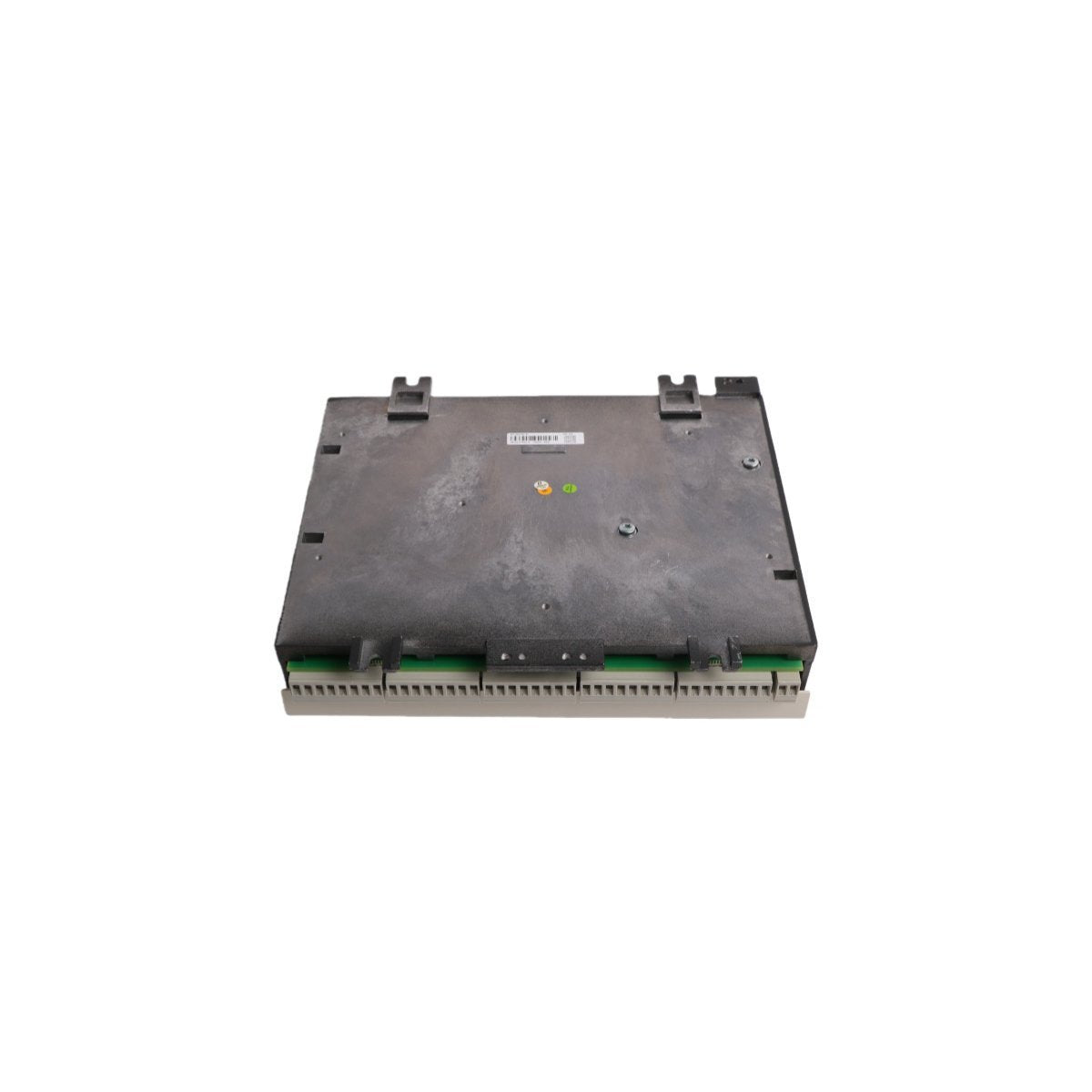

5716075-P DSDX452 ABB Basic Input Output Unit

Product Overview

The ABB DSDX452, identified by engineering code 5716075-P, is a high-density digital remote I/O module designed for the Advant OCS and MasterPiece 200/1 control systems. This unit functions as a decentralized interface, bridging field-level binary devices with the central processor via the RIO (Remote I/O) bus. By integrating both input and output capabilities into a single chassis, the DSDX452 optimizes cabinet space and significantly reduces wiring overhead. It is engineered to provide deterministic signal processing for critical interlocks and status monitoring, ensuring that high-speed binary data is communicated with maximum reliability across the distributed control network.

Key Technical Characteristics and Hardware Parameters

The DSDX452 5716075-P is built for industrial-grade durability, featuring high-channel density and robust electrical isolation to protect the system backplane.

• Model Identification DSDX452

• Part Number 5716075-P

• Module Category Basic Digital Input Output Unit (Remote I/O)

• Digital Input Capacity 20 independent channels for binary signal acquisition

• Digital Output Capacity 12 channels for command execution and switching

• Signal Type Standard 24V DC binary signals (On/Off)

• System Series Advant OCS / MasterPiece 200 / S100 I/O

• Mounting Configuration Remote rack-mount design to minimize long-distance field cabling

• Isolation Features Advanced galvanic isolation for signal integrity in noisy environments

• Physical Mass 1.22 kg

• Unit Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

• System Lifecycle Active support for DCS maintenance and expansion

Industrial Applications and Operational Use Cases

The DSDX452 5716075-P is a fundamental component for large-scale industrial plants that require reliable distributed signaling over wide geographical areas.

• Power Generation Control Managing turbine interlocks and auxiliary pump status monitoring by locating the I/O unit directly in the local motor control center (MCC).

• Process Industry Automation Handling valve position feedback and solenoid control in chemical processing plants where decentralized I/O reduces the risk of signal attenuation.

• Legacy DCS Upgrades Serving as a direct replacement part for aging MasterPiece 200 systems, allowing for the extension of system life without a complete architectural overhaul.

• Bulk Material Handling Coordinating limit switches and safety pull-cords across long-distance conveyor systems in mining and cement production.

• Water Treatment Infrastructure Providing localized control for remote pumping stations, using the module’s combined I/O structure to manage both sensor inputs and motor starter outputs.
