Product Overview

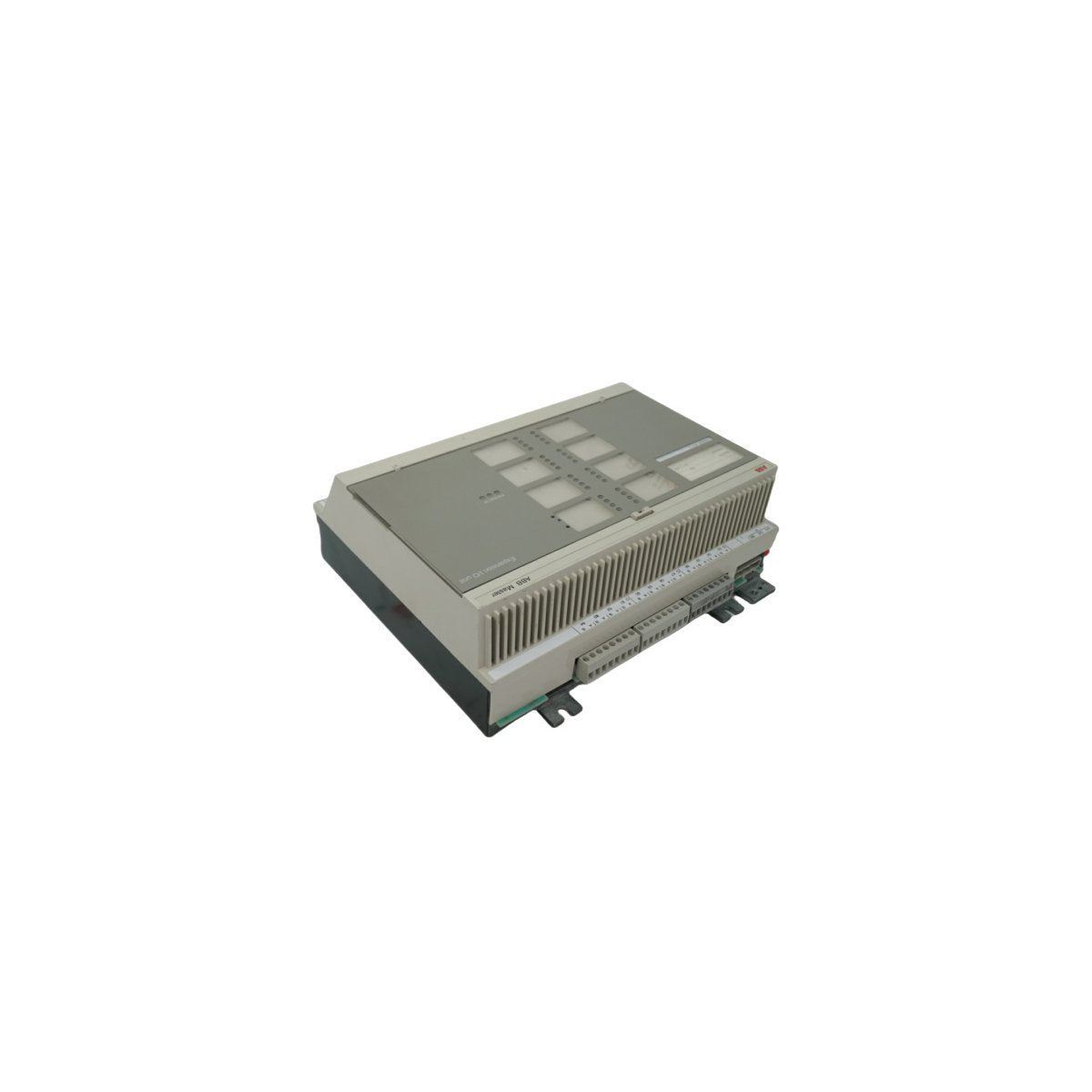

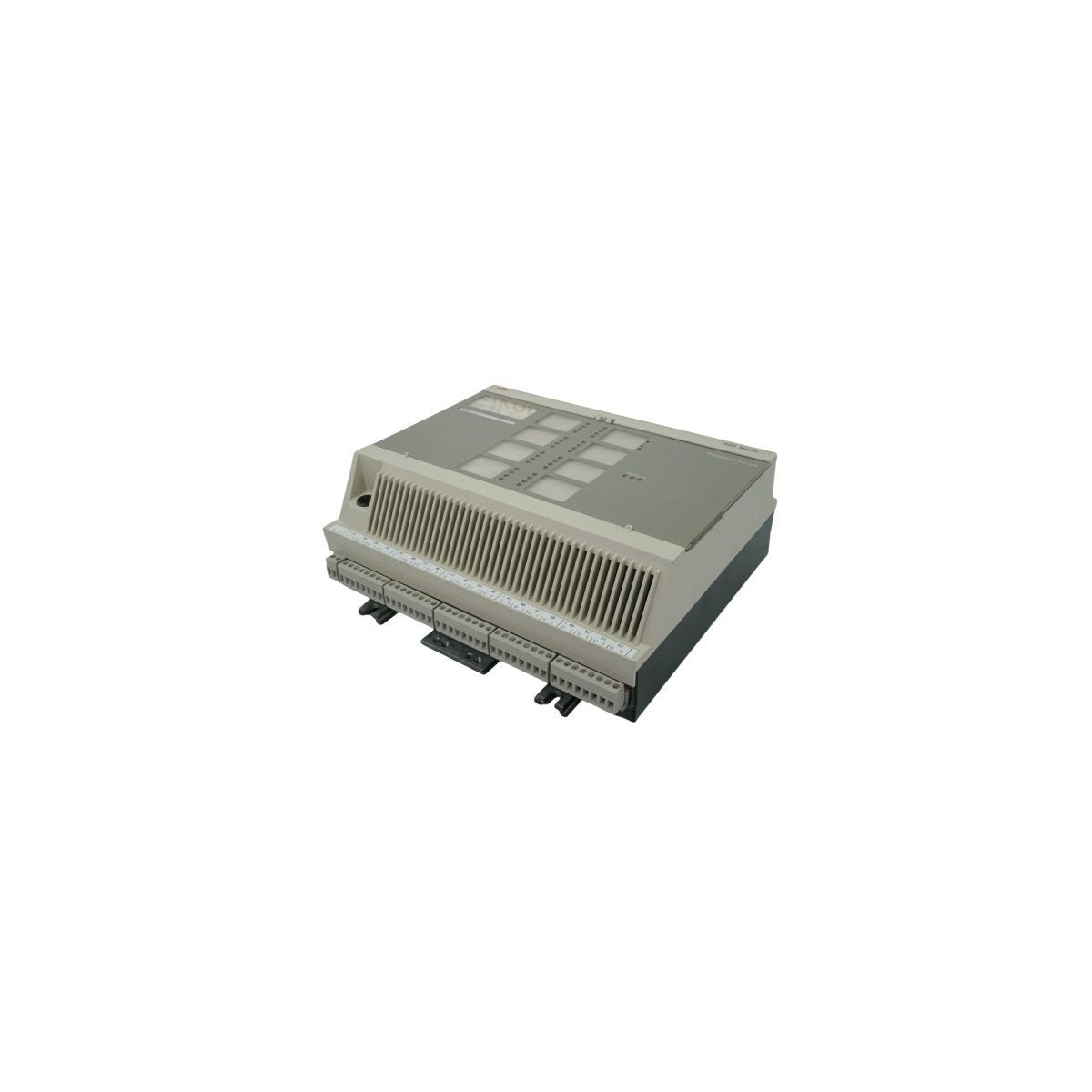

The ABB DSDX451, identified by part number 5716075-K, is a high-density digital expansion unit designed to augment the capabilities of the Advant S400 I/O system. This dual-purpose module provides a balanced configuration of 16 digital inputs and 16 digital outputs, serving as a versatile remote I/O node within Distributed Control Systems (DCS). Engineered for high-speed signal processing and decentralized automation, the DSDX451 allows for efficient data exchange between field devices and central controllers. Its robust Sweden-manufactured chassis is built to maintain signal integrity across long distances, making it a critical component for expanding the I/O footprint of existing industrial networks without increasing localized wiring complexity.

Technical Configuration and Hardware Metrics

• Model IdentificationDSDX451

• Order Reference5716075-K

• Total Channel Count32 Channels (16 Inputs / 16 Outputs)

• Net Weight3.2 kg

• Casing Dimensions22.9 x 10.2 x 25.4 cm

• Communication InterfaceProfinet / Ethernet Router Support

• Connector TypeM8 Industrial Connectors

• Environmental ProtectionIP20 Rating

• Operating Temperature-25°C to +60°C

• Manufacturing OriginSweden

• Tariff Code (HS)8537101190

The DSDX451 features a specialized 3.2 kg ruggedized housing designed for panel mounting. The integration of M8 connectors ensures vibration-resistant wiring, which is essential for heavy-duty industrial applications. Its wide thermal operating range of -25°C to +60°C ensures that logic states are correctly captured and executed even in non-climate-controlled environments.

Industrial Deployment Scenarios

The 5716075-K DSDX451 is strategically deployed in large-scale automation projects where mixed input and output signals are required at a single remote point. Primary applications include:

• Conveyor and Sorting Systems: Managing a combination of proximity sensor inputs and motor starter/solenoid outputs on a single bus node.

• Process Skid Control: Providing a localized control interface for pumps, valves, and level switches in chemical or water treatment modules.

• Factory Floor Expansion: Extending the reach of Advant S400 systems to auxiliary machinery without requiring additional central processor racks.

• Infrastructure Monitoring: Coordinating digital status signals and control commands for HVAC, lighting, and safety systems in large industrial complexes.

FAQ

Q: What is the benefit of the mixed input/output configuration on the DSDX451?

A: The 16-input and 16-output split allows engineers to manage both sensing and actuation from a single module, reducing the total number of hardware units needed for a localized machine control point.

Q: Does the DSDX451 support Profinet communication?

A: Yes, this expansion unit is designed for modern industrial networks, utilizing advanced Profinet protocols to ensure high-speed, deterministic data flow to the DCS master.

Q: Are the M8 connectors included with the unit?

A: The unit features integrated M8 connection ports; however, the corresponding field cables and M8 male connectors are typically purchased separately based on specific project lengths and requirements.

Q: Can this unit be installed in high-vibration environments?

A: Absolutely. The Sweden-made design and M8 screw-type connectors are specifically engineered to maintain electrical contact and structural integrity in areas with significant mechanical vibration.

Q: How do I address this module within the S400 I/O network?

A: Addressing is typically handled through the standard ABB engineering software suite where the DSDX451 is recognized as a Profinet node, allowing for simple logical mapping of all 32 channels.
