Product Overview

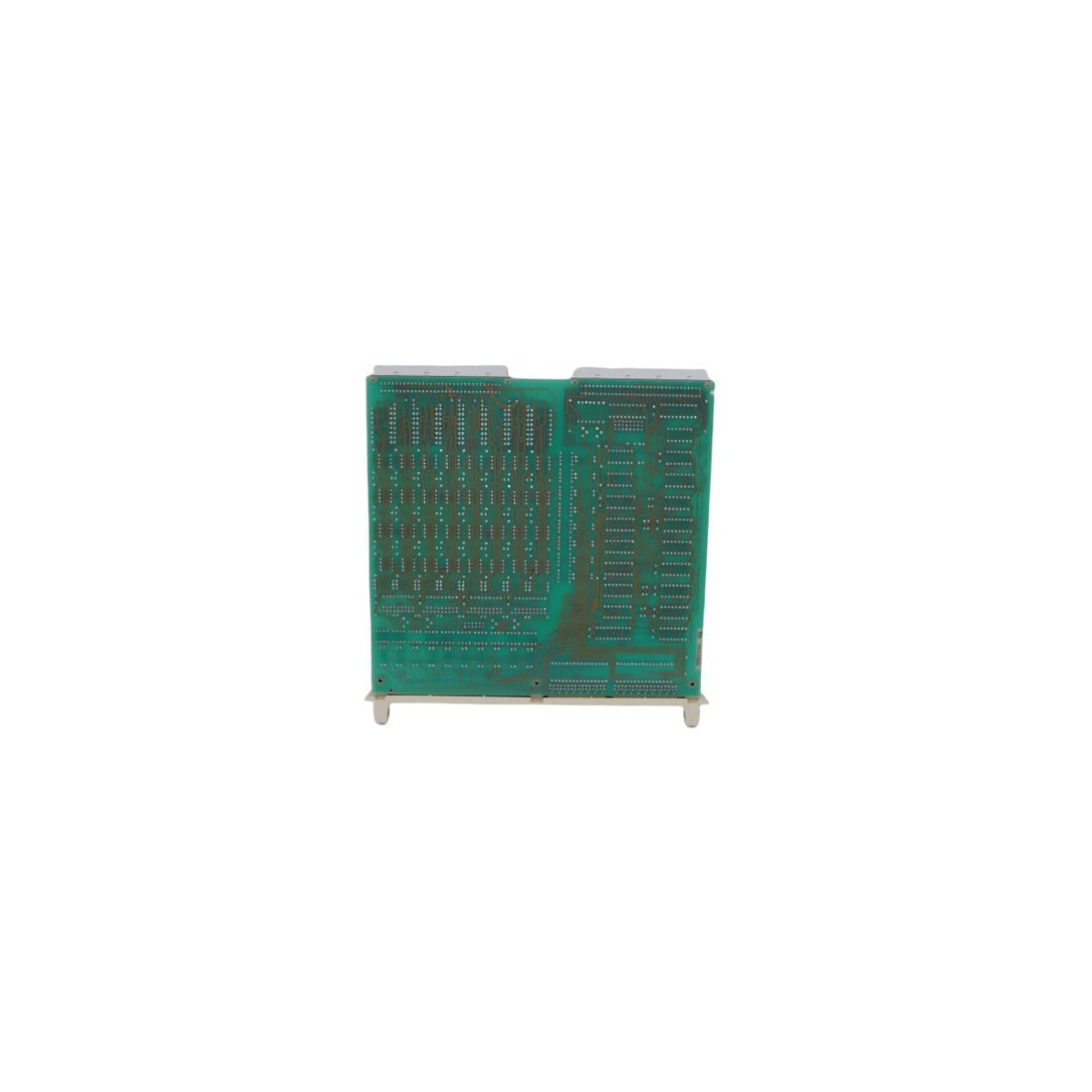

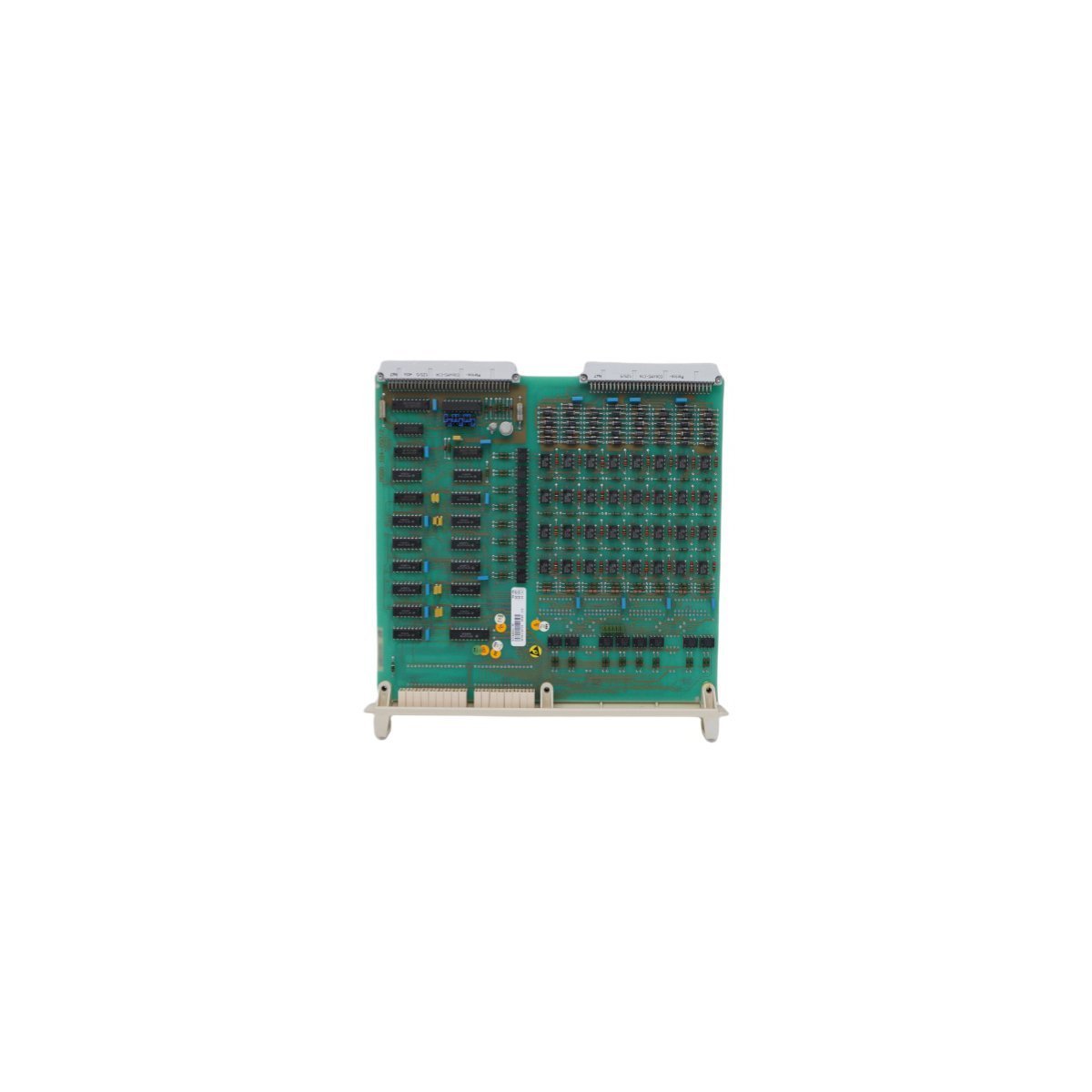

The ABB DSDO115, identified by the manufacturing part number 57160001-NF, is a high-density digital signal actuator module developed for the S100 I/O system. This unit acts as the primary executive interface within a Distributed Control System (DCS), allowing the central processor to trigger 32 independent field devices such as solenoids, relays, and pilot lights. Engineered for industrial-grade reliability, the DSDO115 provides high-speed switching capabilities while maintaining galvanic isolation to protect the internal system bus from external electrical surges. Its Swedish-crafted architecture is a standard in global process industries, prized for its longevity and stable performance in unconditioned environments.

Technical Performance Metrics and Physical Data

The DSDO115 57160001-NF is built to the following professional specifications:

• Channel Capacity 32 Digital Output points

• Series Compatibility S100 I/O System

• Hardware Mass 0.32 kg

• Module Dimensions 2 x 25 x 24.5 cm

• Connectivity Protocol Supports Modbus RTU integration and standard DCS bus interfaces

• Diagnostic Logic Integrated real-time monitoring for output verification and fault detection

• Manufacturing Origin Sweden

• Tariff Identification Code 8537101190

• System Environment Engineered for AC800V or legacy MasterPiece control frameworks

Industrial Deployment and Field Utility

The 32-channel density of the DSDO115 makes it an essential component for diverse automation sectors:

• Discrete Manufacturing Logic Controlling high-speed conveyor systems, sorting actuators, and pneumatic valves in automated assembly lines.

• Process Plant Sequencing Managing the interlocking logic for motor starters and safety indicators in petrochemical or water treatment facilities.

• Energy Management Executing switching commands for remote circuit breakers and power distribution panels within a centralized grid control scheme.

• System Modernization Replacing or expanding existing S100 I/O racks to increase output capacity without significantly increasing the system's spatial footprint.

FAQ

Q: What is the main advantage of the 32-channel configuration on the DSDO115?

A: The high channel density allows engineers to control a large number of field devices using a single slot in the I/O rack, which significantly reduces hardware costs and optimizes cabinet space.

Q: Does the 57160001-NF include protection against short circuits?

A: Yes, the unit is designed with robust internal circuitry to handle typical industrial transients, although it is standard practice to use external fusing or current-limiting devices for maximum system protection.

Q: Can this unit be used with third-party automation software?

A: Absolutely. By utilizing the Modbus RTU communication protocol, the DSDO115 can be integrated into various non-ABB SCADA and PLC environments, provided the appropriate hardware gateway is used.

Q: How does the built-in diagnostic feature assist maintenance teams?

A: The module can detect and report discrepancies between the commanded state and the actual hardware state, allowing maintenance personnel to identify failed coils or wiring issues without manual testing.

Q: Is the DSDO115 57160001-NF a current-production item?

A: While it is part of the long-standing S100 I/O range, it remains an active and fully supported component within ABB’s global industrial portfolio, widely used for both new installations and lifecycle support.
