Product Overview

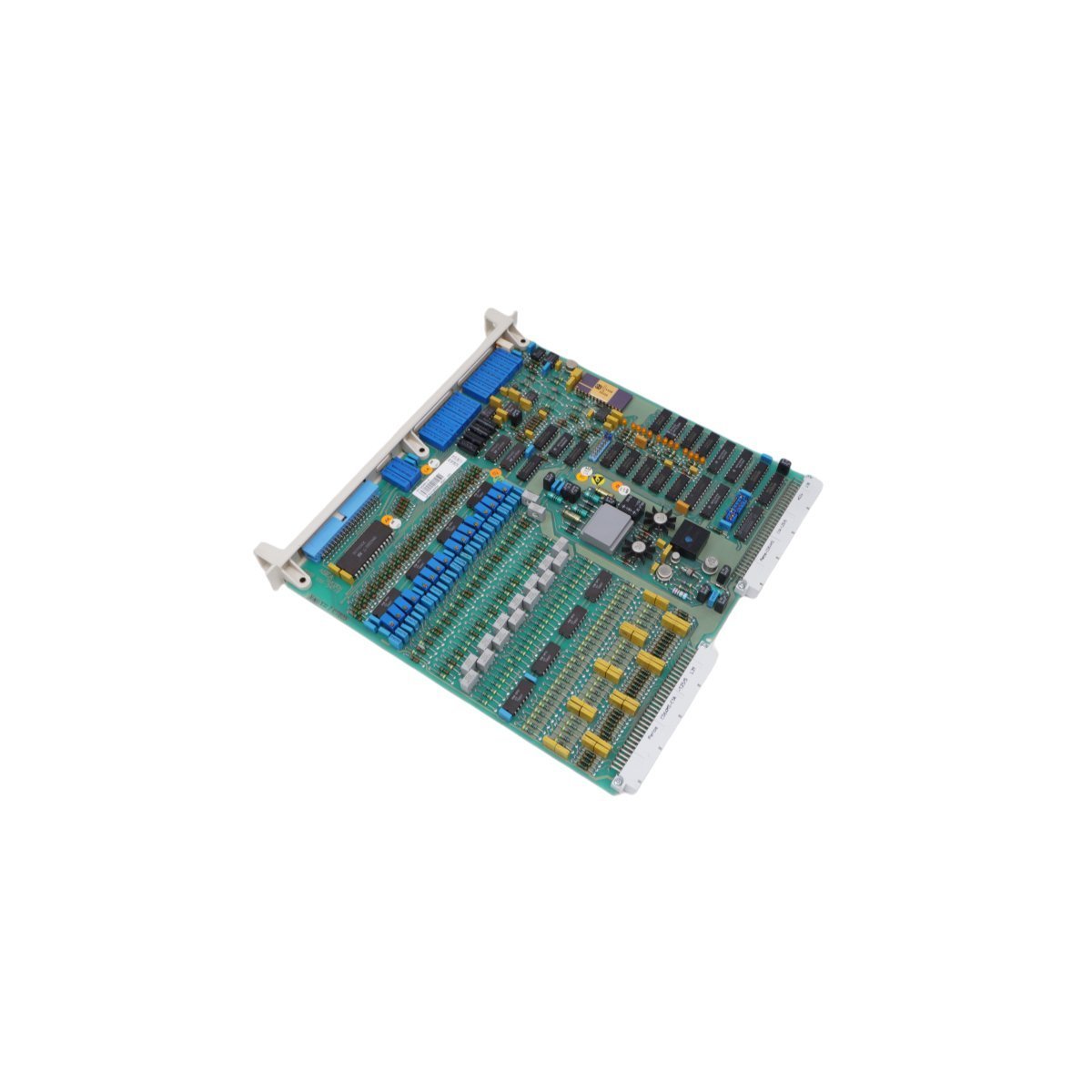

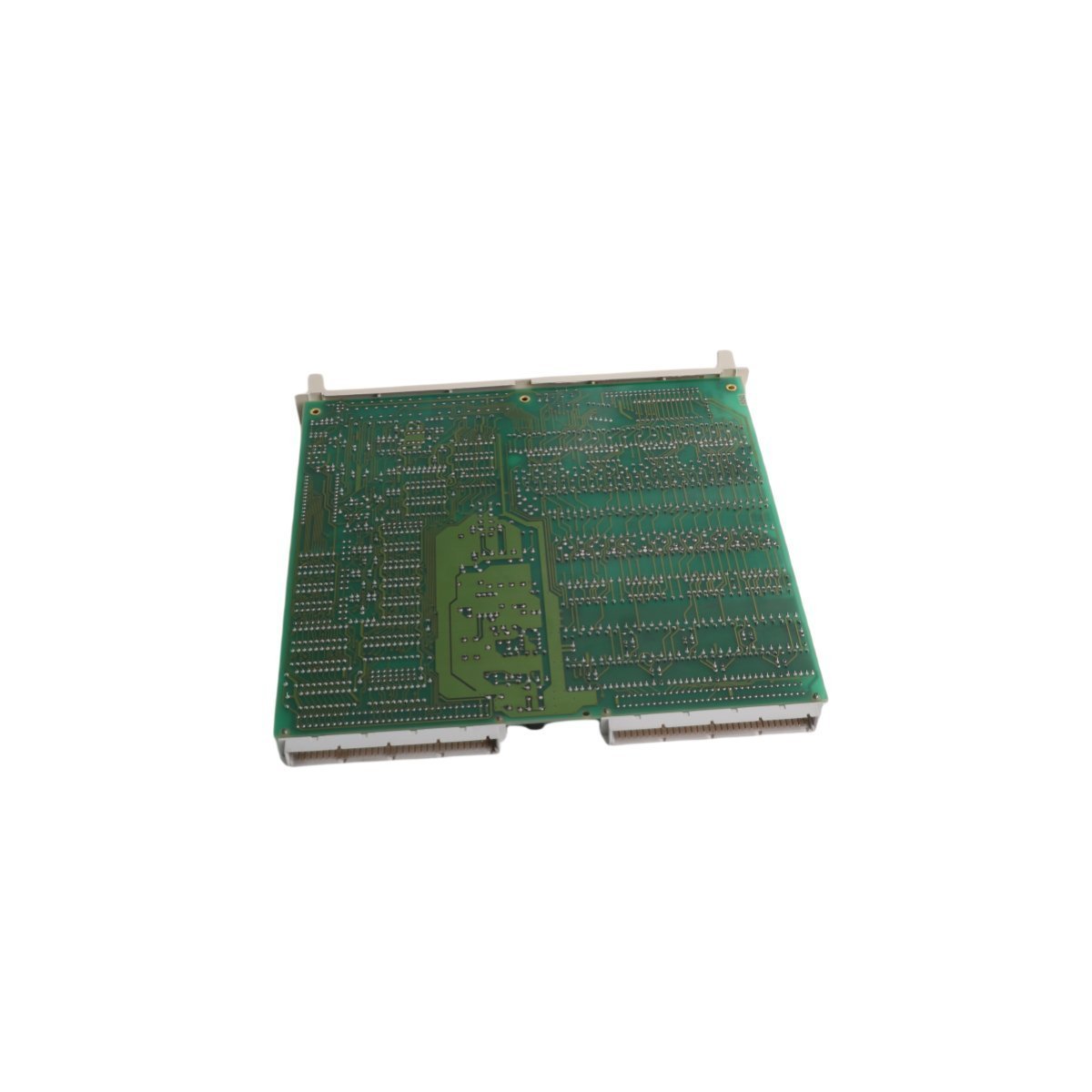

The ABB DSAI 130, identified by the specific engineering part number 57120001-P, is a high-density analog acquisition board engineered for the Advant Master S100 I/O bus system. As a critical constituent of the AC450 and AC410 controller families, this module serves as the primary gateway for converting continuous physical variables into digital data for the process controller. It is specifically designed to handle a multitude of high-level analog signals with exceptional stability, ensuring that the Distributed Control System (DCS) receives high-fidelity data from the field.

The DSAI 130 is recognized for its longevity and its ability to maintain signal integrity in electrically noisy environments. By utilizing advanced galvanic isolation and filtering techniques, it protects the central processing unit from transient surges while providing the resolution necessary for complex regulatory control loops. Whether integrated into a legacy Advant OCS setup or utilized within a modernized 800xA system via S100 I/O bus extensions, the 57120001-P remains a benchmark for reliability in industrial signal processing.

Hardware Specifications and Performance Parameters

The technical architecture of the DSAI 130 is optimized for high-speed sampling and multi-channel density, making it an efficient solution for large-scale I/O concentration.

• Model Designation DSAI 130 / DSAI130

• Order Number 57120001-P

• Input Channels 16 Single-ended or 8 Differential high-level inputs

• Signal Range Standard 0 to +10V, -10 to +10V, or 0/4 to 20mA (with external shunt resistors)

• A/D Resolution 12-bit binary conversion for precise process value representation

• System Compatibility Advant Master AC410, AC450, and S100 I/O racks

• Isolation Features Comprehensive galvanic isolation between the bus and process inputs

• Diagnostics Integrated self-test routines and hardware fault detection LEDs

• Power Consumption Low-draw design powered through the S100 I/O backplane

• Physical Mass 0.40 kg

• Module Dimensions 2cm x 24cm x 24cm

• Environmental Tolerance Engineered for continuous 24/7 operation in non-condensing industrial climates

Practical Deployments and Sector Implementations

The DSAI 130 57120001-P is deployed in global industrial infrastructures where the cost of data inaccuracy or system downtime is prohibitive.

• Thermal Power Generation Used to monitor critical analog parameters such as steam pressure, turbine bearing temperatures, and fuel flow rates, providing the data necessary for the Master Controller to maintain grid synchronization.

• Petrochemical and Refining Acts as the primary interface for pressure transmitters and level sensors across expansive tank farms and distillation columns, supporting intrinsic safety through isolated signal paths.

• Metals and Mining Facilitates the precise control of heavy machinery and furnace temperatures, where the robust design of the S100 I/O hardware survives the vibration and thermal stress typical of smelting operations.

• Pulp and Paper Processing Manages complex wet-end chemistry variables and dry-end moisture profiles, ensuring consistent product quality through high-speed, 12-bit data acquisition.

• Water Treatment Facilities Monitors chemical dosing levels and flow velocities across distributed pump stations, utilizing the module’s long-distance bus communication capabilities for centralized supervision.
