Product Overview

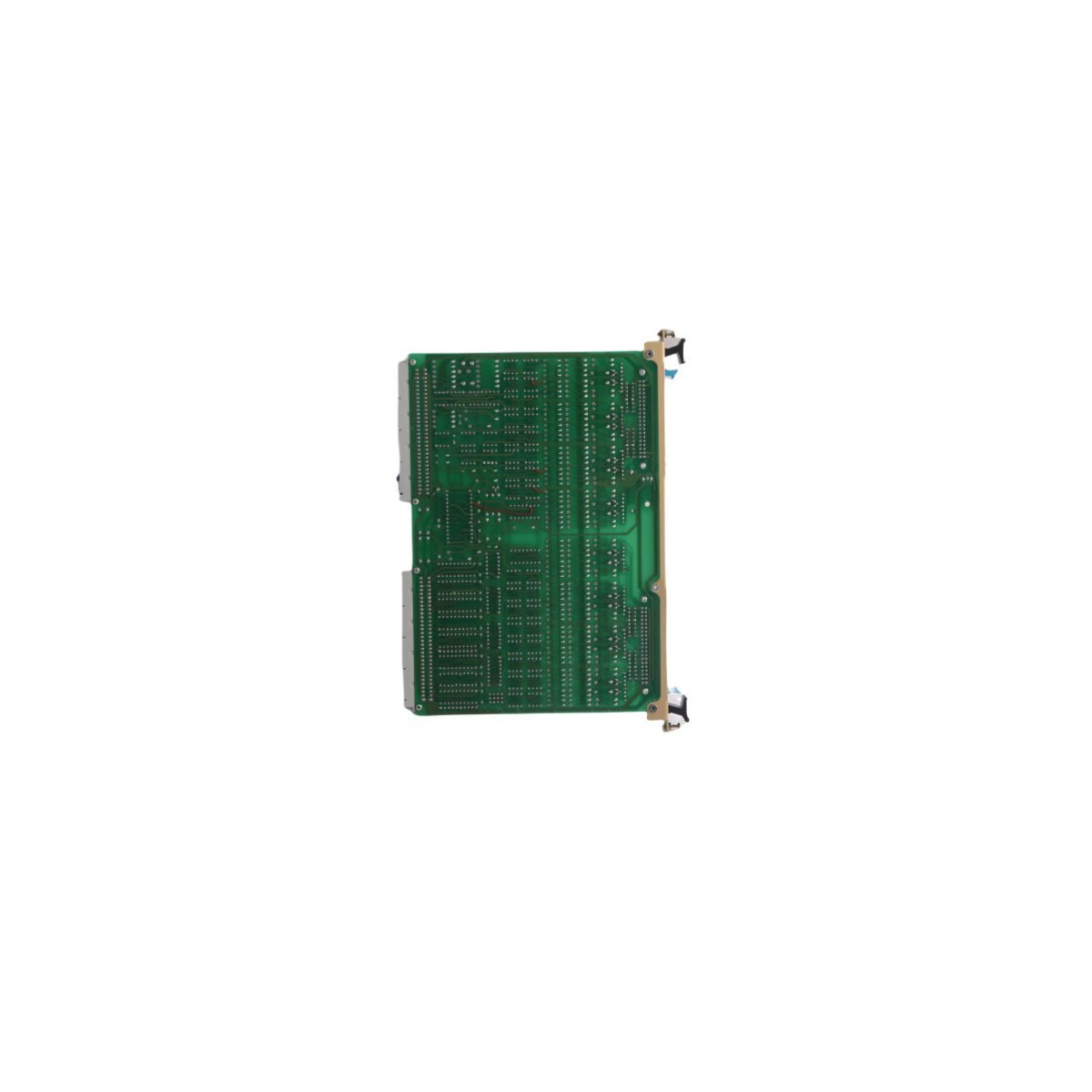

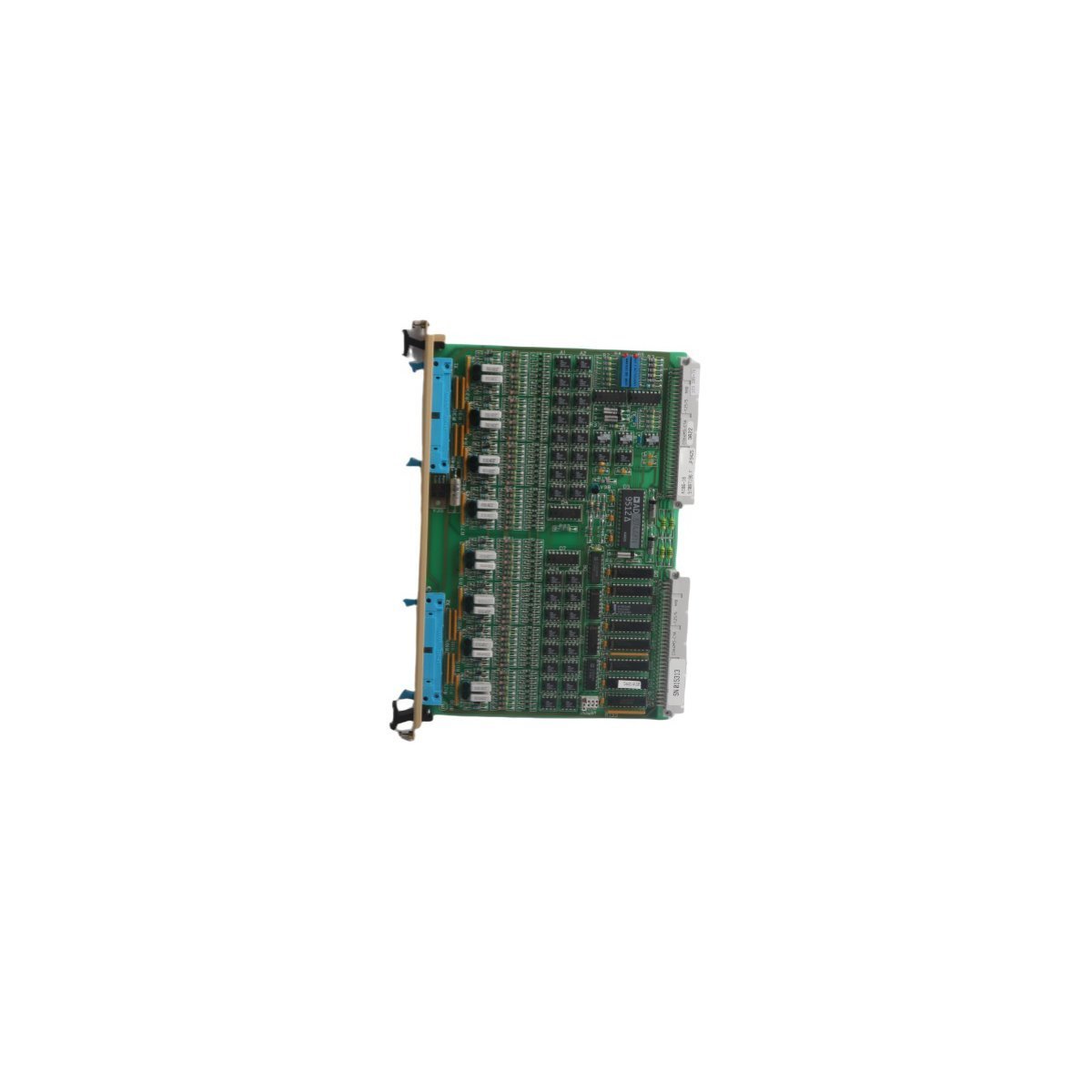

The ABB AI86-16, identified by part number 57087196, is a precision-engineered Analog Input Card designed for high-density data acquisition within the Stromberg and Distributed Control System (DCS) ecosystems. This module serves as the primary sensory interface for industrial controllers, converting physical variables—such as pressure, temperature, and flow—into digitized values for real-time analysis. Equipped with 16 independent channels, the AI86-16 provides a scalable solution for monitoring complex processes without the need for excessive hardware footprint. Its Swedish-built architecture is optimized for electrical isolation and signal stability, ensuring that interference from high-voltage equipment does not compromise the integrity of the process data.

Essential Component Architecture and Parameters

The following technical specifications define the AI86-16 57087196 hardware profile:

• Channel Density: 16 High-resolution analog input channels

• Sampling Velocity: 1 kHz (1,000 samples per second) for rapid transient detection

• Power Requirements: Standard 24V DC operational voltage

• Physical Mass: 0.34 kg

• Module Dimensions: 2 x 18.5 x 26 cm

• Data Connectivity: Support for RS-485 physical layers and Modbus RTU protocols

• Environmental Tolerance: Reliable operation from -20°C to +60°C

• Compliance Standards: Fully certified under CE and UL safety protocols

• Manufacturing Origin: Sweden

• Signal Support: Versatile interfacing with standard current and voltage loops

Strategic Industrial Implementations

The AI86-16 57087196 is a versatile asset across several mission-critical automation sectors:

• Continuous Process Monitoring: Ideal for oil, gas, and chemical refineries where 16-channel density allows for centralized tracking of multiple localized sensors.

• Energy and Grid Automation: Capturing telemetry from power conversion units where 1 kHz sampling is required to monitor rapid load fluctuations.

• Complex Manufacturing Systems: Integrating into Stromberg-based DCS racks to manage high-precision feedback loops in automotive or textile production.

• Remote Terminal Units (RTUs): Utilizing the RS-485 interface for reliable long-distance signal transmission in water treatment or decentralized utility hubs.

FAQ

Q: What is the benefit of the 1 kilohertz sampling rate on the AI86-16?

A: A 1 kHz rate allows the system to capture data every millisecond. This is crucial for detecting rapid pressure spikes or electrical transients that slower cards might miss, ensuring better safety and process control.

Q: Is the 57087196 compatible with standard Modbus networks?

A: Yes, the card natively supports the Modbus RTU protocol, allowing it to communicate seamlessly with various third-party PLCs, HMIs, and SCADA systems over an RS-485 connection.

Q: Can this card be used in unheated outdoor control cabinets?

A: With a low-end operating temperature of -20°C, the AI86-16 is suitable for many outdoor environments, provided it is installed in a properly sealed, weather-protected enclosure to prevent condensation.

Q: Does the module provide isolation between the 16 channels?

A: The AI86-16 is designed with robust isolation to prevent ground loops and protect the central DCS logic from field-side electrical noise, though specific channel-to-channel isolation specs should be verified based on your wiring configuration.

Q: How does the compact 2cm width help in system design?

A: The slim profile allows for high-density mounting in industrial racks, enabling engineers to maximize the number of I/O points per cabinet and significantly reduce the overall footprint of the control system.
