Product Overview

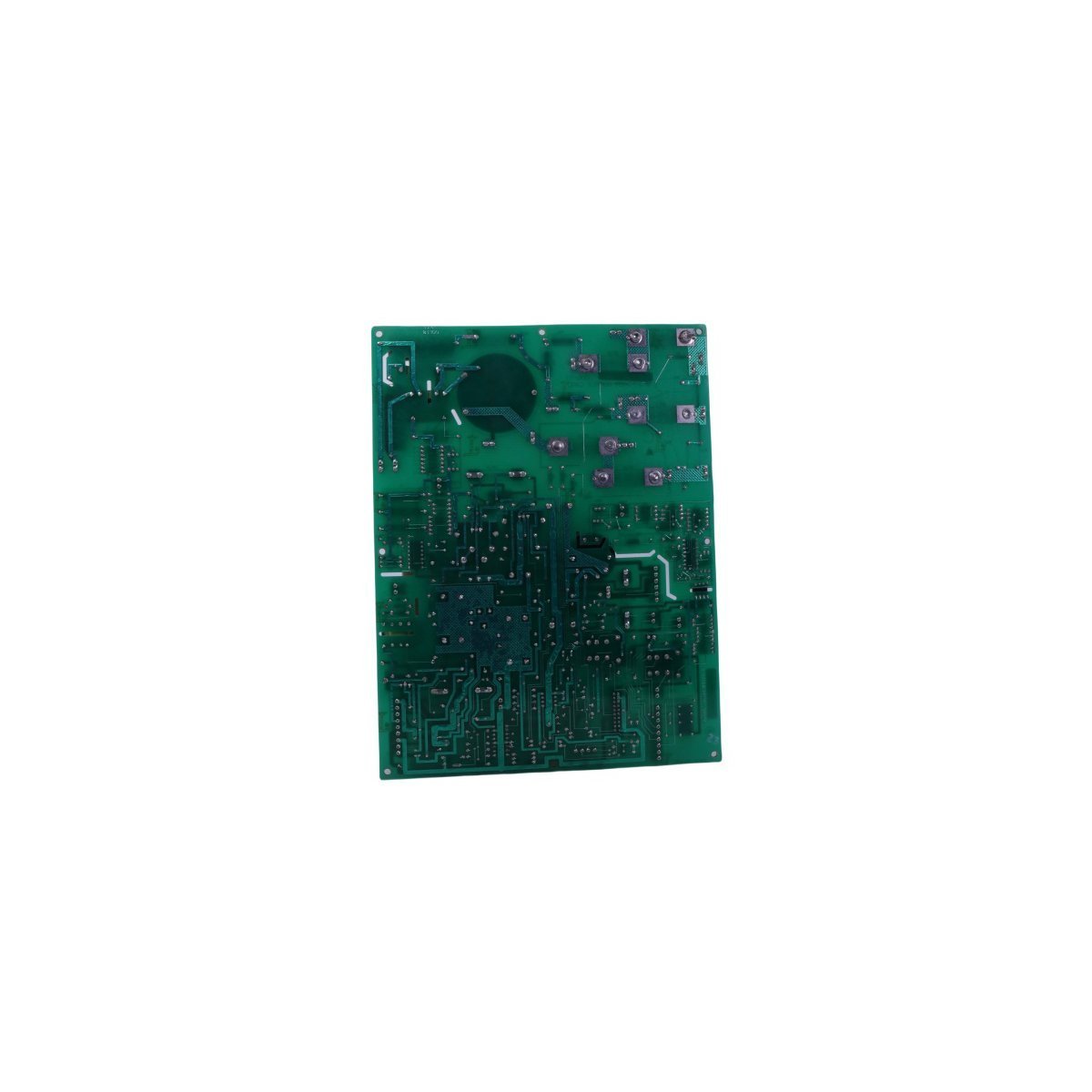

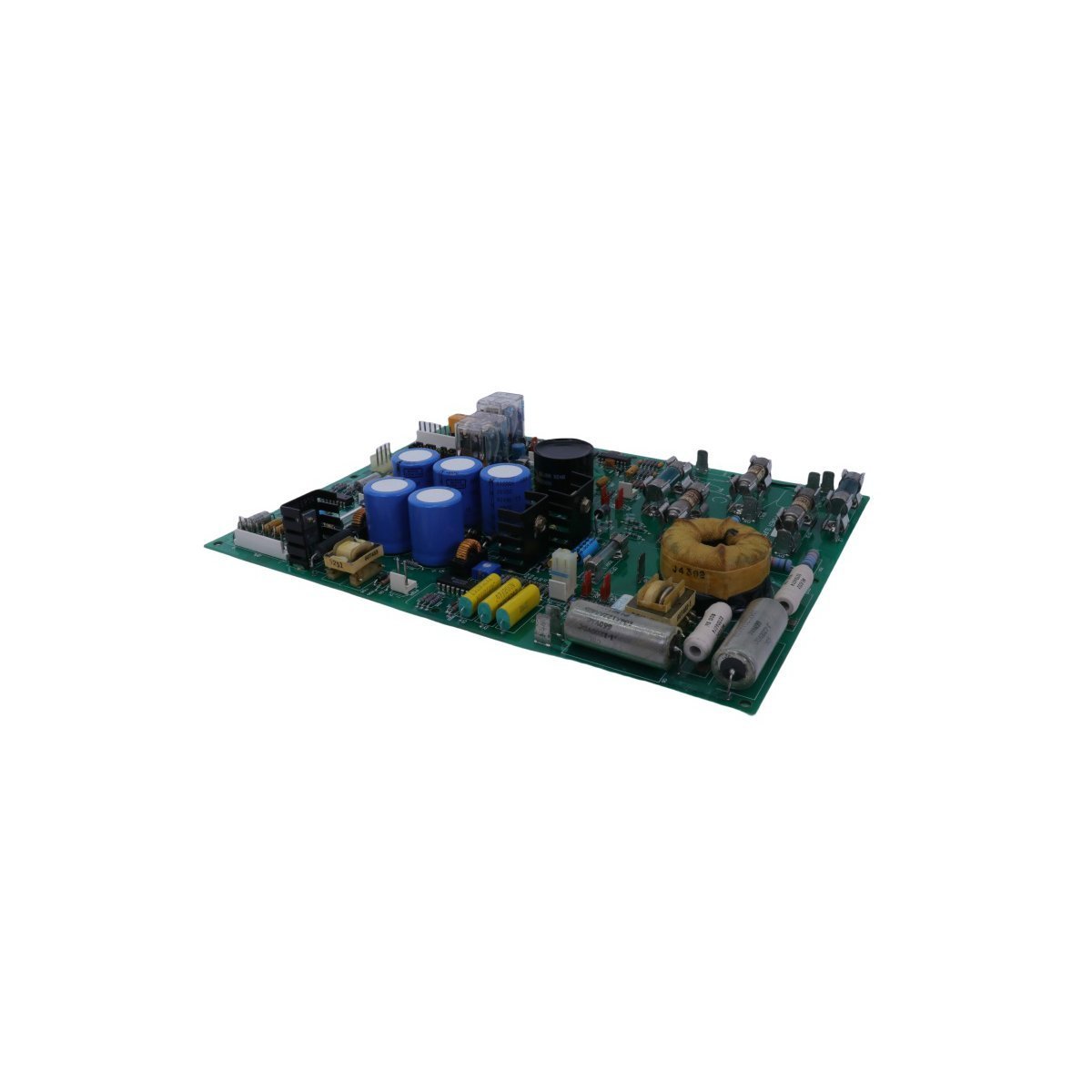

The General Electric 531X111PSHARG3 is a high-efficiency power distribution and motor field regulation board designed for industrial drive and exciter systems. Functioning as a multi-rail power supply, this module provides the regulated voltages necessary for control logic and field excitation, specifically delivering 5 VDC, 15 VDC, and 24 VDC outputs. It is a core component within GE’s 531X ecosystem, engineered to maintain consistent motor performance by managing field current and providing isolation via an integrated pulse transformer. The G3 revision of this board is specifically enhanced with external Metal Oxide Varistors (MOVs) to provide superior surge protection against AC line transients.

Hardware Architecture and Physical Specifications

• Logic Voltage Outputs: Regulated 5 VDC, 15 VDC, and 24 VDC

• Onboard Control Relays: K1 (Operation/Run), K2 (Maximum Capacity), and K3 (System Fault)

• Calibration Potentiometers: P1 for Field Scaling, P2 for CFB Zero calibration, and P3 for CFB Adjustment

• Circuit Protection: External MOVs for AC line surge suppression

• Isolation Components: Built-in pulse transformer for field circuit power

• Net Weight: 0.06 kg

• Module Dimensions: 11.3 x 5.7 x 1.5 cm

• Product Origin: USA

• Interface Type: Power Connect Card for DCS and drive integration

Practical Deployment and System Utility

This motor field control board is indispensable for large-scale industrial motor management where precise torque and speed control are required. Its primary deployments include:

• DC Drive Regulation: Supplying and controlling the magnetic field current for large DC motors in manufacturing and heavy industry.

• Exciter Systems: Providing stable power and control logic for excitation circuits in power generation equipment.

• Fault Diagnostics: Utilizing the onboard K3 relay to signal critical failures to the master Distributed Control System (DCS).

• Field Feedback Optimization: Calibrating current feedback loops via the triple-potentiometer interface to match specific motor winding characteristics.
