Product Overview

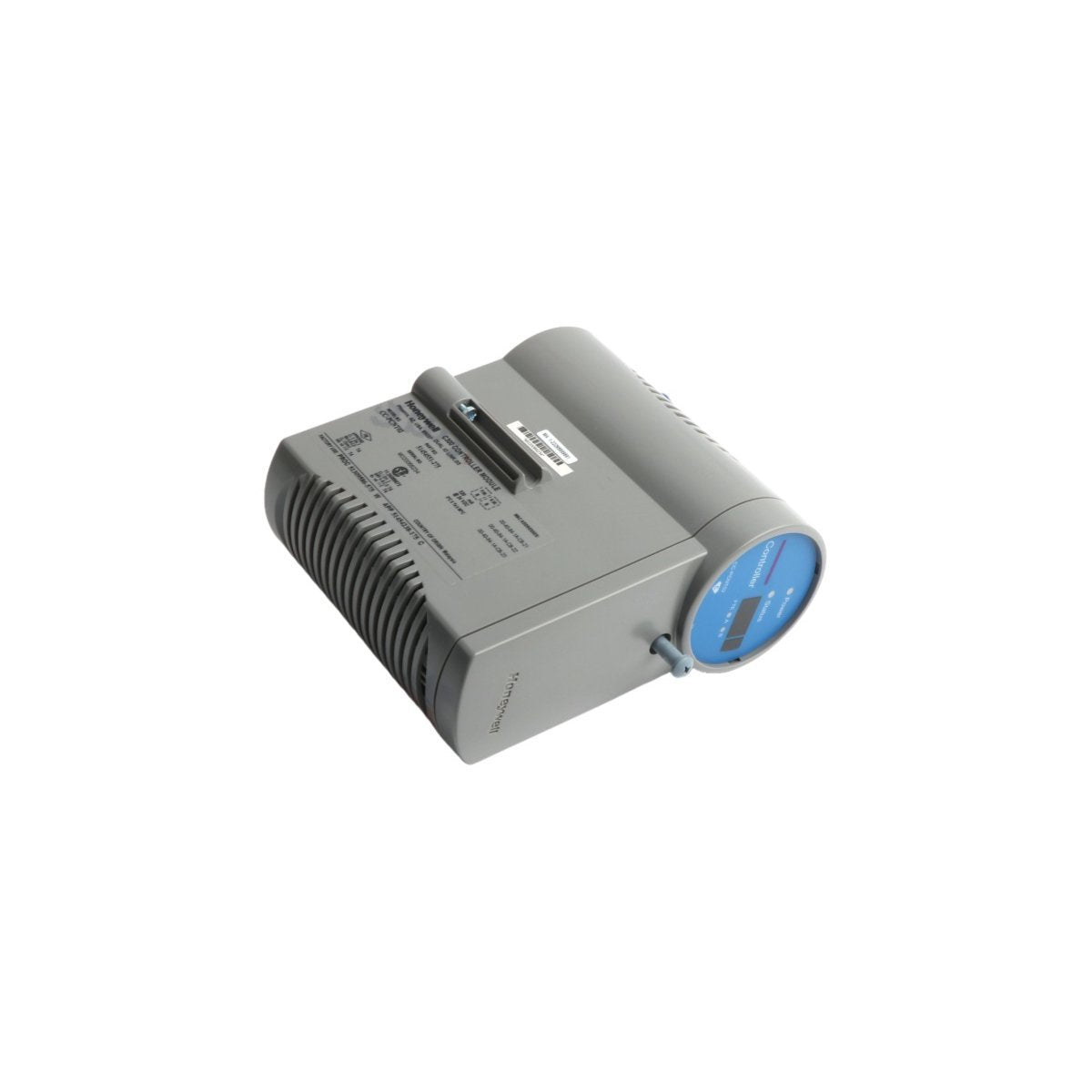

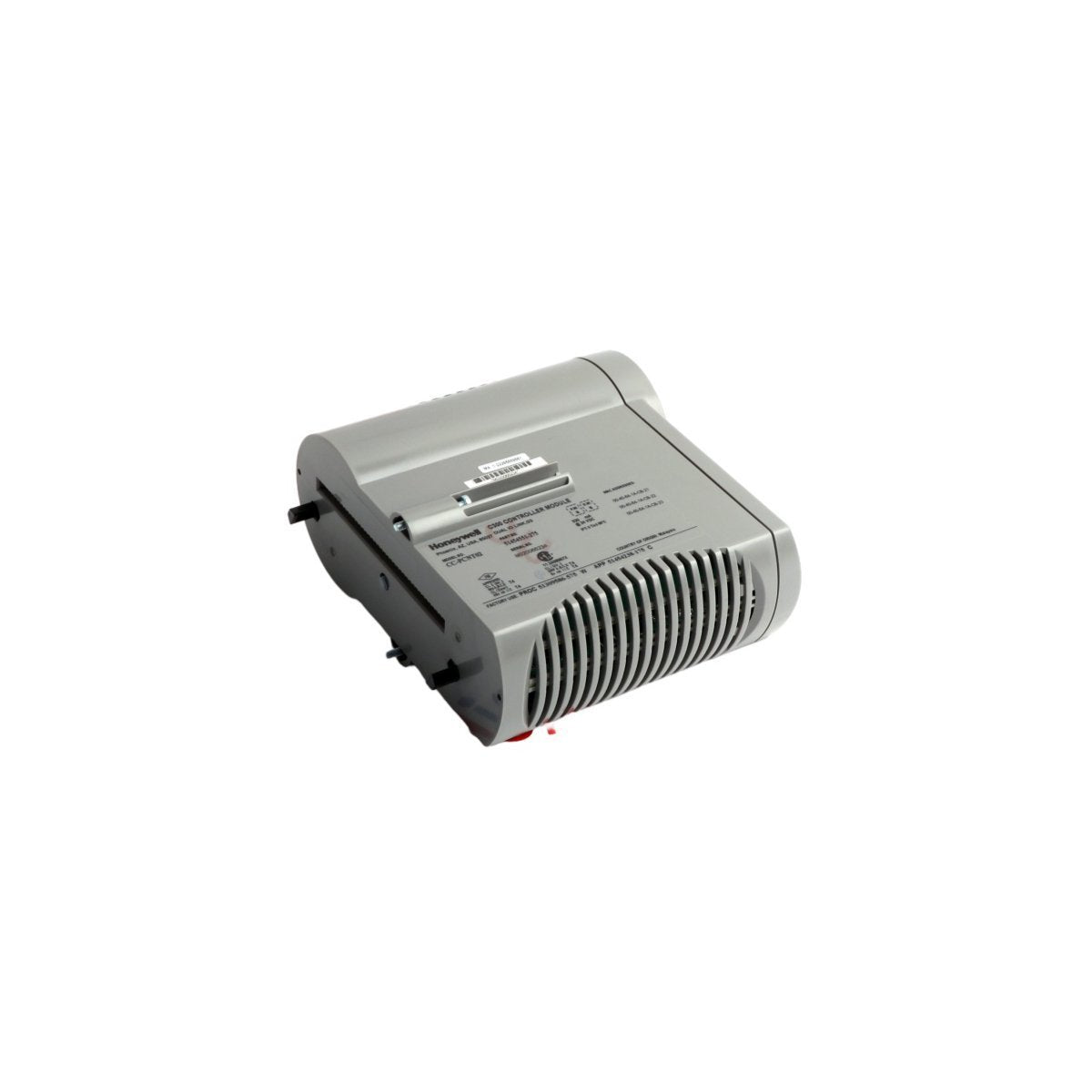

The Honeywell CC-PCNT02 (Part Number: 51454551-275) is a high-performance central processing unit designed for the C300 Controller series within the Experion PKS and FSC system architectures. This module acts as the intelligent core of the distributed control system, executing complex control strategies with deterministic precision. Engineered for high-speed computation, it utilizes a 32-bit RISC architecture to manage large-scale I/O configurations while maintaining rapid execution cycles. Its compact 6-inch IOTA form factor allows for high-density installation in control cabinets, providing a powerful solution for real-time process management in mission-critical environments.

Hardware Parameters and Core Specifications

The CC-PCNT02 is defined by its robust memory capacity and high-speed data handling capabilities, ensuring stability across diverse automation networks.

• Processor Architecture: 32-bit RISC high-speed processor

• Memory Resources: 1 MB Flash memory and 256 KB RAM

• I/O Capacity: Supports up to 256 combined analog and digital points

• Execution Performance: 50 ms base execution period for real-time responsiveness

• I/O Link Speeds: Selectable dual-link communication at 375 Kbaud or 750 Kbaud

• Network Integration: Native support for Ethernet, Modbus, and Profibus protocols

• Addressing Range: Flexible device indexing from 1 to 510

• Environmental Protection: IP67-rated enclosure for superior dust and moisture resistance

• Thermal Operating Range: 0°C to 55°C (32°F to 131°F)

• Physical Profile: 0.4kg unit weight (approx. 0.48kg shipping) with 6-inch IOTA compatibility

Industrial Applications

The CC-PCNT02 Controller Module is a versatile asset deployed in sectors where precise logic execution and system reliability are essential for safety and efficiency.

• Advanced Process Control: Managing complex loops in oil refineries and chemical plants that require 50ms execution speeds for pressure and flow stabilization.

• Distributed Automation: Serving as a primary node in large-scale manufacturing facilities where Ethernet and Profibus interoperability is required for multi-vendor device communication.

• Critical Infrastructure: Overseeing power distribution and water treatment facilities that demand the rugged IP67 protection and high addressing flexibility of the C300 series.

• FSC System Integration: Functioning within Fail-Safe Control environments to provide a reliable processing layer for localized safety logic and hardware monitoring.
