Product Overview

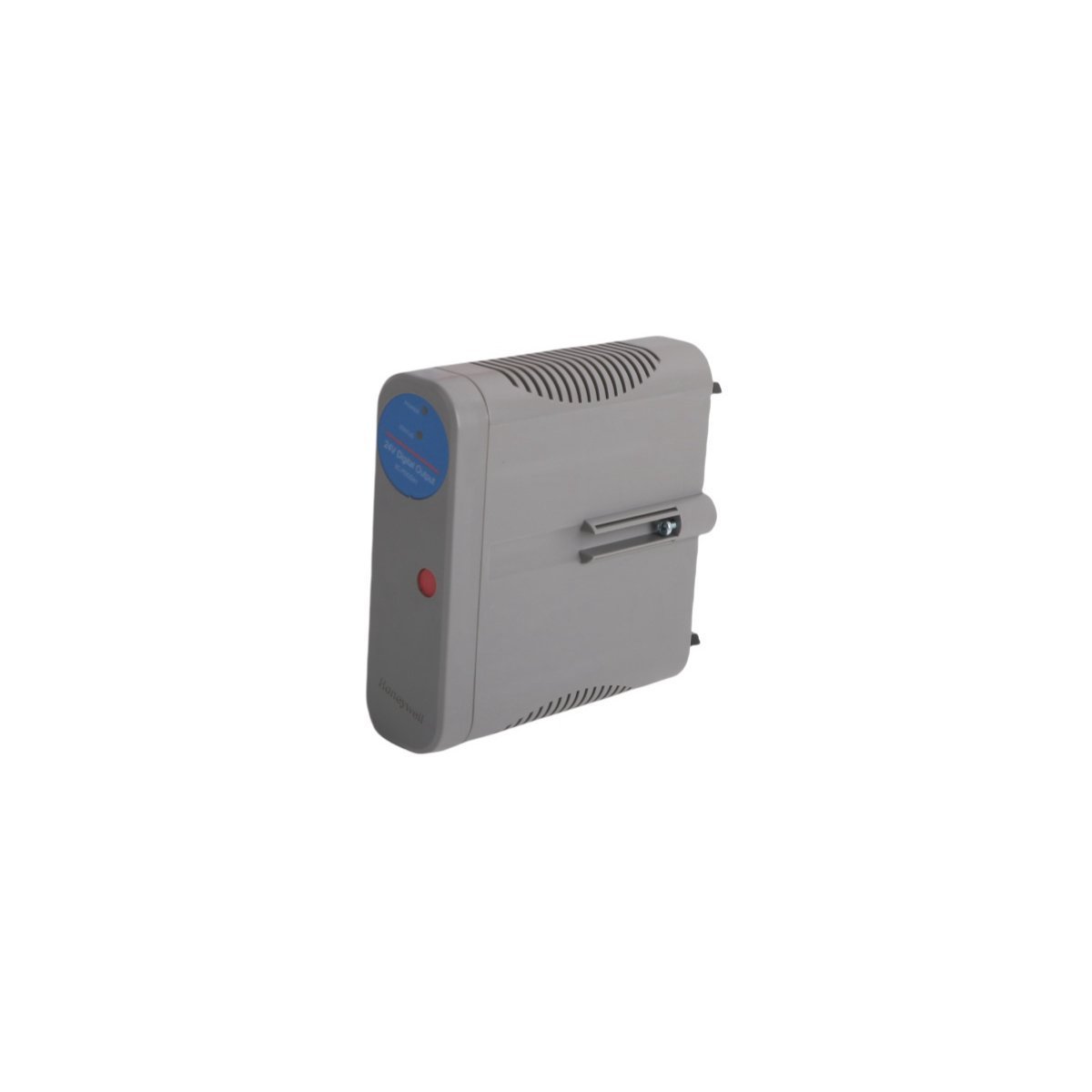

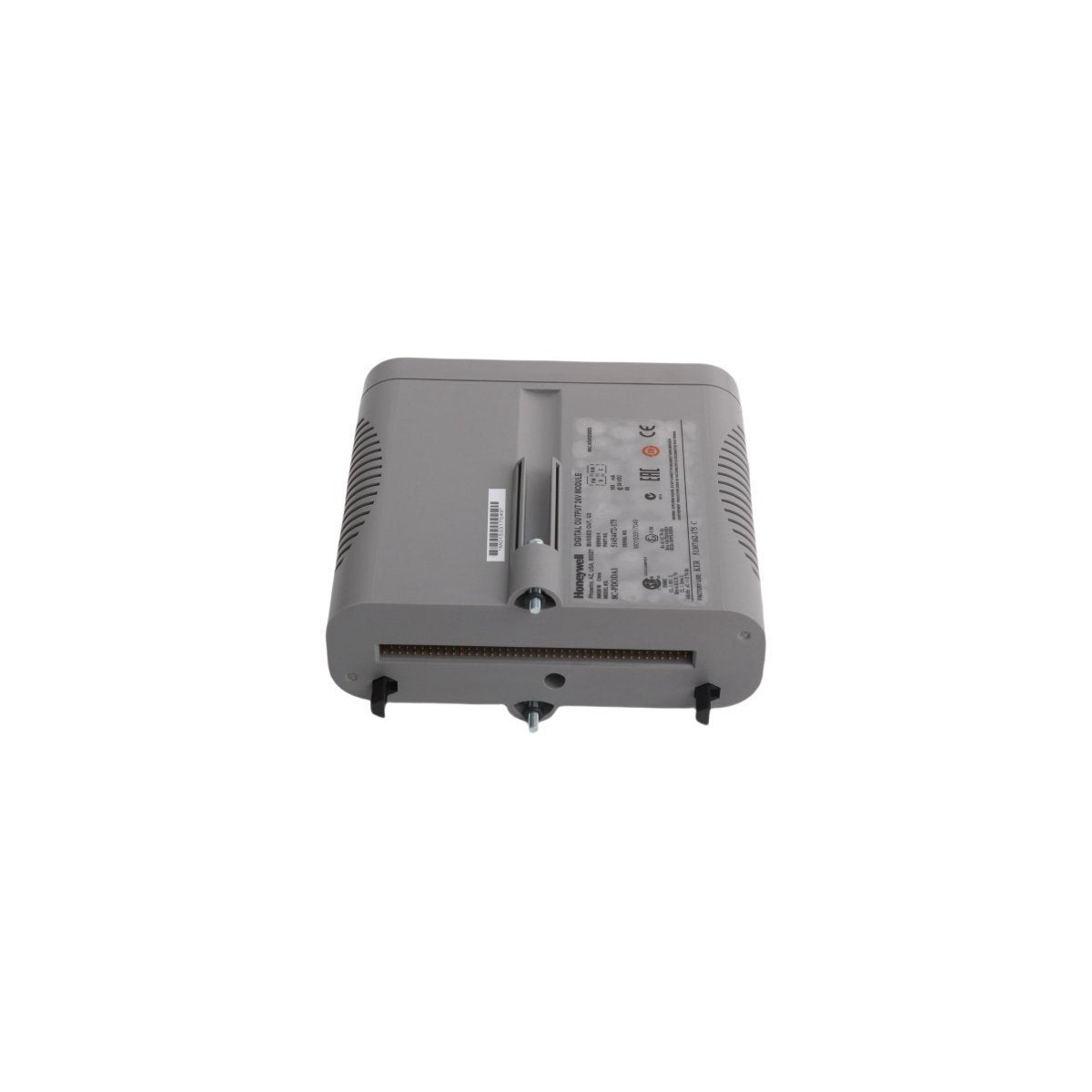

The Honeywell 8C-PDODA1, part number 51454472-175, is a high-density discrete control component designed for the Experion PKS Series 8 I/O family. This module is engineered to handle high-volume command execution, providing 32 channels of digital output to drive field-mounted equipment such as solenoids, relays, and motor starters. Operating within a 24V DC logic environment, the 8C-PDODA1 is built for high production capacity environments where rapid-fire switching and deterministic logic are required. By utilizing a compact, non-vented Series 8 form factor, this module allows for maximum I/O density within control cabinets while maintaining the ruggedized performance necessary for continuous industrial processing.

Hardware Architecture and Logic Benchmarks

The 8C-PDODA1 is optimized for streamlined installation and long-term durability, utilizing Honeywell’s advanced circuitry to ensure precise state control even in electrically noisy plant sections.

• Channel Density: 32-Channel High-Capacity Digital Output

• Output Voltage: 24V DC (Sourcing)

• System Ecosystem: Honeywell Experion PKS Series 8

• I/O Form Factor: Series 8 vertical plug-in design

• Signal Protection: Integrated short-circuit protection and per-channel current limiting

• Diagnostic Features: Real-time health monitoring and channel status feedback to the C300 controller

• Thermal Management: Low-power consumption design to minimize heat buildup in unvented enclosures

• Maintenance: Supports hot-swappable replacement (RIUP - Removal and Insertion Under Power)

• Physical Mass: 0.34 kg

• Module Scale: 6 x 15.2 x 14.3 cm

• Origin of Manufacture: USA

• Harmonized Code: HS 8537101190

Industrial Implementation and Deployment Scenarios

This 32-channel digital controller is a fundamental asset for facilities requiring extensive discrete control across complex automated networks.

• Petrochemical Valve Sequencing: Managing the precise timing and state of solenoid-actuated valves in refining manifolds and blending stations.

• Energy Sector Safety Interlocks: Driving auxiliary safety relays and trip circuits in high-voltage switchgear cabinets.

• Chemical Batch Processing: Coordinating a high volume of discrete actuators for reagent delivery and agitator control on high-capacity production lines.

• Water Treatment Control: Operating pump motor starters and automated gate valves across geographically distributed filtration basins.

• Food and Beverage Automation: Providing rapid-response digital signals for high-speed packaging machinery and sorting systems where output latency must be minimized.
