Product Overview

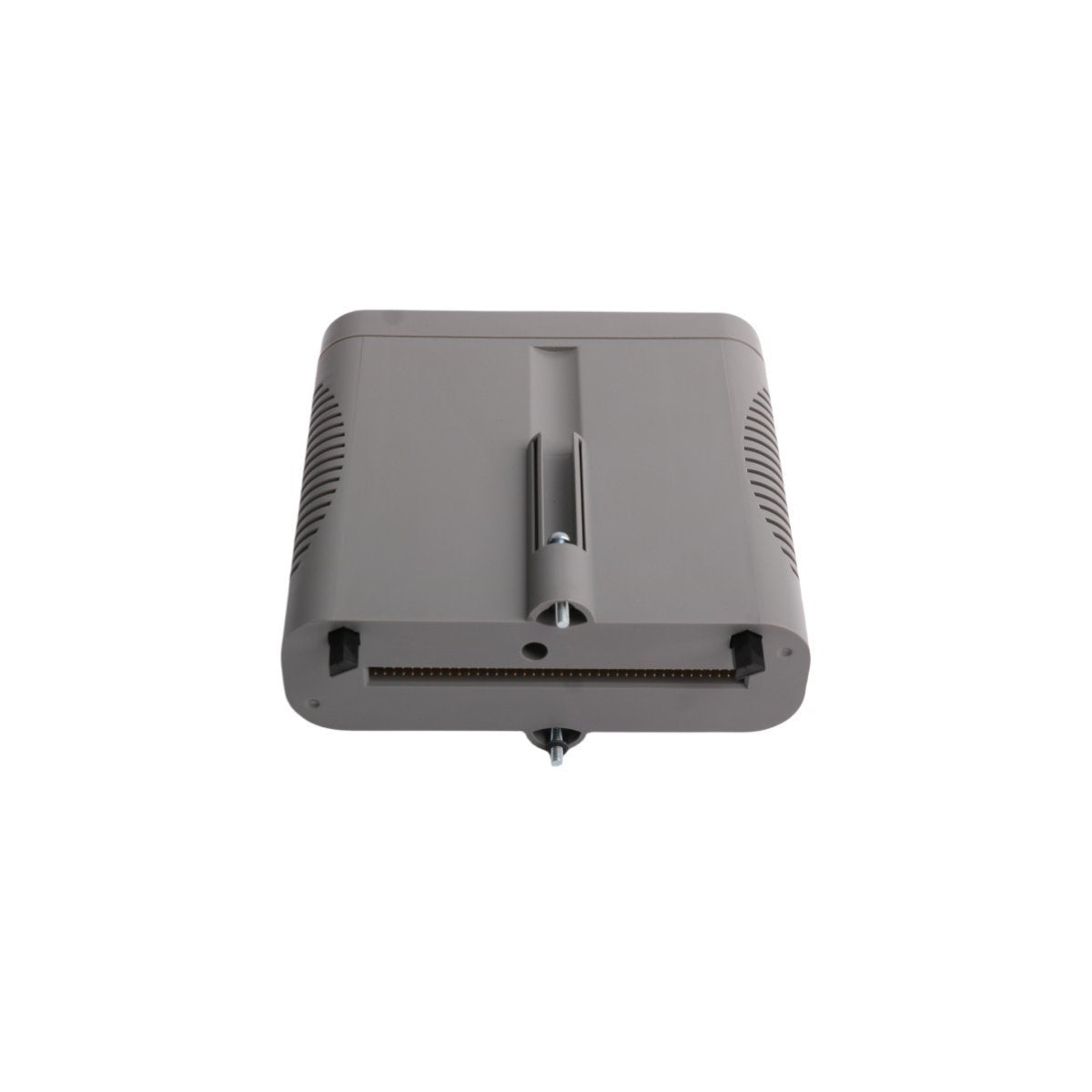

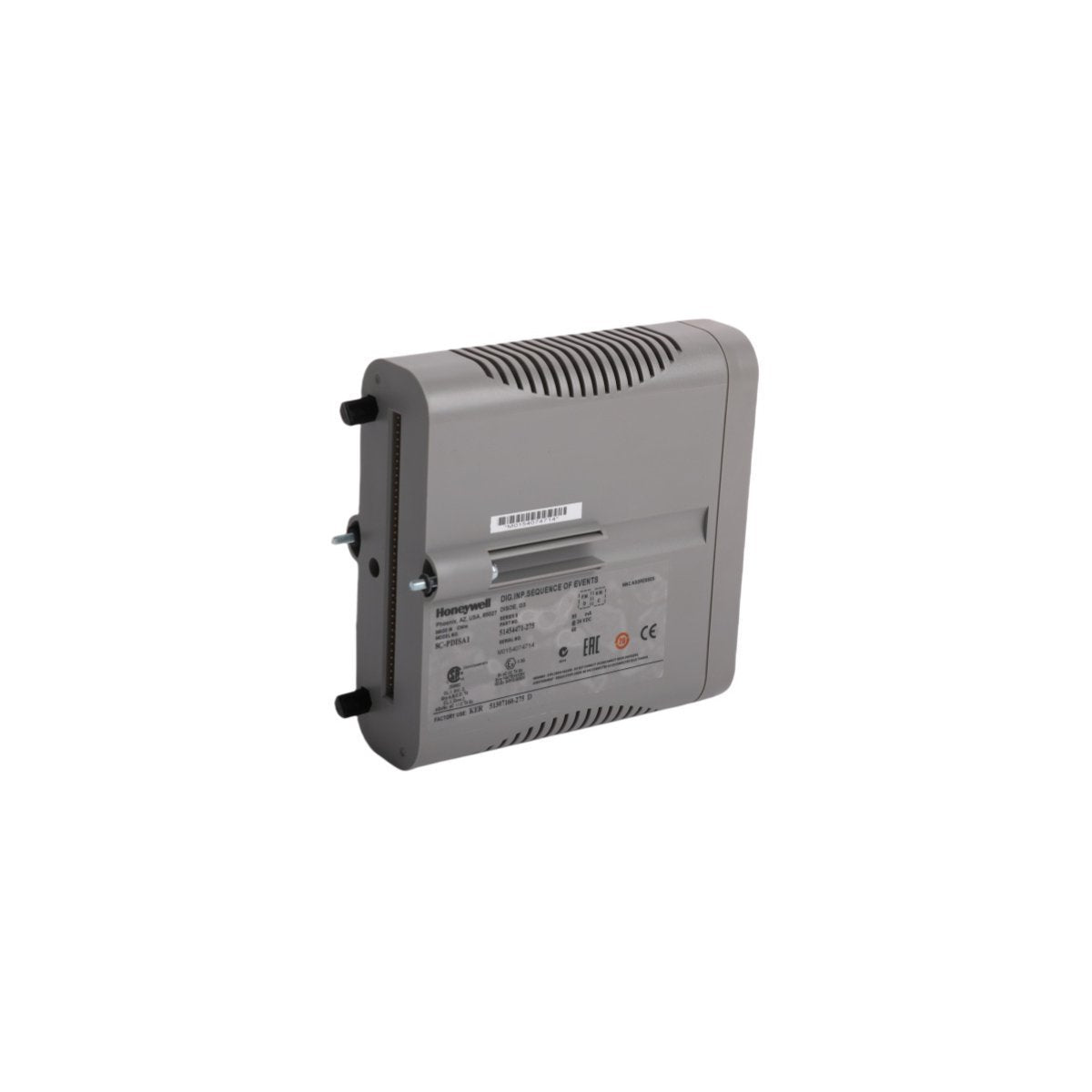

The Honeywell 8C-PDISA1, identified by part number 51454471-275, is a high-speed discrete signal interface designed for the Experion PKS Series 8 I/O family. This specialized module is engineered for "Sequence of Events" (SOE) recording, providing millisecond-level time-stamping for digital state changes. Unlike standard digital inputs, the 8C-PDISA1 captures the exact order of trips and alarms across multiple channels, allowing engineers to perform precise root-cause analysis following a plant upset. By offloading time-critical event logging from the C300 controller to the local I/O hardware, it ensures that high-speed transients are recorded with absolute chronological accuracy, even during massive bursts of field activity.

Technical Performance and Logic Benchmarks

The 8C-PDISA1 architecture is optimized for high-density diagnostic transparency and deterministic response in complex safety and control networks.

• Primary Function: Digital Input with high-resolution Sequence of Events (SOE) logging

• System Ecosystem: Honeywell Experion PKS Series 8

• Time-Stamping Resolution: 1-millisecond accuracy for state transition recording

• Operating Voltage: 24V DC (nominal)

• Channel Configuration: High-density discrete input banks

• Reliability Features: Galvanic isolation and advanced signal conditioning to prevent false triggers from EMI

• Integrated Diagnostics: Real-time hardware health monitoring and channel-level fault detection

• Serviceability: Supports Removal and Insertion Under Power (RIUP) for live maintenance

• Hardware Weight: 0.3 kg

• Physical Profile: 6 x 15.2 x 14.3 cm

• Production Origin: USA

• HS Classification: 8537101190

Industrial Control Applications and Utility

This Sequence of Events module is a critical asset for process industries where understanding the exact timeline of a failure is essential for operational safety and recovery.

• Trip Chain Analysis: Recording the precise order of failures in refinery emergency shutdown (ESD) systems to identify which sensor triggered the initial alarm.

• Power Substation Monitoring: Capturing high-speed transitions from circuit breakers and protective relays to analyze fault propagation in electrical grids.

• Rotating Equipment Protection: Monitoring auxiliary contacts on turbines and large compressors to log the sequence of safety interlock trips during a shutdown.

• Boiler Management Systems (BMS): Providing the chronological data required for incident investigation in high-pressure steam generation units.

• Root-Cause Diagnostics: Serving as a dedicated diagnostic hub for complex automated assembly lines where cascading stop signals must be deconstructed for maintenance.
