Product Overview

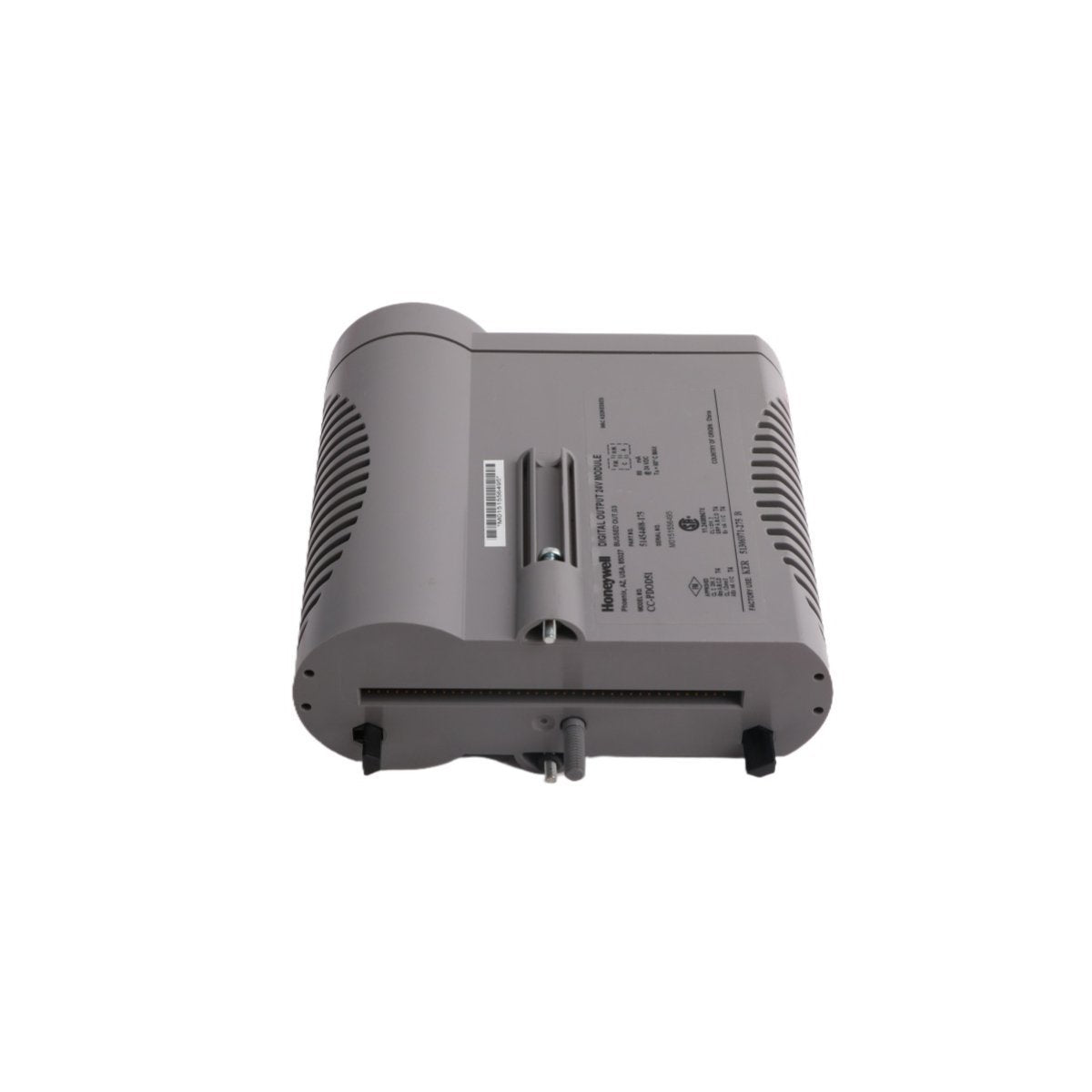

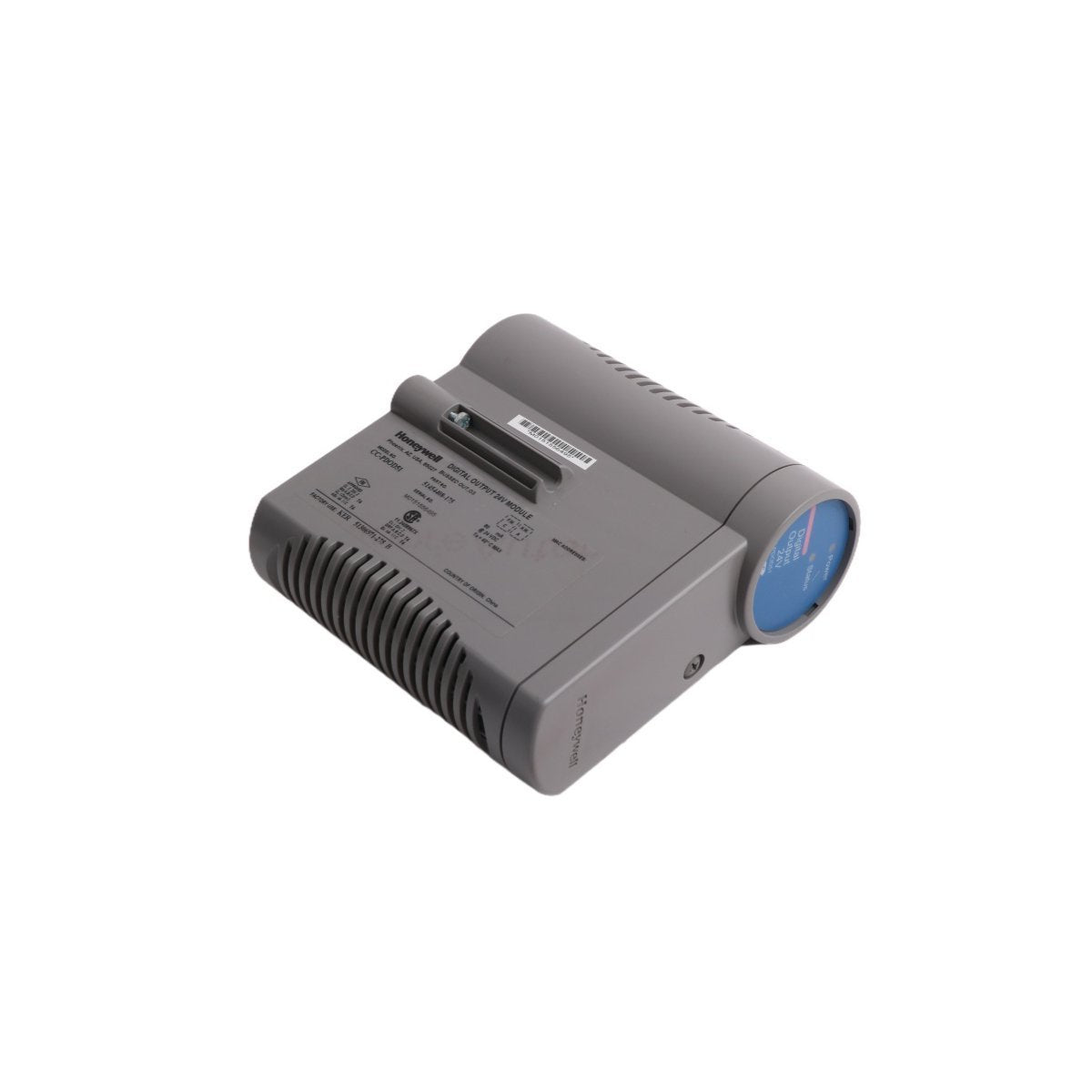

The Honeywell 51454416-200 is a high-reliability cabinet infrastructure module designed to act as the power distribution heart for critical DCS environments. This unit integrates a 200W high-efficiency power supply within a fanless, convection-cooled chassis, ensuring silent and maintenance-free operation in sensitive control settings. By accepting a wide range of input voltages, including both universal AC and 24V DC, the 51454416-200 provides a stabilized power backbone that protects downstream controllers and I/O modules from electrical instability. Its compact footprint and robust isolation make it an essential component for hardening industrial control cabinets against power-related failures.

Definitive Hardware Specifications and Component Data

• Input Flexibility: 100-240V AC (50/60Hz) or 24V DC Auto-sensing

• Power Output: 200W Total Capacity across regulated +5V, +12V, and +24V rails

• Distribution Density: 8 Channels with independent circuit protection

• Surge Mitigation: ±4kV (Line-to-Line) and ±6kV (Line-to-Ground)

• Isolation Rating: 500V AC Galvanic Isolation

• Cooling Architecture: Passive fanless convection with automatic derating above 50°C

• Thermal Endurance: -20°C to +60°C operational range

• Humidity Tolerance: 5% to 95% RH (Non-condensing)

• Unit Mass: 0.6 kg (Net) / 0.8 kg (Shipping)

• Module Dimensions: 7 x 14 x 14.5 cm

• Manufacturing Origin: USA

Industrial Deployment and System Utility

This Controller Infrastructure Module is predominantly utilized in process automation, chemical plant marshalling cabinets, and high-end building management systems. Its primary utility lies in its ability to distribute protected power to up to eight separate system components, ensuring that a localized fault in one I/O rack does not compromise the entire control loop. The fanless design is particularly advantageous in environments with high particulate matter or dust, where mechanical fans would typically fail or require frequent filter changes. Furthermore, the 500V AC isolation provides a safety barrier that shields sensitive PLC logic from high-voltage transients, making it a staple for engineers designing high-availability instrument enclosures (RIE) and centralized control rooms.

FAQ

Q: Can the 51454416-200 handle both AC and DC inputs simultaneously for redundancy?

A: No, while the module is versatile and accepts either input type, it is designed to operate from a single primary source. For redundant power configurations, two separate modules should be used in parallel.

Q: What happens when the ambient temperature exceeds 50°C?

A: The module features an intelligent thermal management system that automatically initiates component derating. This slightly reduces the maximum power output to prevent internal overheating, thereby extending the long-term lifecycle of the capacitors and electronics.

Q: Is this module compatible with standard Honeywell Experion racks?

A: Yes, the 51454416-200 is designed to integrate into the standard Honeywell cabinet infrastructure used across DCS and PKS platforms, provided the power requirements of the seated modules do not exceed the 200W total budget.

Q: Does the fanless design affect the mounting orientation?

A: To maximize the efficiency of the passive cooling, the module should be mounted in a standard upright position as specified in the installation manual to allow for optimal vertical airflow through the cooling fins.

Q: Are the 8 distribution slots hot-swappable?

A: The slots are designed for secure power distribution; while the module is highly durable, it is best practice to follow your specific plant safety procedures regarding the connection or disconnection of live power paths to avoid arcing.
