Product Overview

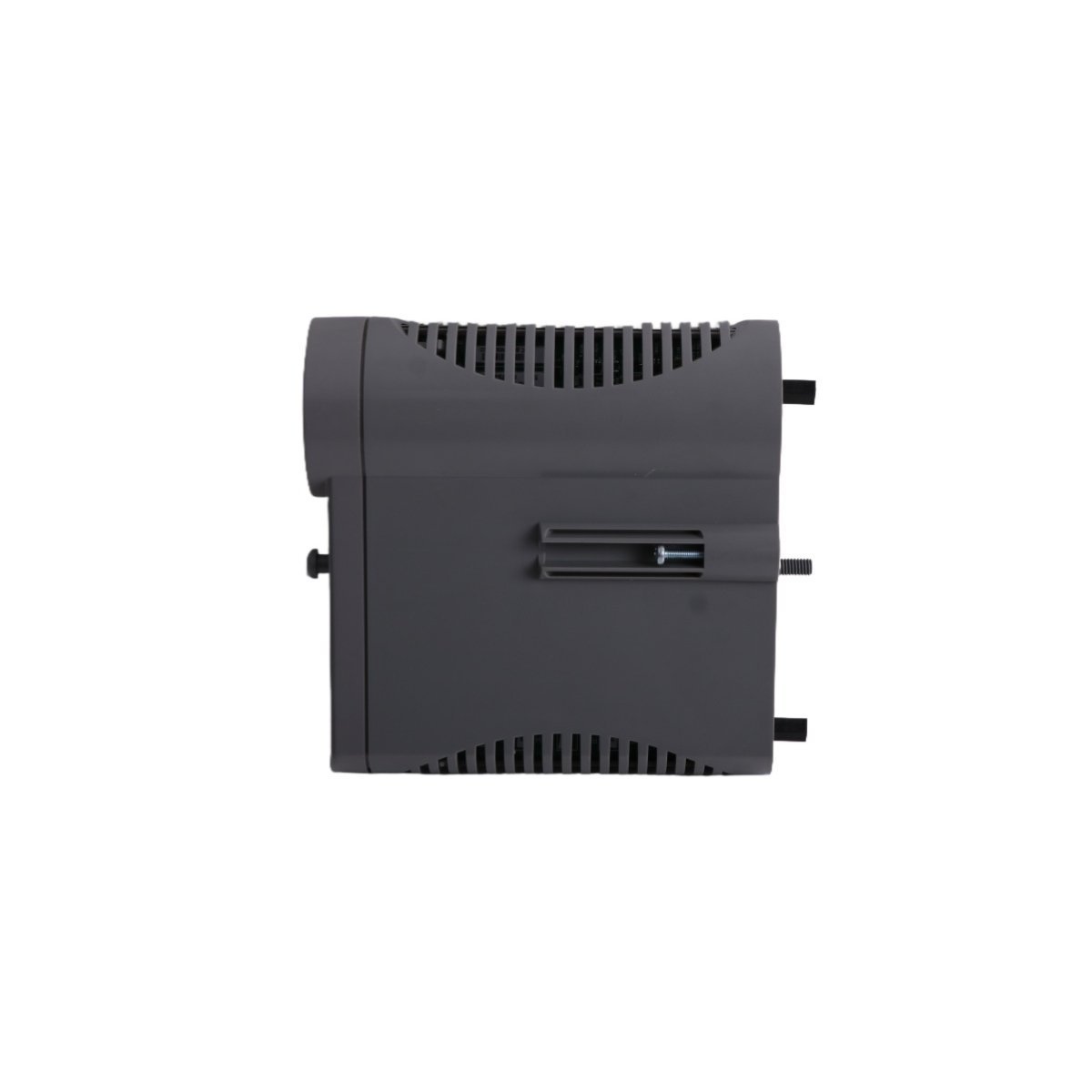

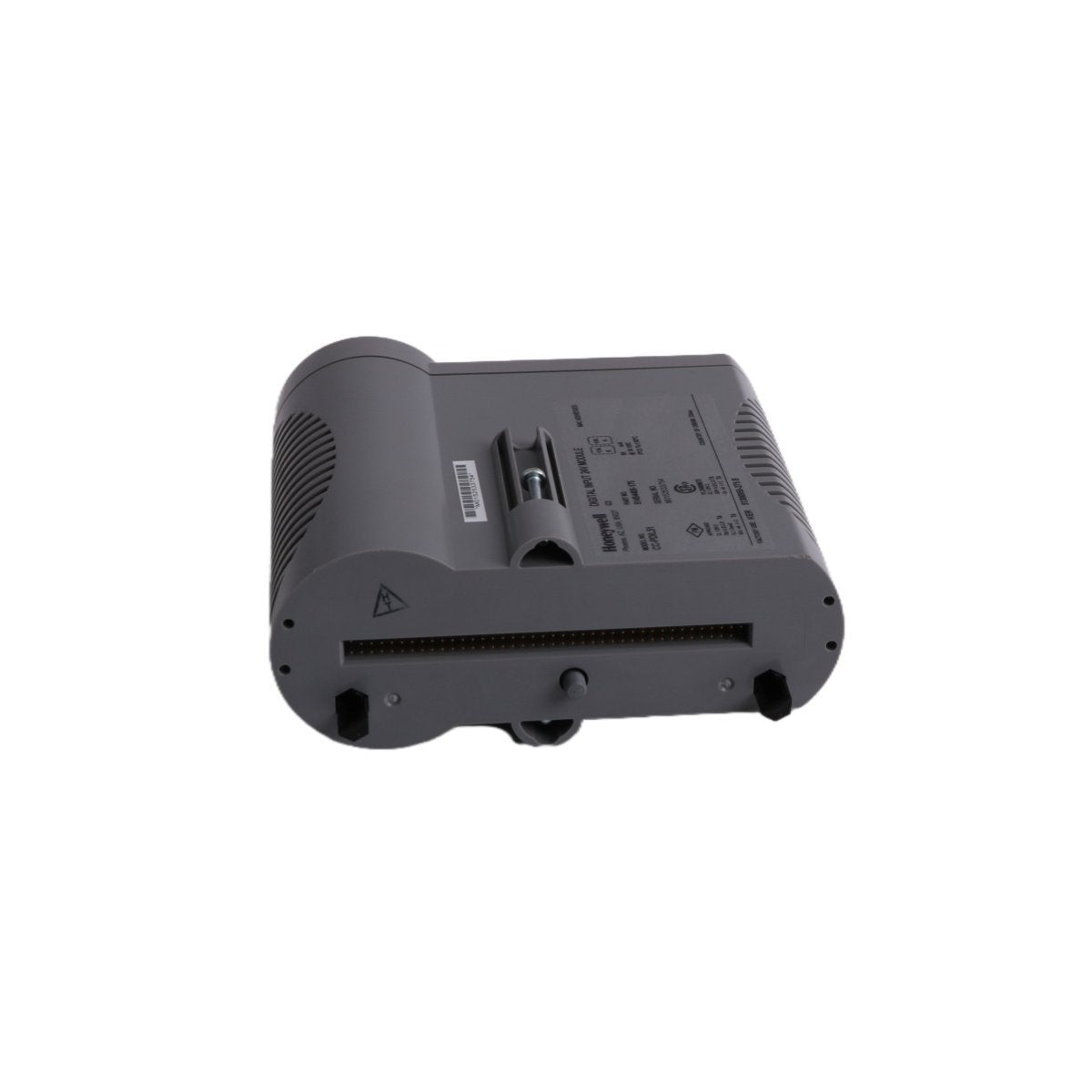

The Honeywell FC-PUIO01, identified by part number 51454294-176, serves as a high-integrity Universal Safety I/O (USIO) component for the Experion Series C platform. Engineered for seamless integration with C300 controllers starting from Experion R300, this module facilitates the bridge between field instrumentation and the safety logic solver. It provides a flexible interface capable of handling diverse signal types, ensuring that critical data is conditioned and processed with the high level of reliability required for Safety Instrumented Systems (SIS). This module is an essential element for modern DCS architectures, providing intrinsic safety features and robust communication within the Honeywell Safety Manager (FSC) and Experion environments.

Technical Hardware Specifications

• Module Function: Universal Safety Input/Output Interface

• System Platform: Honeywell Experion Series C / Safety Manager SC

• Safety Rating: Designed for SIL-rated safety loops

• Max Safe Voltage ($U_m$): 250V

• Output Voltage ($U_o$): 25.2V

• Output Current ($I_o$): 110.1mA

• Output Power ($P_o$): 693.6mW

• Interface Type: IOTA Redundant compatible

• Mounting Footprint: Series C I/O Link

• Compliance: CE and UL certified for industrial use

• Dimensions: 14.5cm x 14cm x 7cm

• Net Weight: 0.4 kg (Approximately 0.9 lbs)

Primary Field Applications

The FC-PUIO01 is deployed in sectors requiring stringent process safeguards, such as petrochemical refining, power generation, and chemical processing. Its primary role is to monitor and control safety-critical equipment, including emergency shutdown (ESD) valves, fire and gas detection sensors, and pressure let-down stations. By utilizing the universal design, engineers can configure the module to match specific field device requirements without changing hardware, which optimizes spare parts management and system scalability. It is particularly effective in hazardous areas where intrinsic safety parameters must be maintained to prevent ignition risks while ensuring continuous diagnostic monitoring of the safety loop.
