Product Overview

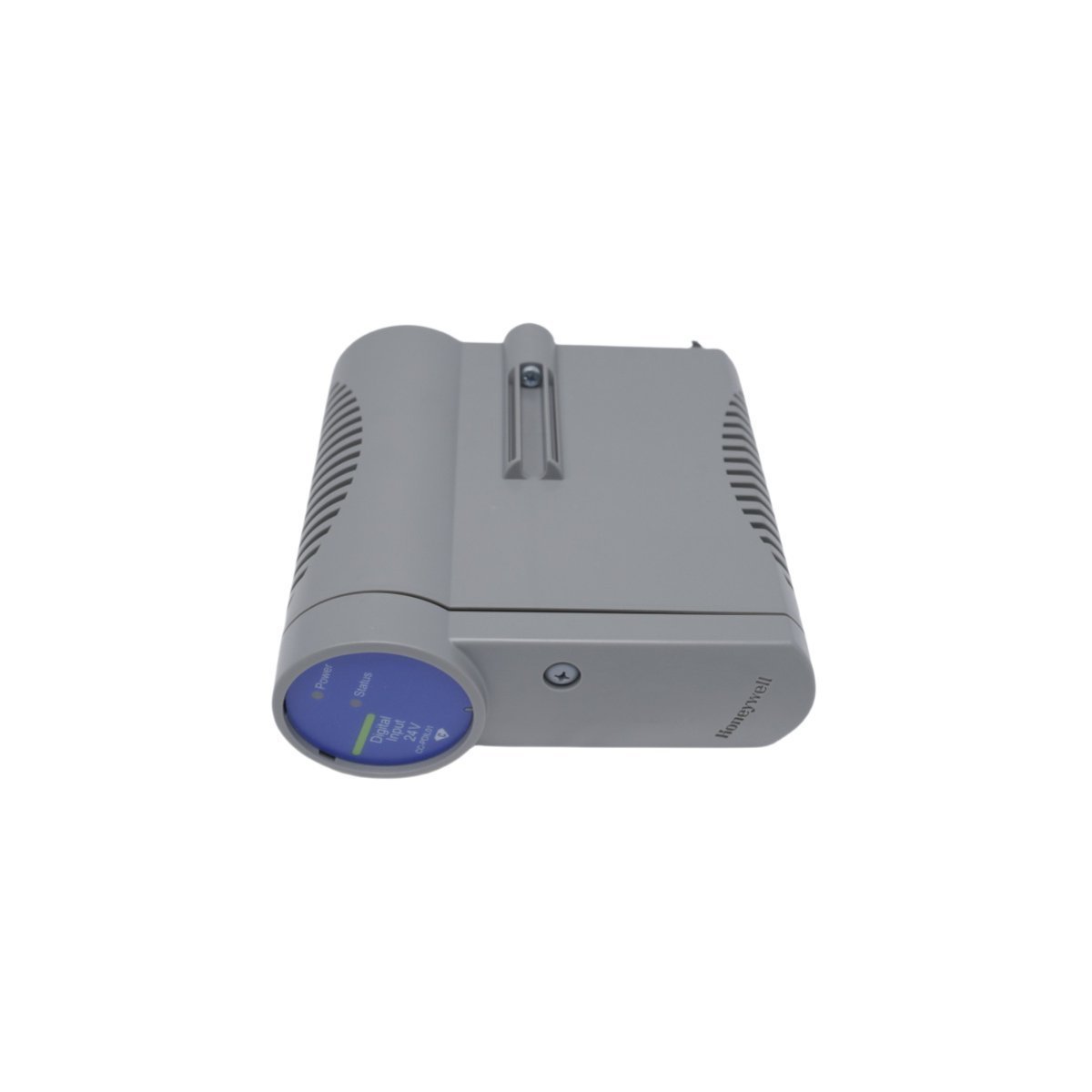

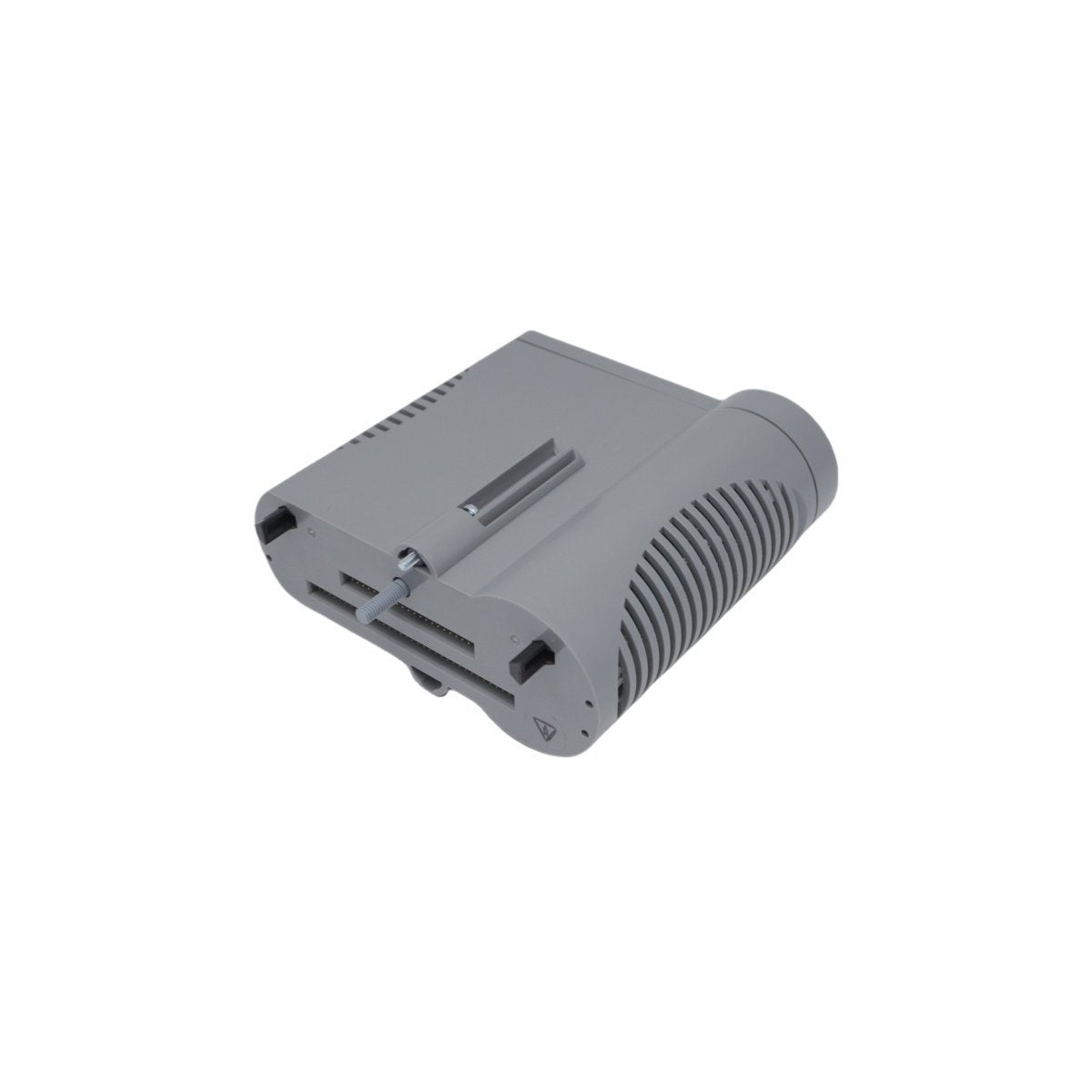

The Honeywell CC-PDIL01, part number 51405040-176, is a high-density discrete signal acquisition module designed for the Experion PKS Series C I/O family. This module acts as the primary sensory interface for the C300 controller, capturing binary states from field equipment such as limit switches, pushbuttons, and auxiliary contacts. Engineered for maximum reliability in "always-on" industrial environments, the CC-PDIL01 converts 24V DC field signals into deterministic digital data for the control system. Its vertical, non-vented Series C architecture allows for dense cabinet packing while maintaining superior thermal stability and electrical isolation, protecting the central processor from field-side voltage transients.

Essential Hardware Parameters and Performance Metrics

The CC-PDIL01 is optimized for high-speed signal processing and features an adaptive filtering system to ensure data integrity in electrically noisy plant environments.

• Module Functionality 24V DC Discrete Digital Input (DI)

• System Environment Honeywell Experion PKS Series C

• Input Logic 24V DC Current Sinking (standard for Series C DI)

• Signal Protection Advanced opto-isolation between field channels and backplane

• Adaptive Filtering Integrated hardware noise suppression for high-frequency interference rejection

• Diagnostic Telemetry Real-time channel-level status monitoring and hardware health reporting

• Maintenance Feature Hot-swappable design (RIUP) for live system servicing

• Structural Build Ruggedized PCB coating for resistance to industrial contaminants

• Net Weight 0.36 kg

• Form Factor 5.5 x 16 x 14.5 cm

• Manufacturing Origin USA

• Harmonized System Code 8537101190

Industrial Deployment and System Utility

This Digital Input module is a fundamental component for facilities requiring precise, real-time feedback from a vast network of discrete sensors and switches.

• Status Feedback Aggregation Monitoring thousands of valve position switches across expansive oil and gas manifold systems.

• Safety System Interfacing Capturing high-priority signals from emergency stop circuits and safety gates for process interlocking.

• Motor Control Coordination Providing motor "Running" or "Tripped" status feedback from MCC (Motor Control Center) auxiliary contacts to the DCS.

• High-Speed Manufacturing Utilizing adaptive signal filtering to accurately track fast-moving limit switches in automated assembly and packaging lines.

• Control System Expansion Serving as a scalable, high-density solution for adding discrete monitoring points to existing Series C I/O Termination Assemblies (IOTA) without cabinet redesign.
