Product Overview

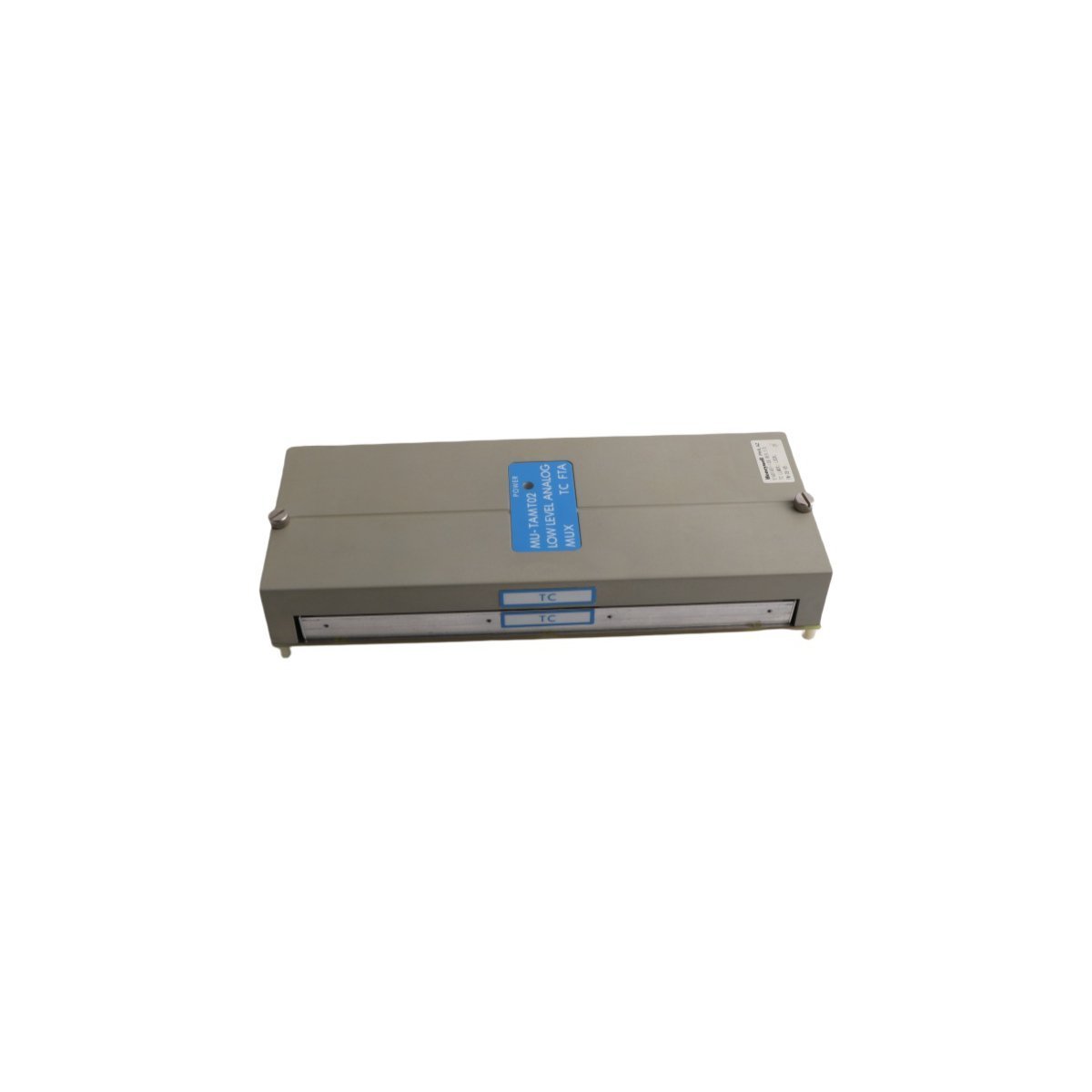

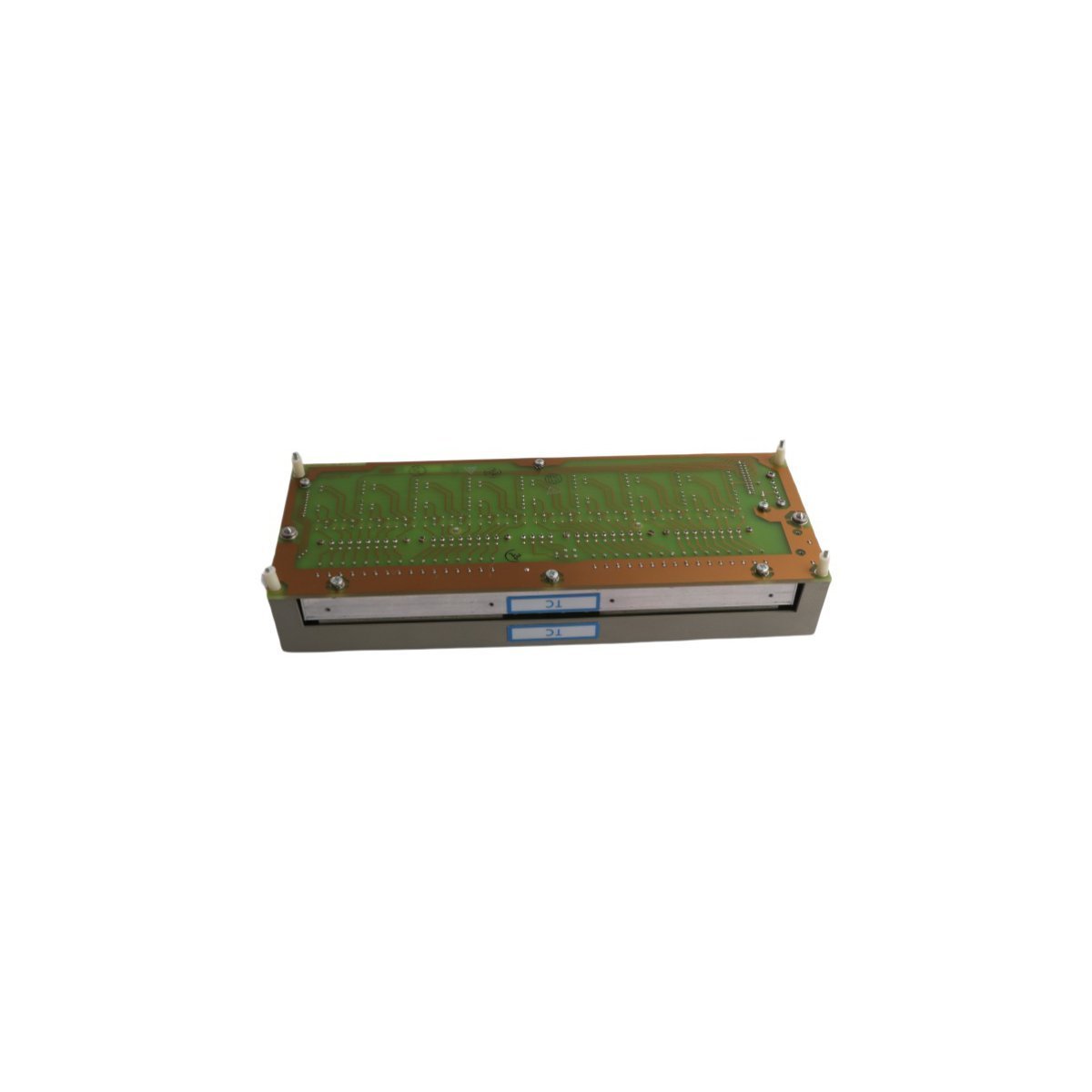

The Honeywell MU-TAMT02, identified by engineering assembly 51401491-100, is a high-precision Low Level Analog Input (LLAI) Multiplexer designed for the TDC 3000 and Experion PKS legacy architectures. This module is specifically engineered to handle micro-volt and low-millivolt signals from sensitive field sensors, such as thermocouples and Resistance Temperature Detectors (RTDs). By providing a centralized acquisition point for multiple low-level signals, the MU-TAMT02 minimizes the need for individual signal conditioners, reducing system complexity and improving data consistency across the Distributed Control System (DCS). Its high-integrity circuitry is built to filter industrial noise, ensuring that minute process fluctuations are captured with absolute fidelity for critical thermal and pressure monitoring.

Critical Hardware Metrics and System Attributes

The MU-TAMT02 51401491-100 is characterized by the following technical profile:

• Model Number: MU-TAMT02

• Part Number: 51401491-100

• Function: Low Level Analog Input Multiplexer (LLAI)

• Product Line: MU-T Series

• Signal Range: -10V to +10V (Configurable for millivolt low-level inputs)

• Operating Voltage: 12V DC (Nominal)

• Communication Interface: RS-485 Serial Connectivity

• Environmental Range: -40°C to +85°C (Extended Industrial Grade)

• Physical Weight: 1.16 kg

• Module Dimensions: 30.7 x 12 x 6.8 cm

• Safety Certifications: UL, CE, and TÜV compliant

• Origin: Manufactured in the USA

Strategic Process Deployment and Industrial Utility

In Large-Scale Refining and Petrochemical Operations, the MU-TAMT02 is essential for multi-point temperature monitoring within distillation columns and reactor beds. Because these environments generate significant electromagnetic interference, the module's advanced filtering and high-precision multiplexing prevent signal drift. The extended temperature rating allows the multiplexer to be situated in field-mounted termination racks closer to the process, significantly reducing the length of expensive thermocouple extension wire and improving the overall Signal-to-Noise Ratio (SNR).

Within Glass and Metal Smelting Facilities, the ability to accurately capture low-level millivolt data is vital for furnace control. The MU-TAMT02 provides the high-resolution input necessary for the DCS to maintain tight thermal gradients, which directly impacts product quality and energy efficiency. Its robust construction enables it to survive the high ambient temperatures of melt shops, while the RS-485 interface ensures that the captured data is transmitted back to the central control room without loss of accuracy over long distances.

For Pharmaceutical and Food Processing Units, this multiplexer facilitates the high-density monitoring of RTD sensors in sterilization and fermentation cycles. The MU-TAMT02 allows for a streamlined I/O architecture by consolidating dozens of thermal points into a single digital stream. This consolidation simplifies the validation process for regulated industries, as it provides a centralized and highly reliable point of data acquisition that meets strict global standards for safety and operational reliability.
