Product Overview

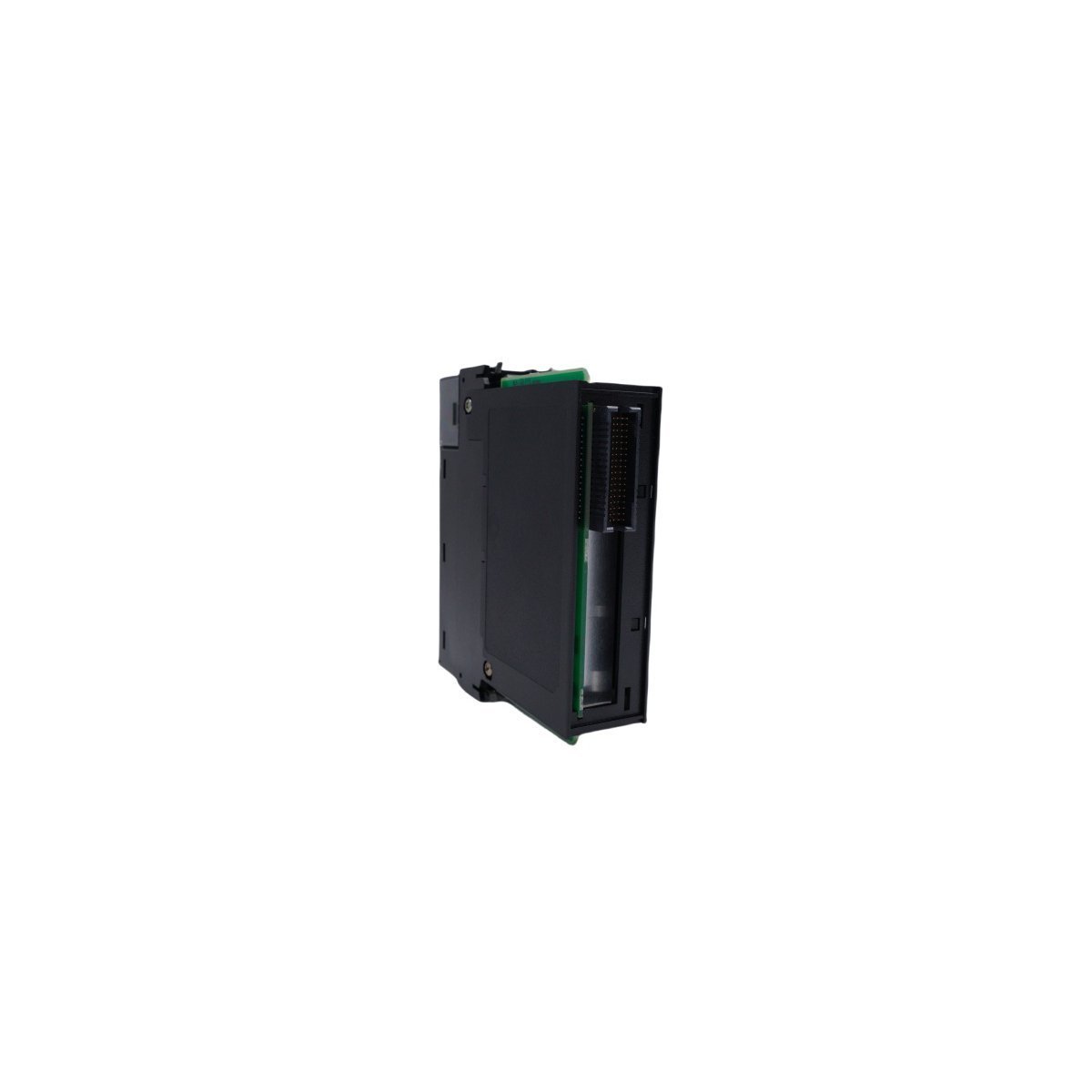

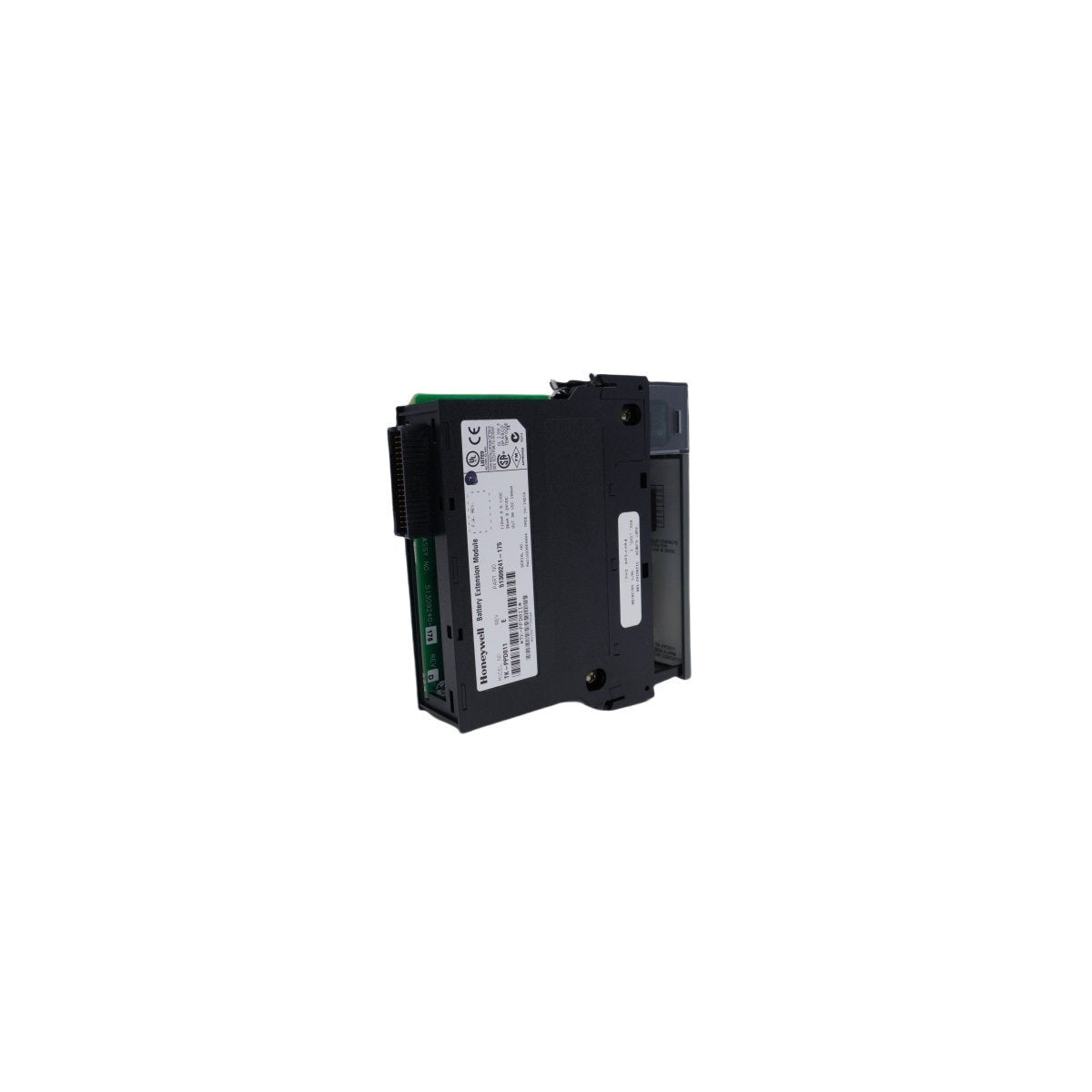

The Honeywell TK-PPD011, part number 51309241-175, is a specialized Power Backup Extension Module designed for the Experion LS (Life Sciences) and Series 8 I/O architecture. Unlike standard consumer backup units, this industrial-grade module is engineered to provide supplementary power to C300 controllers and Series 8 I/O modules during primary supply fluctuations or total power failure. By extending the operational window of volatile memory (RAM), the TK-PPD011 ensures that critical process data, alarm configurations, and logic states are preserved until the system can be safely transitioned to a backup generator or brought to a controlled shutdown. This module is a vital component for maintaining data integrity in regulated industries where power interruptions could lead to significant batch loss or compliance discrepancies.

Power Infrastructure and Hardware Specifications

The TK-PPD011 is built with high-reliability power circuitry to manage the charging and discharging cycles of secondary battery cells within a DCS cabinet environment.

• Module Class Battery Extension / RAM Retention Module

• System Compatibility Honeywell Experion LS and Series 8 Control Systems

• Functionality Extends controller memory retention during main power loss

• Power Input Support Compatible with both AC and DC cabinet power distribution units

• Installation Design Plug-in architecture for Series 8 IOTA (Input Output Termination Assembly)

• Construction Ruggedized industrial casing with high-vibration resistance

• Component Mass 0.36 kg

• Physical Profile 3.5 cm x 14 cm x 14.5 cm

• Manufacturing Origin USA

• Tariff Header HS Code 8537101190

Industrial Resilience and Deployment Scenarios

This battery extension module is a prerequisite for facilities that operate under strict "zero-downtime" data requirements and high-availability safety protocols.

• Pharmaceutical Batch Protection Providing the necessary backup power to preserve recipe parameters and audit trail data in the event of a facility-wide power excursion.

• Controlled Lab Environments Ensuring that HVAC and environmental monitoring systems maintained by Experion LS remain synchronized and active during electrical maintenance.

• Critical Process Shutdowns Enabling C300 controllers to execute complex, multi-step safe-state sequences after the loss of primary power.

• Legacy System Modernization Upgrading the backup capacity of existing Series 8 control racks to meet updated corporate reliability and uptime benchmarks.

• Remote Terminal Unit (RTU) Support Bolstering the power stability of control nodes located in areas with unreliable grid infrastructure or high electrical noise.
