Product Overview

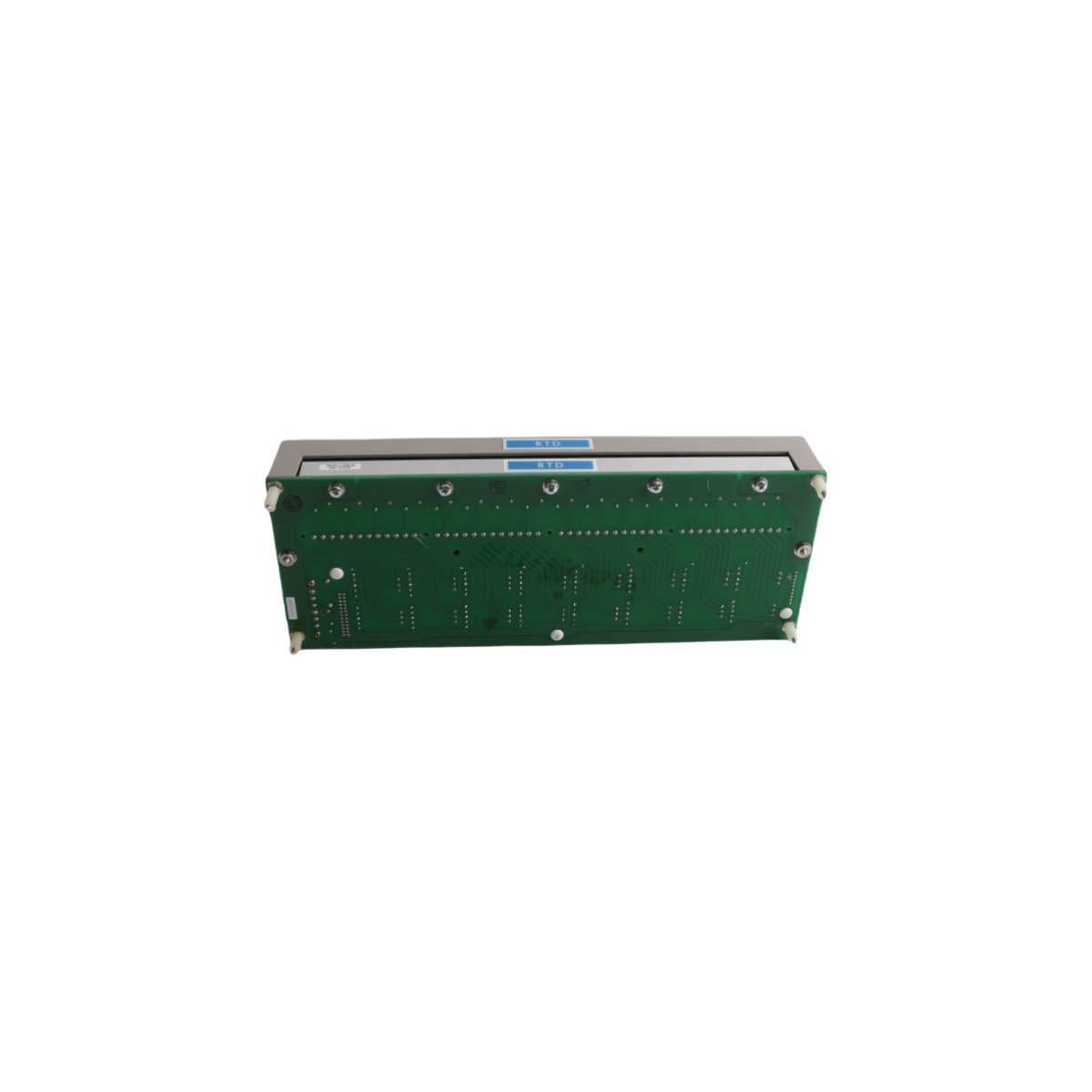

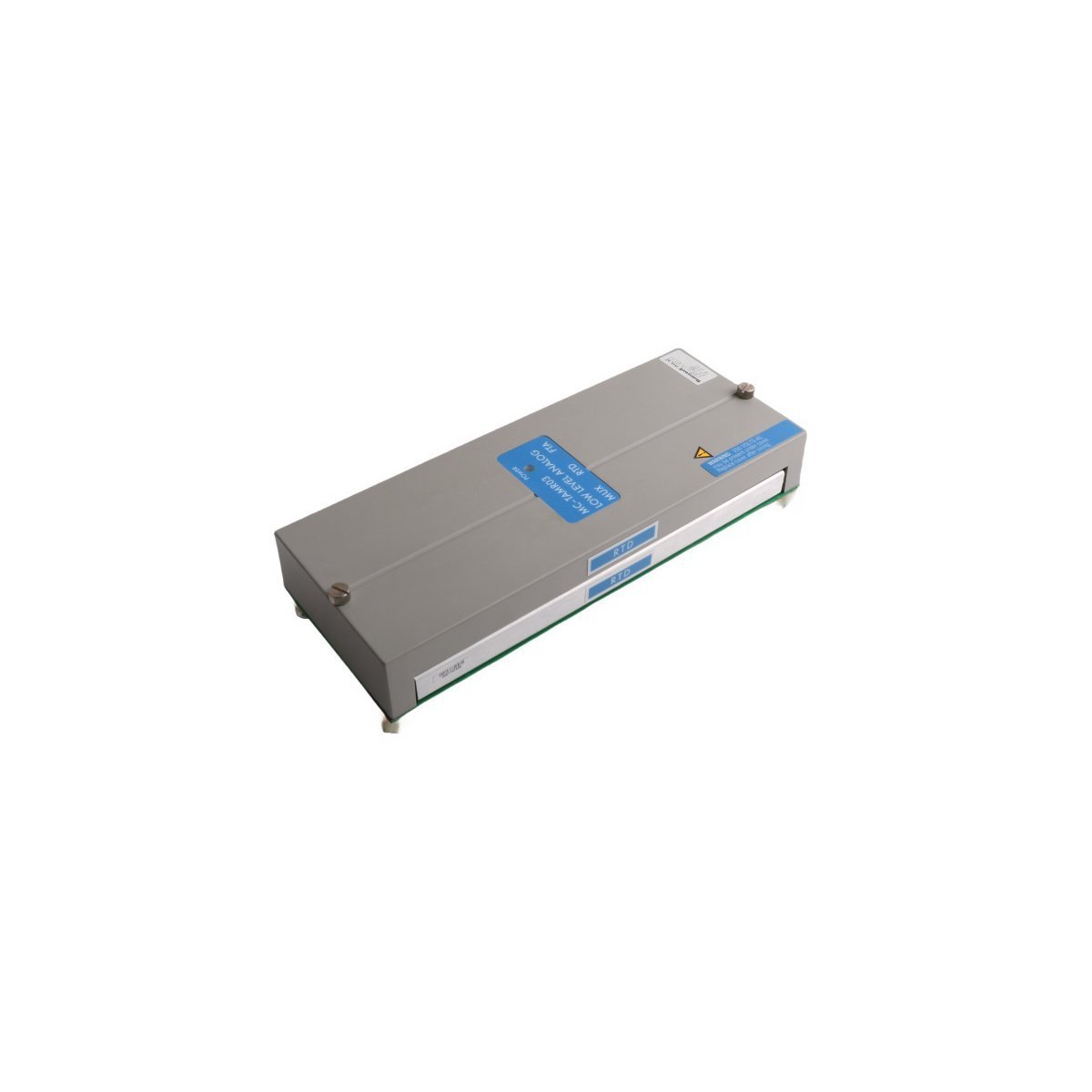

The Honeywell MC-TAMR03, identified by engineering part number 51309218-175, is a precision-engineered Low Level Analog Multiplexer (LLAM) designed for the MU-T Series within the TDC 3000 and Experion PKS control architectures. This module functions as a specialized high-density gateway, consolidating low-millivolt and standard analog signals from field-mounted sensors into a streamlined data stream for the process controller. By utilizing advanced multiplexing circuitry, the MC-TAMR03 minimizes the hardware footprint required for large-scale data acquisition while maintaining superior signal isolation and integrity. It is an essential component for industrial facilities that require high-accuracy monitoring of sensitive thermal or pressure variables across a distributed network.

Fundamental Hardware Parameters

• Model Number: MC-TAMR03

• Part Reference: 51309218-175

• Module Function: Low Level Analog Multiplexing

• System Series: MU-T Series / Distributed Control System (DCS)

• Input Capability: Supports up to 16 channels of high-resolution analog data

• Signal Compatibility: Configurable for 0-10V DC, 4-20mA, and low-level mV signals

• Thermal Resilience: Operational range from -40°C to +85°C

• Power Consumption: Ultra-low profile (under 50 mW)

• Communication Interface: Integrated RS-485 port for streamlined system linking

• Physical Metrics: 30.7 x 12 x 6.8 cm; 0.98 kg

• Certifications: CE, UL, and CSA compliant for international safety

• Origin: Manufactured in the USA

Strategic Industrial Implementations

The MC-TAMR03 is primarily deployed in high-stakes processing environments where environmental extremes and signal precision are critical factors. In Thermal Power Generation, it manages extensive thermocouple arrays for boiler and turbine monitoring, ensuring accurate data flow even in high-heat zones. Within Cryogenic and LNG Processing, the module’s wide operational temperature range allows it to function reliably in harsh outdoor enclosures while capturing delicate millivolt signals from specialized cooling sensors. It is also a staple in Advanced Petrochemical Refining, where it integrates seamlessly with existing RS-485 networks to provide real-time telemetry for pressure and flow transmitters. The module's robust design and low energy requirements make it a preferred choice for remote instrument buildings and localized control hubs.
