Product Overview

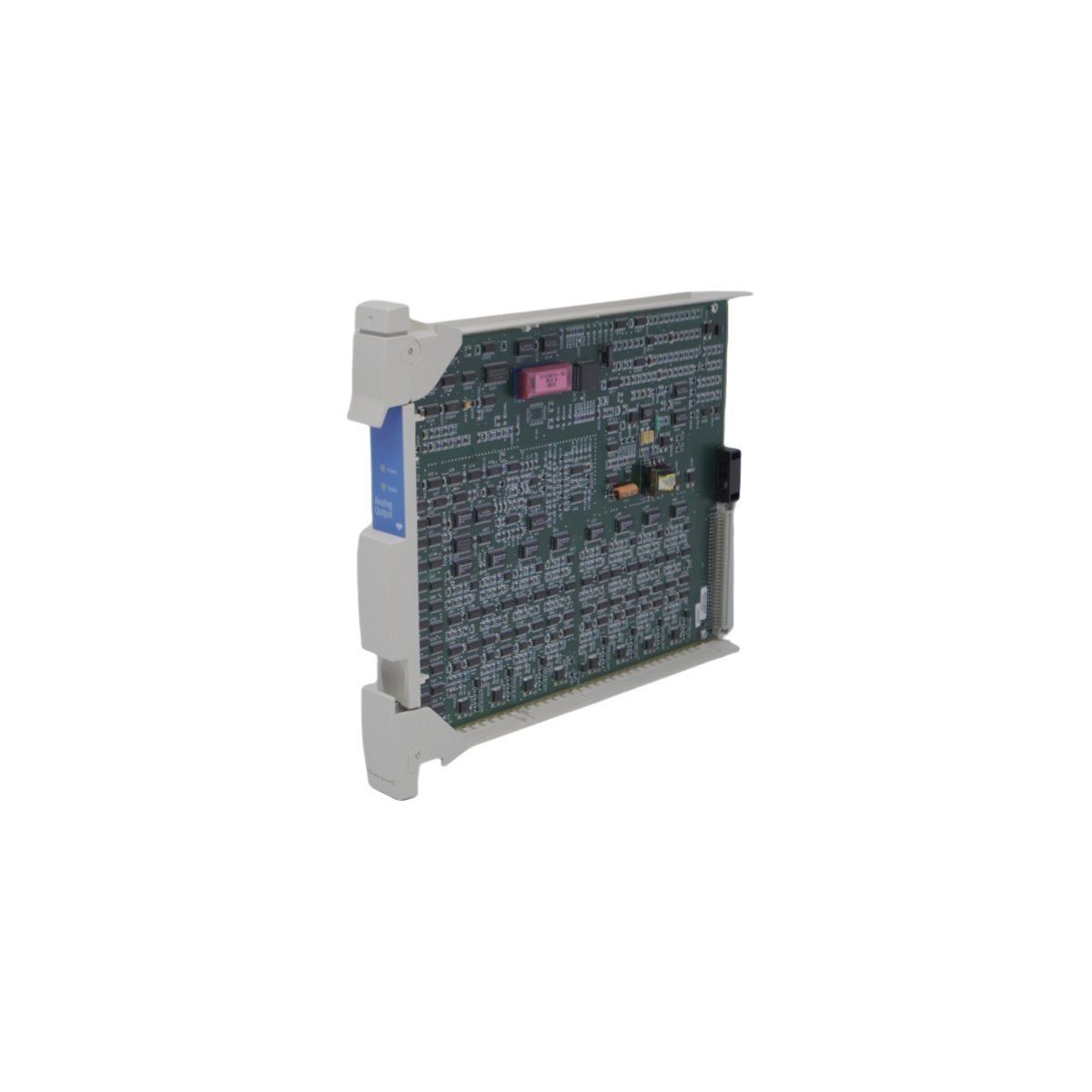

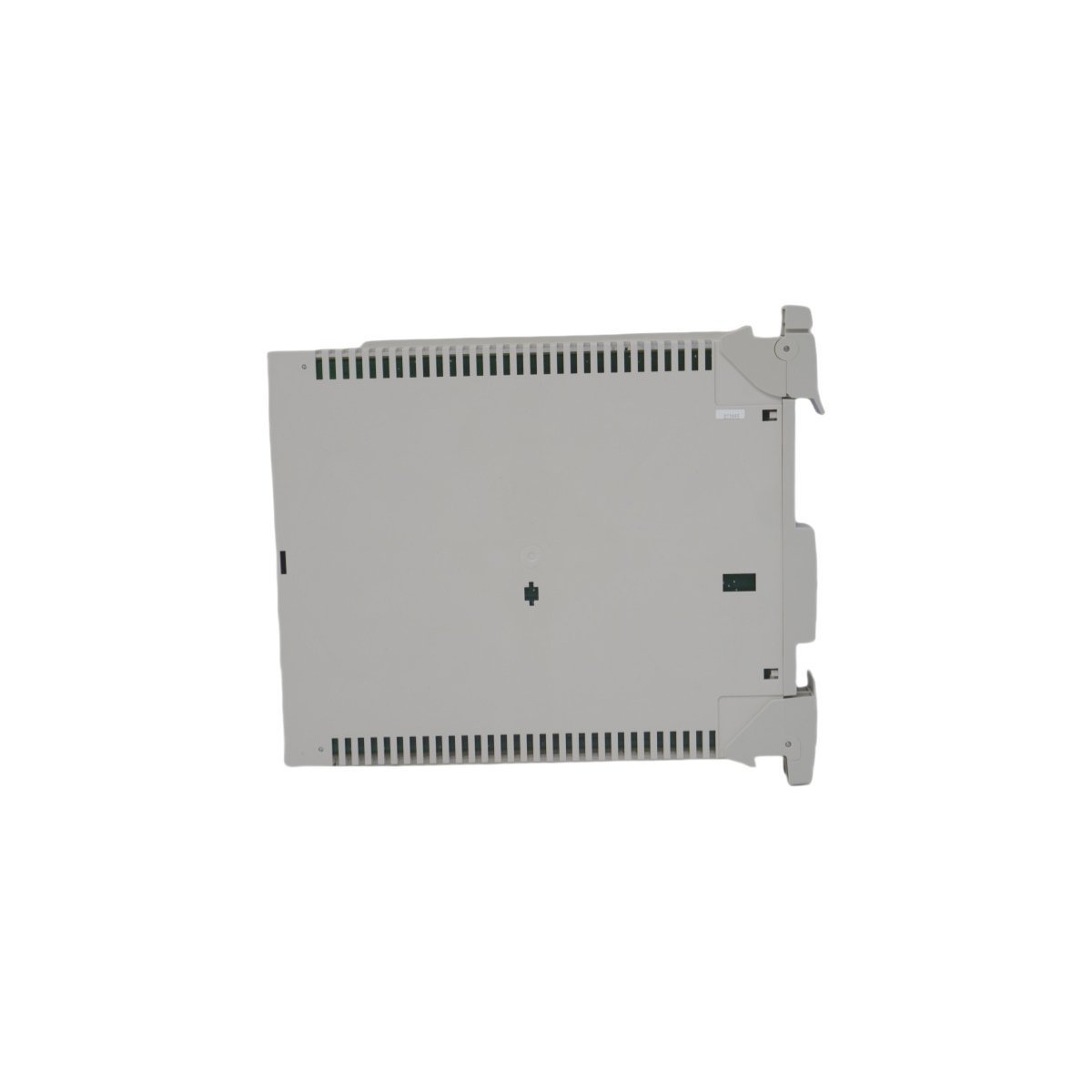

The Honeywell MC-PAOX03, identified by part number 51309152-175, is a high-integrity Analog Output (AO) module engineered for the Universal Control Network (UCN) architecture. This critical process control component serves as the primary bridge between the High-Performance Process Manager (HPM) and field-mounted final control elements. It converts digital control algorithms into precise 4-20mA signals to modulate valves, variable speed drives, and actuators. Designed for the MU-T Series ecosystem, the MC-PAOX03 ensures that complex control strategies are executed with high resolution and minimal signal drift, making it a foundational element for maintaining process stability in large-scale Distributed Control Systems (DCS).

Essential Hardware Metrics and Signal Profiles

The MC-PAOX03 is constructed for 24/7 industrial duty, utilizing high-grade components to maintain signal accuracy in thermally challenging and electrically noisy environments.

• Logic Platform: Universal Control Network (UCN) / MU-T Series

• Signal Output: 8-Channel High-Level Analog (typically 4-20mA)

• Conversion Resolution: High-precision Digital-to-Analog conversion for fine process modulation

• System Interface: Native compatibility with High-Performance Process Manager (HPM) and APM systems

• Redundancy Support: Configurable for redundant pair operation to ensure fail-safe control

• Diagnostic Capabilities: Onboard circuitry for loop current monitoring and open-circuit detection

• Hardware Weight: 0.58 kg

• Module Dimensions: 2.9 x 31.9 x 27.9 cm

• Manufacturing Origin: USA

• Tariff Identification: HS Code 8537101190

Industrial Implementation and Deployment Scenarios

This Analog Output card is strategically deployed in heavy industries where precise modulation of final control elements is critical to safety and production yield.

• Petrochemical Flow Modulation: Managing the precise positioning of feed-control valves in catalytic cracking units to maintain optimal reaction temperatures.

• Power Utility Turbine Governance: Sending high-speed control signals to hydraulic actuators for steam turbine speed and load regulation.

• Chemical Reactor Pressure Control: Driving electronic-to-pneumatic (I/P) converters to regulate nitrogen blankets and pressure relief systems.

• Water Management Systems: Controlling variable frequency drives (VFDs) on high-capacity pumps to maintain constant pipeline pressure across urban networks.

• DCS Lifecycle Extension: Providing a certified, brand-new replacement for aging UCN cards to eliminate signal jitter and restore factory-spec control performance.
