Product Overview

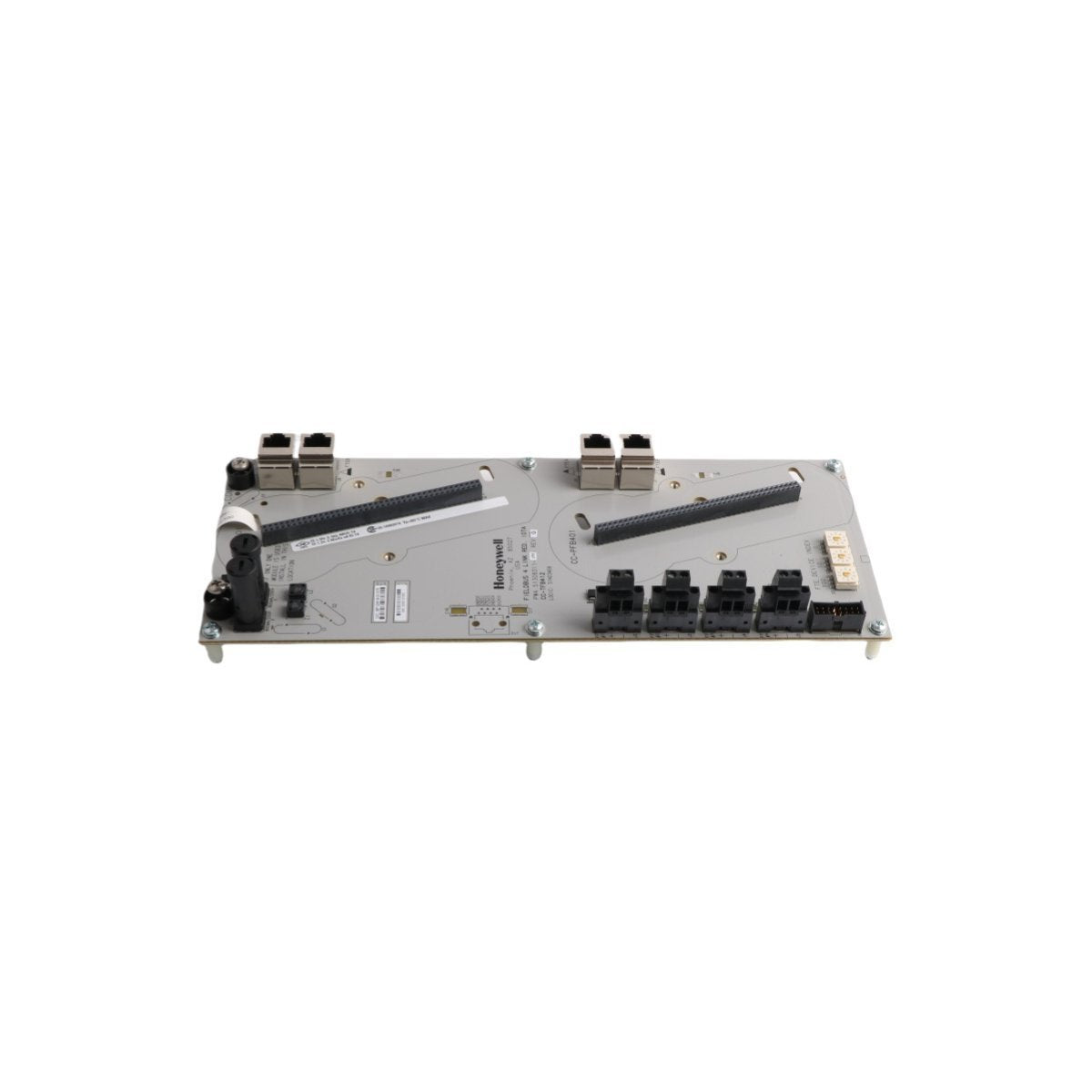

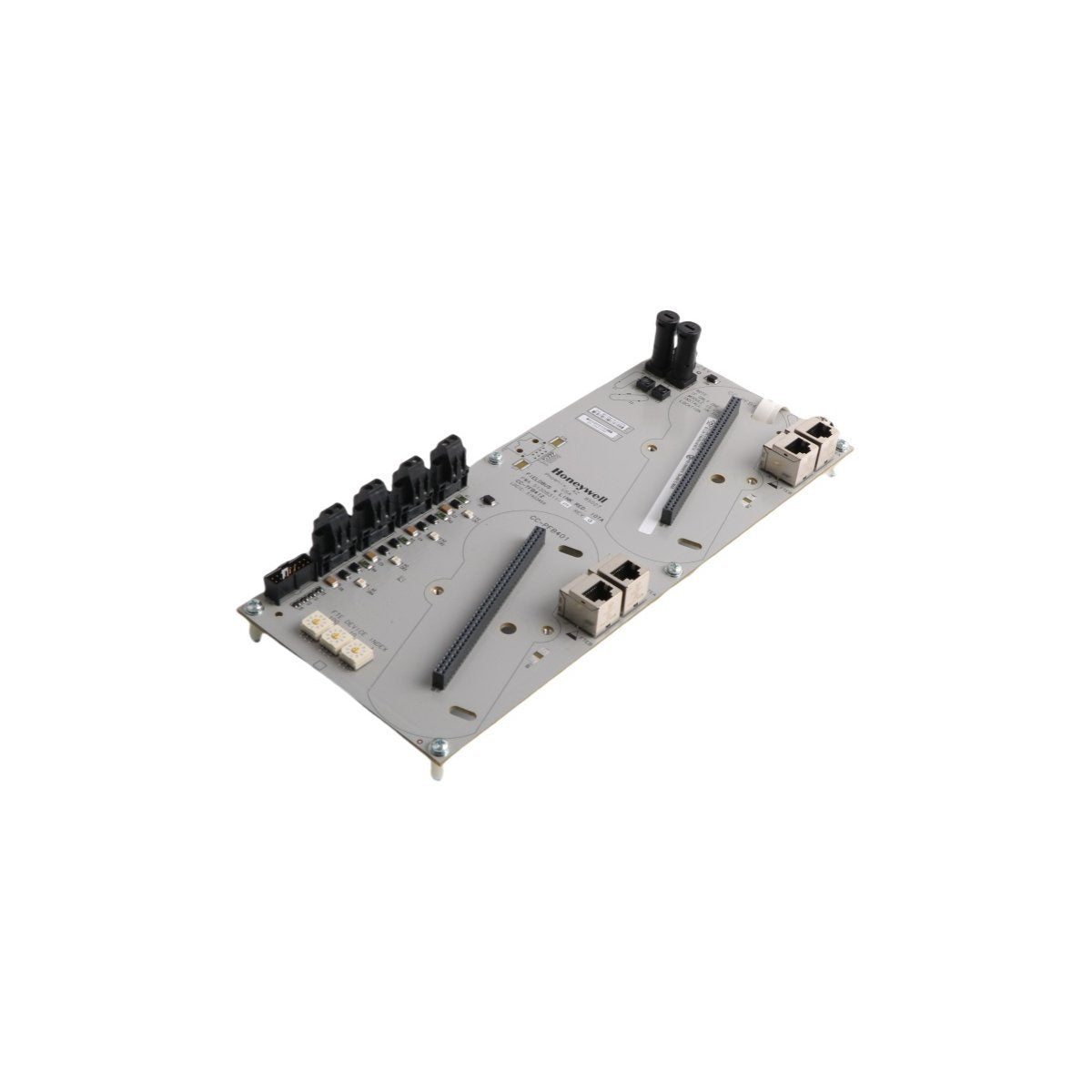

The Honeywell CC-TFB412 (Part Number 51308311-275) is a specialized Fieldbus Interface IOTA (Input Output Termination Assembly) designed for the Experion PKS Series 8 hardware environment. This module serves as the foundational physical interface for FOUNDATION Fieldbus (FF) segments, enabling high-speed bidirectional communication between field instruments and the Distributed Control System (DCS).

Unlike standard analog boards, this IOTA is engineered to manage power conditioning and signal termination for digital fieldbus segments. It provides a highly resilient connection point for smart devices, ensuring that critical process data—including multivariable measurements and advanced diagnostics—is transmitted with absolute integrity. Its fault-tolerant architecture is specifically designed to prevent signal loss during maintenance, making it a cornerstone for high-availability process automation.

Hardware Parameters and Technical Specifications

The CC-TFB412 is built to sustain performance in extreme climates while maintaining strict safety standards for hazardous locations.

• Module Type: FOUNDATION Fieldbus Interface IOTA

• Channel Configuration: 4 Isolated segments supporting HART and digital fieldbus protocols

• Safety Integrity Level: SIL 2/3 certified per IEC 61508

• Hazardous Area Protection: ATEX/IECEx Zone 2 certified; Conformal coated for corrosive resistance

• Thermal Operating Range: -40°C to +70°C (-40°F to +158°F)

• Redundancy: Supports redundant I/O module configurations for mission-critical paths

• Physical Dimensions: 29.4 x 12 x 5 cm

• Weight: 0.32 kg

• System Requirements: Optimized for Experion PKS Series 8 C300 controllers

• Mounting: Vertical IOTA carrier mounting for efficient cabinet cable management

Industrial Applications

The CC-TFB412 is the preferred interface for large-scale industrial projects requiring advanced device management and safety-instrumented functions:

• Upstream and Midstream Oil & Gas: Reliable operation in unmanned wellhead platforms and remote pipeline stations subjected to extreme temperatures.

• Petrochemical and Chemical Processing: Managing dense clusters of smart transmitters and control valves in environments requiring SIL-rated safety loops.

• Power Generation: Integrating digital fieldbus sensors for boiler and turbine monitoring where high electromagnetic interference (EMI) resistance is required.

• Mining and Metal Processing: Durable signal termination in dusty and vibration-prone atmospheres where equipment reliability is paramount.
