Product Overview

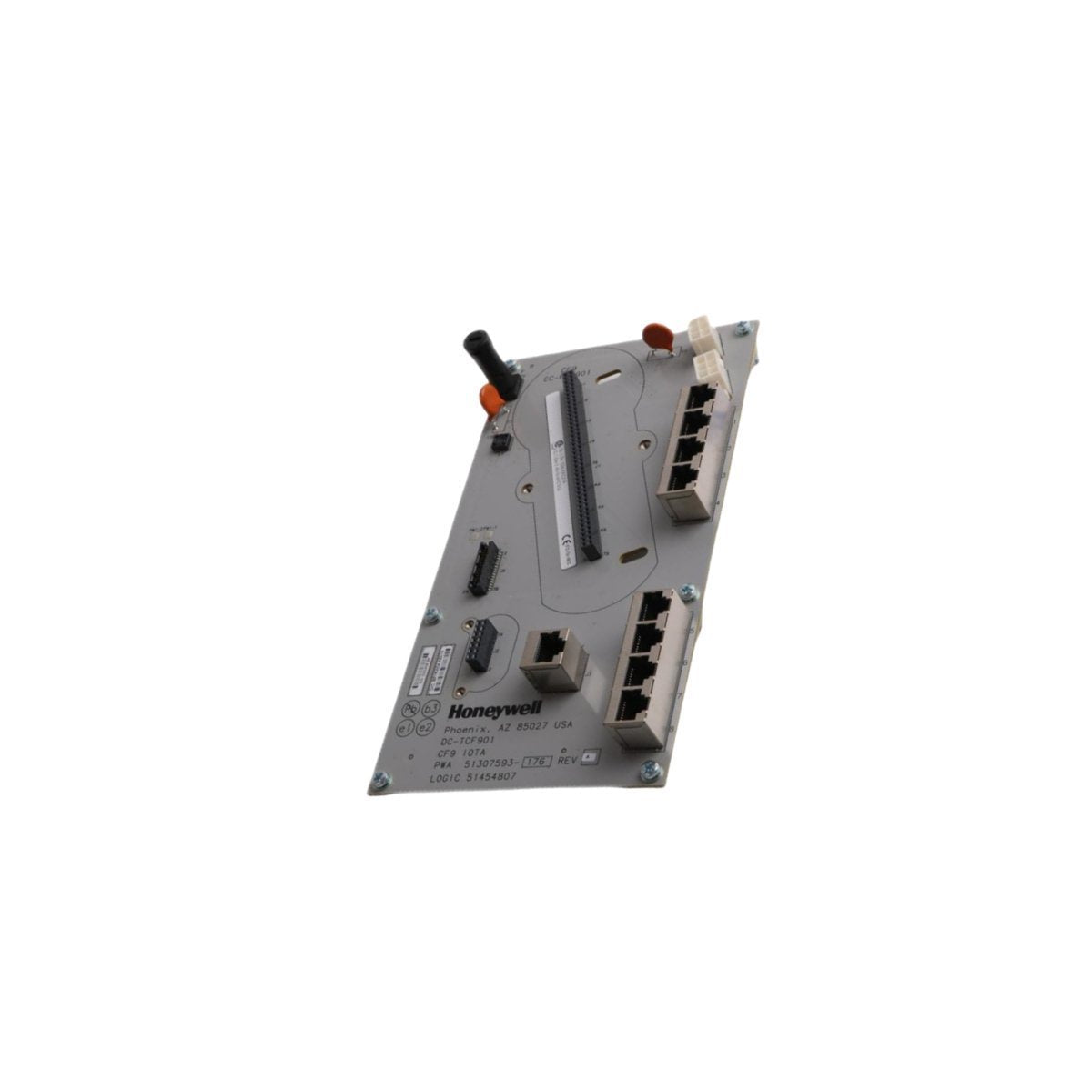

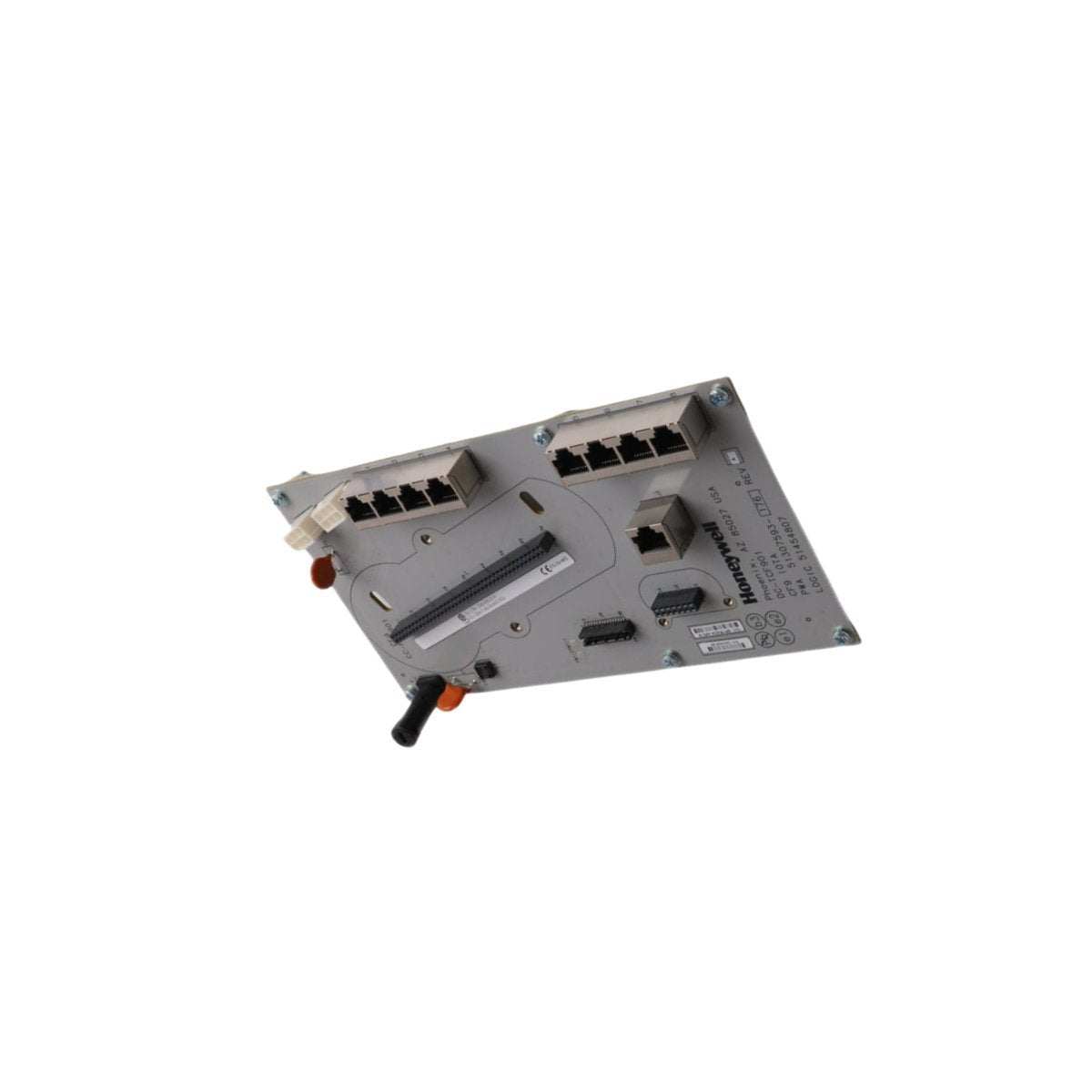

The Honeywell DC-TCF901, cataloged as part number 51307593-176, is a specialized Control Firewall and Processor Interface module engineered for the Experion PKS (Process Knowledge System). This module is a critical security and communication component designed to shield the C300 controller and I/O network from unauthorized traffic and broadcast storms. By acting as a managed gateway between the FTE (Fault Tolerant Ethernet) and the local I/O link, the DC-TCF901 ensures that process control data remains deterministic and prioritized. Its architecture is purpose-built for high-integrity automation environments, providing a hardware-based security layer that maintains the stability of the safety system even during periods of high network congestion.

Core Hardware Specs and Connectivity Data

• Model Number DC-TCF901

• Engineering Order Number 51307593-176

• Component Type Control Firewall / Processor Module

• System Infrastructure Honeywell Experion PKS / Series C

• Module Mass 0.22 kg

• Chassis Proportions 22 x 12 x 5.5 cm

• Network Security Integrated I/O Link Firewall protection

• Mounting Configuration Integrated into Series C I/O Termination Assembly (IOTA)

• Operational Environment Industrial-grade ruggedization for DCS cabinets

• Origin of Manufacture United States (USA)

• Customs Tariff (HS Code) 8537101190

Industrial Deployment Contexts

The DC-TCF901 is primarily utilized in large-scale Distributed Control Systems (DCS) where network integrity is a prerequisite for safety. In Petrochemical Refineries, it serves as the frontline defense for the controller network, preventing peripheral device failures from impacting the primary control logic. Within Power Generation Facilities, the module manages the high-speed data flow between the C300 processor and distributed I/O racks, ensuring that time-critical monitoring signals for turbines and boilers are delivered without latency. It is also an essential component for Pharmaceutical Manufacturing and Water Treatment plants, where it facilitates secure system expansions and hot-swappable maintenance. By isolating the I/O link from the broader plant network, the DC-TCF901 provides a "sandboxed" environment for critical control loops, effectively minimizing the risk of unplanned downtime caused by network-level interference.
