Product Overview

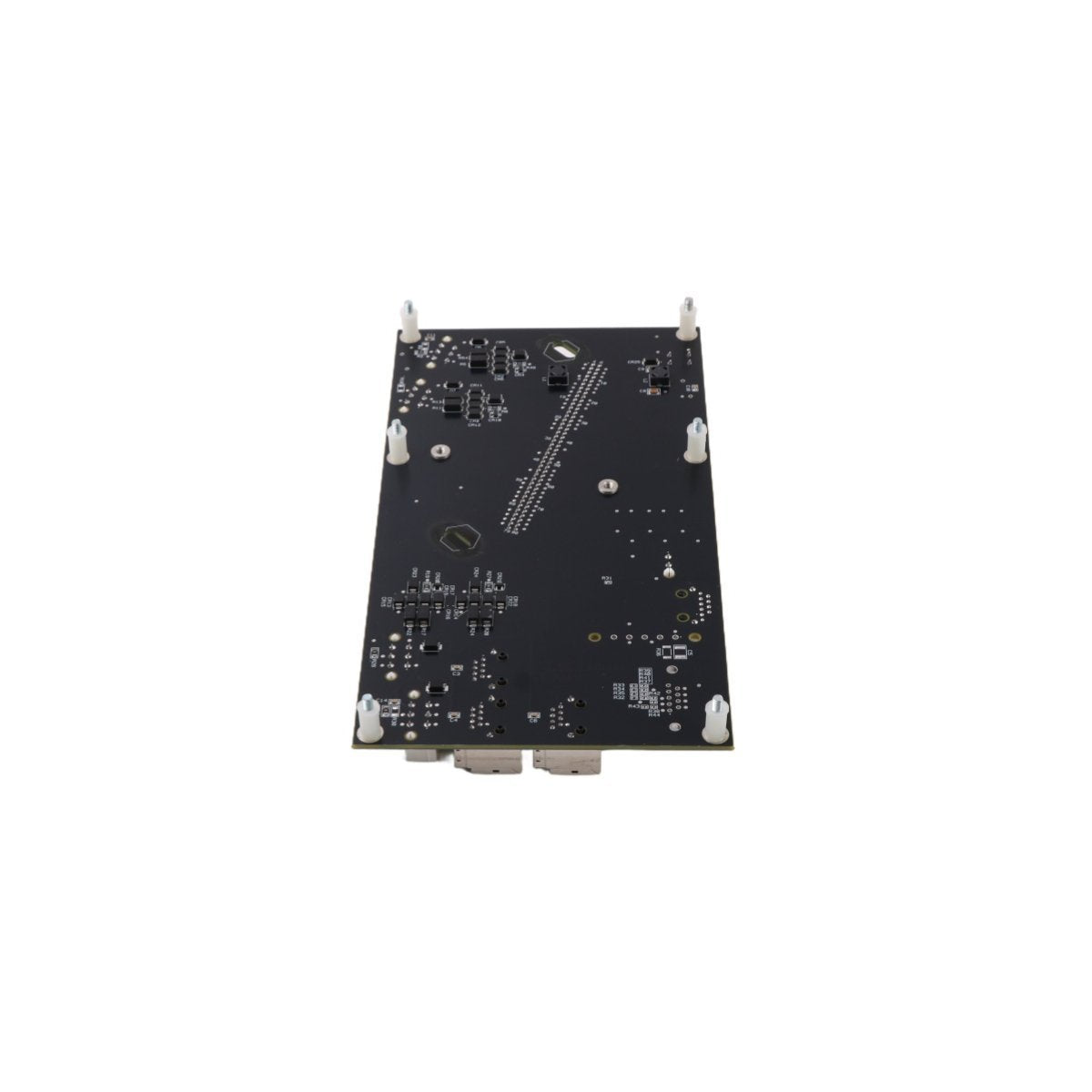

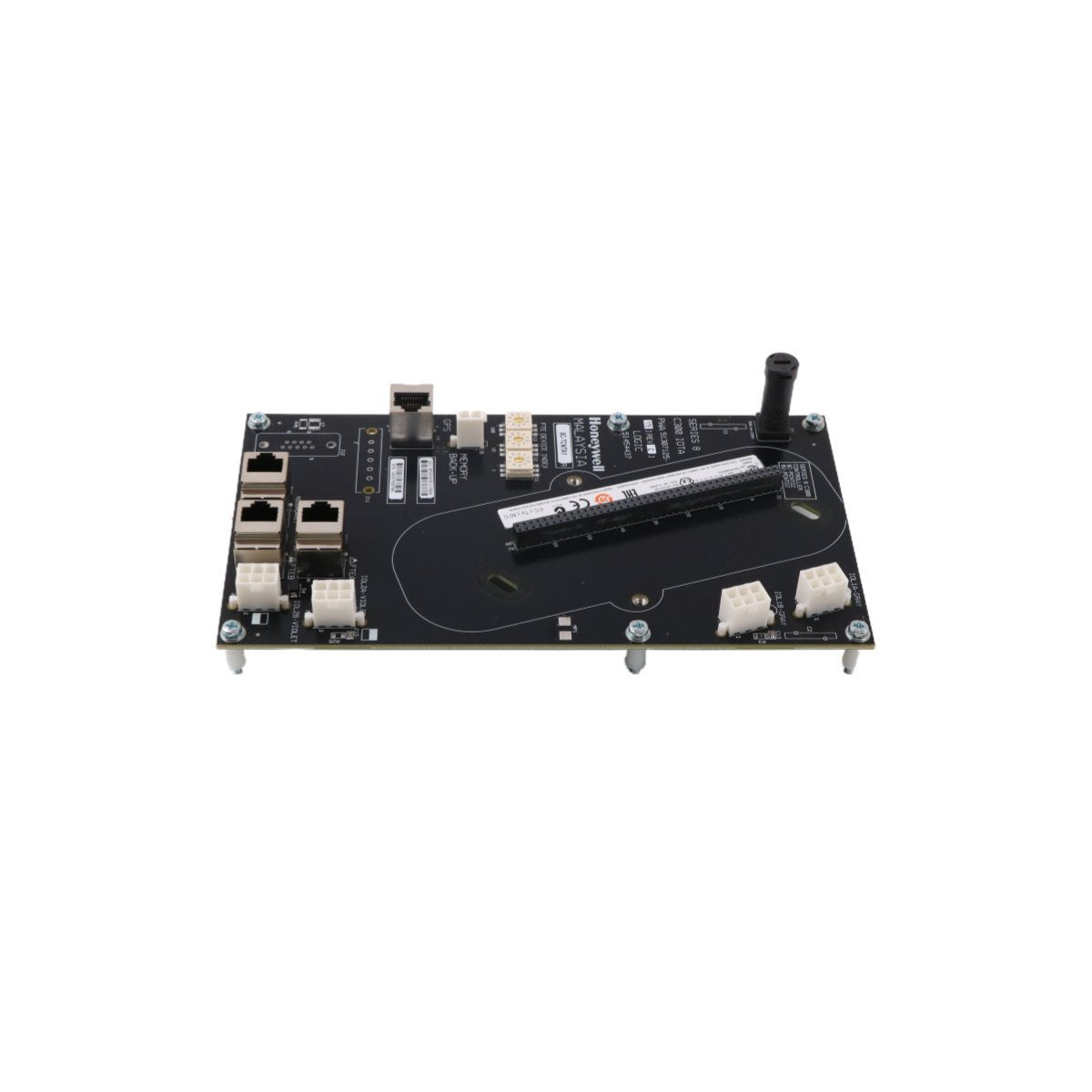

The Honeywell 8C-TCNTA1, part number 51307125-175, is a high-performance Input Output Termination Assembly (IOTA) specifically engineered for the Experion PKS Series 8 C300 control system. This module serves as the primary physical and electrical interface between the C300 controller and field instrumentation. By facilitating high-speed communication and signal conditioning, the 8C-TCNTA1 ensures that data from sensors and command signals to actuators are processed with maximum precision. It is an essential component for distributed control architectures that require reliable, real-time connectivity and modular scalability.

Hardware Parameters and Technical Characteristics

The 8C-TCNTA1 is designed with a focus on signal integrity and comprehensive system protection, featuring a ruggedized build for cabinet mounting.

• System Compatibility: Optimized for Honeywell Experion PKS Series 8 and C300 Controllers

• Interface Type: Controller I/O Termination Assembly (IOTA)

• Protocol Support: Facilitates data exchange via Profibus-DP, Modbus, and CANopen standards

• Signal Versatility: Accommodates a range of inputs including DC current (4-20mA), DC voltage, and discrete digital signals

• Integrated Diagnostics: Real-time monitoring for power supply stability, communication health, and channel-level faults

• Protective Circuitry: Built-in safeguards against overvoltage, overcurrent, and short-circuit conditions

• Physical Footprint: 7 x 14 x 14.5 cm

• Environmental Reliability: Designed for continuous operation in high-interference industrial zones

• Origin: Manufactured in the USA

Industrial Applications

This Series 8 connection module is utilized in complex process industries where downtime must be minimized through robust hardware and clear diagnostic feedback.

• Petrochemical and Refining: Managing high-density I/O points for temperature and pressure monitoring in volatile processing units.

• Power Generation: Interfacing with turbine controls and auxiliary equipment where high-speed data transmission is required for system synchronization.

• Pharmaceutical Production: Ensuring precise batch control and environmental monitoring through accurate signal conversion and regulatory compliance.

• Water and Wastewater Treatment: Controlling motor-driven pumps and automated valves via Modbus or Profibus integration for distributed site management.
