Product Overview

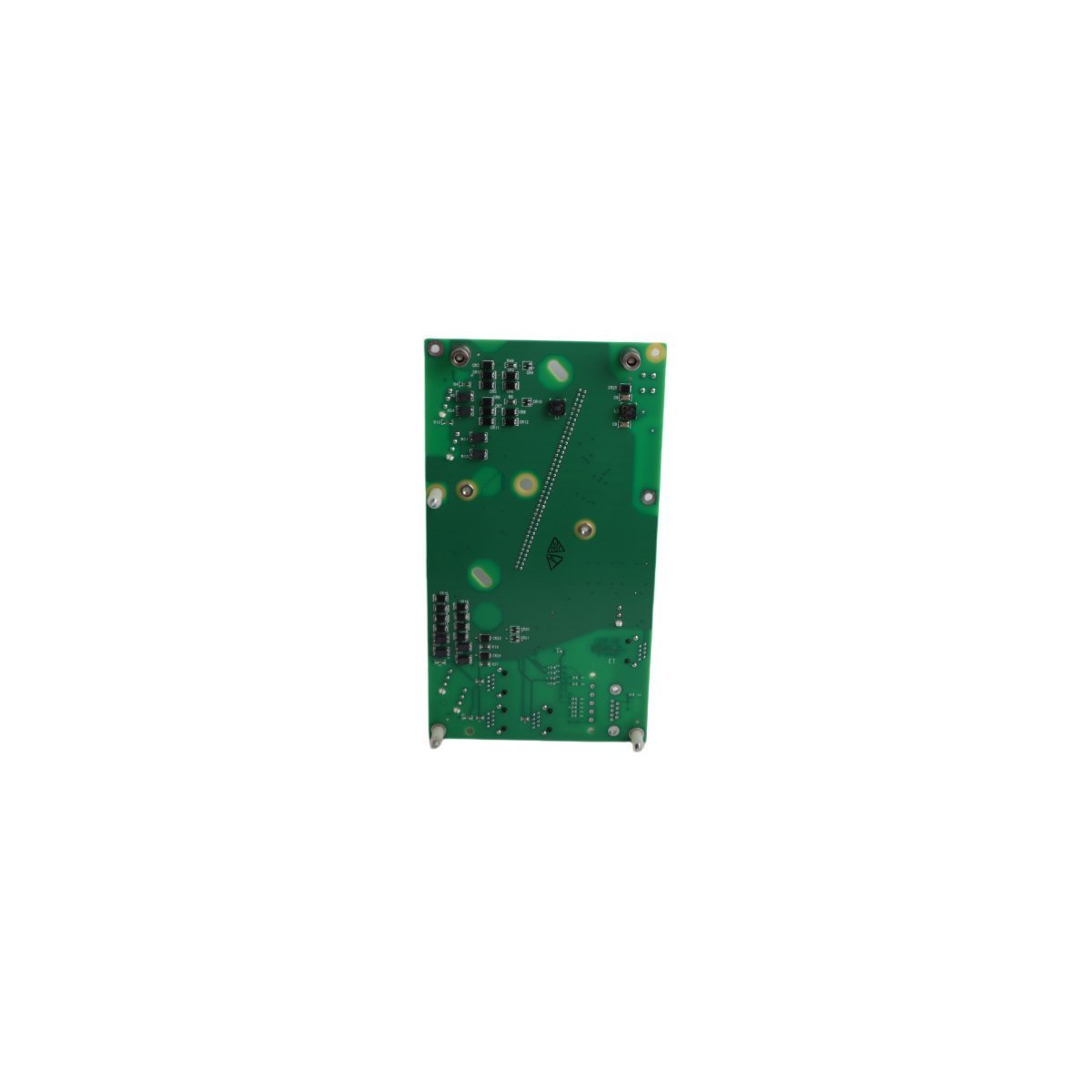

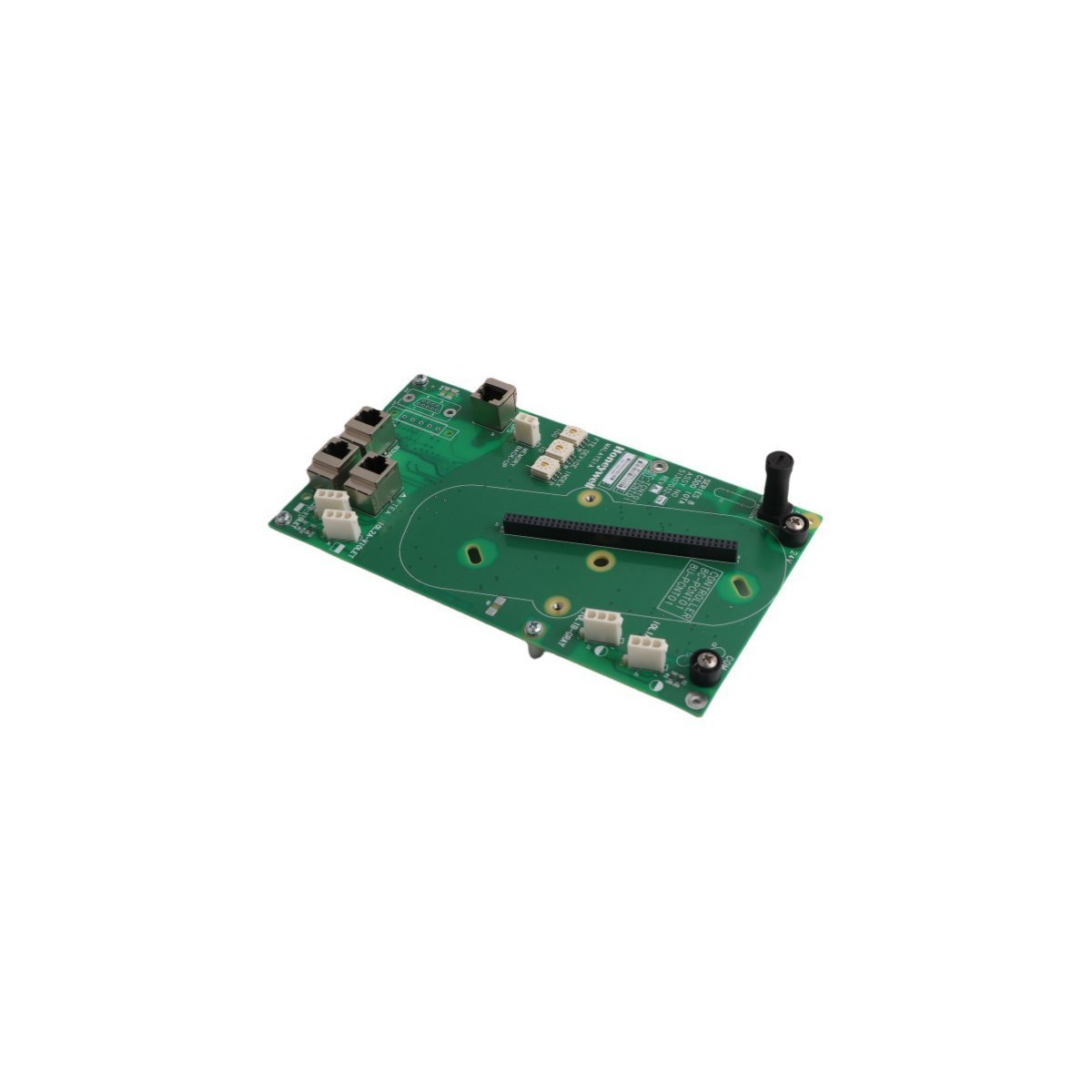

The Honeywell 8C-TCNT01 (also referred to by assembly 8U-TCNT01 and part number 51307032-175) is a high-performance communication and interface module designed specifically for the Experion PKS Series 8 I/O family. This module facilitates the bridge between the C300 controller environment and ControlNet-enabled field devices or remote I/O chassis. Engineered to handle deterministic data exchange, the 8C-TCNT01 ensures that time-critical process information is prioritized across the network. Its primary function is to maintain high-speed connectivity while providing the advanced diagnostic capabilities necessary for modern Distributed Control System (DCS) architectures.

System Specifications and Hardware Parameters

• Model Designation: 8C-TCNT01 / 8U-TCNT01

• Engineering Order Number: 51307032-175

• Module Type: ControlNet Interface / Digital Data Link

• Platform Compatibility: Series 8 I/O for Experion PKS

• Communication Rate: High-speed deterministic data throughput

• Physical Mass: 0.2 kg

• Chassis Footprint: 22cm x 12cm x 5cm

• Redundancy Support: Compatible with redundant media configurations for fault-tolerant operation

• Environmental Rating: Industrial grade for high-ambient temperature cabinets

• Manufacturing Origin: USA

• Status: Active Service Life

Process Industry Deployment Contexts

In Large-Scale Petrochemical Complexes, the 8C-TCNT01 is utilized to link remote I/O islands to the central C300 controllers. By employing ControlNet protocols, this module provides the noise immunity and long-distance transmission capabilities required to manage instrumentation across vast tank farms or distillation units. Its deterministic nature ensures that interlocking signals are processed with zero jitter, which is vital for maintaining plant safety protocols and avoiding nuisance trips.

Within Advanced Power Generation Facilities, this interface module manages the data flow between specialized turbine control subsystems and the main DCS. The 51307032-175 allows for the aggregation of thousands of discrete and analog points into a streamlined digital backbone. The module’s integrated diagnostics allow maintenance technicians to monitor network health in real-time, identifying physical layer issues before they result in a loss of communication.

For Modern Water and Wastewater Treatment, the 8C-TCNT01 facilitates the scalability required for modular plant expansion. Its small form factor and low power consumption make it an ideal choice for localized control enclosures located near pump stations or filtration beds. The ease of integration within the Series 8 framework allows facilities to add new process units without significant downtime, ensuring a reliable foundation for continuous municipal utility operations.
