Product Overview

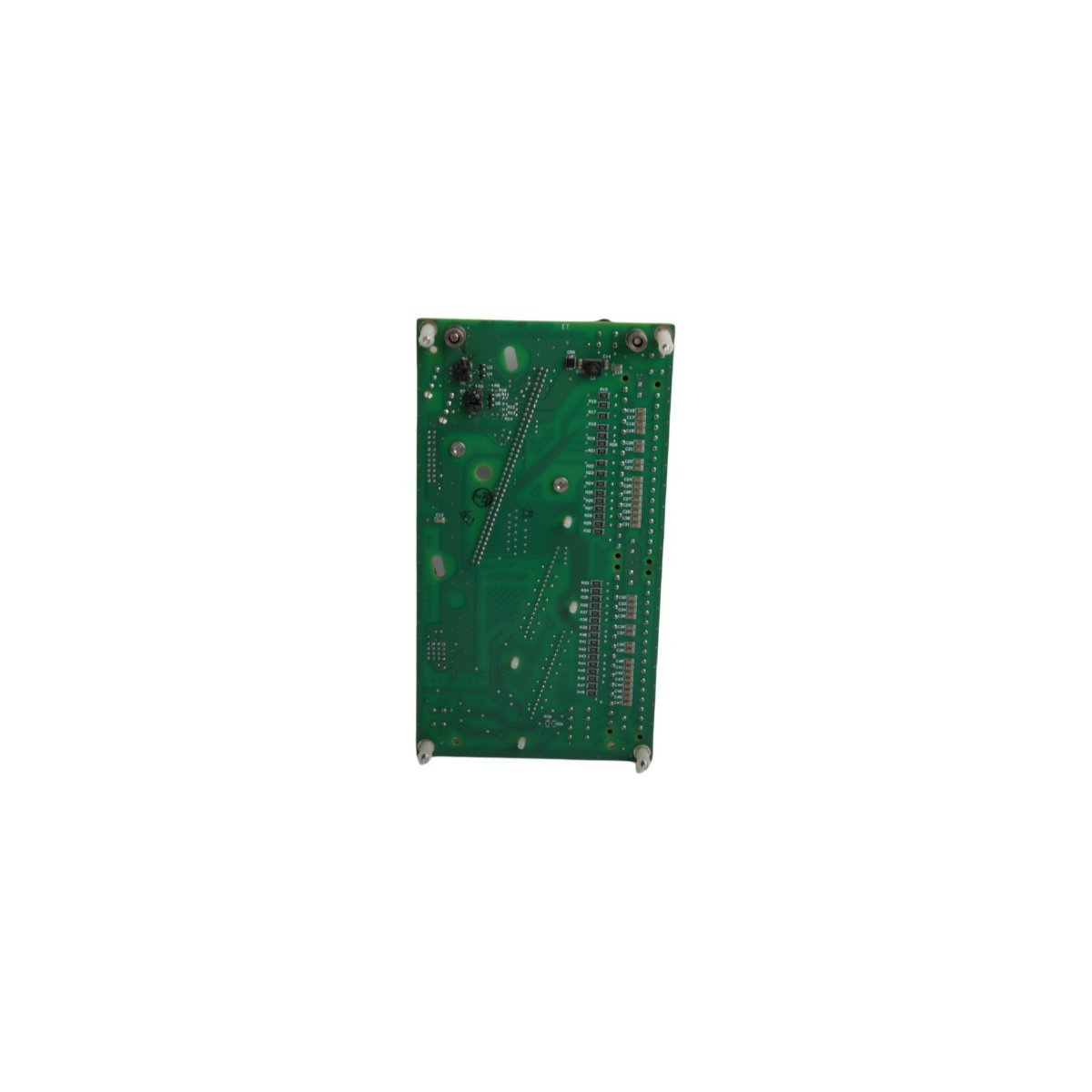

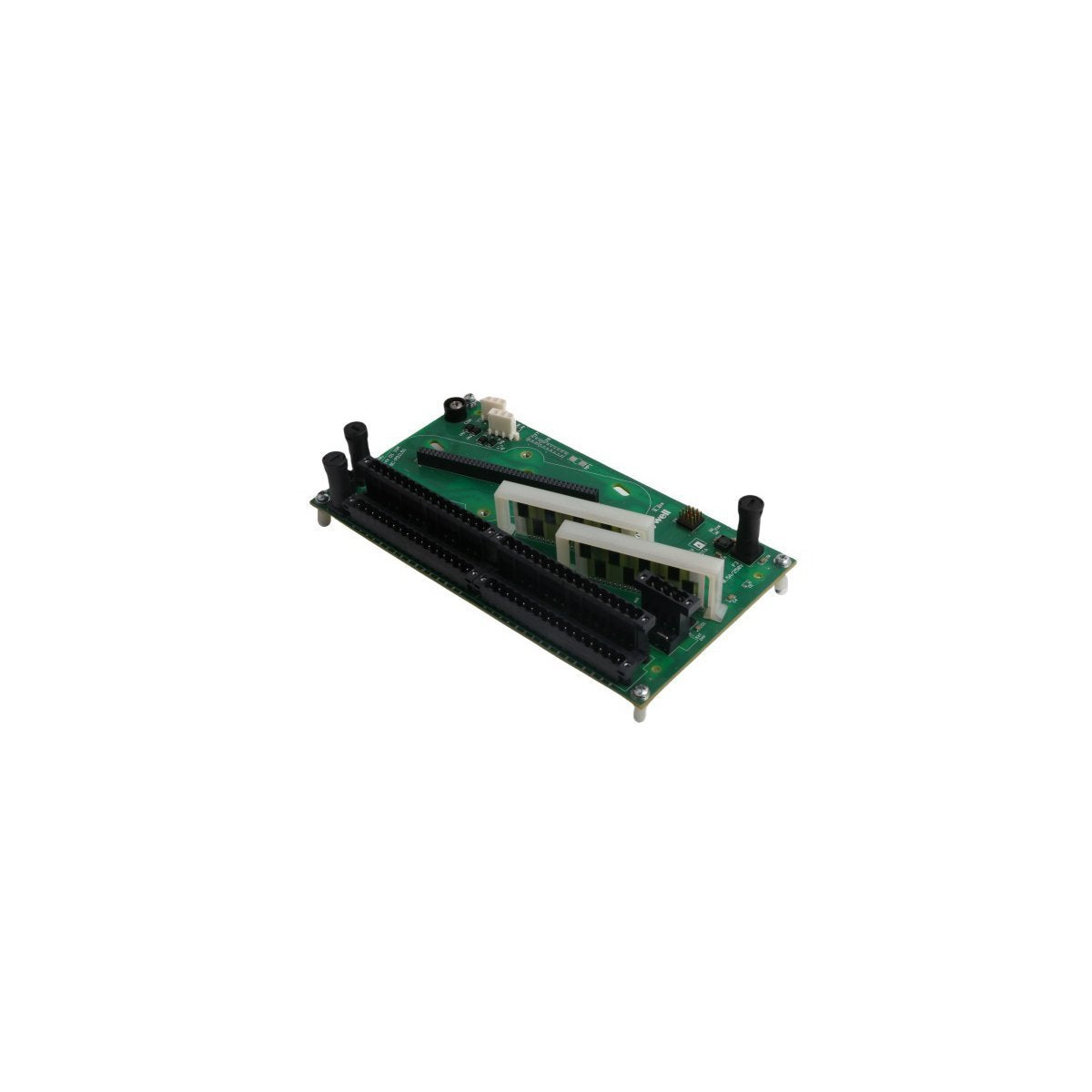

The Honeywell 8C-TDIL51, identified by part number 51306969-175, is a high-density discrete signal interface designed for the Experion PKS Series 8 I/O platform. This module is engineered to provide precise monitoring of low-voltage digital states from field equipment, such as limit switches, pushbuttons, and auxiliary contacts. By utilizing the vertical, non-vented Series 8 form factor, the 8C-TDIL51 maximizes cabinet space while ensuring robust thermal management. It serves as a vital data acquisition point for the C300 controller, converting field-level binary signals into actionable system data. Its architecture is specifically optimized for high-availability environments where consistent signal detection and minimal latency are critical for process interlocking and status monitoring.

Technical Performance and Hardware Logic

The 8C-TDIL51 is built with industrial-grade circuitry to ensure deterministic signal processing and high resistance to electromagnetic interference (EMI) commonly found in dense control rooms.

• Module Functionality: Low-Voltage Digital Input (DI)

• System Ecosystem: Honeywell Experion PKS Series 8

• Input Architecture: High-density 32-channel configuration (standard for this series)

• Signal Voltage: Optimized for 24V DC discrete inputs

• Maintenance Support: Hot-swappable design allowing Removal and Insertion Under Power (RIUP)

• Physical Mounting: Vertical "Series 8" IOTA (Input Output Termination Assembly) compatible

• Diagnostic Transparency: Integrated channel-level status LEDs and system-level fault reporting

• Hardware Mass: 0.26 kg

• Casing Dimensions: 22 x 12 x 5.2 cm

• Production Origin: USA

• International Trade Code: HS 8537101190

Industrial Control Scenarios and Deployments

This Series 8 Digital Input module is a prerequisite for sophisticated automation tasks across the process and manufacturing sectors.

• Process Status Monitoring: Capturing real-time feedback from valve limit switches (open/closed) in large-scale petrochemical manifolds.

• Safety Interlock Integration: Interfacing with discrete safety sensors and emergency stop circuits to provide feedback to the central control logic.

• Motor Control Feedback: Monitoring auxiliary contact states from motor starters and Variable Frequency Drives (VFDs) to confirm operational status.

• Automated Batch Processing: Coordinating sequence-of-operation steps by monitoring discrete sensors on conveyor systems and chemical dosing units.

• DCS Infrastructure Expansion: Providing a scalable solution for adding high-density digital monitoring points to existing Experion PKS cabinets without increasing the physical footprint.
