Product Overview

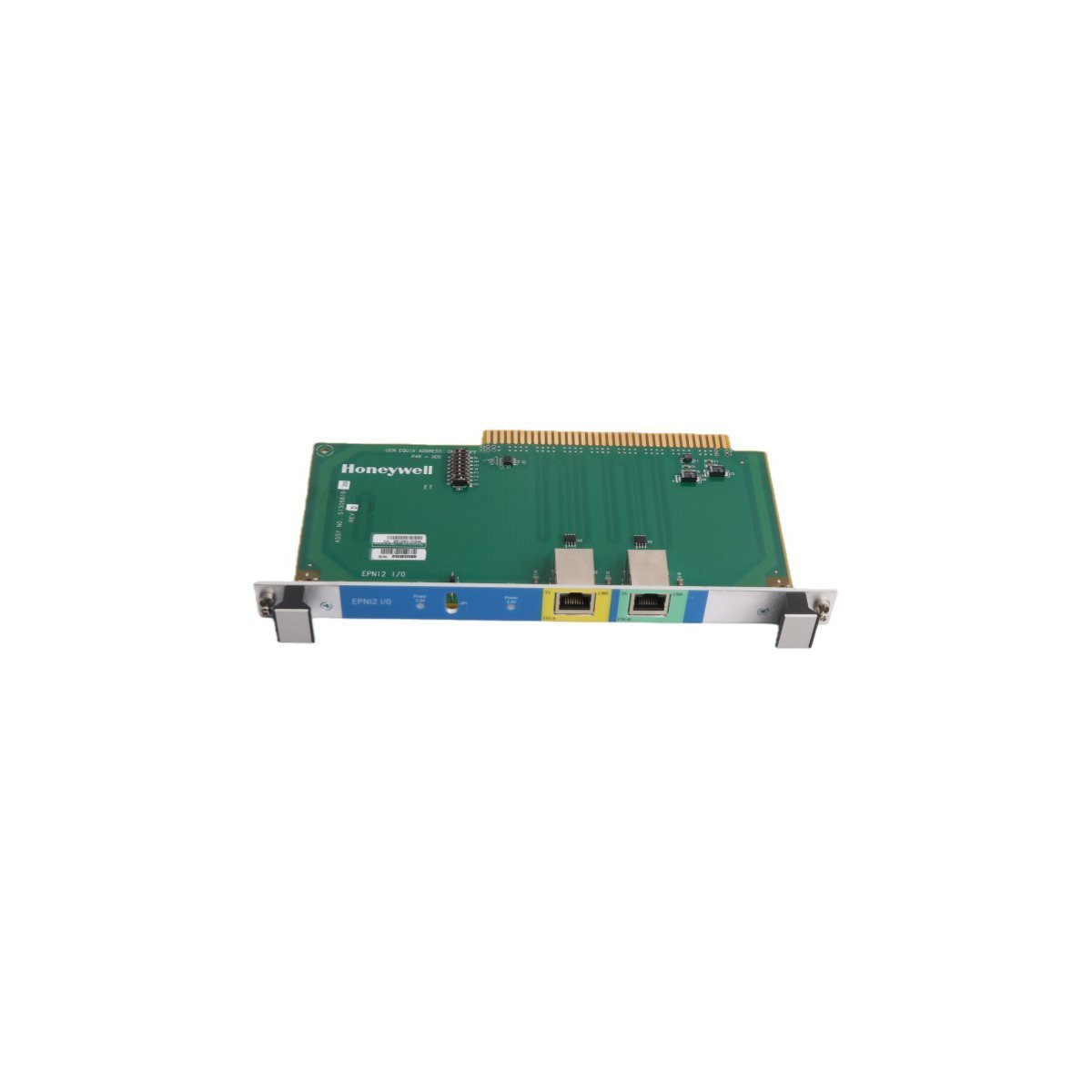

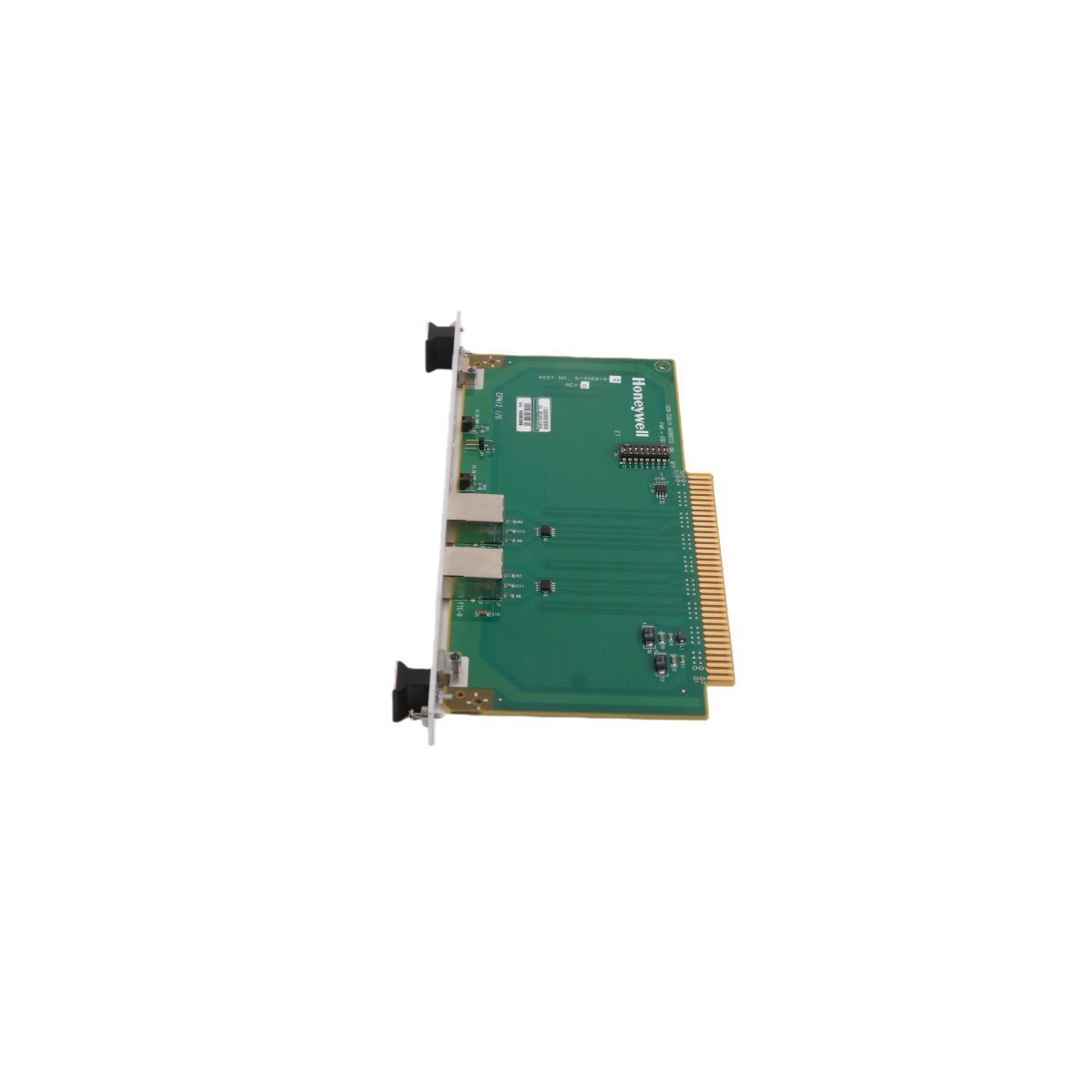

The Honeywell 51306821-100 is a high-performance Modular Control Unit engineered to function as a deterministic EtherCAT coupler within advanced Distributed Control Systems (DCS). This control board acts as the primary architectural link between a centralized processor and remote field I/O, supporting high-density configurations of 16, 32, or 64 points. By utilizing the EtherCAT fieldbus protocol, the 51306821-100 facilitates real-time, high-speed data synchronization, ensuring that command signals and field feedback are processed with minimal latency. Its modular design allows for rapid system expansion and integration, making it a cornerstone for scalable industrial automation frameworks that require precise timing and high data throughput.

Internal Infrastructure and Technical Logic

• Fieldbus Protocol: Optimized for EtherCAT (Deterministic Ethernet)

• Network Interoperability: Support for Modbus and Profibus integration via gateway solutions

• Input Voltage Compatibility: Supports 110V, 220V, and 240V AC industrial standards

• Memory Architecture: Integrated Flash and RAM for parameter storage and real-time processing

• I/O Capacity: Scalable support for 16-point to 64-point I/O module clusters

• Communication Interface: Dual Ethernet ports for daisy-chaining or ring topologies

• Physical Weight: 0.4 kg

• Product Dimensions: 7 x 14 x 14.5 cm

• Manufacturing Origin: USA

• HS Tariff Code: 8537101190

Strategic Industrial Implementations

The 51306821-100 is predominantly utilized in sectors requiring complex synchronized motion or high-speed process monitoring, such as automated automotive assembly, large-scale pharmaceutical manufacturing, and precision chemical processing. Its ability to handle global voltage standards allows for standardized cabinet designs across international facilities. In a typical deployment, this control board serves as the "brain" of a remote I/O rack, gathering digital and analog signals from sensors and transmitters and funneling them back to the main controller through a single high-speed cable. This reduces wiring complexity significantly while the built-in diagnostic capabilities ensure that any communication fault is identified immediately, preserving operational continuity in critical 24/7 manufacturing environments.

FAQ

Q: What is the primary function of the EtherCAT coupler in this module?

A: The 51306821-100 translates the high-level commands from the controller into localized signals for the I/O modules, ensuring that all connected points are updated simultaneously within a microsecond timeframe.

Q: Can this control unit operate on standard European 230V power?

A: Yes, the module is engineered with universal industrial voltage support, safely operating on 110V, 220V, and 240V AC power supplies commonly found in various global regions.

Q: Is the 51306821-100 compatible with third-party PLCs?

A: While natively designed for Honeywell systems, its reliance on the standard EtherCAT protocol allows it to be integrated into multi-vendor environments that support EtherCAT masters or via gateways for Profibus/Modbus networks.

Q: Does this module store its own configuration locally?

A: Yes, the integrated Flash memory stores the device parameters and I/O mapping, which allows the module to resume operation quickly after a power cycle without needing a full reconfiguration from the host.

Q: How many I/O modules can be attached to a single 51306821-100?

A: Depending on the specific system power budget and addressing limits, it can manage multiple I/O cards in various configurations, typically supporting a total point count ranging from 16 to 64 per node.
