Product Overview

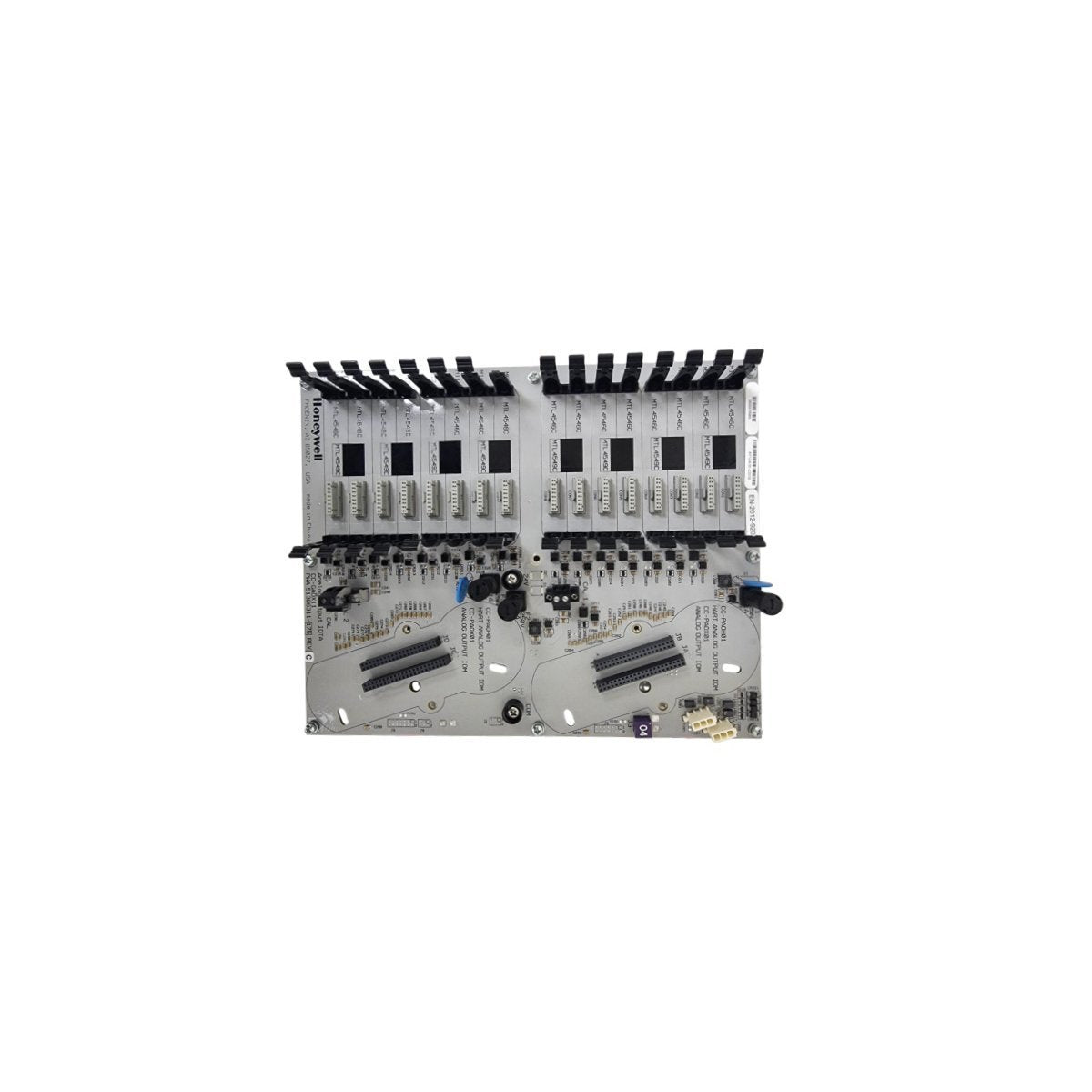

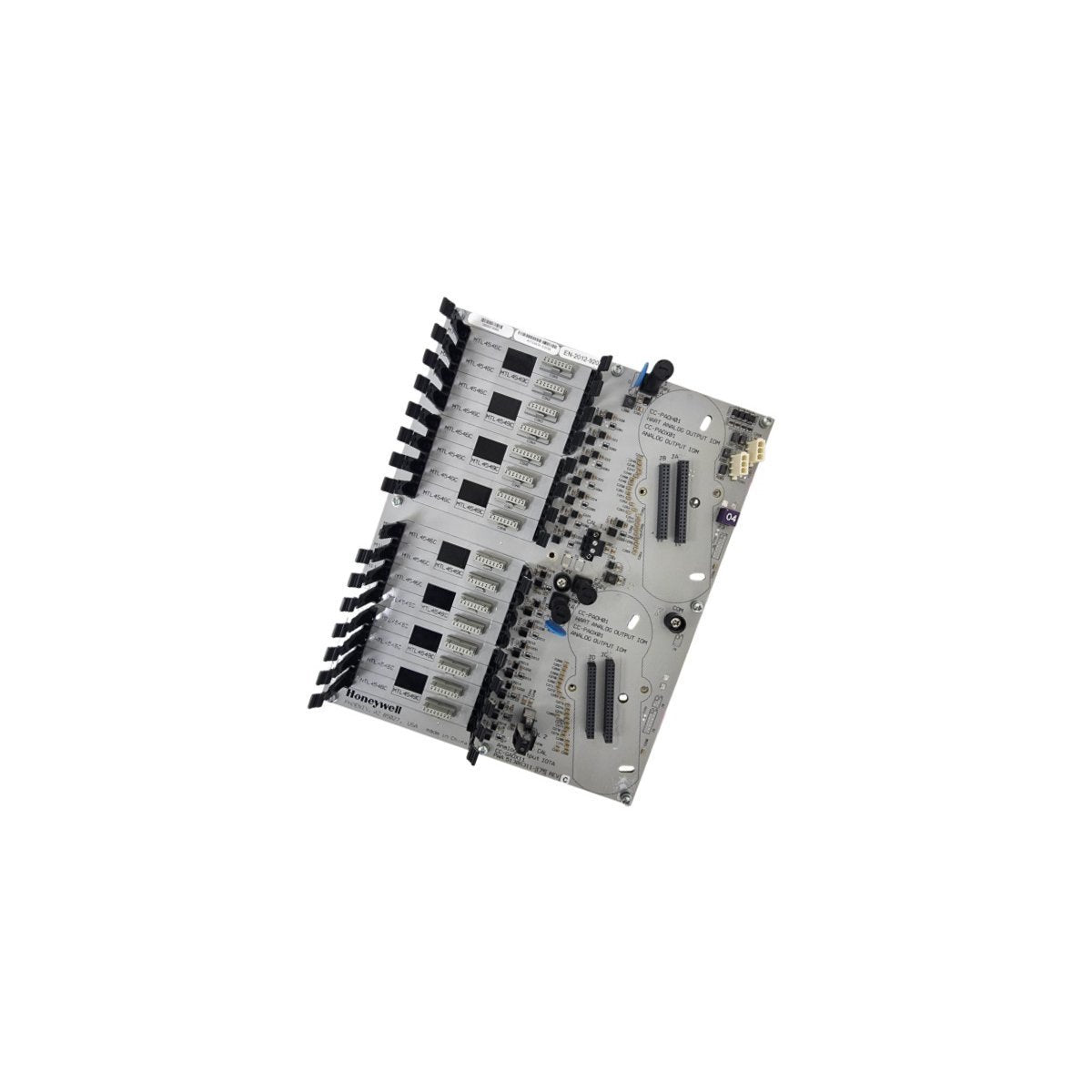

The Honeywell CC-GAOX11 (Part Number 51306311-175) is a high-integrity Analog Output interface designed for the Experion PKS Series C hardware platform. This specialized Input Output Termination Assembly (IOTA) is engineered with Galvanic Isolation (GI) and Intrinsic Safety (IS) considerations, providing a secure pathway for 4-20 mA control signals to enter hazardous field areas. By bridging the gap between the C300 controller and final control elements like actuators and positioners, the CC-GAOX11 ensures that process adjustments are executed with laboratory-grade precision. Its design focuses on protecting the central control logic from field-side electrical faults while maintaining a stable, constant current output essential for modulating critical industrial loops.

Technical Performance Data and Diagnostic Architecture

The CC-GAOX11 51306311-175 is characterized by its sophisticated hardware logic and safety-centric parameters:

• Model Number: CC-GAOX11

• Engineering Part Number: 51306311-175

• Output Standard: High-level 4-20 mA constant current

• Safety Integration: GI/IS (Galvanically Isolated / Intrinsically Safe) compatible

• Fault Management: Per-channel FAILOPT parameter (Hold Last Value or Safe State)

• Feedback Logic: Integrated output read-back for real-time signal verification

• Redundancy: Supports optional redundant configurations for maximum availability

• Hazardous Area Rating: Non-incendive output design for volatile environments

• Physical Mass: 0.4 kg

• Dimensions: 7 x 14 x 14.5 cm

• System Environment: Native Experion PKS Series C / C300 Controllers

• Manufacturing Origin: USA

Industrial Utility and Control Scenarios

In Hydrocarbon Extraction and Petrochemical Refining, the CC-GAOX11 is a critical component for controlling pneumatic valves and variable speed drives located in Zone 1 or Zone 2 hazardous areas. The module’s FAILOPT parameter is particularly vital here, allowing engineers to determine exactly how a valve should behave—whether to stay put or shut down—during a communication loss. This granular control prevents pressure surges and protects expensive equipment from damage during system-wide anomalies.

Within Chemical Processing and Batch Production, this analog output IOTA facilitates the precise dosing of volatile chemicals. The integrated read-back function serves as a secondary check, alerting operators immediately if the actual current sent to the field differs from the commanded value. This ensures that the proportional control of reagents remains accurate, directly impacting batch quality and reducing waste while the galvanic isolation keeps the DCS backplane safe from any electrical transients generated by heavy field machinery.

For Large-Scale Power Utilities and Steam Management, the CC-GAOX11 provides the dependable signal stability required for governor and steam bypass control. Its ability to be configured in a redundant pair means that a single module failure will not result in a loss of control, a necessity for baseload power plants where a trip can affect grid stability. By leveraging the advanced self-diagnostics of the 51306311-175, maintenance teams can identify degrading loop health before a failure occurs, shifting the facility toward a more efficient predictive maintenance model.
