Product Overview

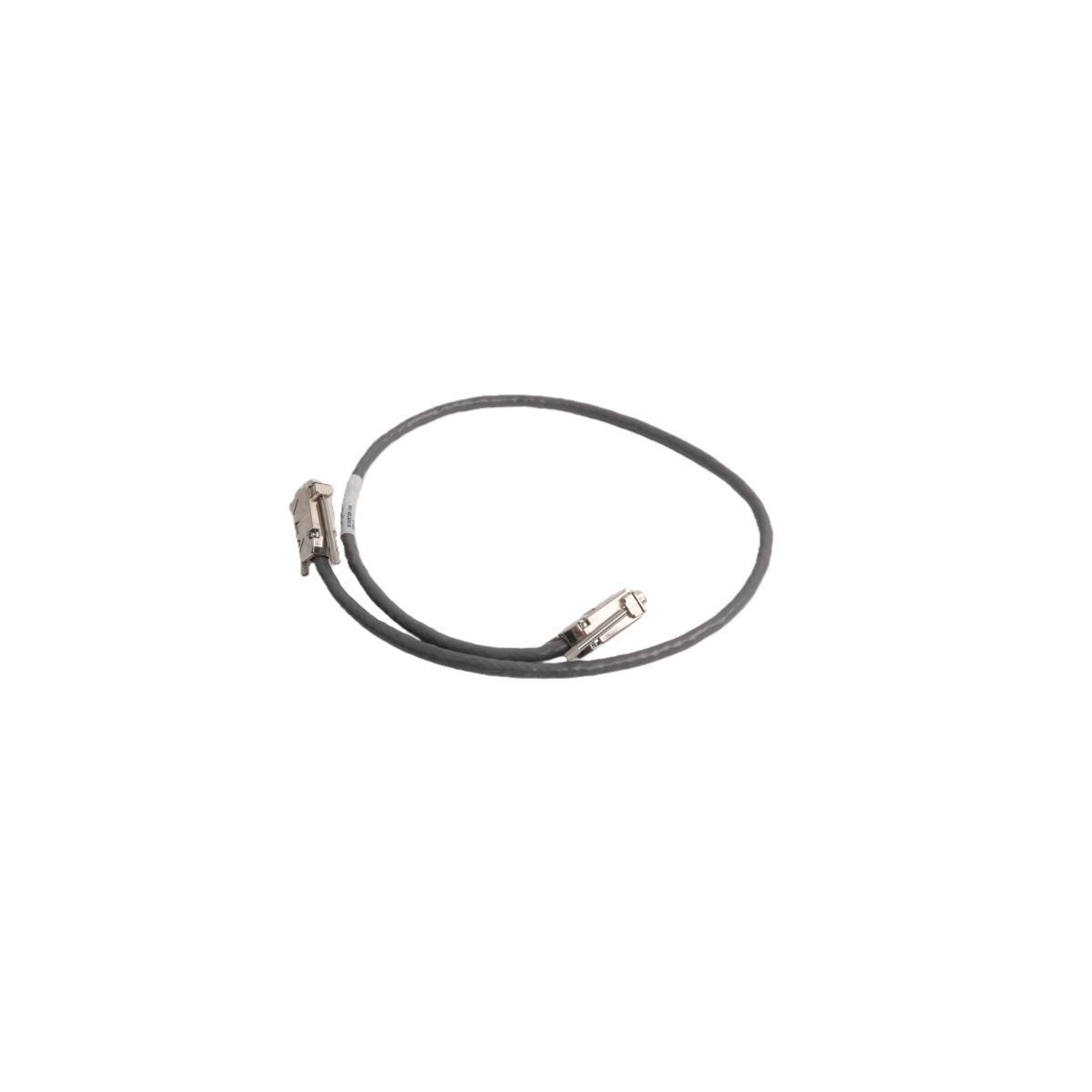

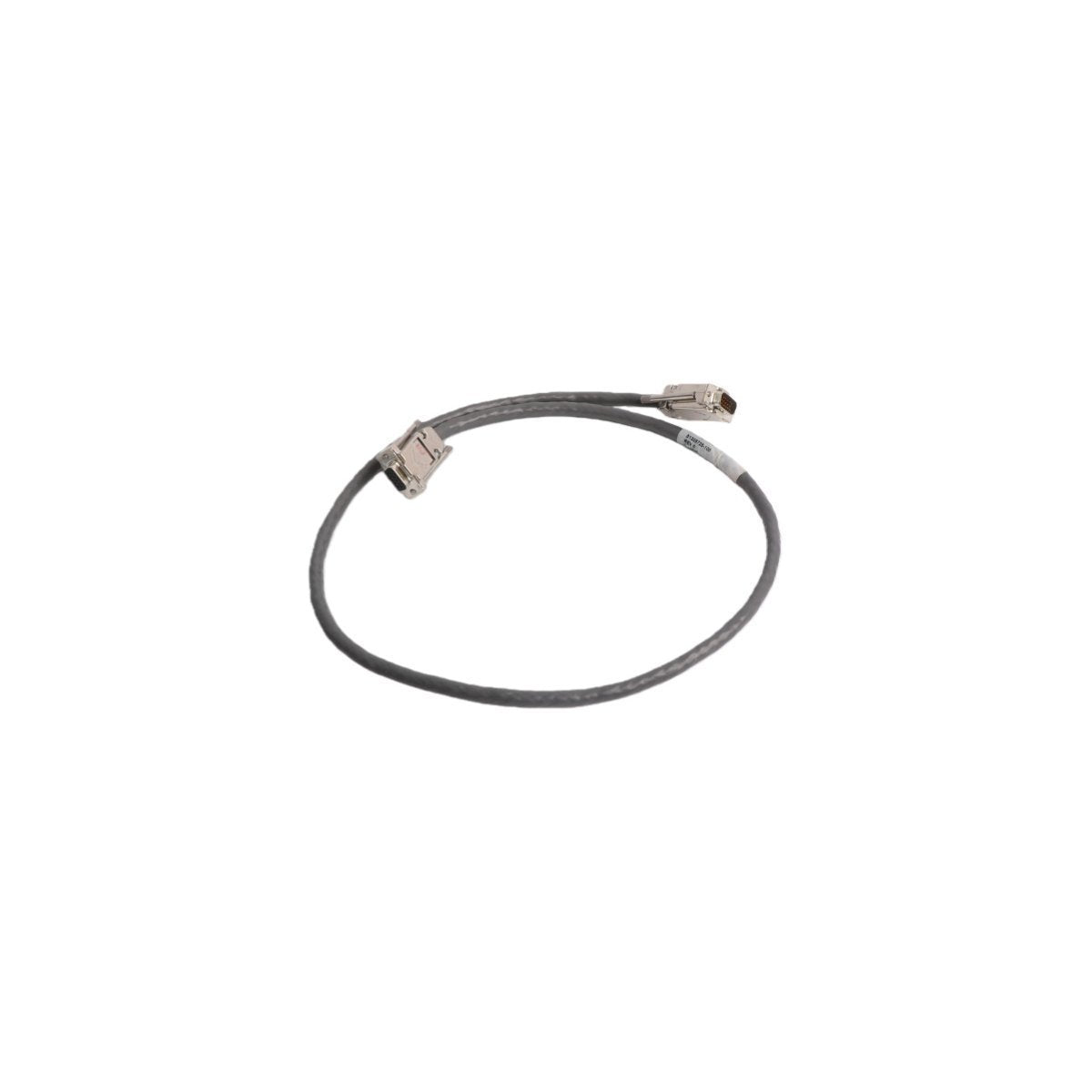

The Honeywell 51305725-100 is a multifunctional Power Cable and Digital I/O interface engineered for the Measurex and series-compatible Distributed Control Systems (DCS). This high-density component facilitates critical signal processing, providing a 32-channel interface (16 inputs and 16 outputs) within a streamlined, space-saving form factor. Designed to bridge the gap between field-level sensors and supervisory control networks, the 51305725-100 ensures high-fidelity data exchange and energy-efficient power distribution. Its robust architecture is specifically tailored for the high-vibration and electrically noisy environments typical of industrial manufacturing and process plants.

Engineering Specifications and Hardware Constants

• Model Identification 51305725-100

• Channel Density 32 Points Total (16 Digital In / 16 Digital Out)

• Supply Voltage 24V DC Optimized

• Current Draw 25mA per channel (Low-power consumption)

• Communication Protocol Modbus RTU Native Support

• Thermal Operating Range -20°C to +60°C

• Protection Rating IP20 Enclosure Compatibility

• Physical Mass 0.15kg (Net) / 0.4kg (Shipping weight)

• Chassis Dimensions 17cm x 10cm x 3cm

• Manufacturing Origin USA

System Deployment and Strategic Applications

The 51305725-100 serves as a versatile connectivity solution for plant-wide automation where reliable signal isolation and compact mounting are prioritized. Its integration of power and data capabilities simplifies complex wiring layouts in high-density control cabinets.

• DCS Infrastructure Expansion Providing secondary I/O points for existing Honeywell Measurex systems without requiring an increased footprint.

• HVAC and Building Management Managing digital logic for dampers, fans, and status sensors via Modbus RTU networking.

• Process Automation Controlling localized actuators and solenoid valves while providing real-time feedback to the central controller.

• Energy-Efficient Monitoring Utilizing its low current draw to maintain long-term operational stability in remote or solar-powered telemetry stations.
