Product Overview

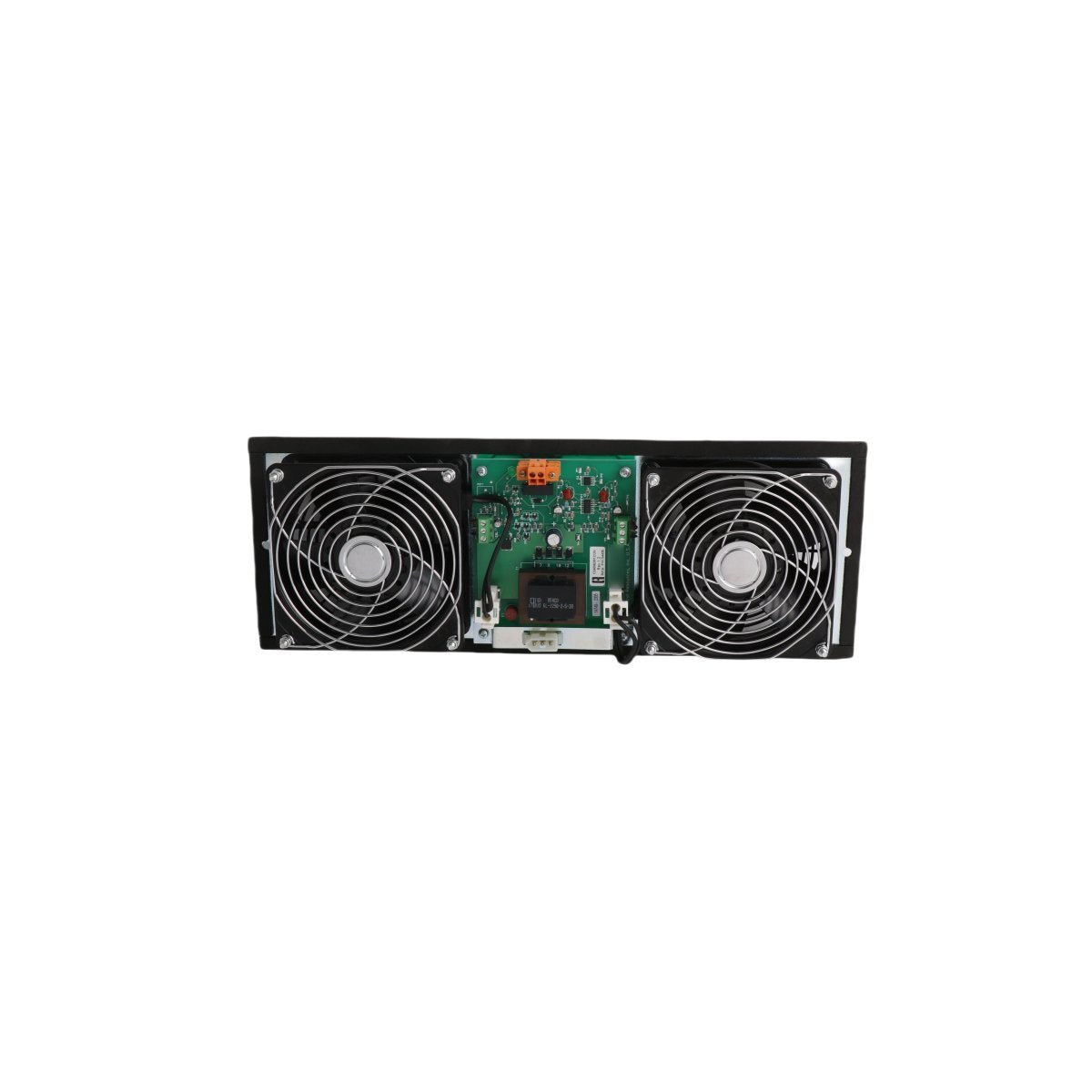

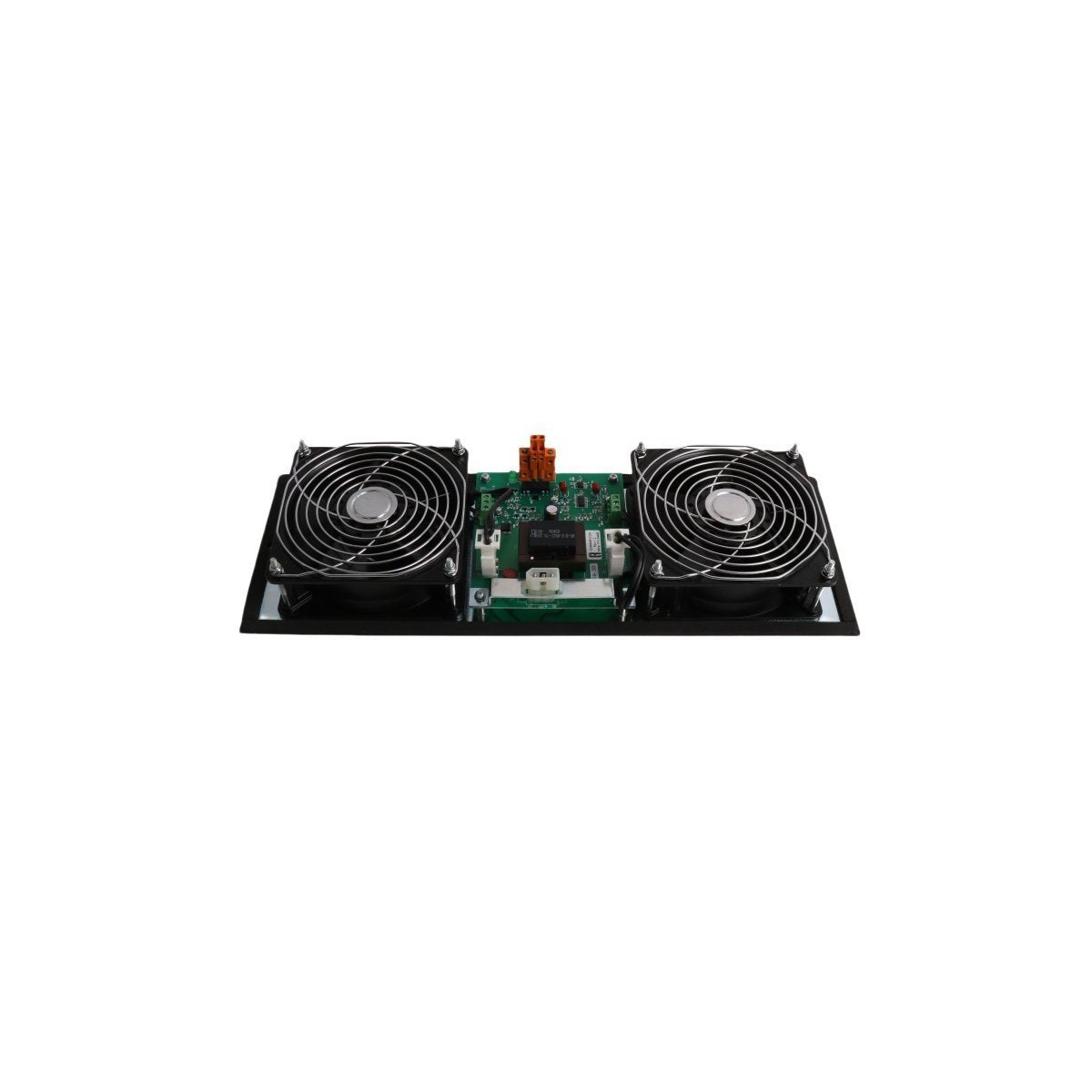

The Honeywell 51303940-250 is a heavy-duty cabinet ventilation unit specifically designed for the C300 controller and TDC 3000 Series hardware environments. This assembly is a critical environmental safeguard, engineered to mitigate the high thermal loads generated by densely packed DCS processors, power modules, and I/O racks. By ensuring continuous forced-air circulation, the 51303940-250 prevents localized hotspots that could otherwise lead to processor throttling, component degradation, or unscheduled system trips. A standout feature of this model is its integrated alarm circuit, which provides immediate feedback to the control network if fan rotation speeds drop below safety thresholds, allowing maintenance teams to intervene before thermal limits are breached.

Thermal Management and Hardware Parameters

This fan assembly is built for 24/7 industrial duty cycles, featuring a robust frame and high-MTBF (Mean Time Between Failure) components.

• Cooling Mechanism: High-velocity axial flow for optimized cabinet heat dissipation.

• Safety Integration: Onboard alarm sensor for fan-fail detection and remote alerting.

• System Compatibility: Engineered for Honeywell C300 and TDC 3000 Series enclosures.

• Reliability Logic: Designed to interface with the DCS monitoring system for proactive thermal management.

• Build Quality: Industrial-grade bearing system for extended service life in dusty or high-vibration environments.

• Net Weight: 1.88 kg

• Chassis Dimensions: 39 cm x 14.2 cm x 5.5 cm

• Origin of Manufacture: USA

• Classification: HS Code 8537101190

Industrial Environmental Applications

The 51303940-250 is an essential infrastructure component in sectors where control system stability is directly dependent on environmental control.

• DCS Cabinet Protection: Maintaining the internal temperature of Series C and TDC 3000 cabinets in unconditioned field equipment rooms (FER).

• Power Supply Cooling: Providing dedicated airflow to high-output power modules that generate significant thermal exhaust during peak load operations.

• High-Density Processor Racks: Ensuring the C300 controller operates within its peak efficiency envelope by preventing heat buildup in multi-node clusters.

• Predictive Maintenance Frameworks: Utilizing the integrated alarm contact to trigger work orders for fan replacement before a total cooling failure occurs.

• Refinery and Chemical Plant Safety: Protecting mission-critical safety managers and control logic from thermal stress-induced malfunctions.
