Product Overview

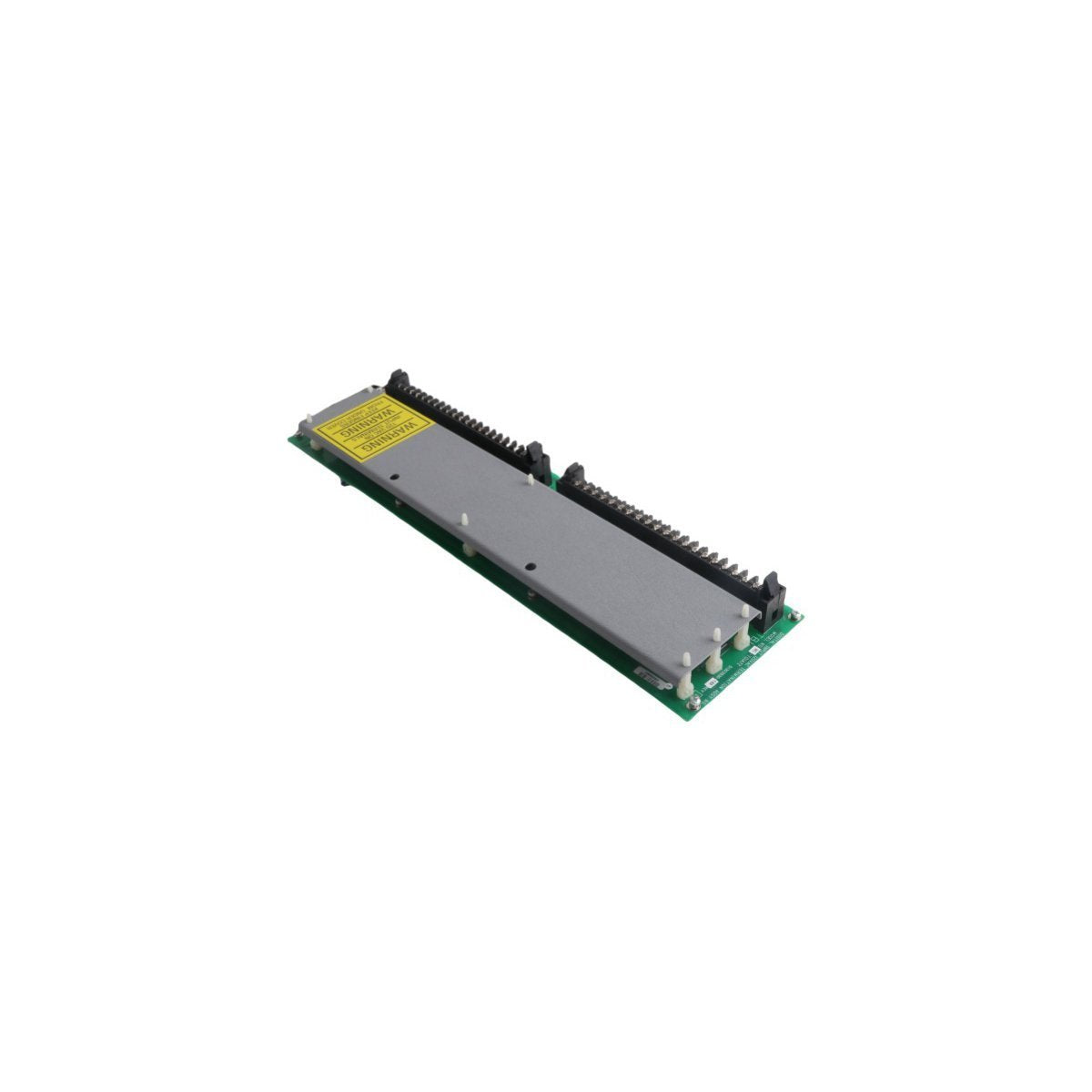

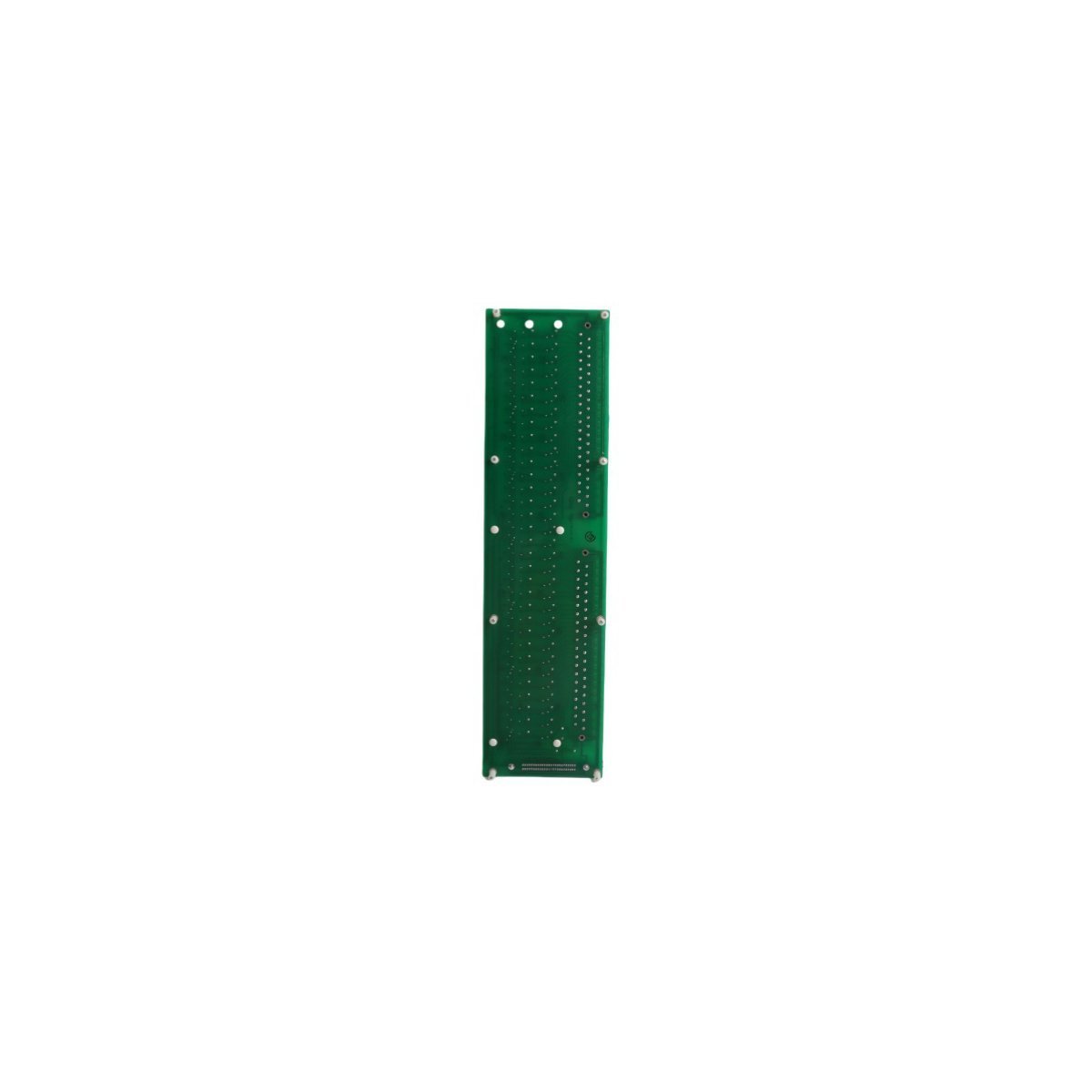

The Honeywell MC-TDIA72, cataloged under part number 51303932-150, is a high-density Digital Input (DI) termination board designed for the TDC 3000 and Experion PKS control environments. As a primary interface within the MU-T series, this Field Termination Assembly (FTA) manages the physical connection between field-side discrete devices—such as limit switches, pushbuttons, and relay contacts—and the system's I/O processors. The MC-TDIA72 is engineered to maintain signal purity across multiple channels, providing the electrical isolation and impedance matching required to protect sensitive DCS logic from the harsh electromagnetic conditions of the plant floor.

Component Architecture & Technical Data

• Module Designation: MC-TDIA72

• Engineering Order Number: 51303930-150

• Function: Digital Input Field Termination Assembly (FTA)

• Channel Support: 32-Channel discrete input processing

• Input Current: Rated for up to 10mA per channel

• Signal Integrity: High-resistance circuitry to minimize voltage drop and signal attenuation

• Mounting Infrastructure: Standard panel-mount footprint for simplified cabinet integration

• Physical Profile: 46.1cm x 12cm x 5.5cm

• Mass: 0.82 kg

• Product Origin: United States (USA)

• Compatibility: Native integration with High-Performance Process Manager (HPM) and APM systems

Strategic Industrial Implementations

In Automated Material Handling, the MC-TDIA72 serves as the primary data junction for conveyor position sensors and safety gate interlocks. Its high-resistance inputs ensure that even in long cable runs across large facilities, the status of a switch is transmitted accurately to the control logic without susceptibility to parasitic noise. This reliability is vital for maintaining the high-speed synchronization required in modern logistics and bottling plants.

Within Hazardous Area Monitoring, this termination board aggregates status signals from flame detectors and gas sniffer relays. The 51303930-150 is designed to operate continuously in the thermally fluctuating environments of remote instrument enclosures. Its high-density 32-channel configuration allows for a significant reduction in cabinet space, enabling engineers to consolidate complex safety interlocking signals into a centralized, easy-to-maintain termination point.

For Power Plant Auxiliary Control, the MC-TDIA72 manages the discrete feedback from motor starters and circuit breaker auxiliary contacts. The board's robust physical design and reliable terminal block connections ensure that vibration from heavy rotating machinery does not lead to intermittent signal loss. By providing a stable electrical interface for critical "run/trip" status data, the module helps prevent false alarms and ensures the DCS can execute sequence-of-events recording with high temporal precision.
