Product Overview

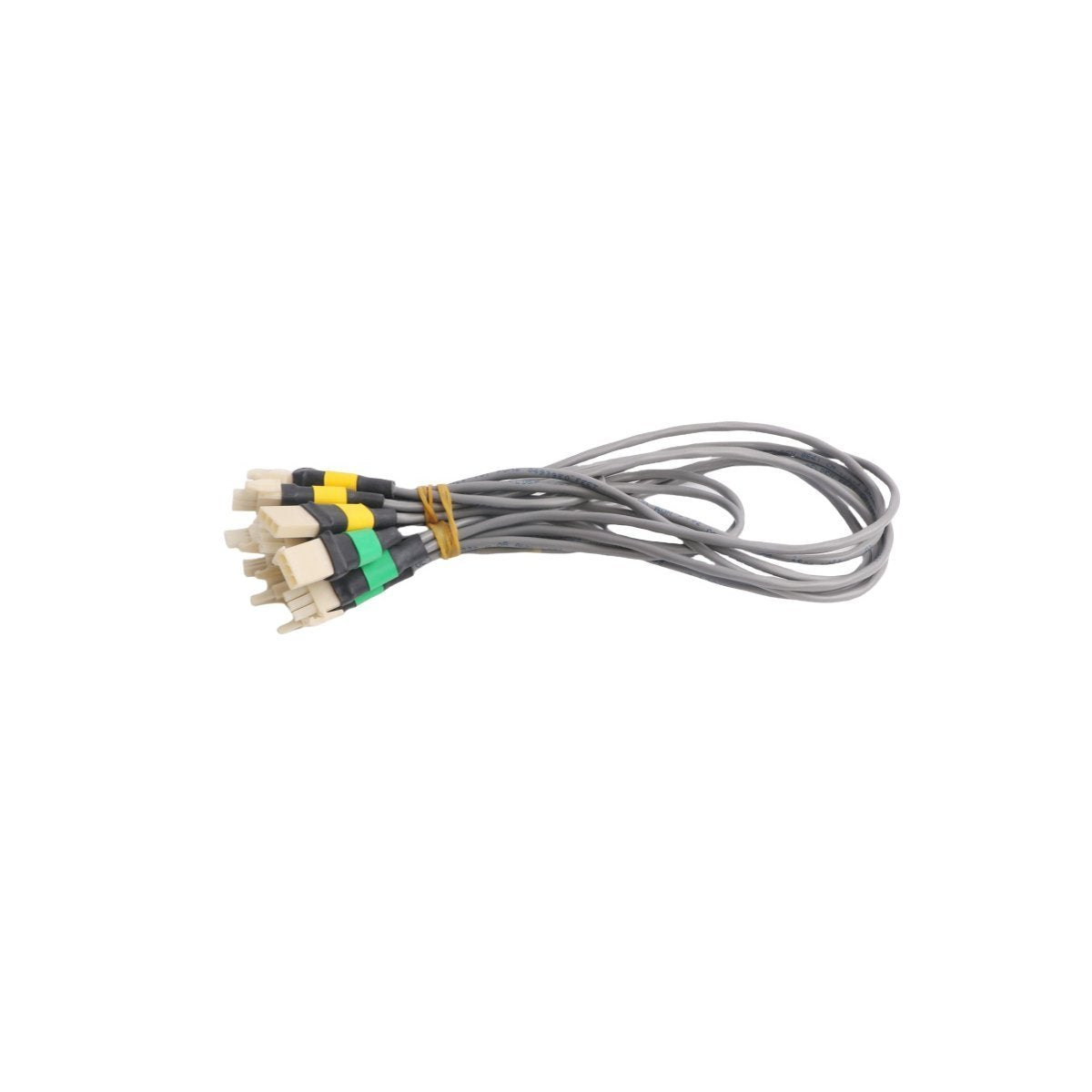

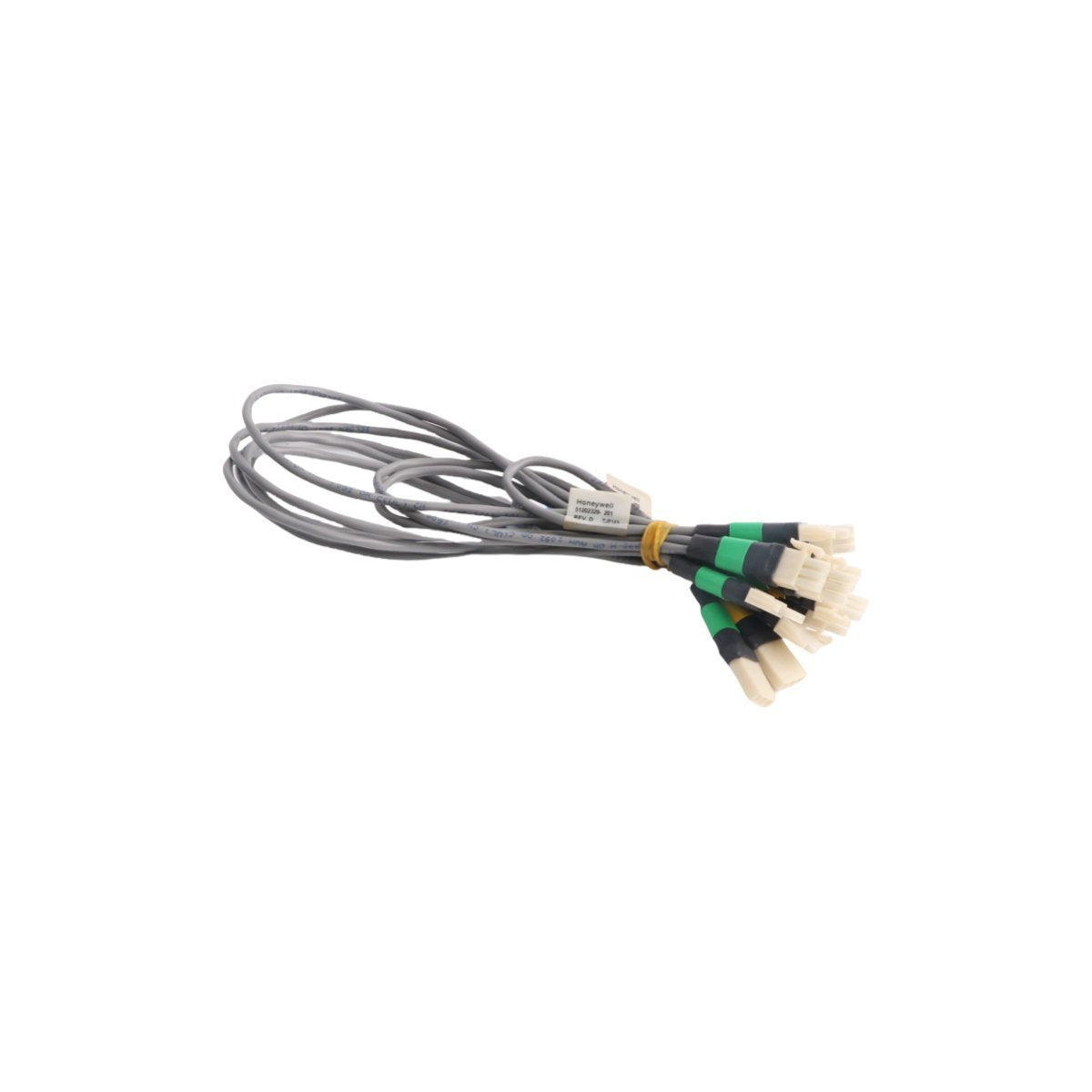

The Honeywell 51202329-202 is a high-reliability I/O Link Cable Pair specifically engineered for the Experion Process Knowledge System (PKS) and TDC 3000 architectures. As a critical data transmission component, this cable pair provides the redundant physical path required for communication between High-Performance Process Managers (HPM), C300 controllers, and their associated I/O modules. Unlike standard commercial cabling, the 51202329-202 is built with industrial-grade shielding to mitigate electromagnetic interference (EMI) and signal crosstalk, ensuring deterministic data flow in electrically noisy plant environments. By maintaining a stable link between the control room intelligence and field-side hardware, these cables are essential for preventing signal latency and ensuring the high availability of critical process control loops.

Hardware Interface and Connectivity Specifications

• Component Category Redundant I/O Link Cable Pair

• Model Designation 51202329-202

• System Environment Honeywell Experion PKS / TDC 3000 / HPM

• Configuration Supplied as a matched pair (Link A and Link B) for redundancy

• Signal Integrity High-performance shielding for EMI/RFI resistance

• Connector Type Specialized Honeywell DCS system connectors

• Data Transmission Supports deterministic I/O Link communication protocols

• Total Mass 0.14kg

• Physical Proportions 28.5cm x 10cm x 6cm

• Manufacturing Origin USA

• Tariff Code (HS) 8537101190

Industrial Deployment and System Utility

The 51202329-202 is a staple in mission-critical Distributed Control System (DCS) installations within the oil and gas, chemical processing, and power generation sectors. It is primarily deployed to connect I/O Link Interface cards to the I/O blocks or to daisy-chain multiple I/O racks together. The "Pair" configuration is specifically intended to support the Honeywell redundancy philosophy, allowing the system to automatically switch communication paths without data loss in the event of a physical cable failure. This 0.14kg cable set is designed for long-term installation in standard system cabinets and marshaling panels, where it withstands continuous operational thermal stress. By ensuring a low-latency, high-integrity connection, the 51202329-202 prevents communication timeouts and unplanned system trips, directly contributing to the overall uptime and safety of the automation infrastructure.

FAQ

Q: Why is the 51202329-202 sold as a "Pair" rather than a single cable?

A: Honeywell’s High-Performance Process Manager and C300 architectures utilize two parallel communication paths (Link A and Link B). Replacing these cables as a matched pair ensures consistent impedance and signal timing across both redundant channels.

Q: Is this cable compatible with both legacy TDC 3000 and newer Experion PKS systems?

A: Yes, the I/O Link physical layer is standardized across several Honeywell DCS generations that utilize the HPM or I/O Link Interface hardware, making this cable pair a versatile spare for both modern and legacy sites.

Q: Does the 0.14kg weight include both cables in the set?

A: Yes, the 0.14kg weight reflects the combined mass of the cable pair, reflecting its lightweight yet durable industrial construction.

Q: How often should I/O Link cables be inspected for replacement?

A: While these cables are designed for the life of the system, they should be inspected during routine maintenance for signs of physical wear, connector corrosion, or tight bend radii that could compromise signal integrity over time.

Q: Can I use standard aftermarket cables instead of the 51202329-202?

A: It is not recommended. Honeywell I/O Link cables are engineered with specific shielding and impedance characteristics. Using non-standard cabling can introduce intermittent communication errors or "Link Down" alarms in the DCS.
